Access Cover: Service and Repair

ENGINE ROOM COVER

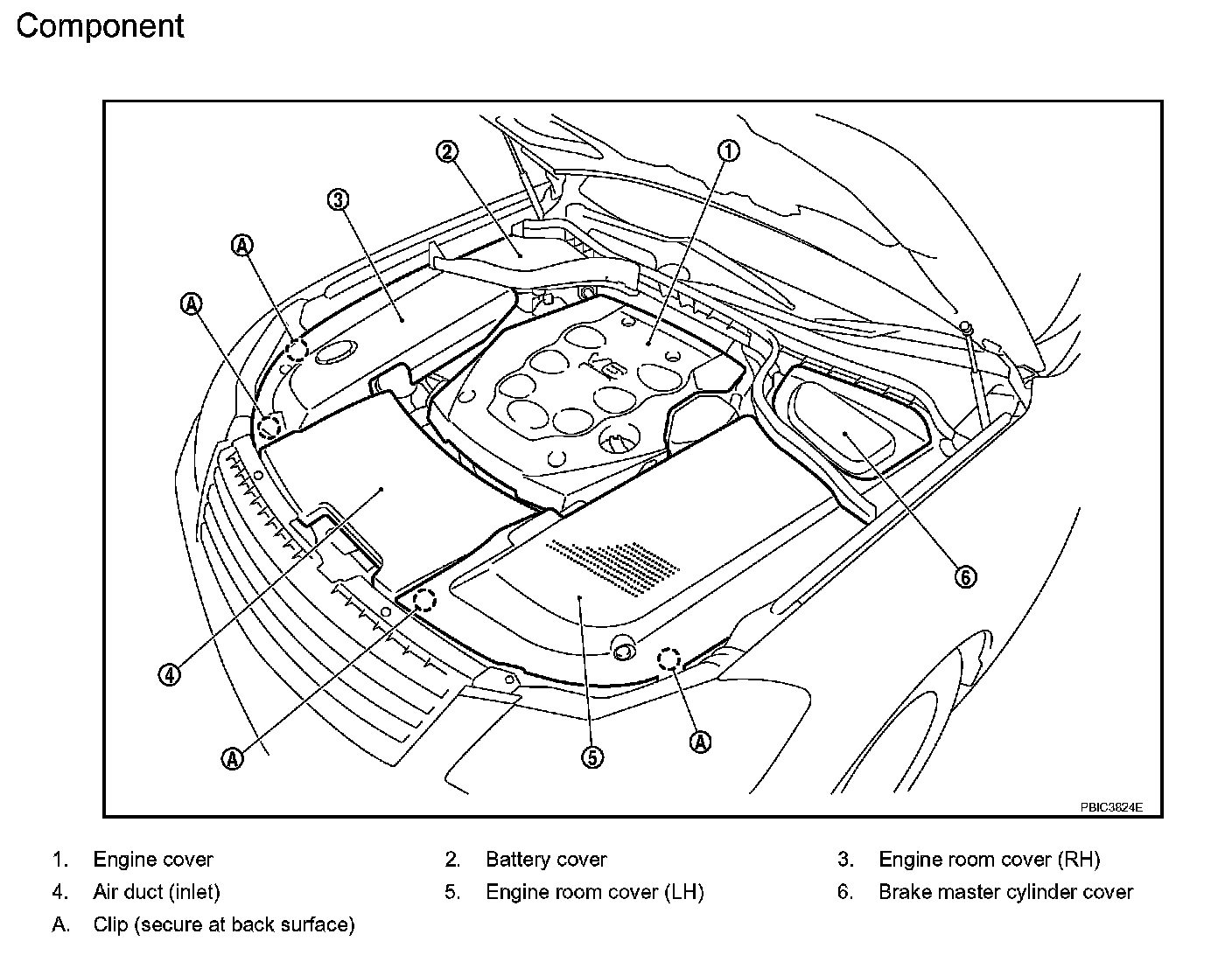

EM-13 Component:

Removal and Installation

REMOVAL

CAUTION: Never damage or scratch cover when installing or removing.

^ Refer to for removal and installation of engine cover. Intake Manifold Collector
^ Refer to for removal and installation of air duct (inlet). Service and Repair
^ Remove the washer tank cap before removing the engine room cover (RH).
^ Remove the engine room covers (RH and LH) by lifting the clipped point using a clip driver.
^ Major parts and inspection points under each cover are as follows: (numbered as in figure)

1. Upper side of engine assembly
2. Battery, relay box
3. Power steering fluid reservoir tank, engine coolant reservoir tank, relay box
4. Engine assembly front side, drive belts, cooling fan
5. Mass air flow sensor, air cleaner case
6. Brake master cylinder, brake booster

INSTALLATION
Installation is the reverse order of removal.
