Seat Back Intake Filter: Service and Repair

CLIMATE CONTROLLED SEAT

Blower Filter Replacement

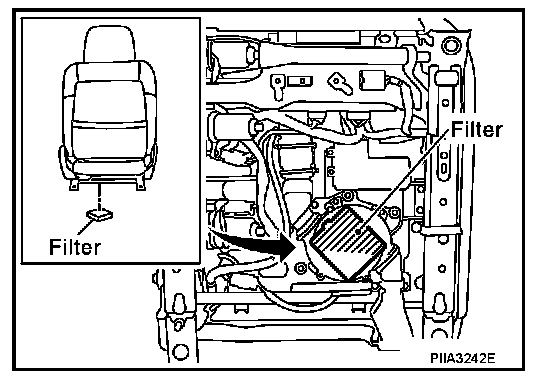

Put your hand behind front seat cushion, pull filter downward and remove it. Replace filter with a new one.

NOTE:
- When replacing, be sure to set the front/rear driver seat lifter to the top position.
- When installing, do not confuse up-down direction of the filter.
