Air Filter Element: Service and Repair

Changing Air Cleaner Filter

REMOVAL
1. Remove engine room cover (LH).

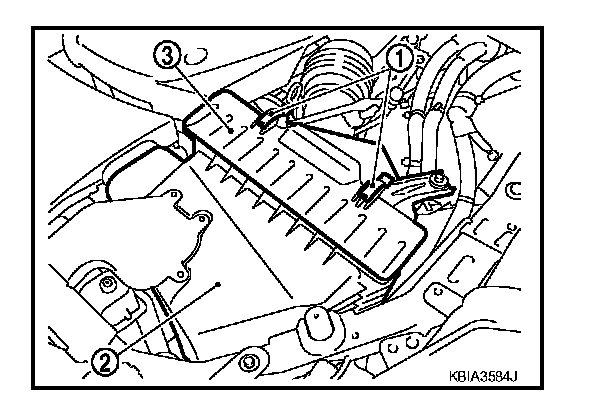

2. Unhook clips (1).
2: Air cleaner case
3: Holder

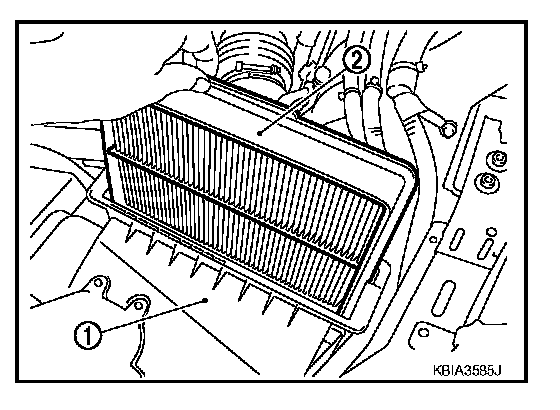

3. Remove air cleaner case and air cleaner filter assembly (2) from air cleaner case (1).

INSTALLATION
Note the following, and install in the reverse order of removal.
^ Install the air cleaner filter by aligning the seal with the notch of air cleaner case.
