Distance Sensor: Service and Repair

REMOVAL AND INSTALLATION

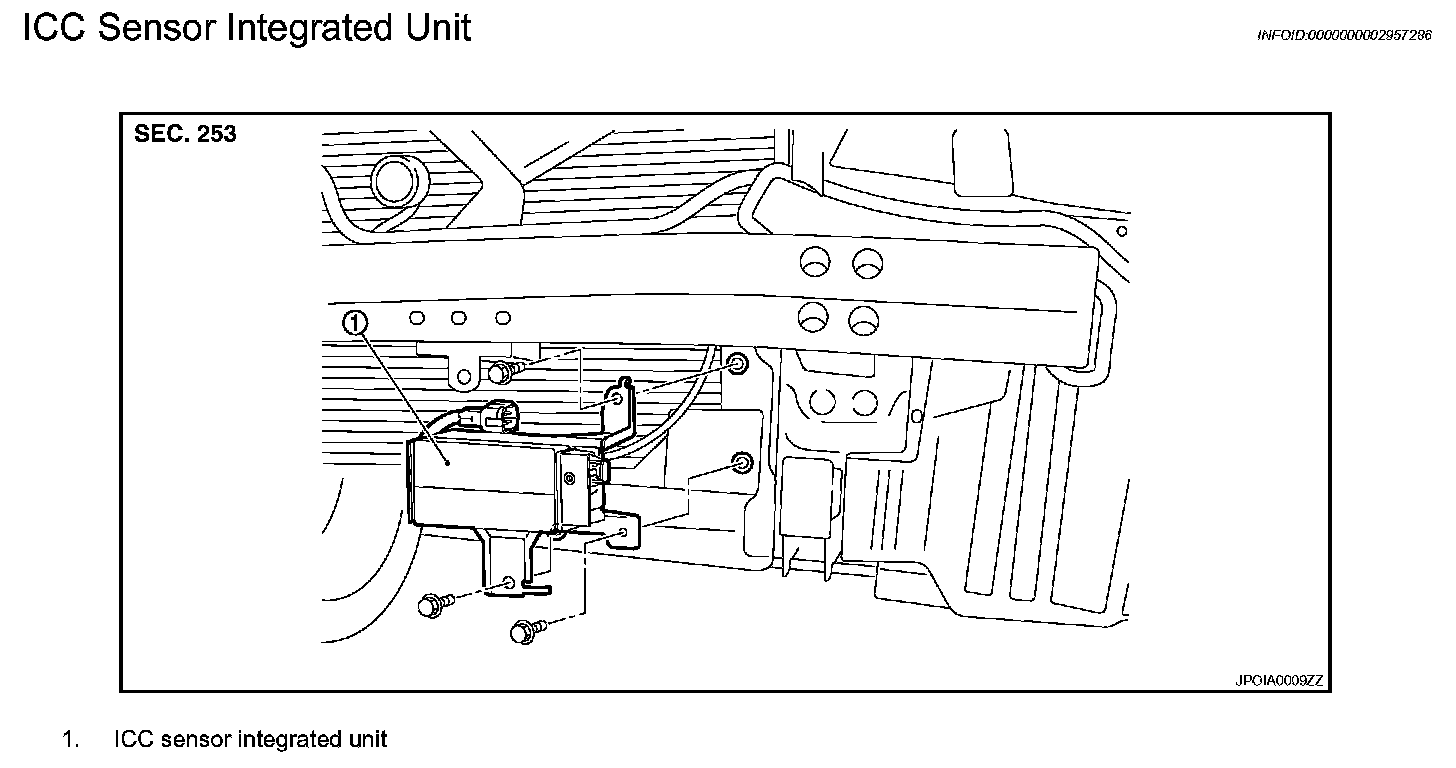

ICC Sensor Integrated Unit






REMOVAL
1. Remove the front bumper.
2. Disconnect ICC sensor integrated unit connector.
3. Remove mounting bolts from ICC sensor integrated unit.
4. Remove ICC sensor integrated unit (1).

INSTALLATION
Installation is the reverse order of removal.

CAUTION: Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed. Refer to ACS-17. Adjustments
