Seat Temperature Control Module: Testing and Inspection

Terminal and Reference Value for Rear Seat Control Unit

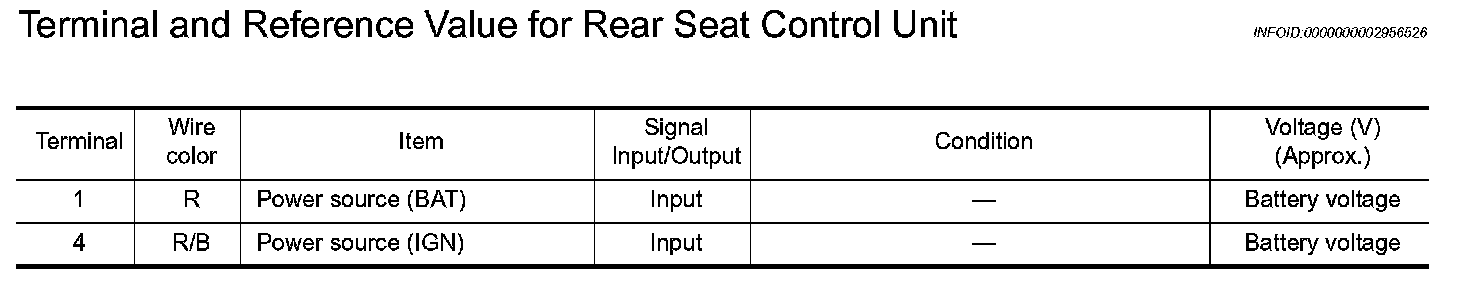

Terminal And Reference Value For Rear Seat Control Unit (Part 1):

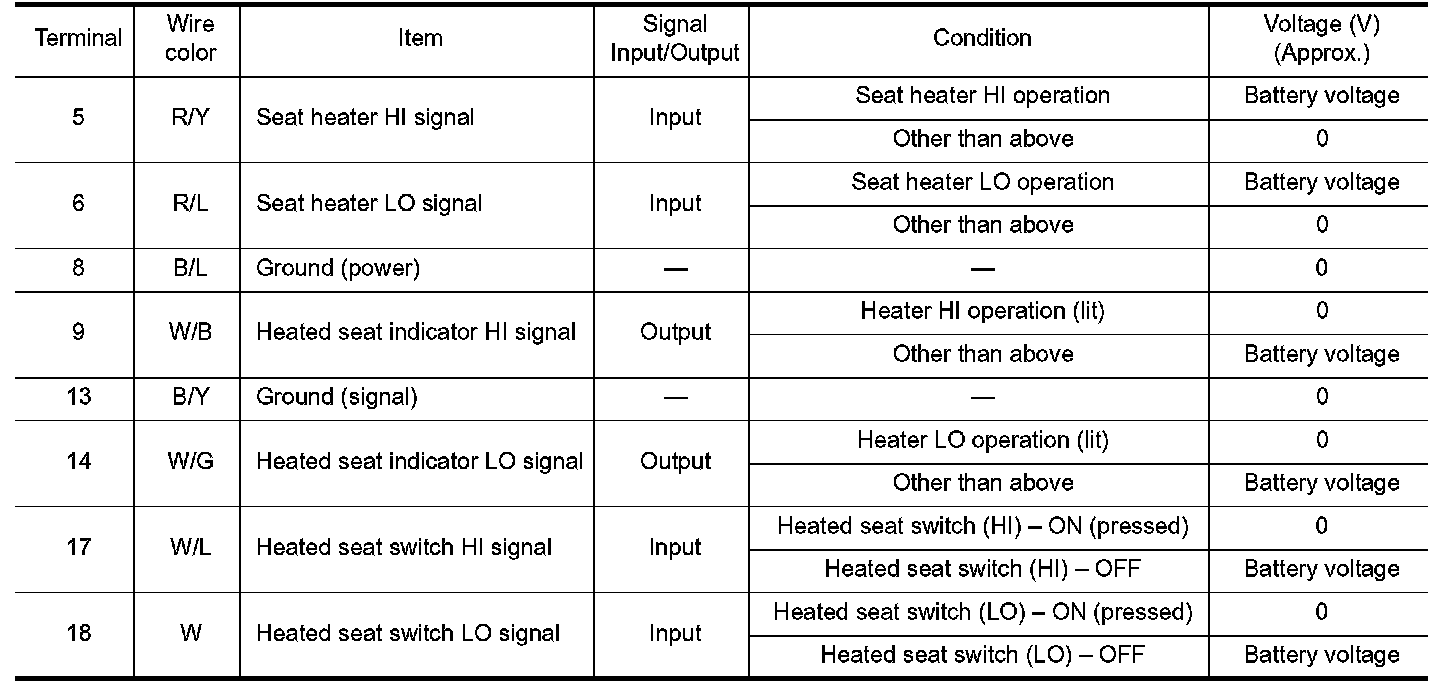

Terminal And Reference Value For Rear Seat Control Unit (Part 2):
