B2193

B2193 CHAIN OF BCM-ECM

Self-diagnostic results:
"CHAIN OF BCM-ECM" displayed on CONSULT-III screen
First perform the "SELF-DIAG RESULTS" in "BCM" with CONSULT-III, then perform the trouble diagnosis of malfunction system indicated "SELF-DIAG RESULTS" of "BCM". Refer to BL-237, "CONSULT-III Functions (BCM)". CONSULT-III Functions (BCM)

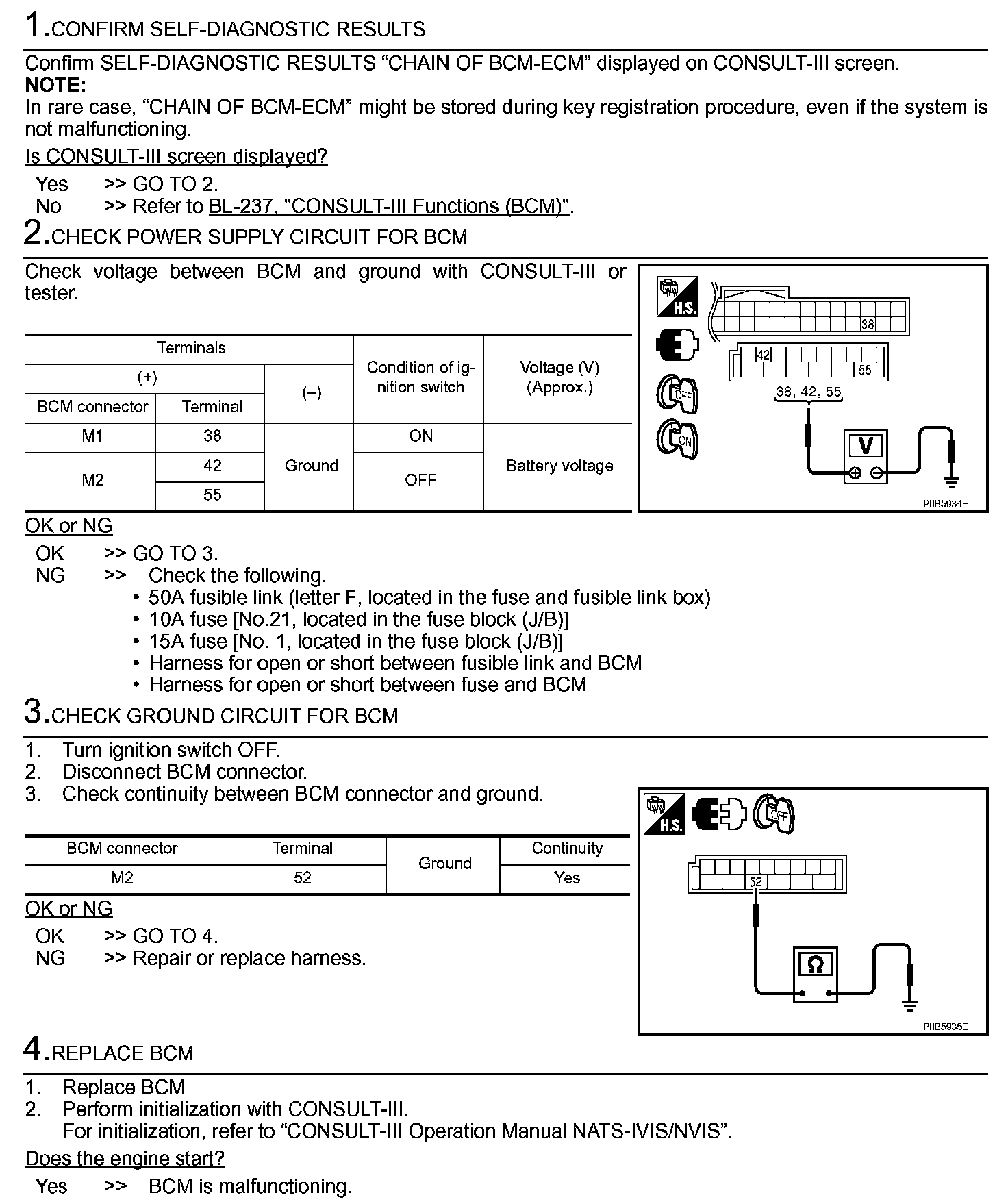

Step 1-4:

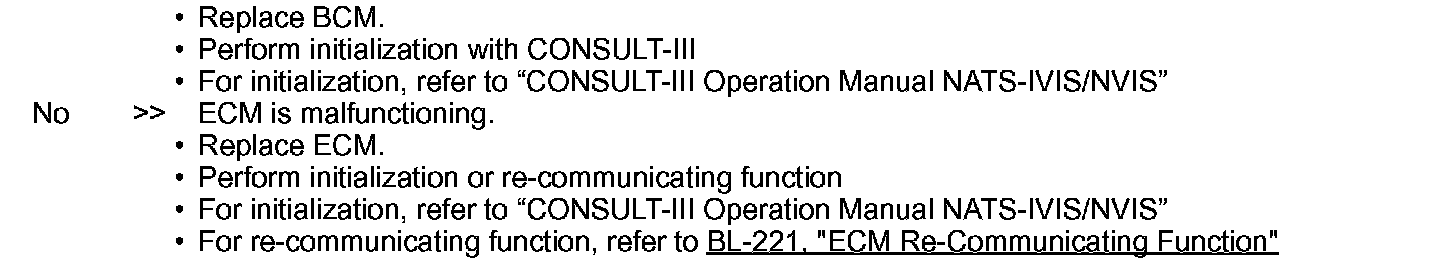

Step 4 (Continued):
