Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B2514

B2514

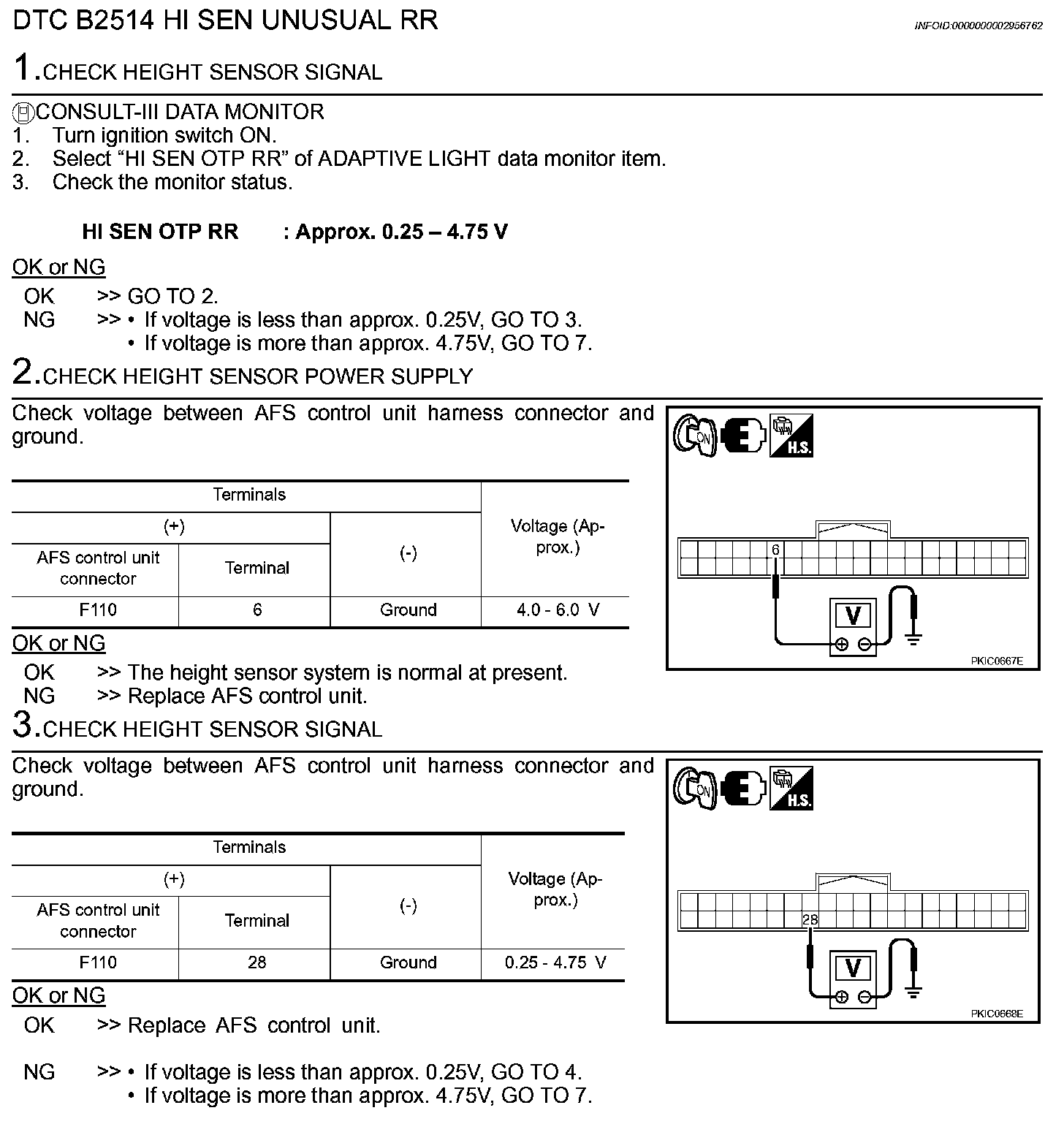

Step 1-3:

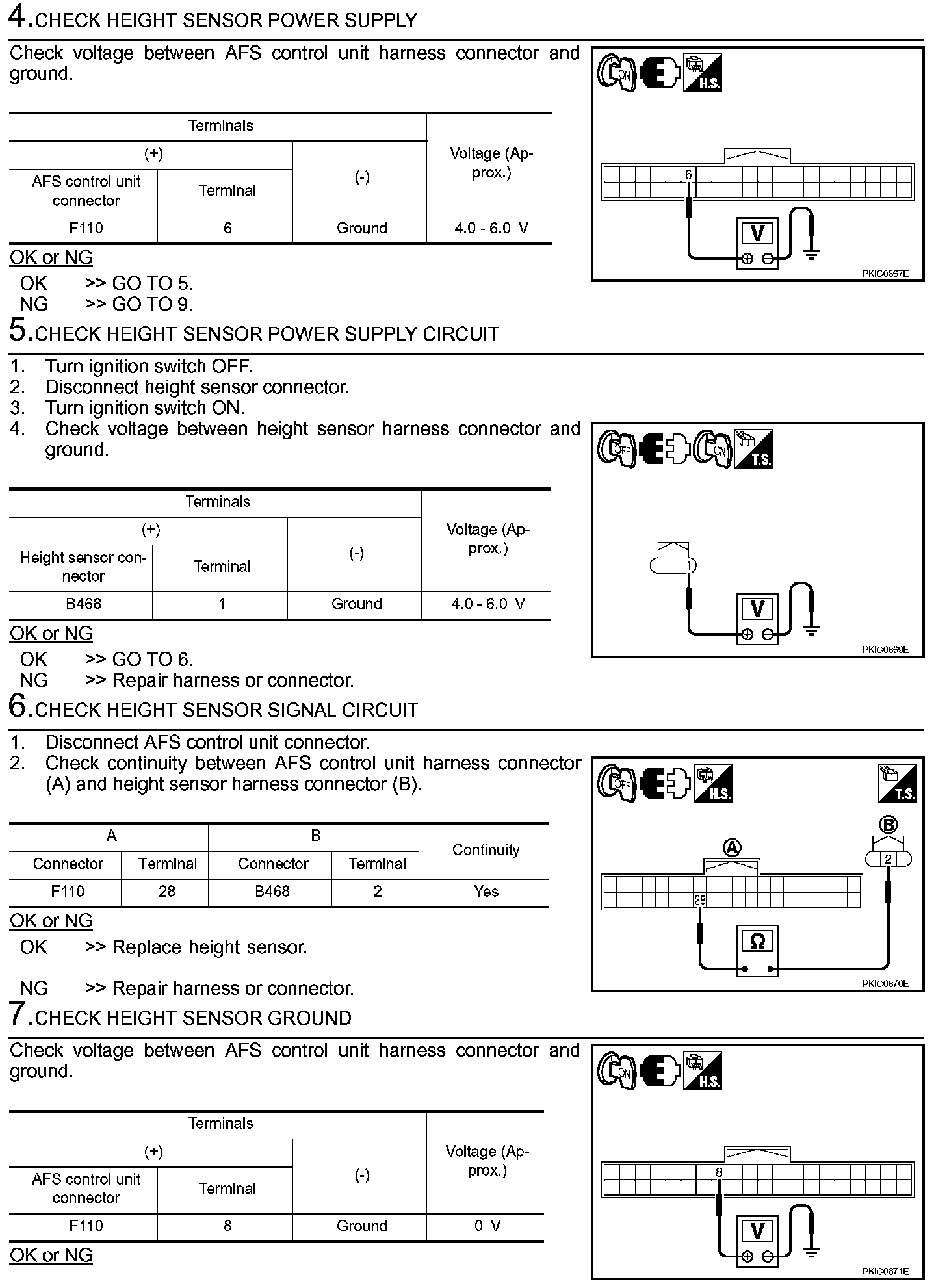

Step 4-7:

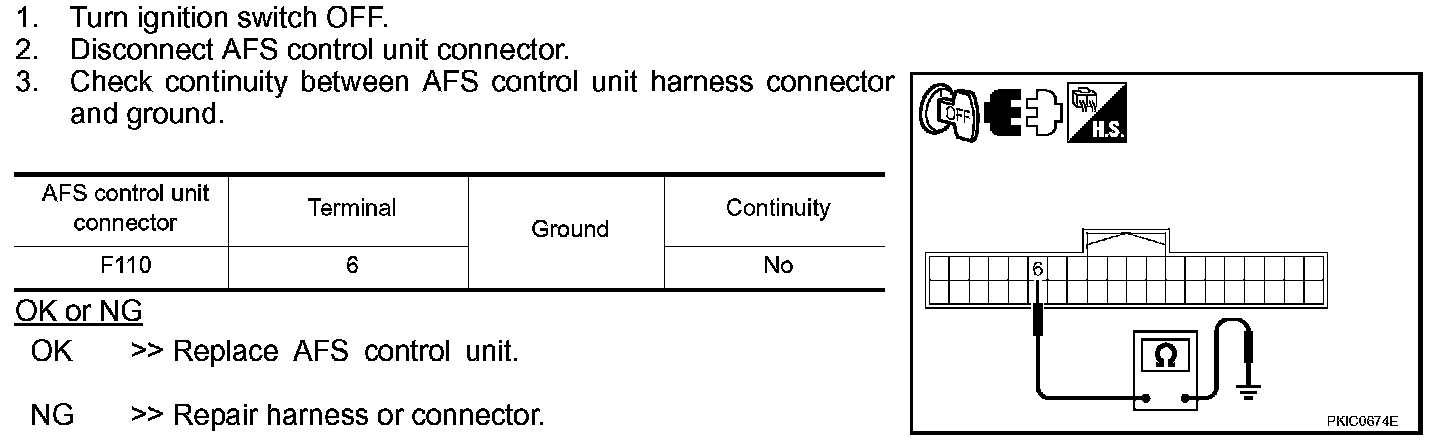

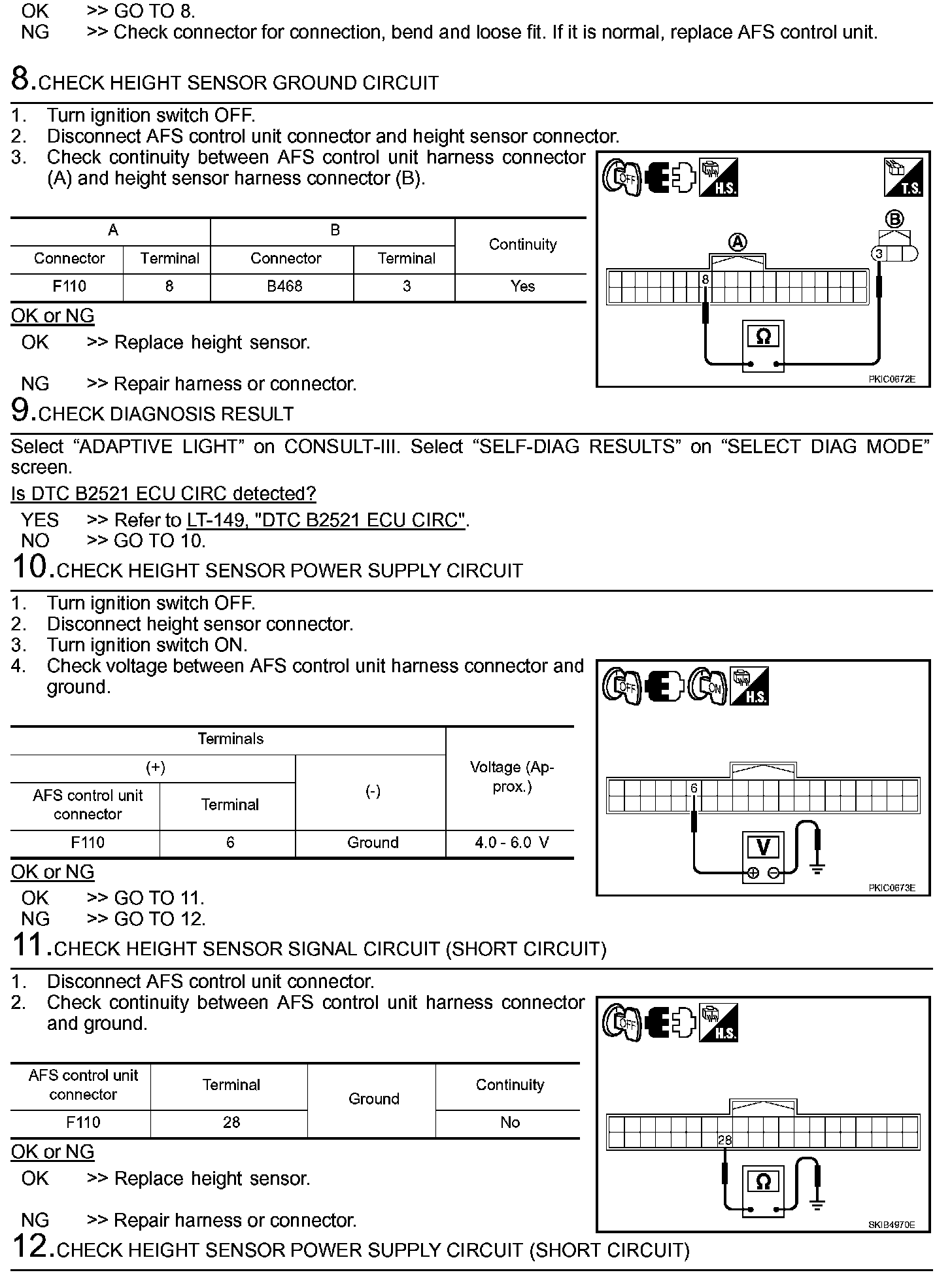

Step 7 (Continued)-12:



Step 12 (Continued):
