B2558

B2558 SHIFT POSITION

DIAGNOSIS DESCRIPTION
B2558 shift position input system monitors the A/T selector lever position. If there is the difference between the input from A/T device, the input from A/T assembly, and CAN communication input from A/T control unit, it judges that it is the malfunction and displays the DTC (Diagnostic Trouble Code)

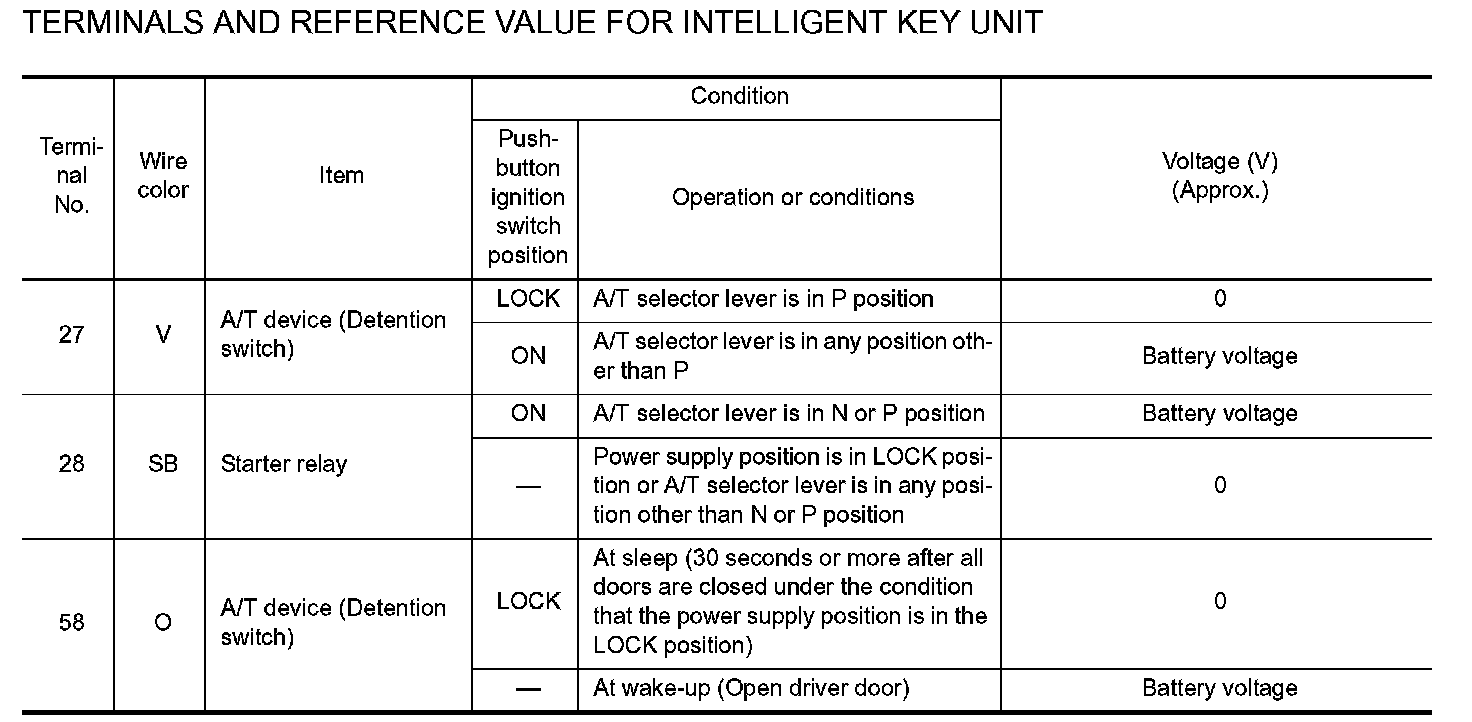

TERMINALS AND REFERENCE VALUE FOR INTELLIGENT KEY UNIT

Terminal And Reference Value For Intelligent Key Unit:

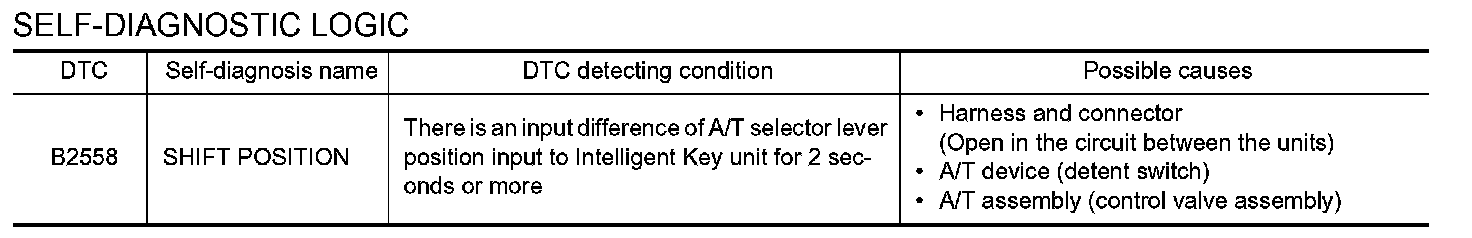

SELF-DIAGNOSTIC LOGIC






DIAGNOSTIC PROCEDURE

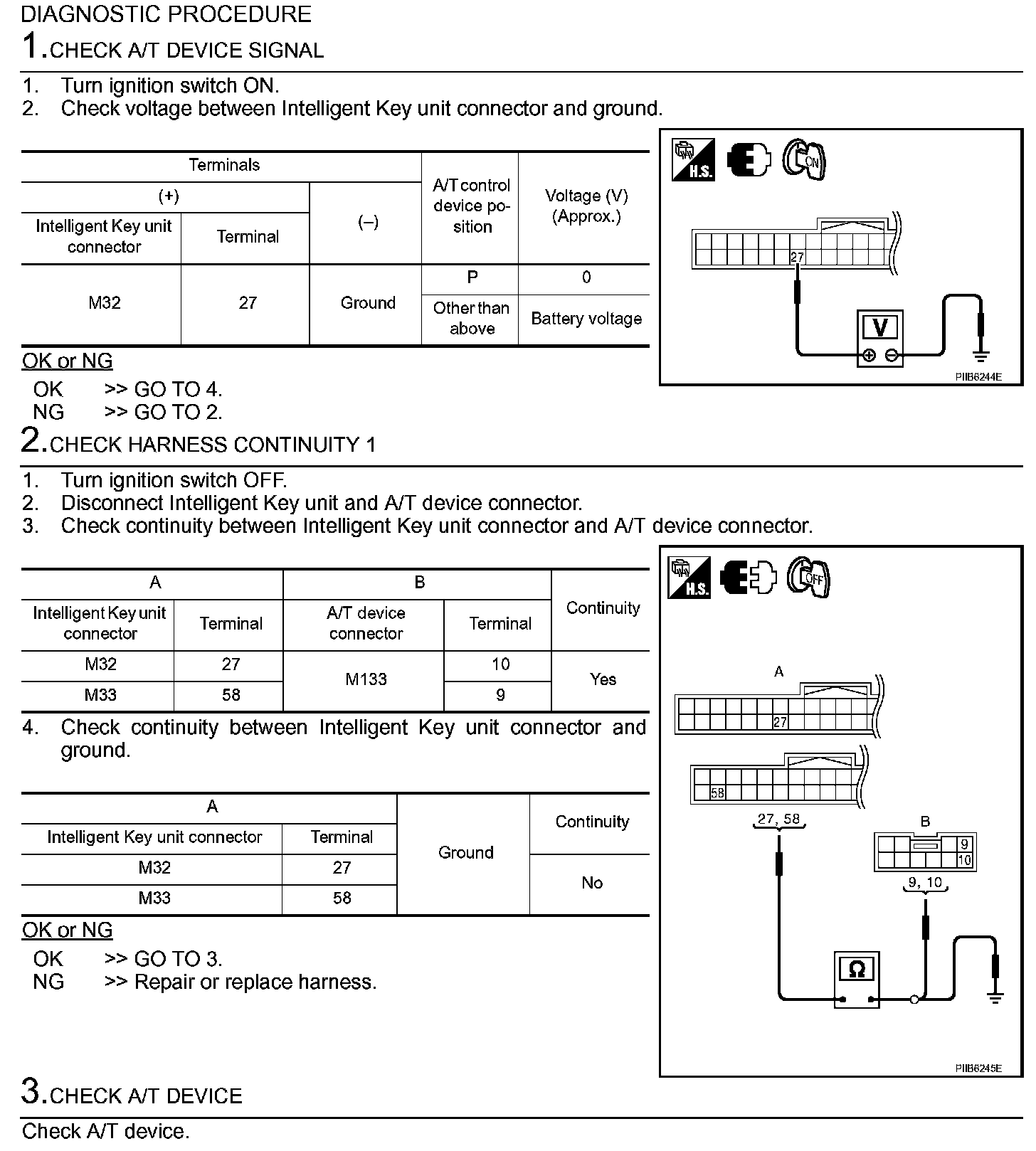

Step 1-3:

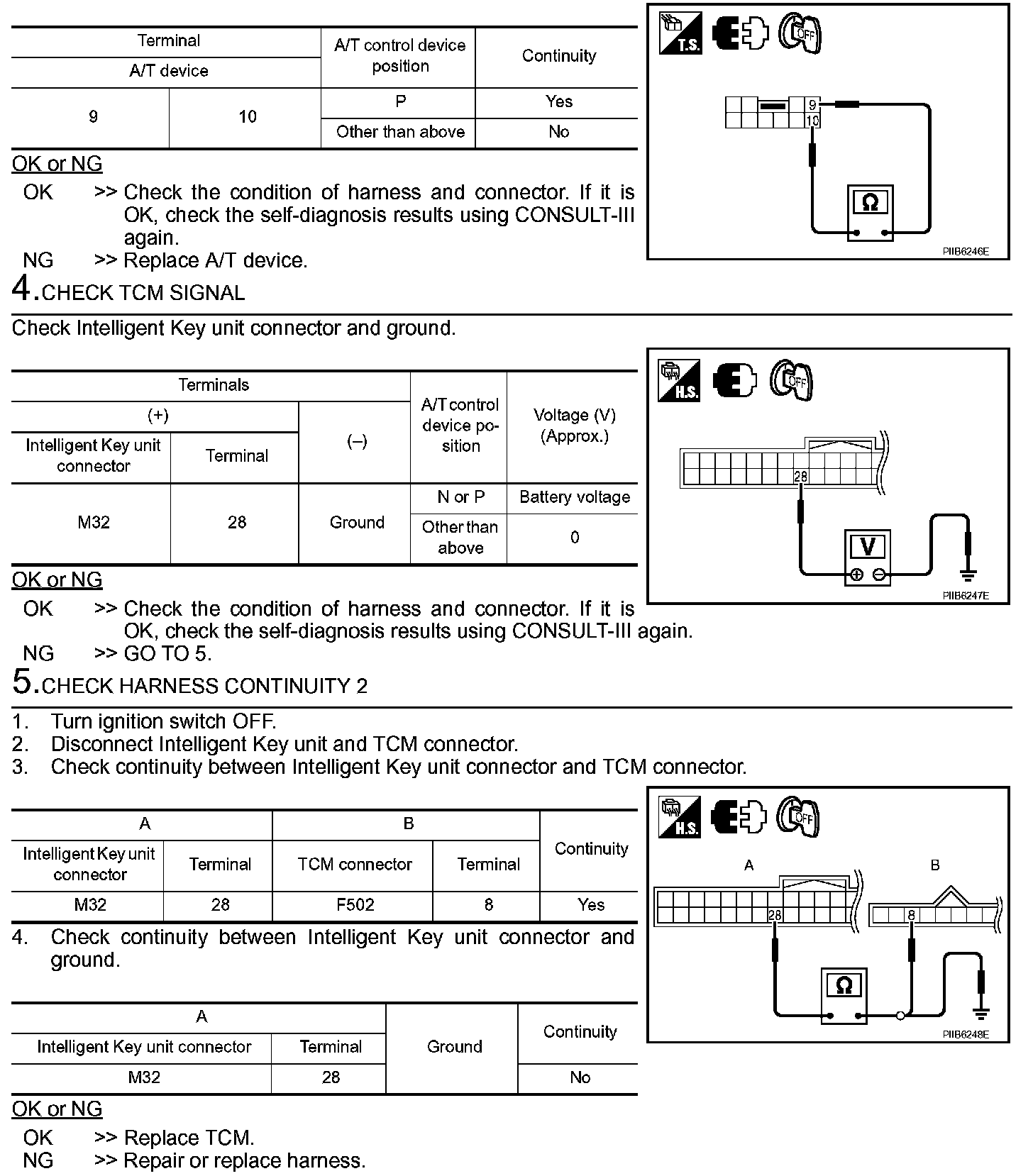

Step 3 (Continued)-5:
