B2562

B2562 LOW VOLTAGE

DIAGNOSIS DESCRIPTION
B2562 battery low voltage monitors the battery voltage input to Intelligent Key unit. When the condition that the voltage is 8.8 V or less is detected for 1.5 seconds or more, it judges that it is the malfunction and displays the DTC (Diagnostic Trouble Code)

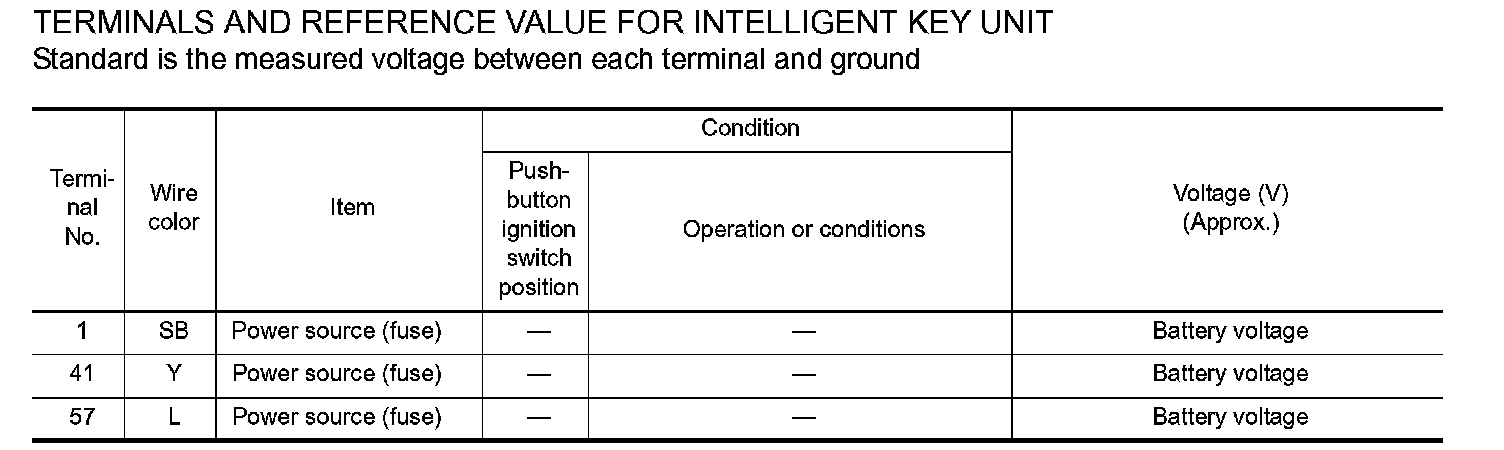

TERMINALS AND REFERENCE VALUE FOR INTELLIGENT KEY UNIT

Terminal And Reference Value For Intelligent Key Unit:

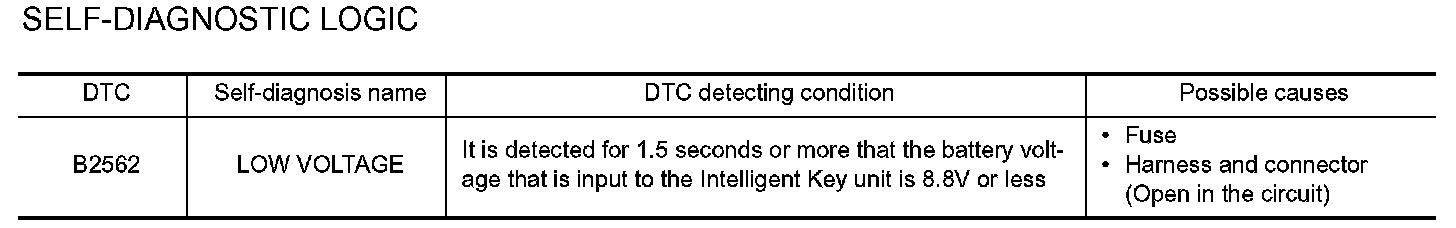

SELF-DIAGNOSTIC LOGIC






DIAGNOSTIC PROCEDURE

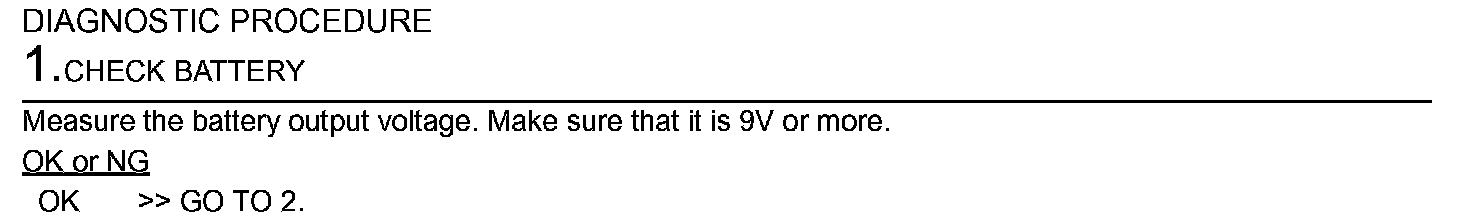

Step 1:

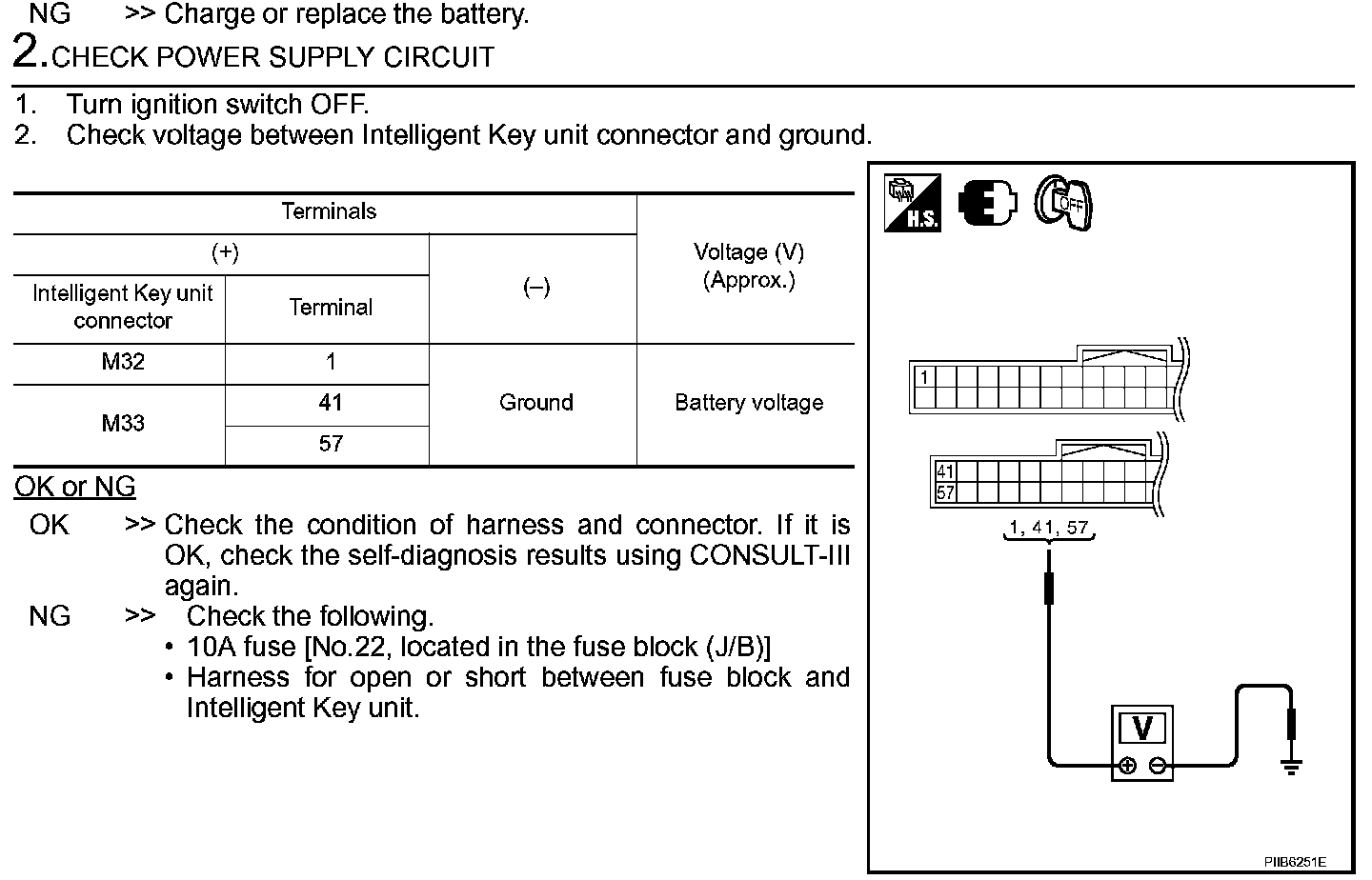

Step 1 (Continued)-2:
