Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1A05

C1A05

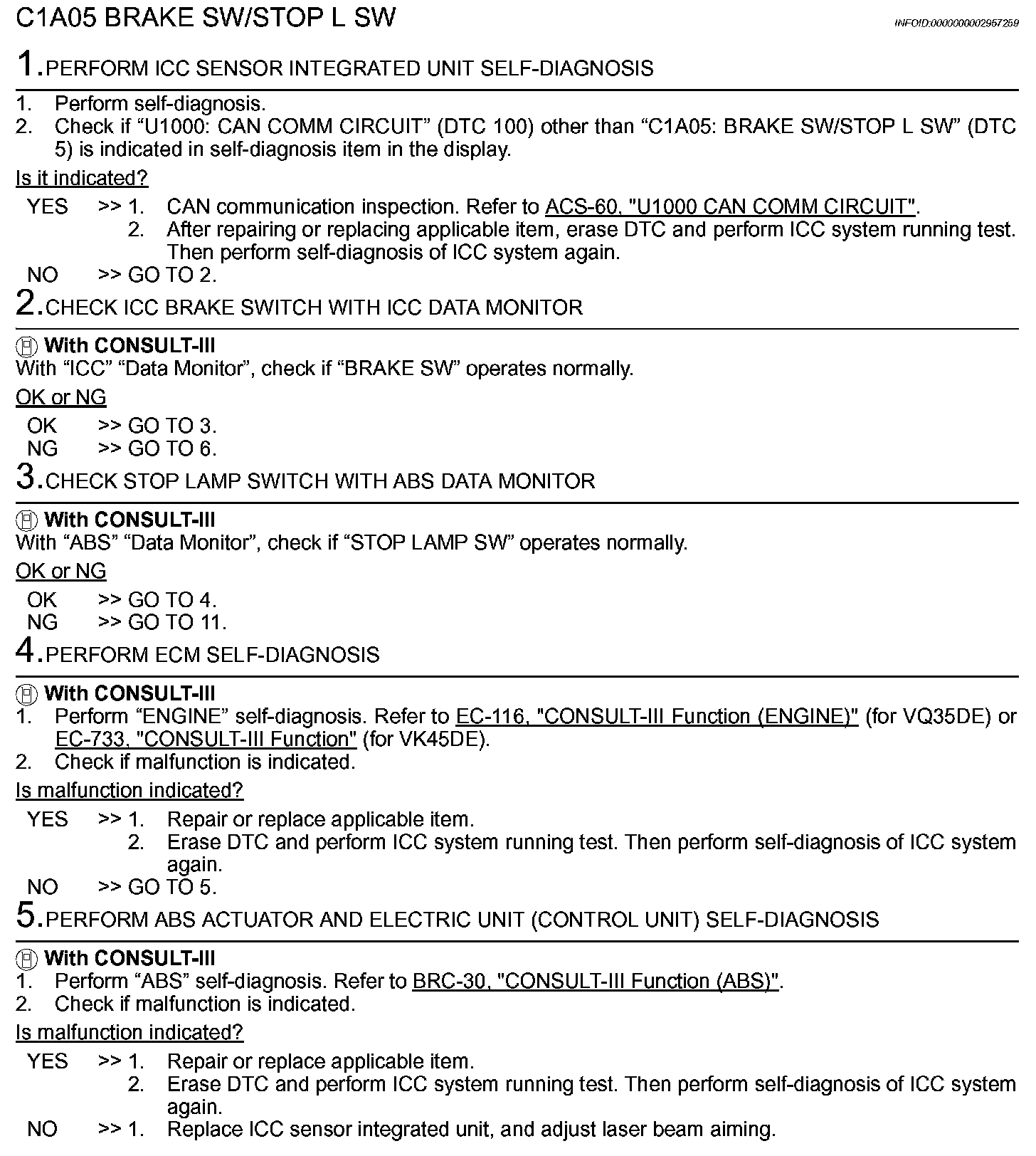

Step 1-5:

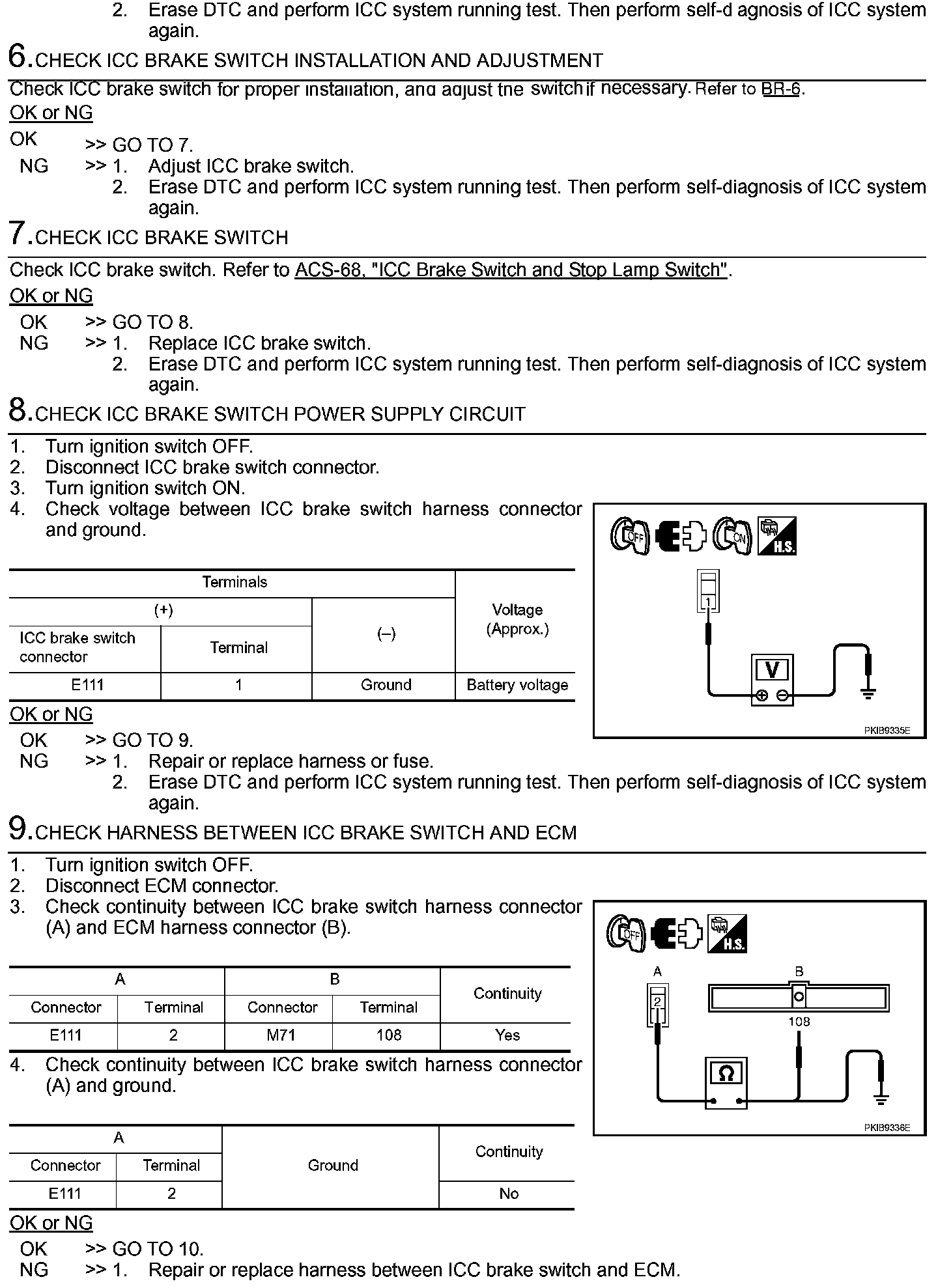

Step 5 (Continued)-9:

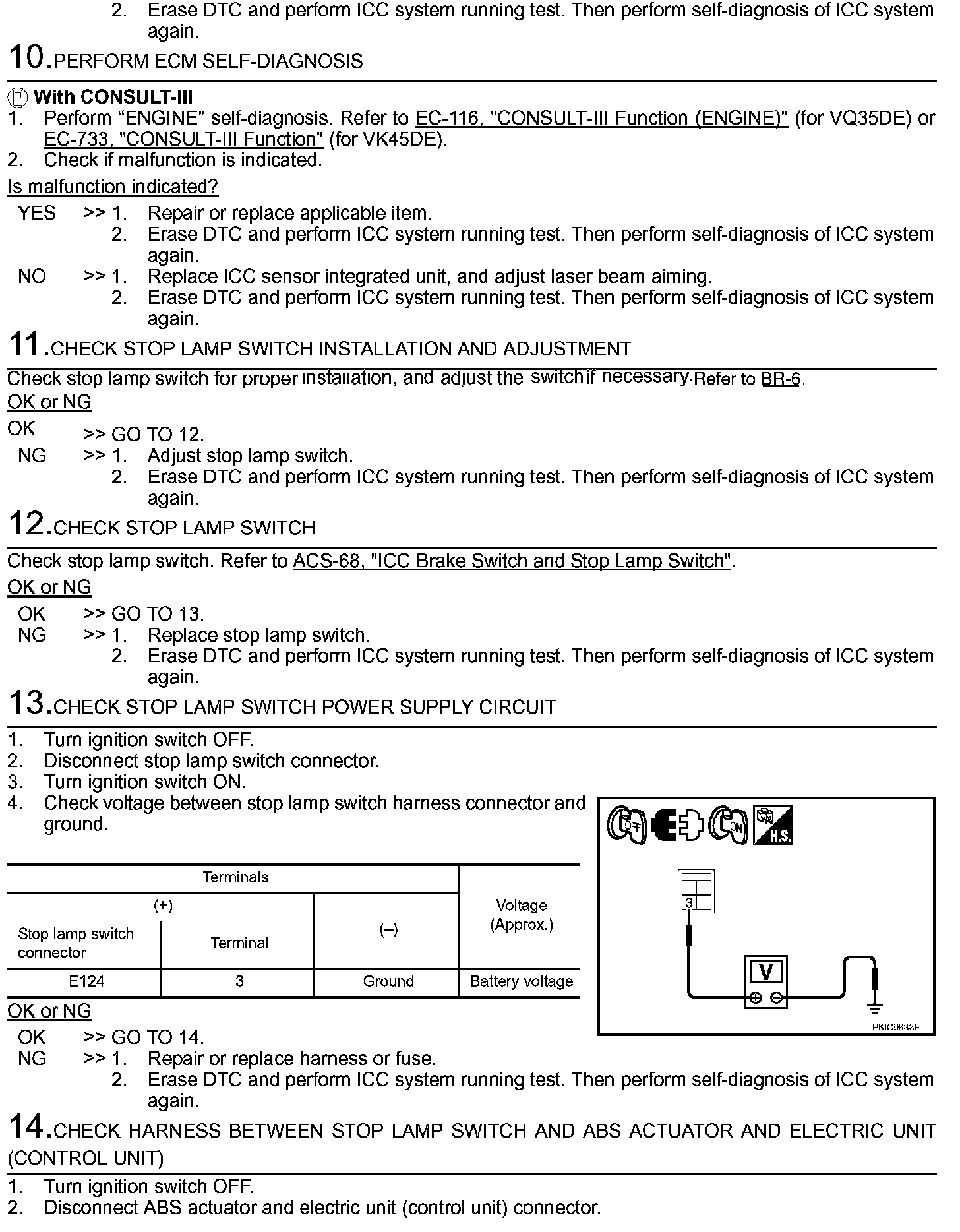

Step 9 (Continued)-14:

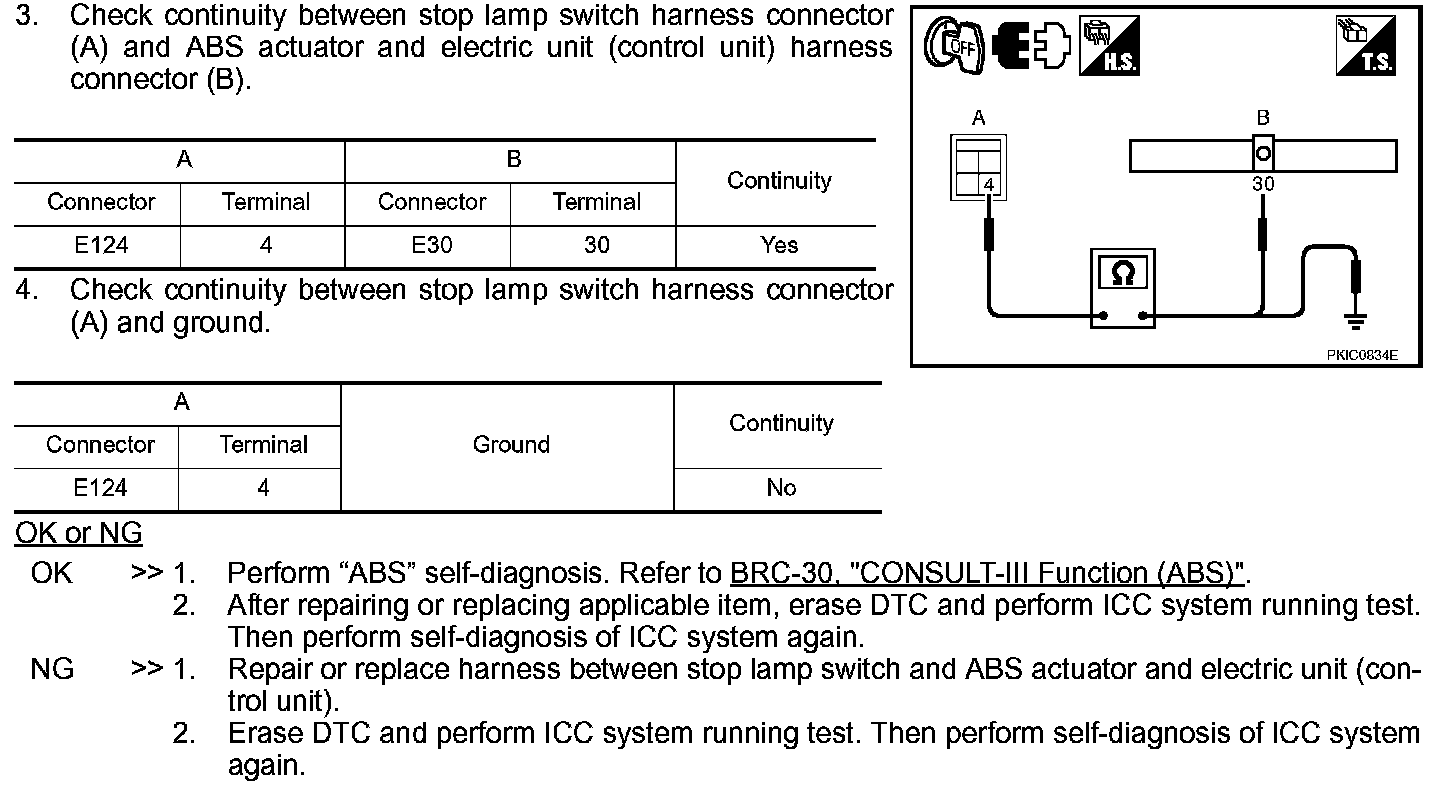

Step 14 (Continued):
