P0182
DTC P0182, P0183 FTT SENSORComponent Description

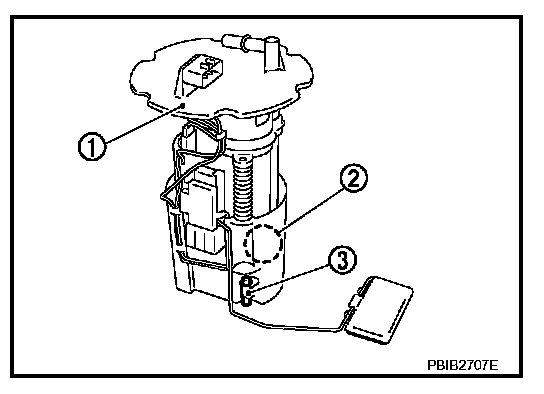

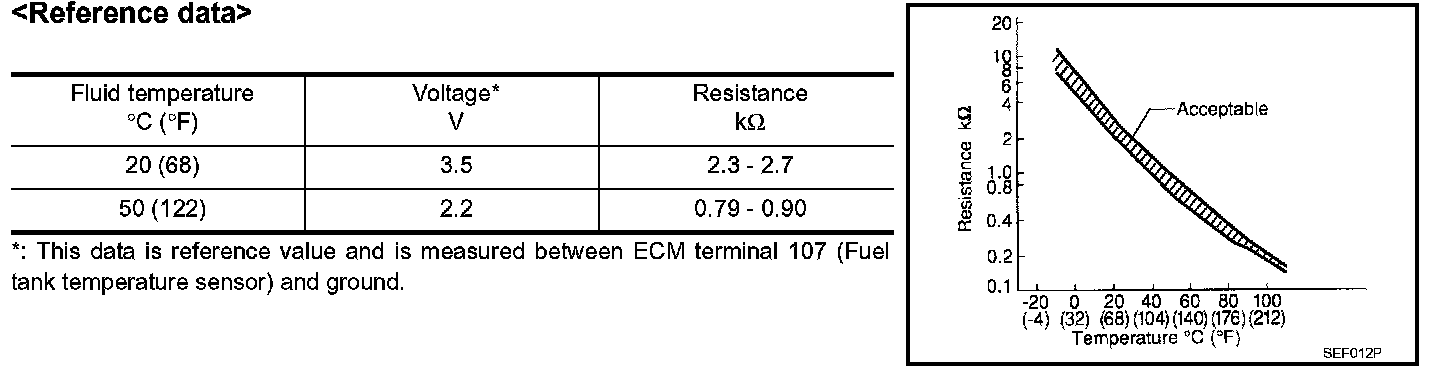

The fuel tank temperature sensor (3) is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.
- Fuel level sensor unit and fuel pump (1)
- Fuel pressure regulator (2)
CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

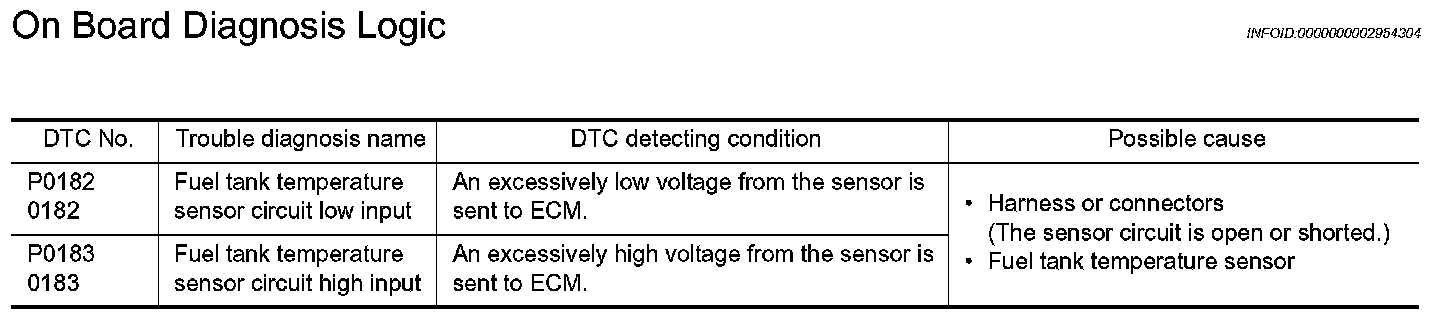

On Board Diagnosis Logic
DTC Confirmation Procedure
NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Wait at least 5 seconds.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to "Diagnosis Procedure".
WITH GST
Follow the procedure "WITH CONSULT-III" above.

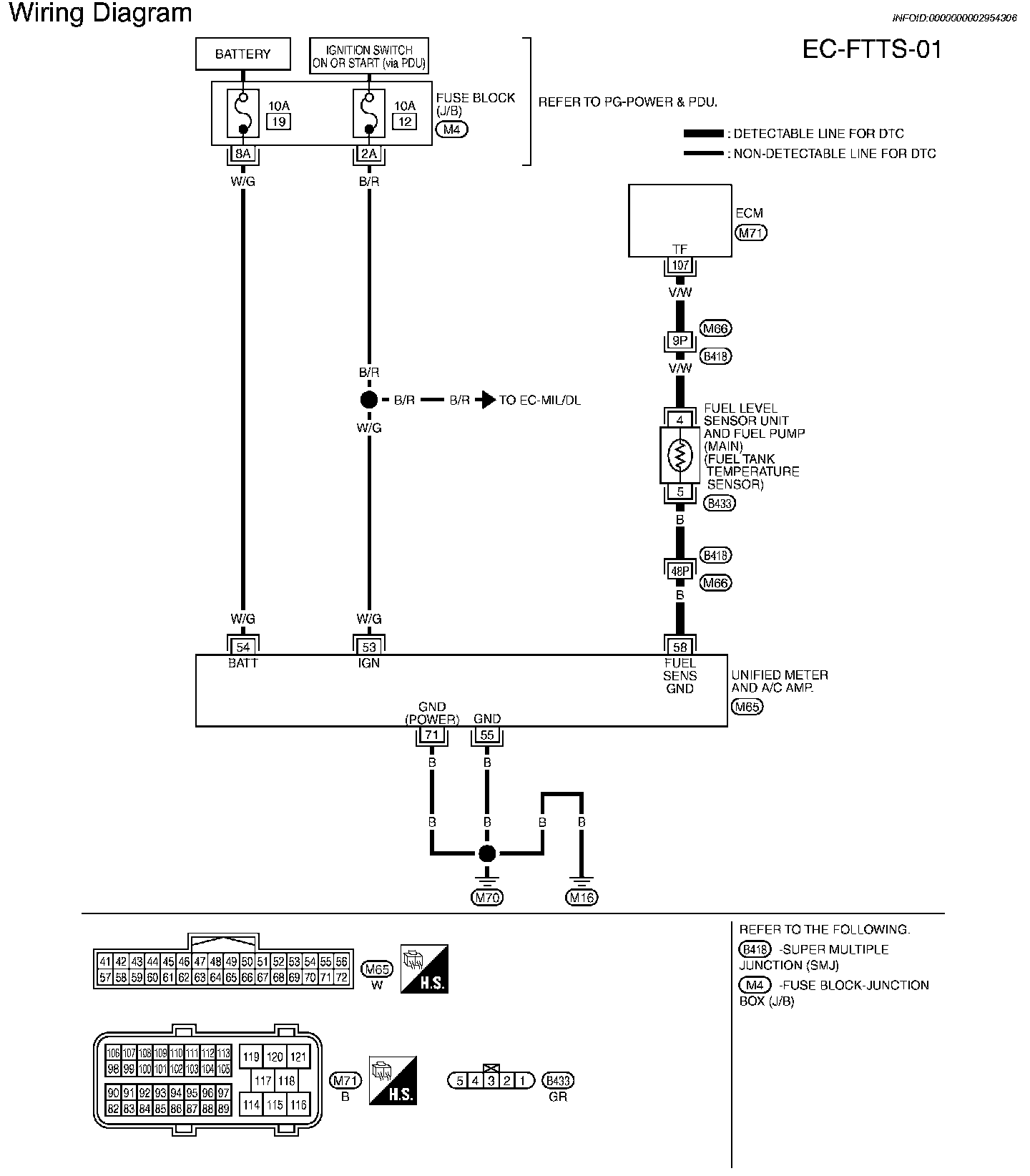

Wiring Diagram
EC-FTTS-01:

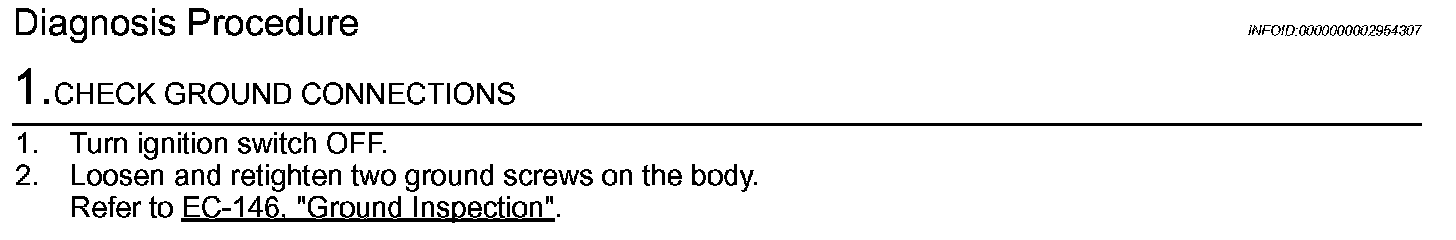

Diagnosis Procedure
Step 1:

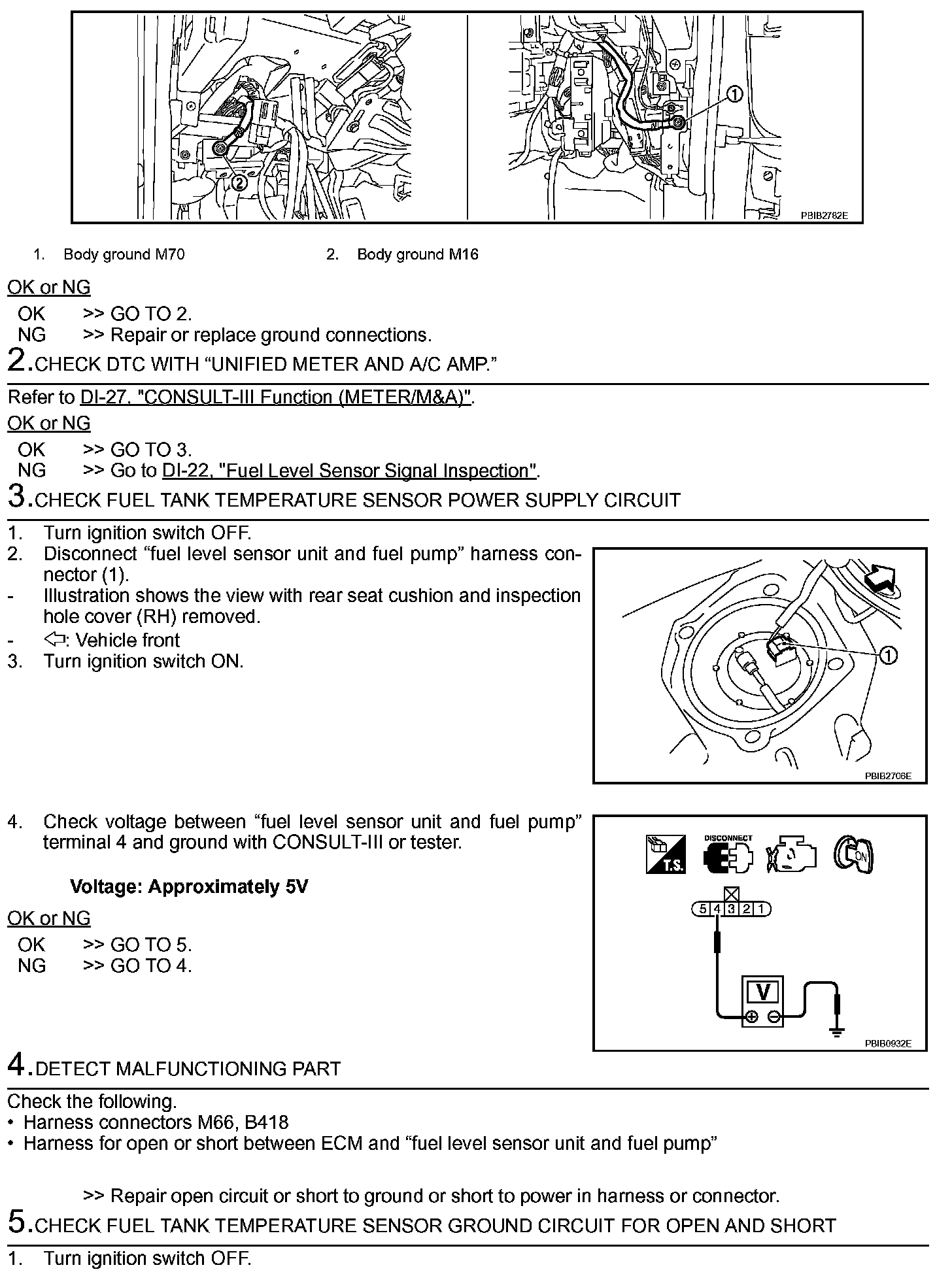

Step 1 (Continued)-5:

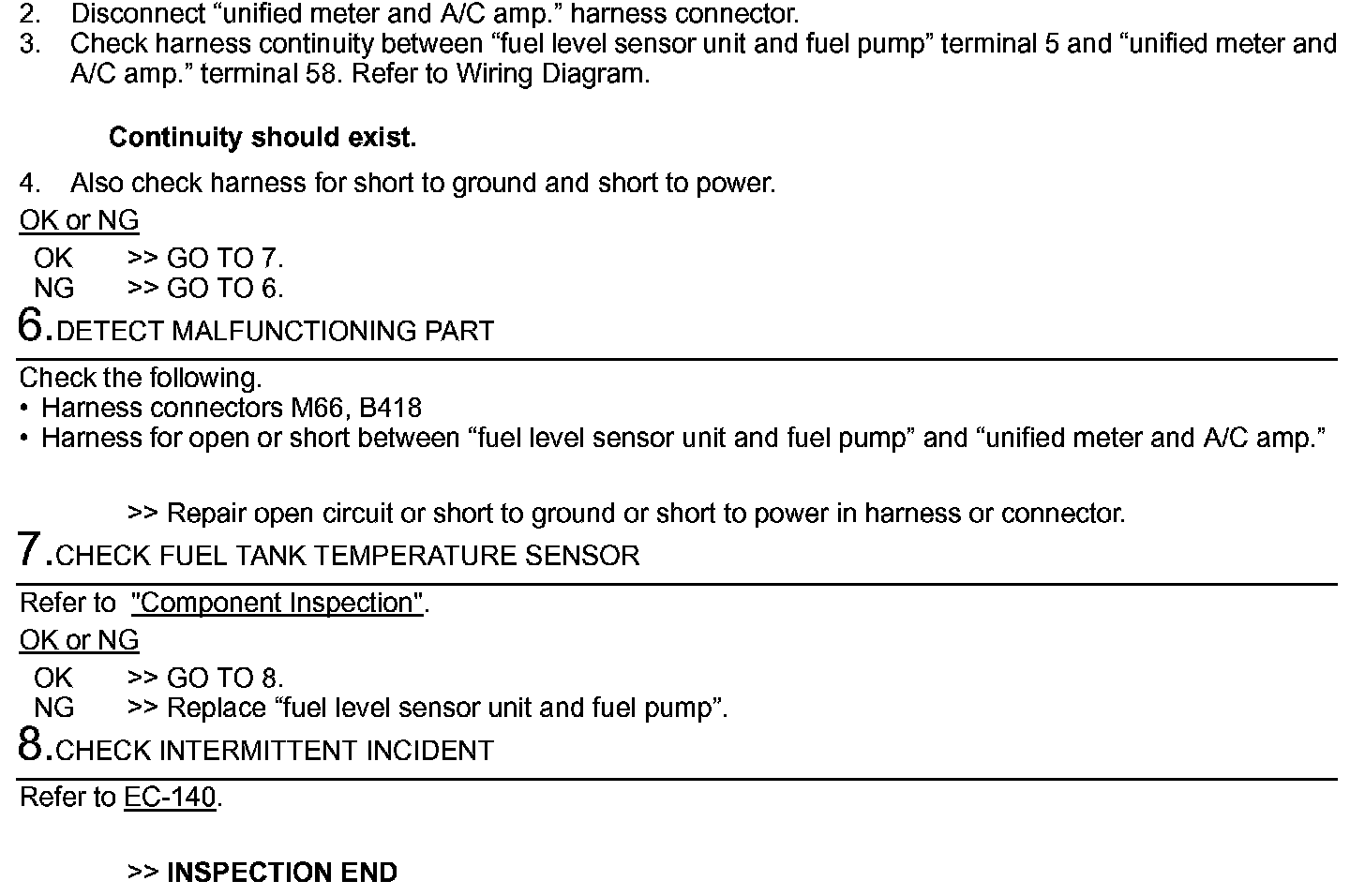

Step 5 (Continued)-8:
Component Inspection
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.

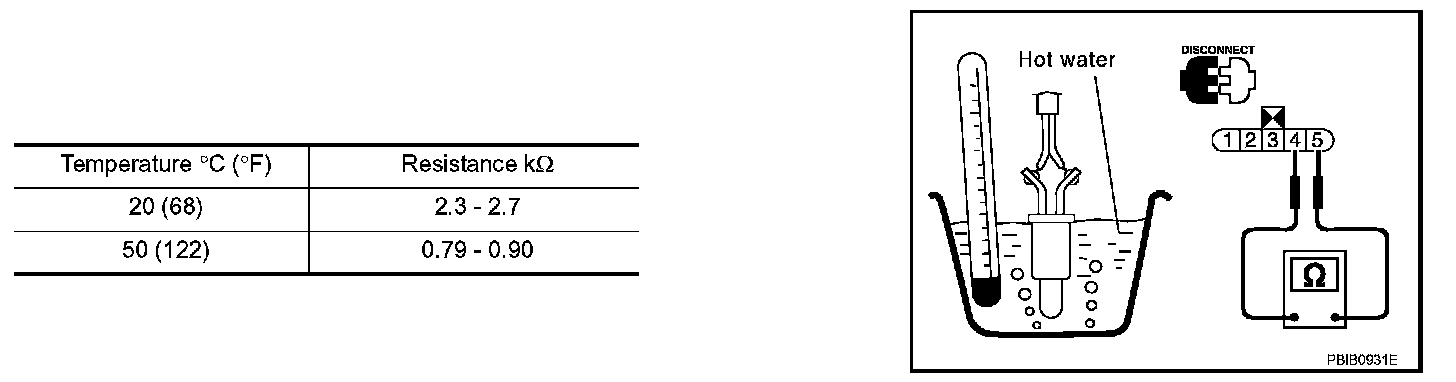

2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water as shown in the figure.
If NG, replace fuel level sensor unit.
