P0643

DTC P0643 SENSOR POWER SUPPLY

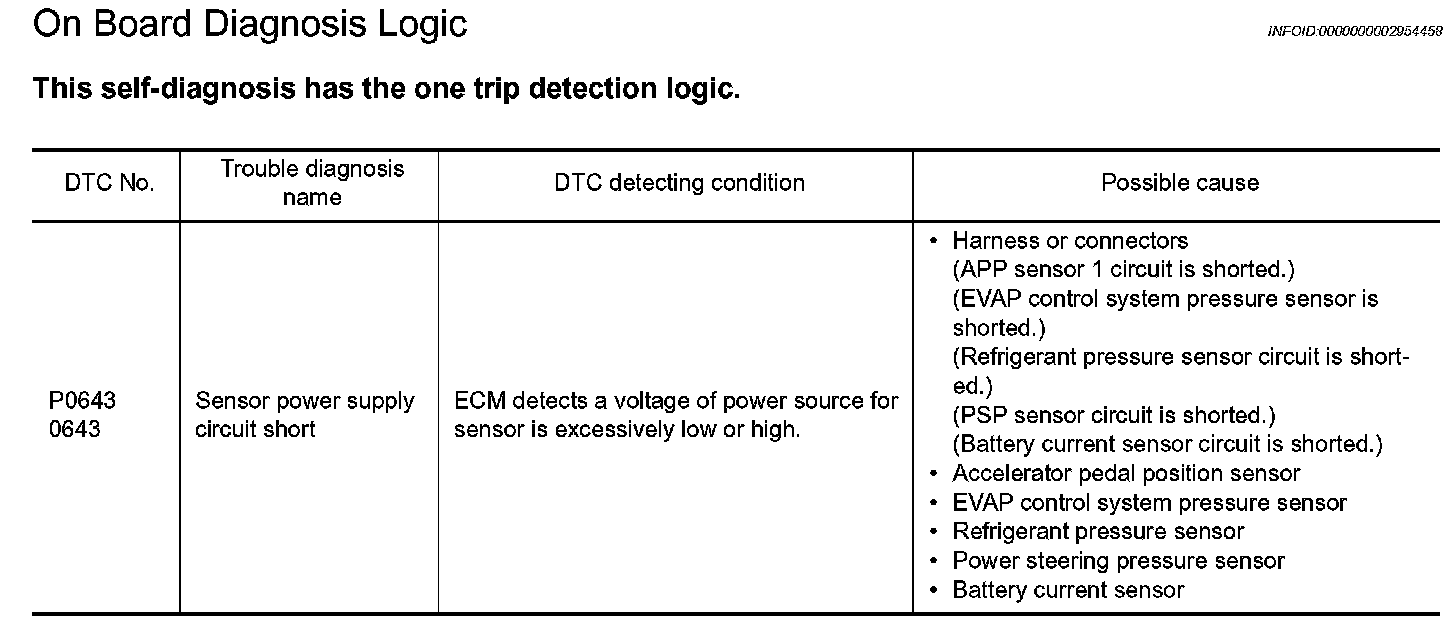

On Board Diagnosis Logic

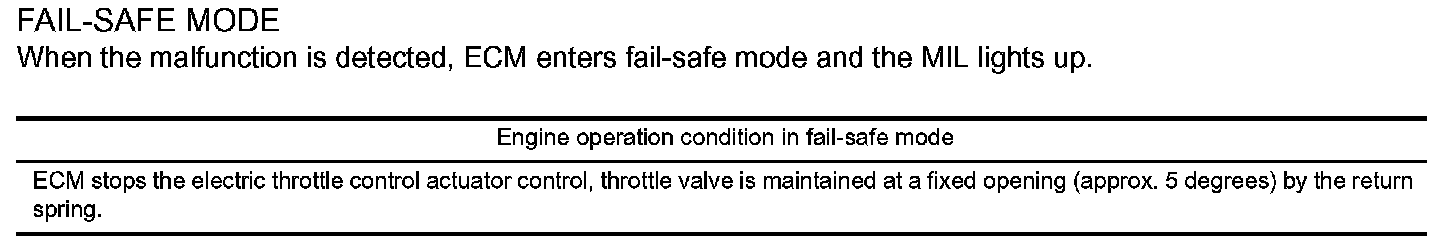

FAIL-SAFE MODE






DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

WITH CONSULT-III
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to "Diagnosis Procedure".

WITH GST
Follow the procedure "WITH CONSULT-III" above.

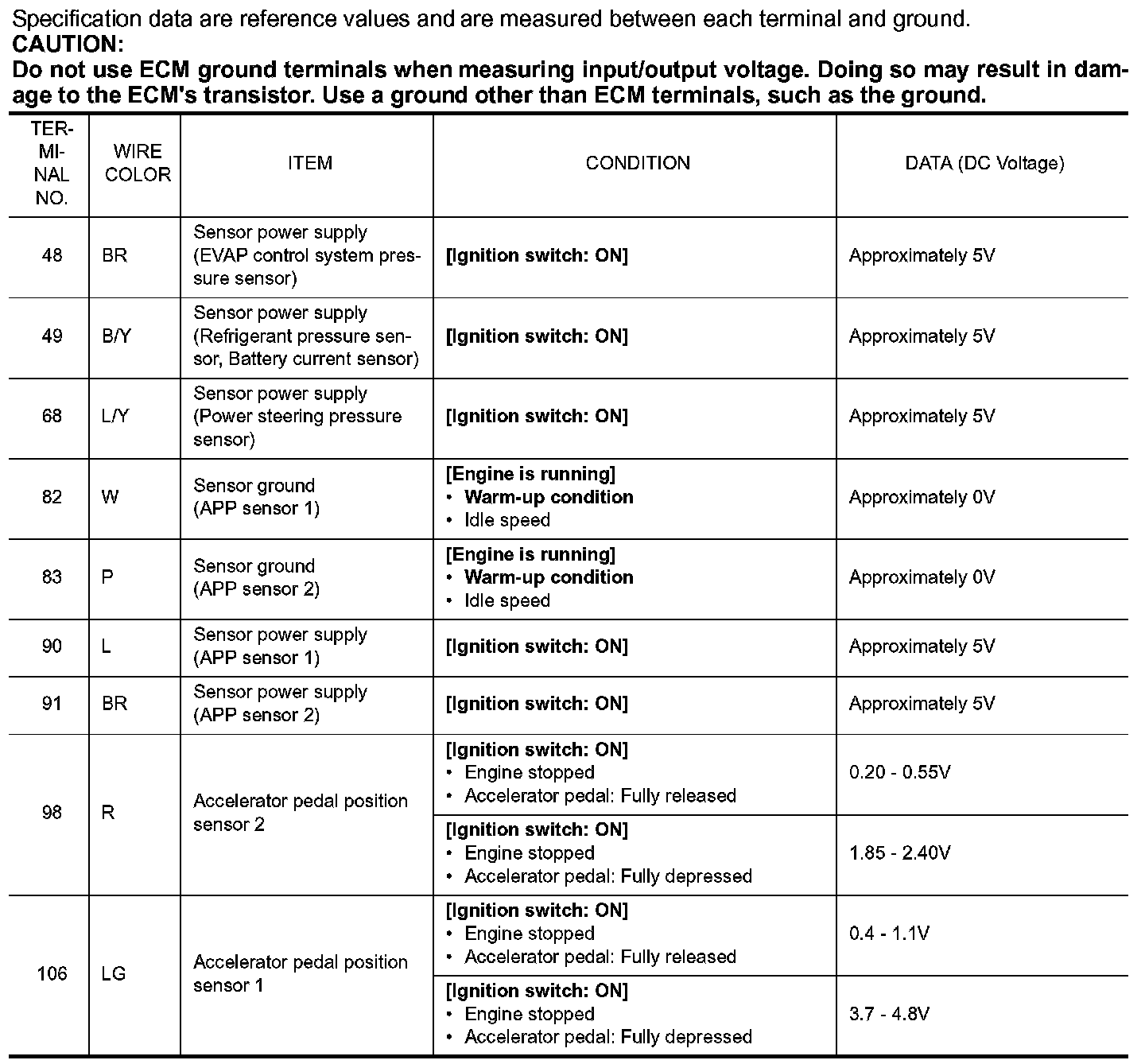

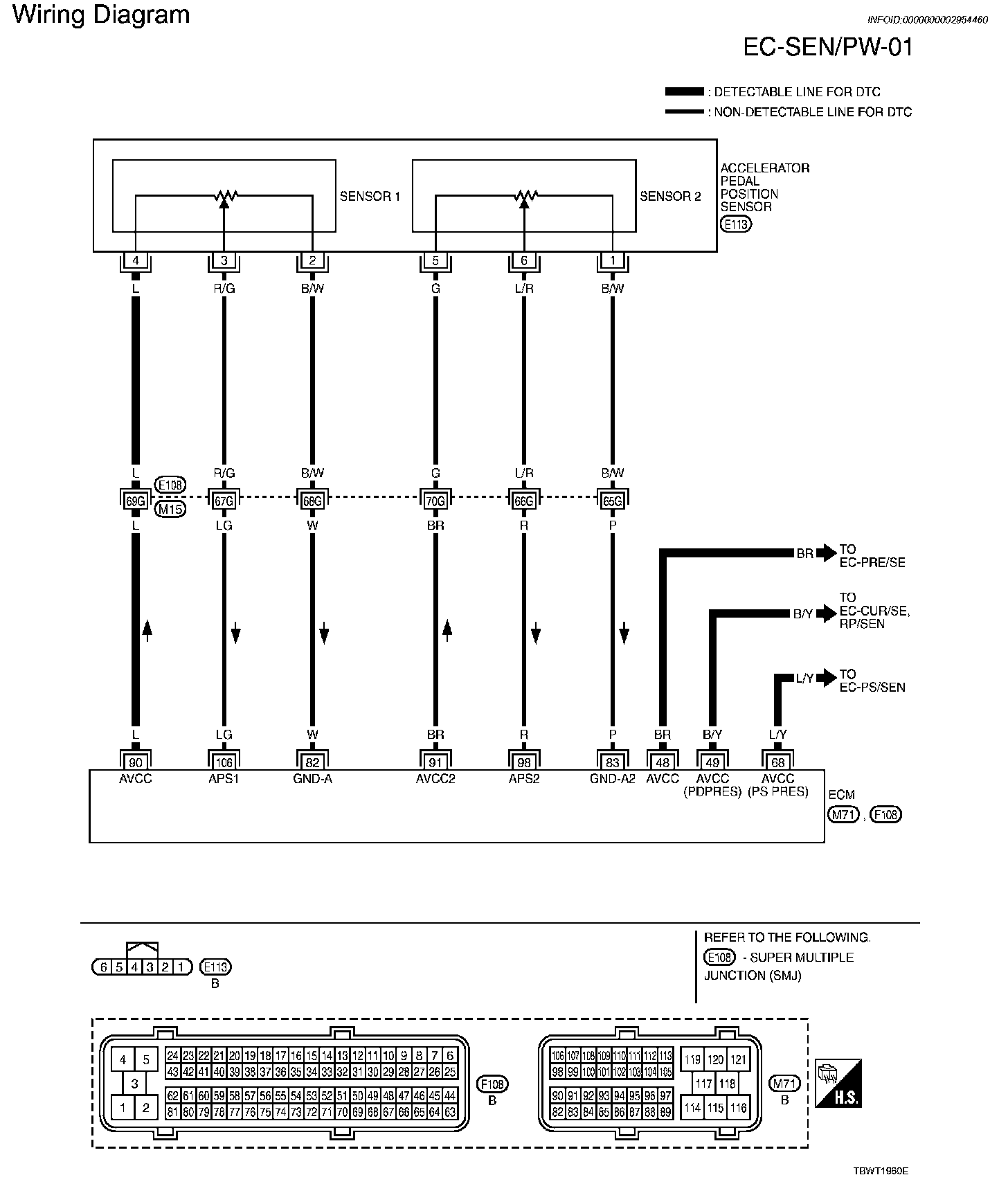

Wiring Diagram

EC-SEN/PW-01:

Diagnosis Procedure

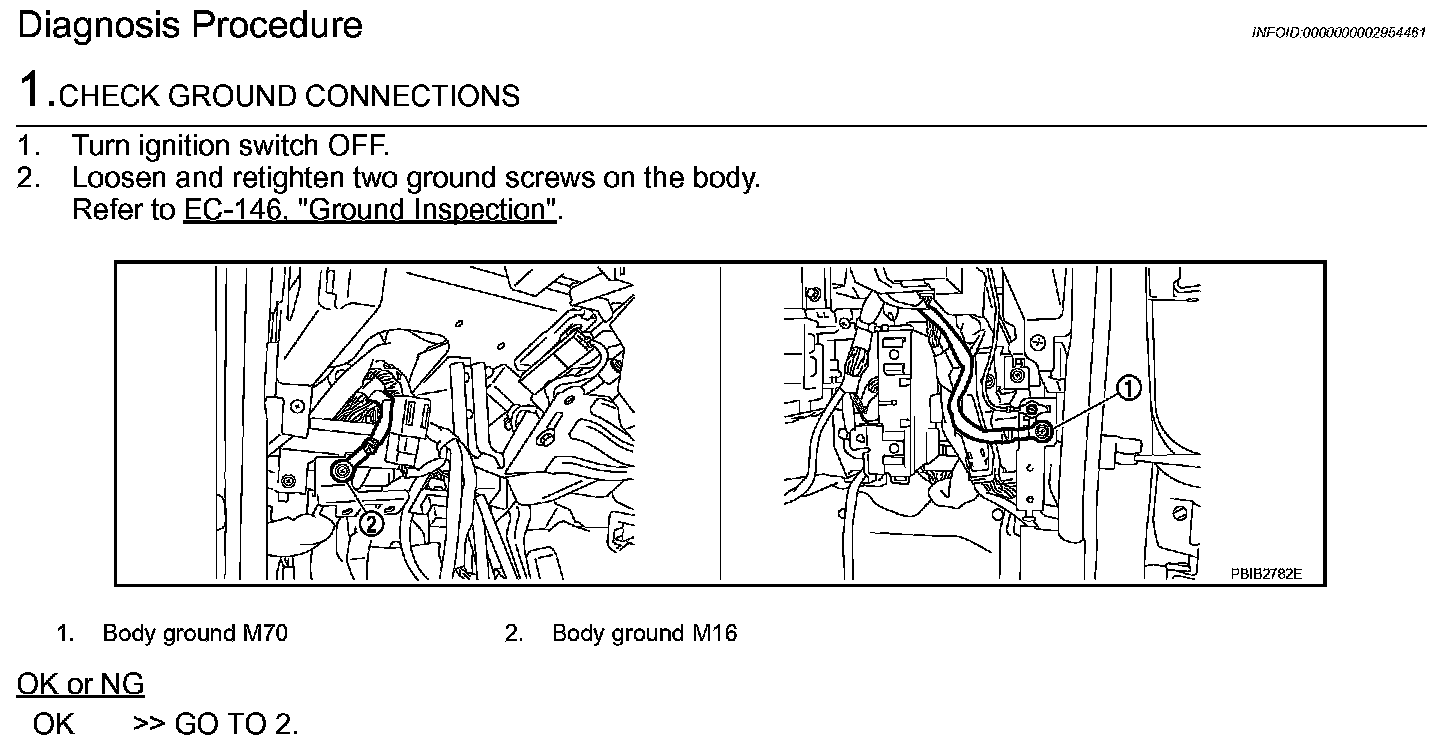

Step 1:

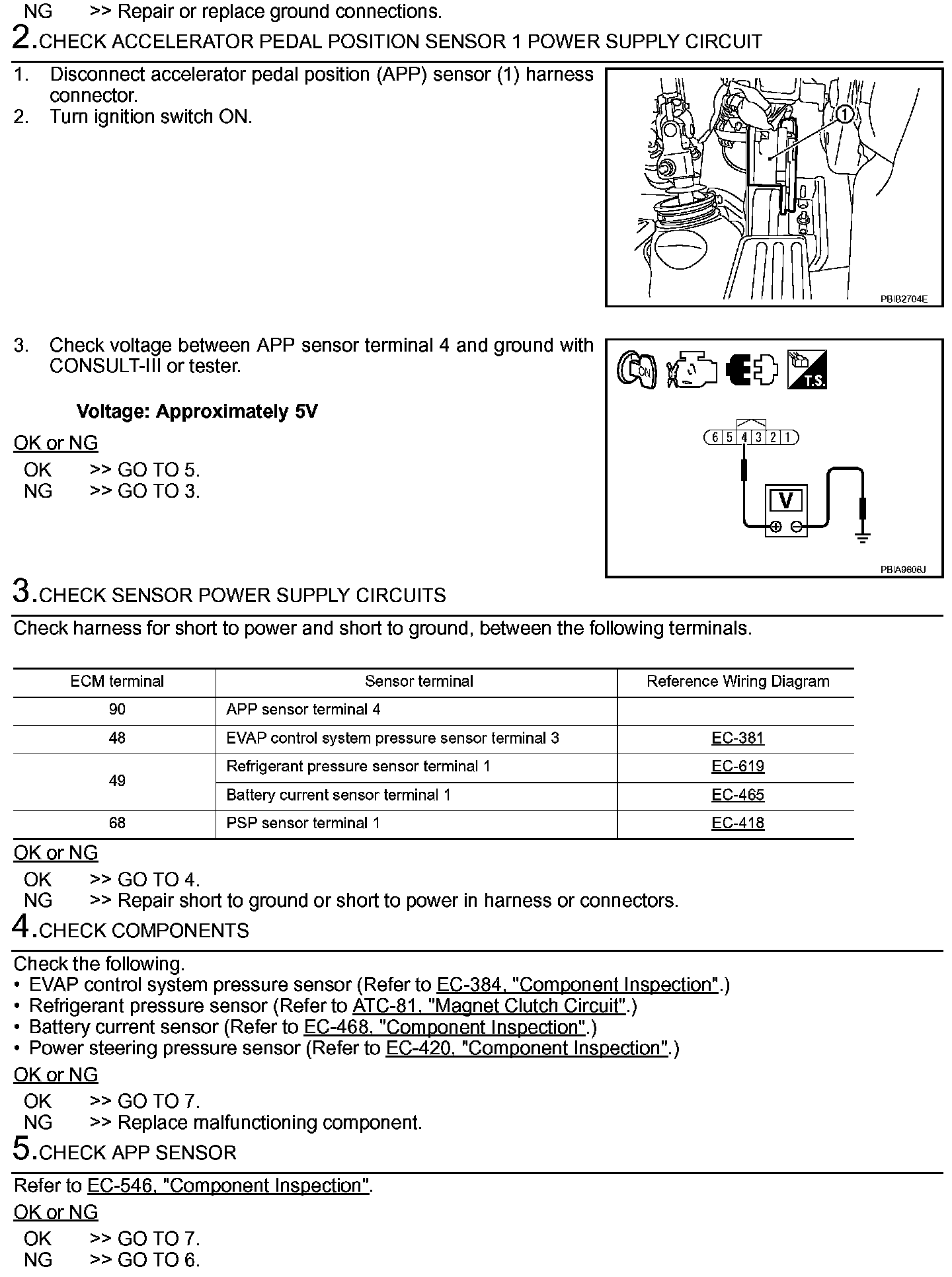

Step 1 (Continued)-5:

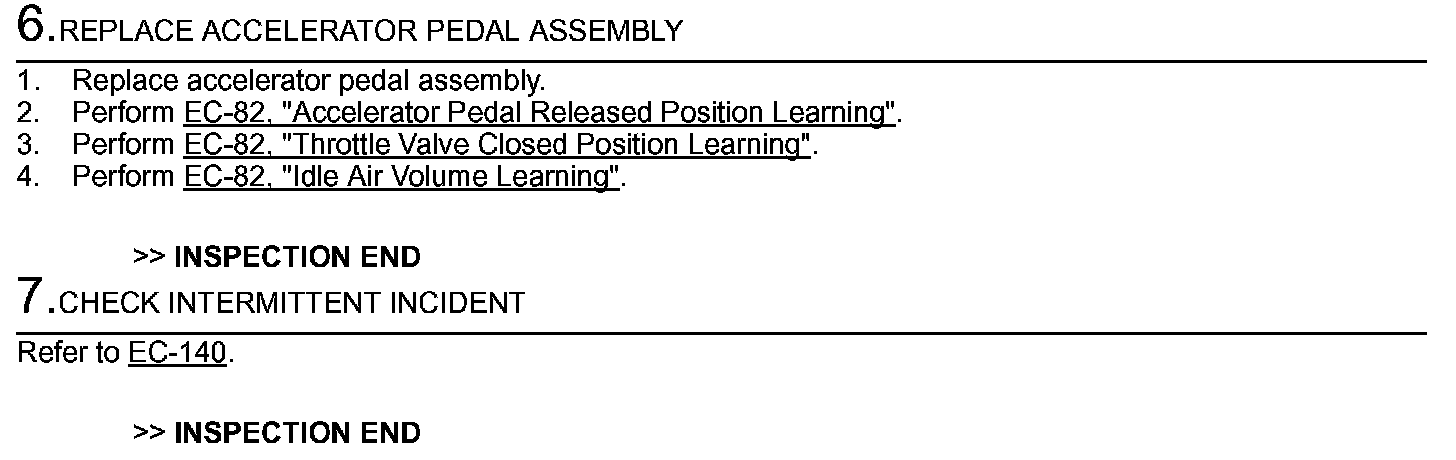

Step 6-7:
