Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1614

P1614

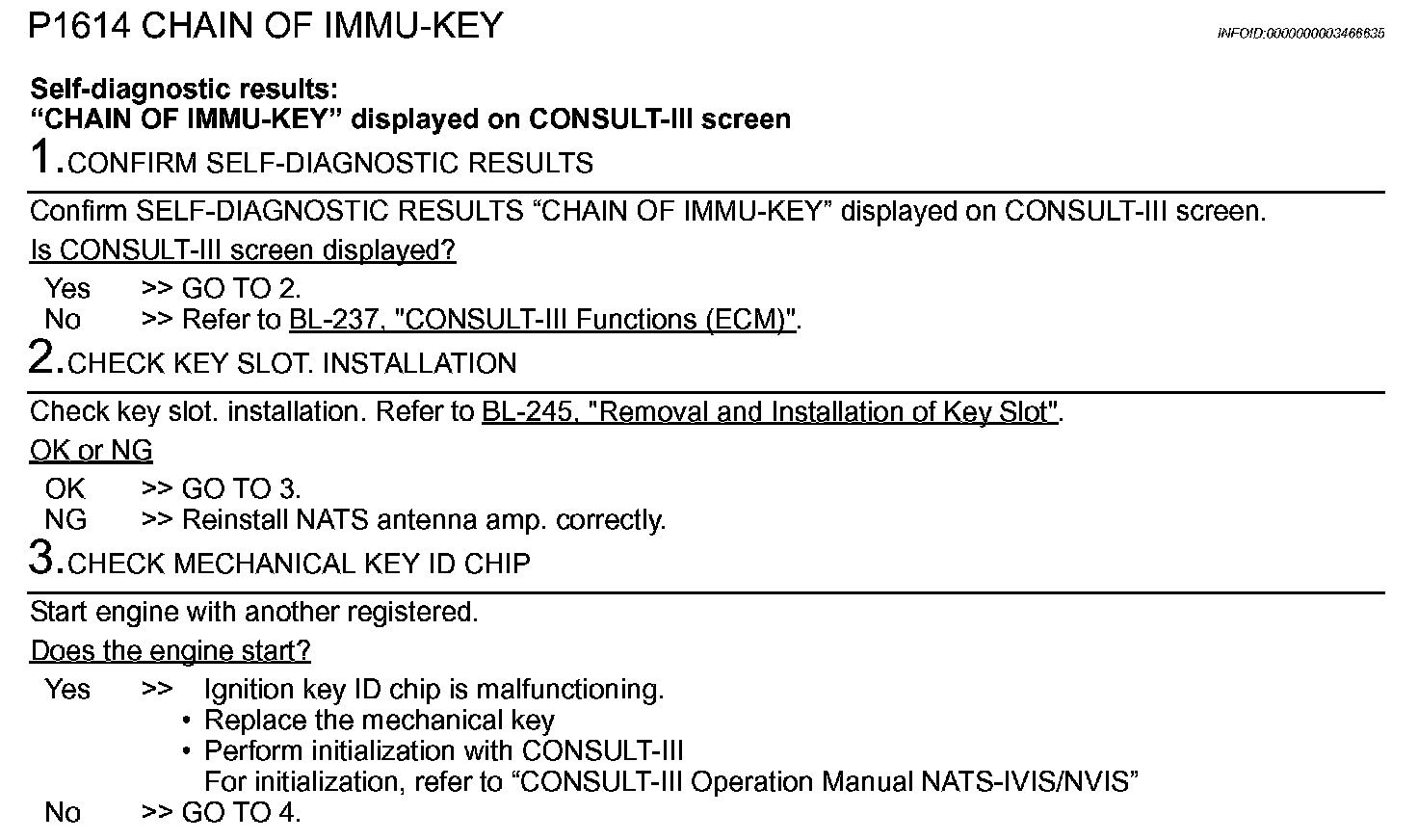

P1614 CHAIN OF IMMU-KEY

Self-diagnostic results:
"CHAIN OF IMMU-KEY" displayed on CONSULT-III screen

Step 1-3:

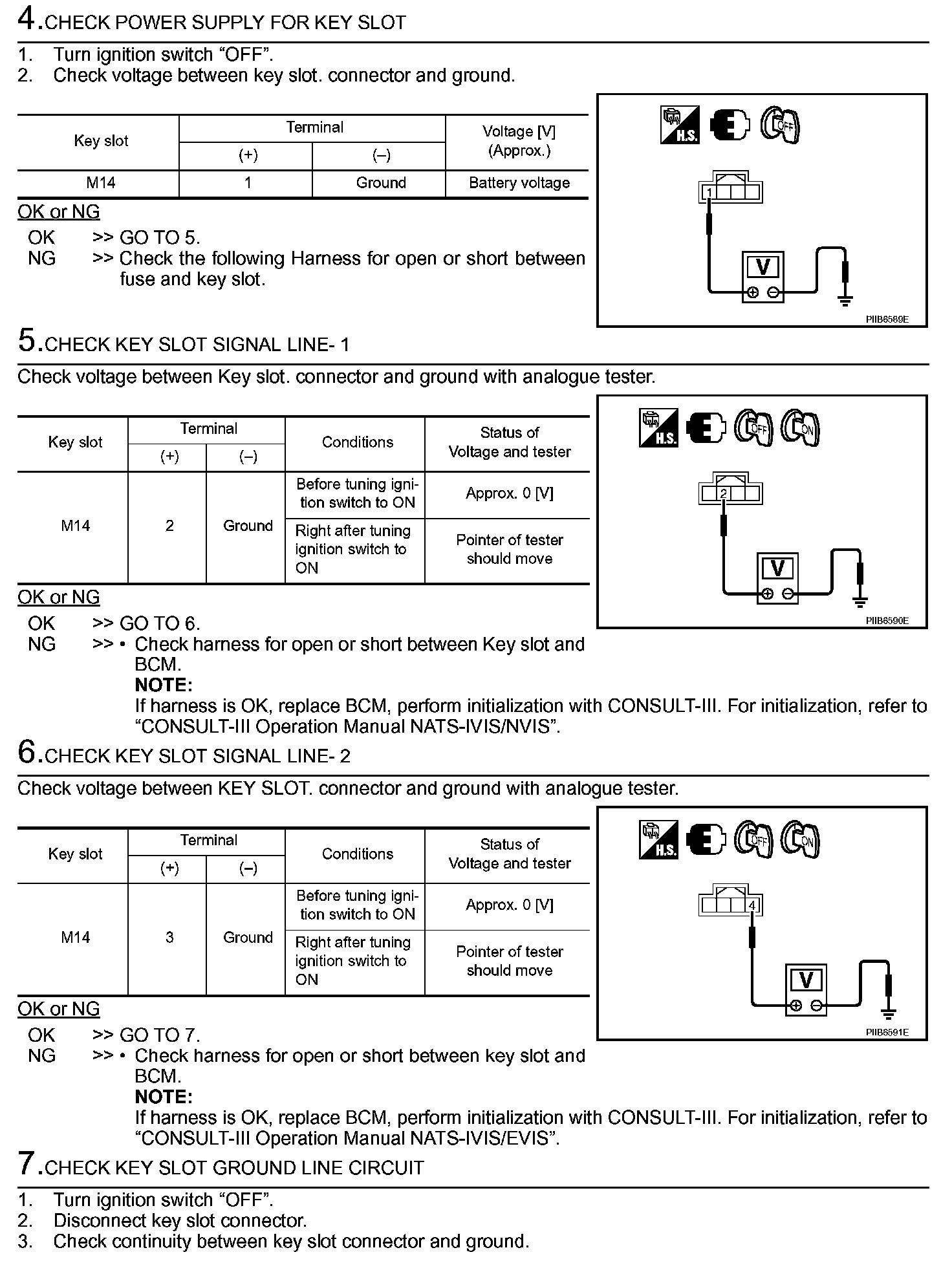

Step 4-7:

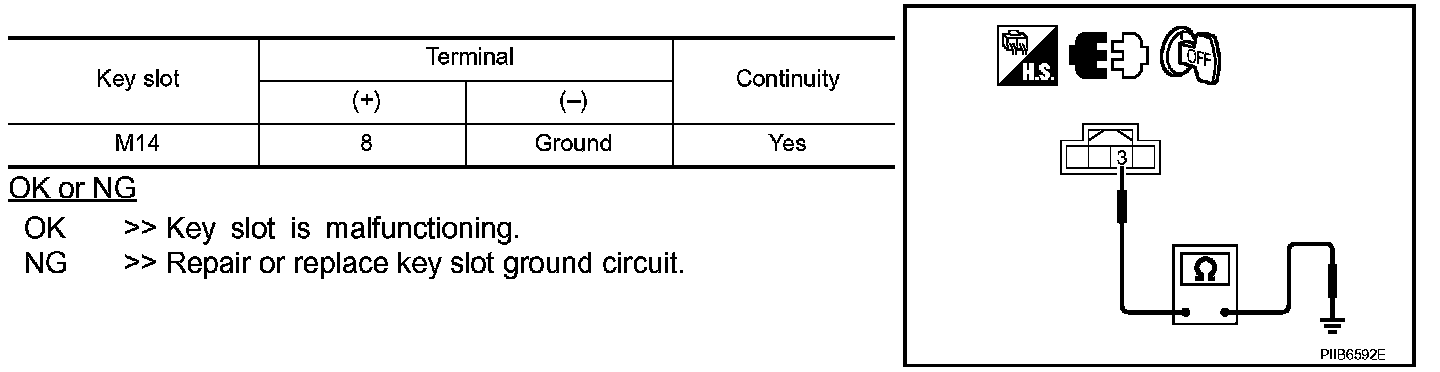

Step 7 (Continued):
