U0104

U0104 (LDP) ICC CAM CAN CIR2

DTC Logic

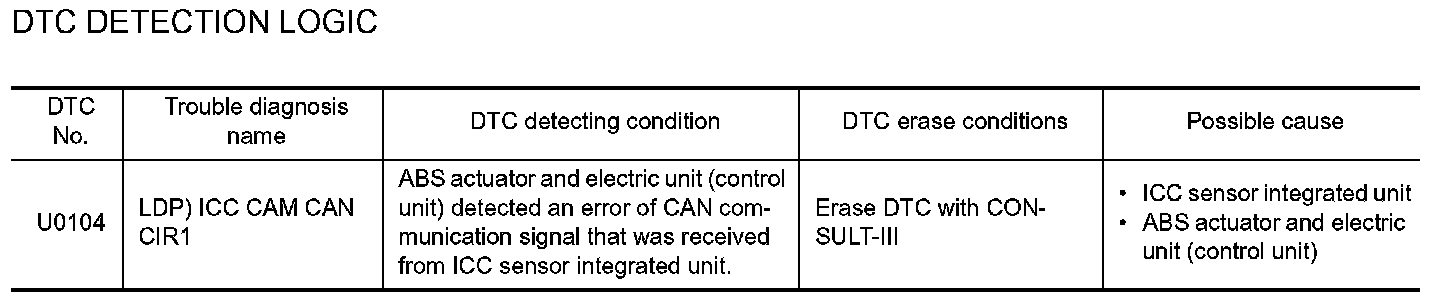

DTC DETECTION LOGIC

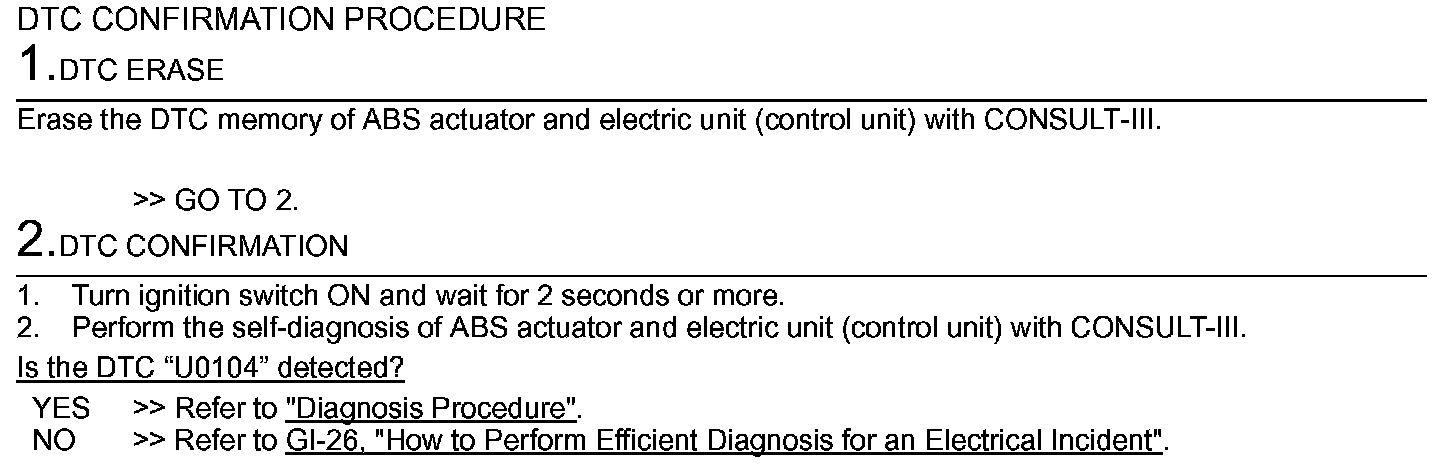

DTC CONFIRMATION PROCEDURE

Step 1-2:

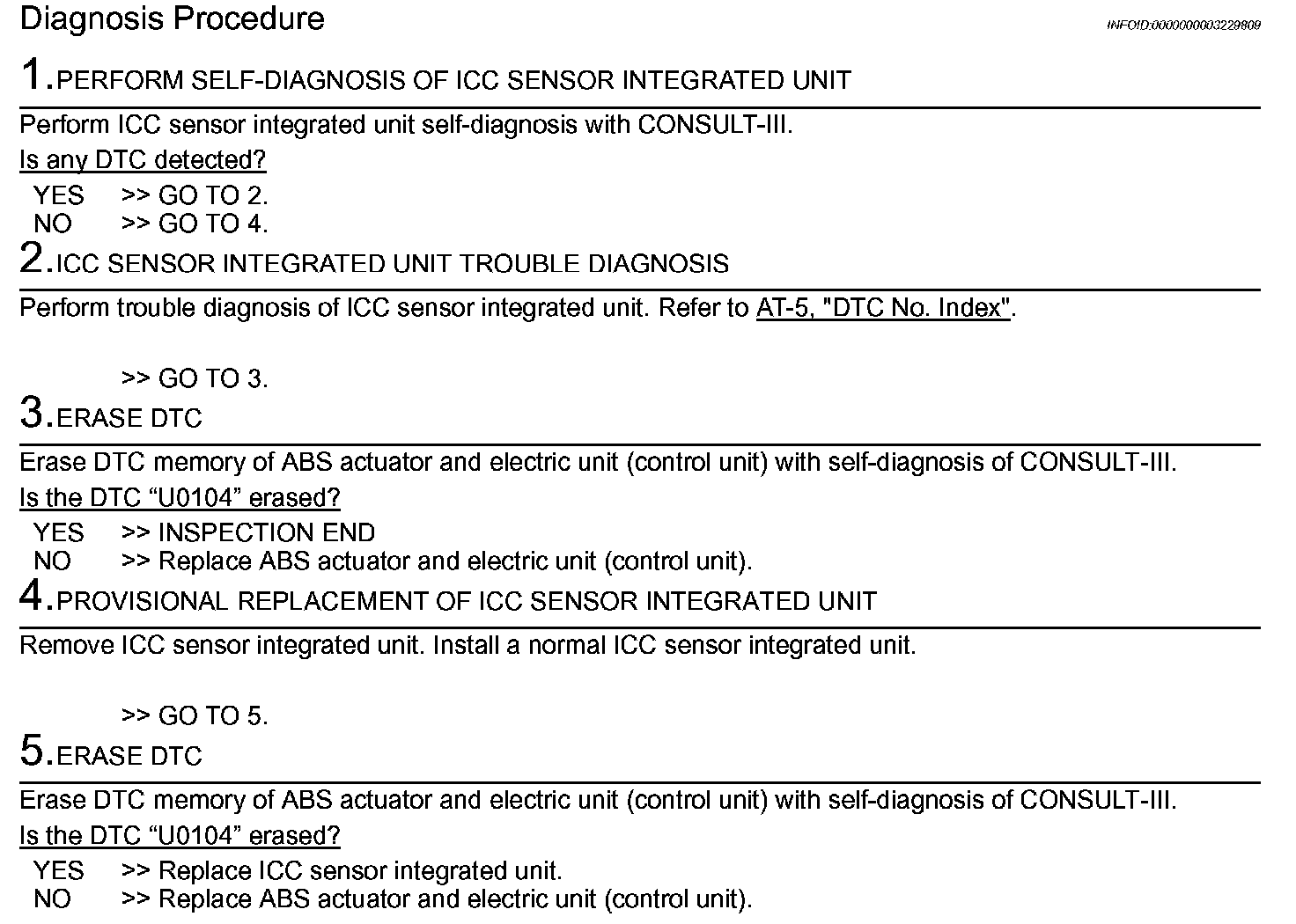

Diagnosis Procedure

Step 1-5:
