Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U0405

U0405

U0405 LDP) ICC CAM CAN CIR1

DTC Logic

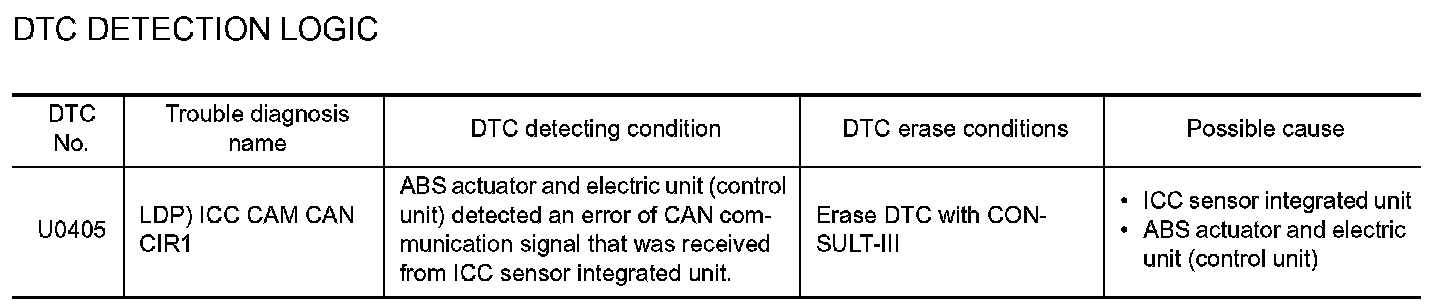

DTC DETECTION LOGIC

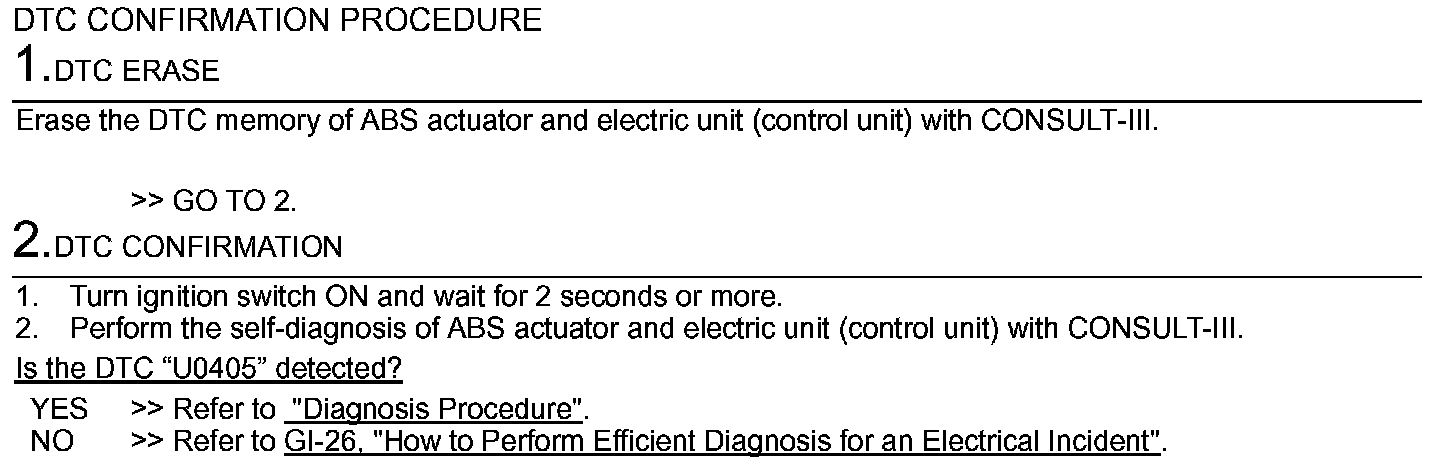

DTC CONFIRMATION PROCEDURE

Step 1-2:

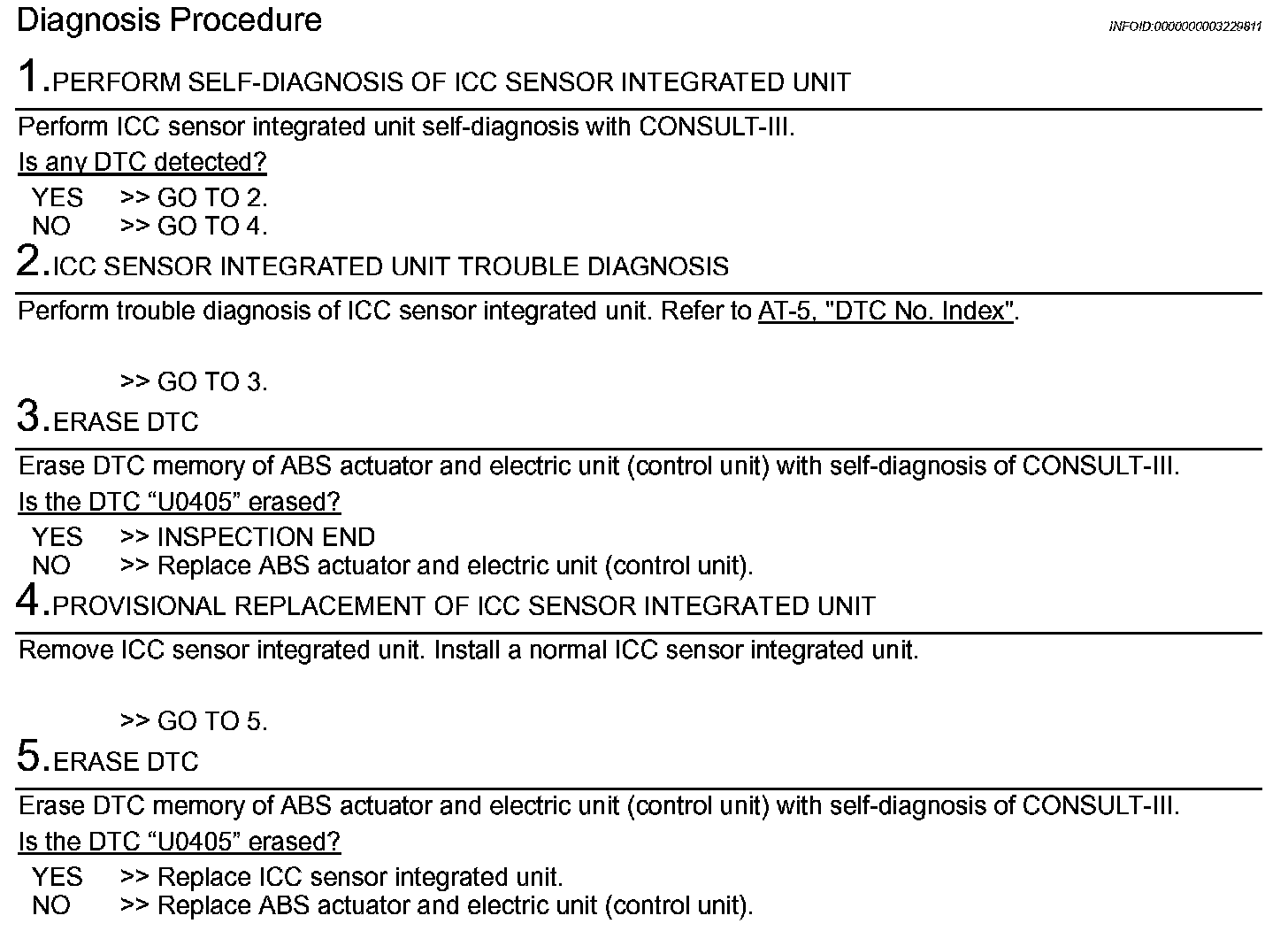

Diagnosis Procedure

Step 1-5:
