LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Infiniti
>>
2008
>>
M35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
U Code Charts
>>
U1243
>>
With Mobile Entertainment System
With Mobile Entertainment System
U1243 DISPLAY UNIT

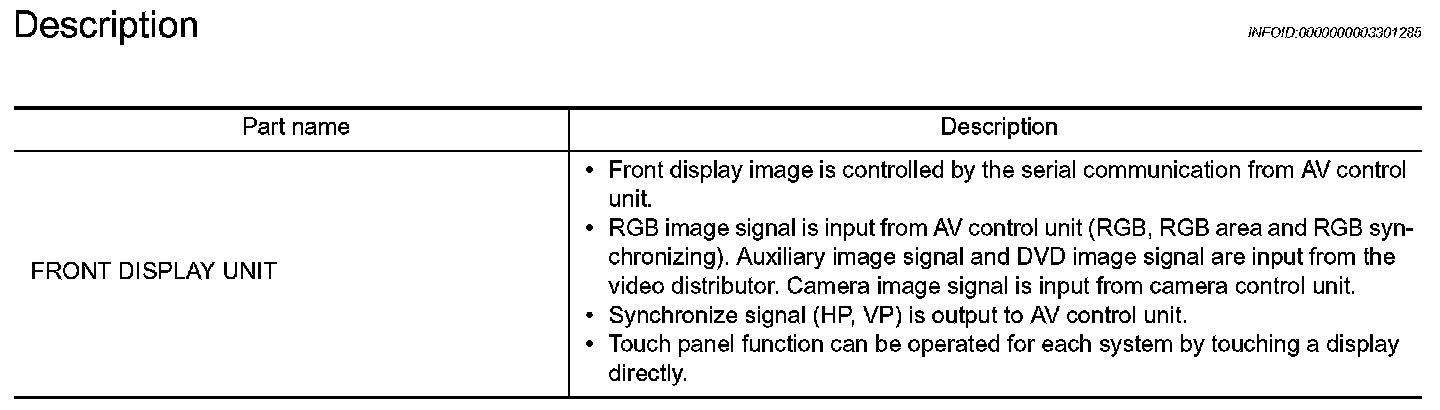

Description

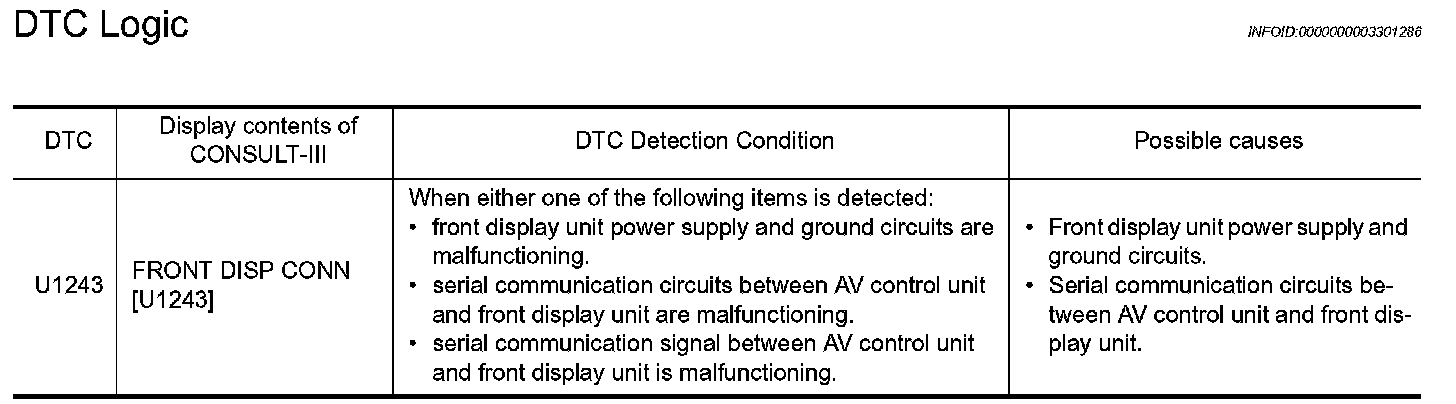

DTC Logic

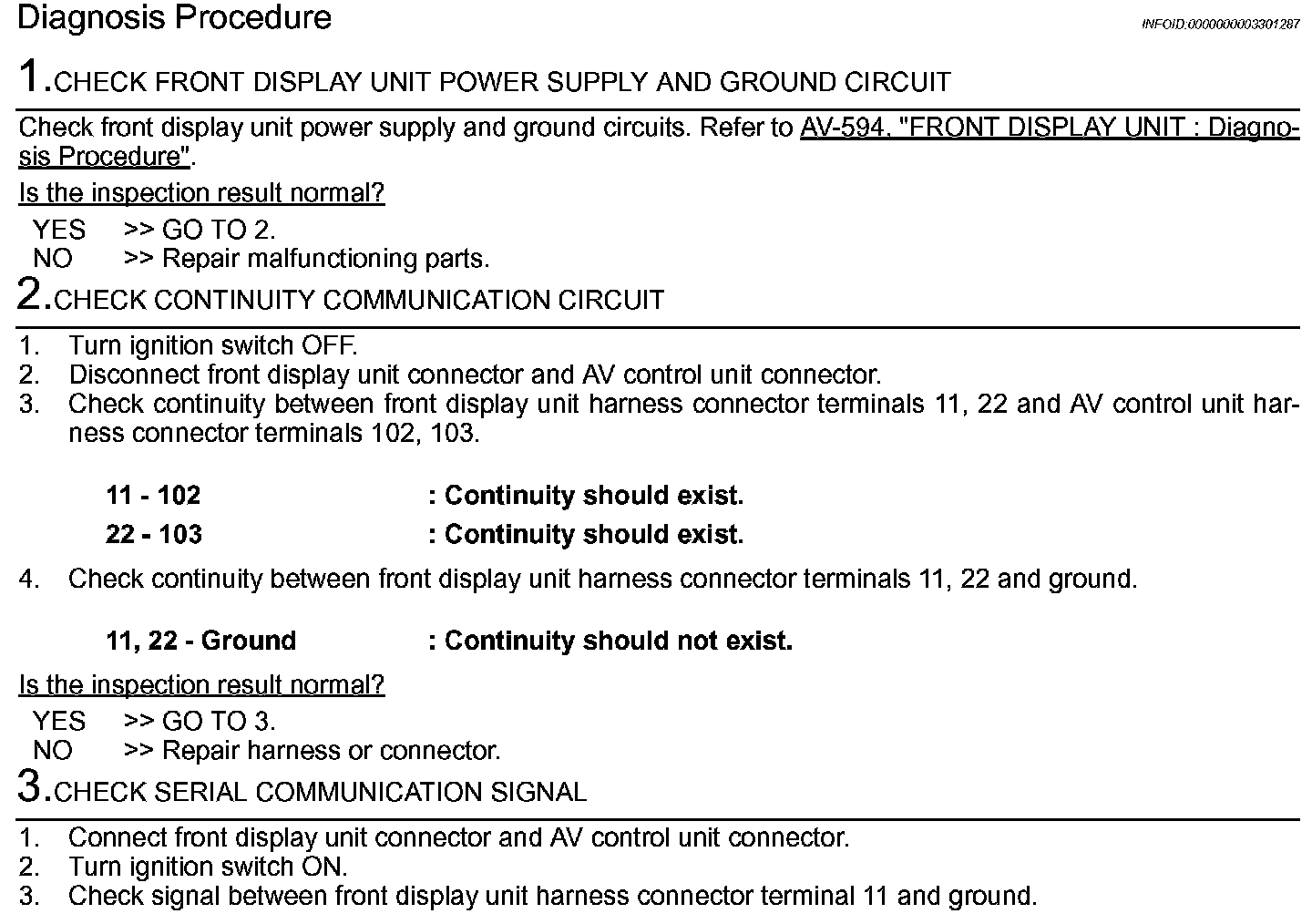

Diagnosis Procedure
Step 1-3:

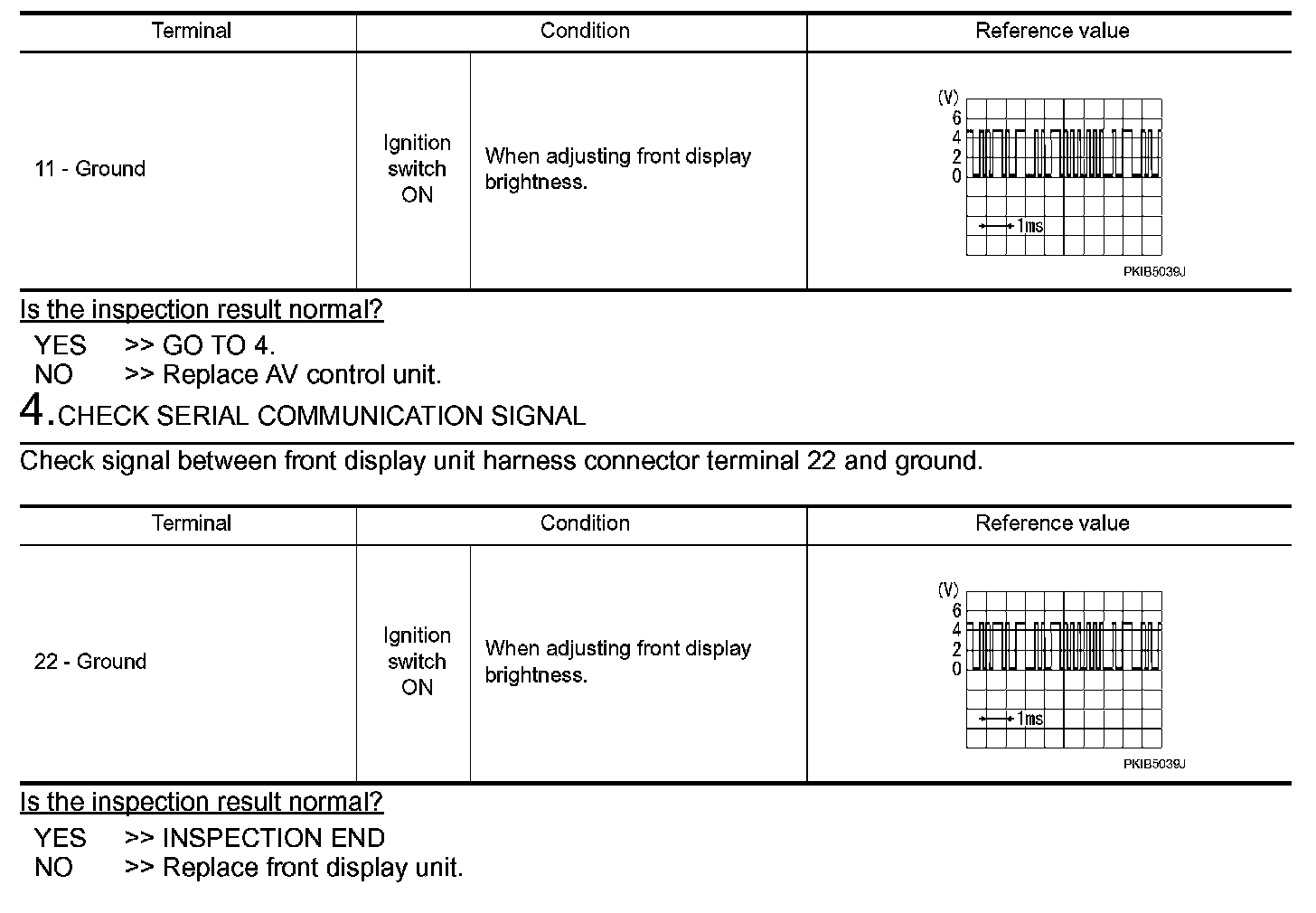

Step 3 (Continued)-4:
