Without Navigation

U1243 DISPLAY UNIT

WITHOUT NAVIGATION

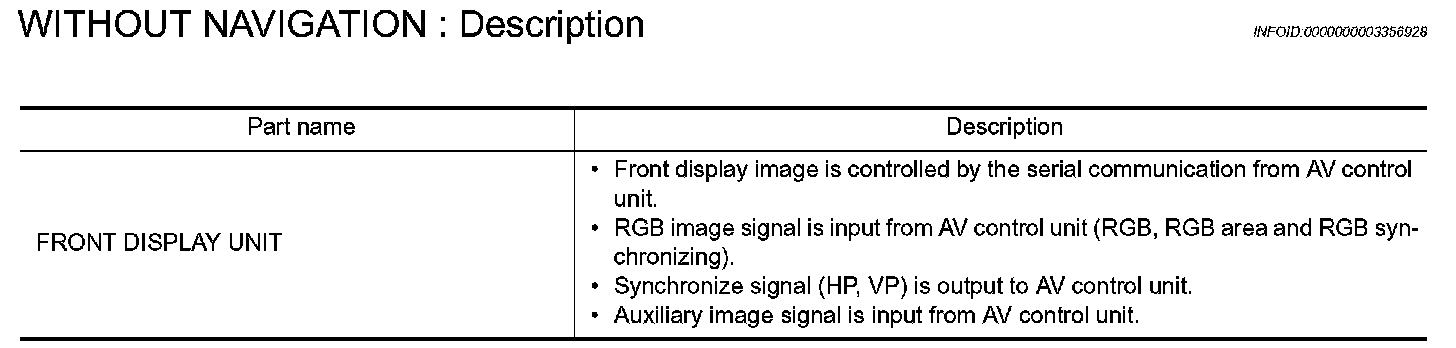

WITHOUT NAVIGATION : Description

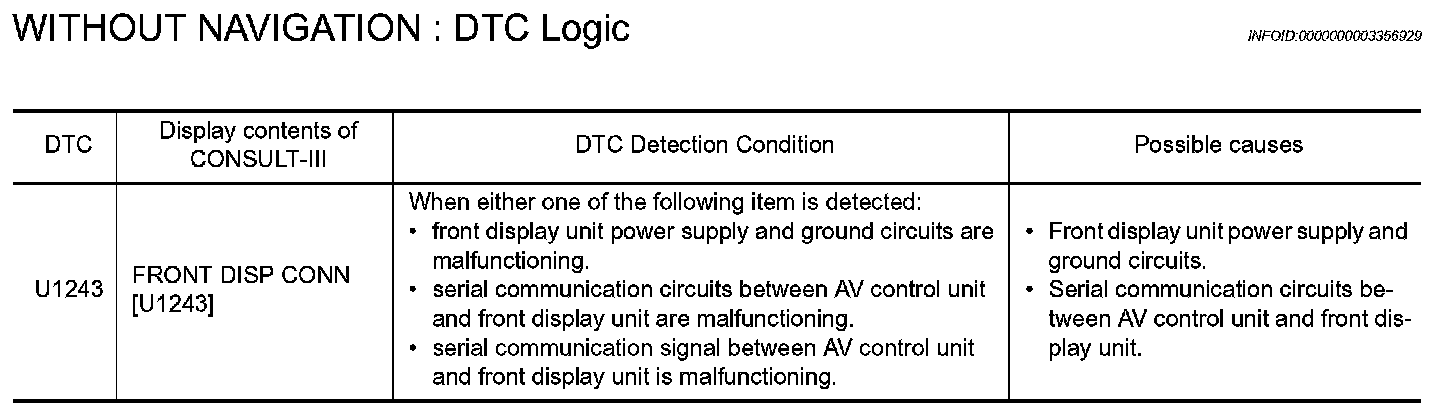

WITHOUT NAVIGATION : DTC Logic

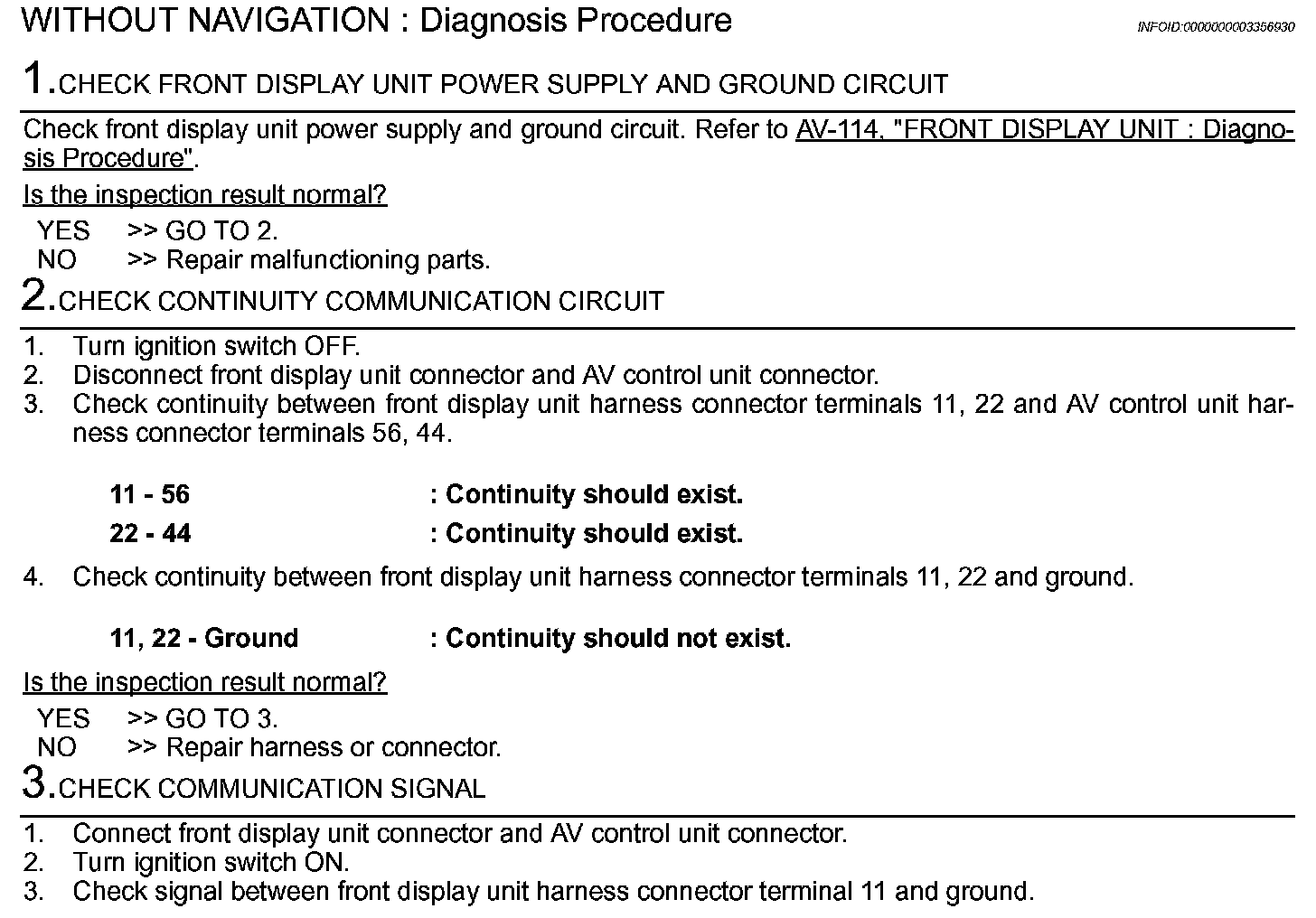

WITHOUT NAVIGATION : Diagnosis Procedure

Step 1-3:

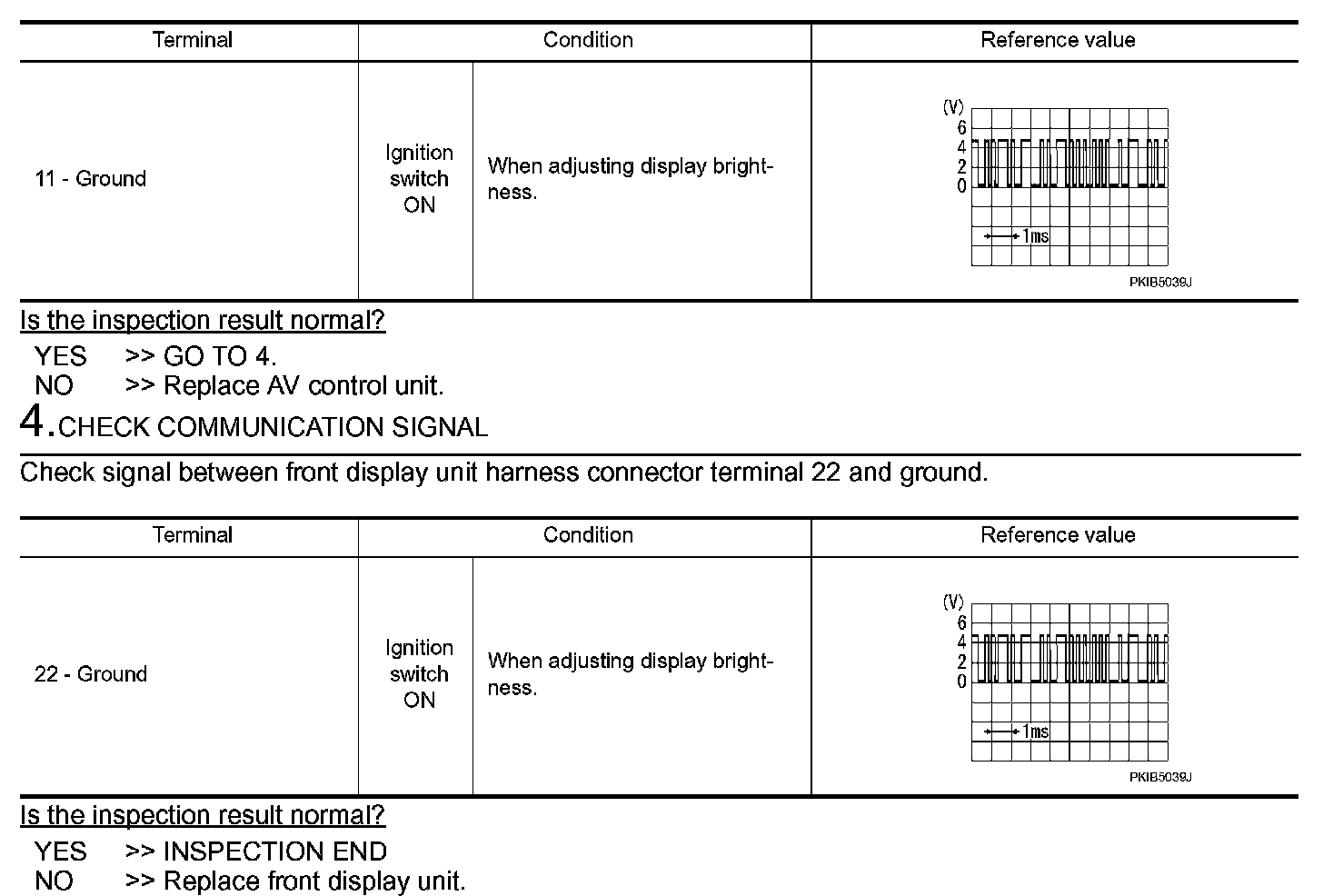

Step 3 (Continued)-4:
