With Navigation
WITH NAVIGATIONWITH NAVIGATION : Description
U1300 is indicated when malfunction occurs in communication signal of multi AV system. Indicated simultaneously, without fail, with the malfunction of control units connected to AV control unit with communication line. Determine the possible malfunction cause from the table below.
SELF-DIAGNOSIS RESULTS DISPLAY ITEM

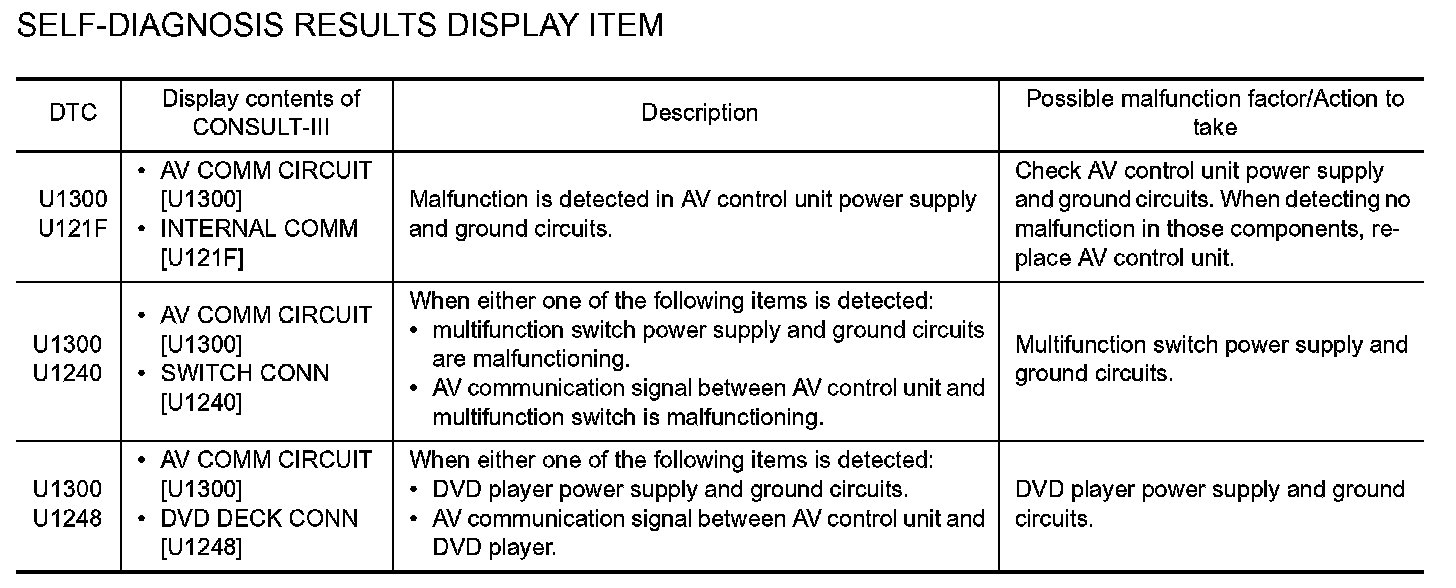

Self-Diagnosis Results Display Item (Part 1):

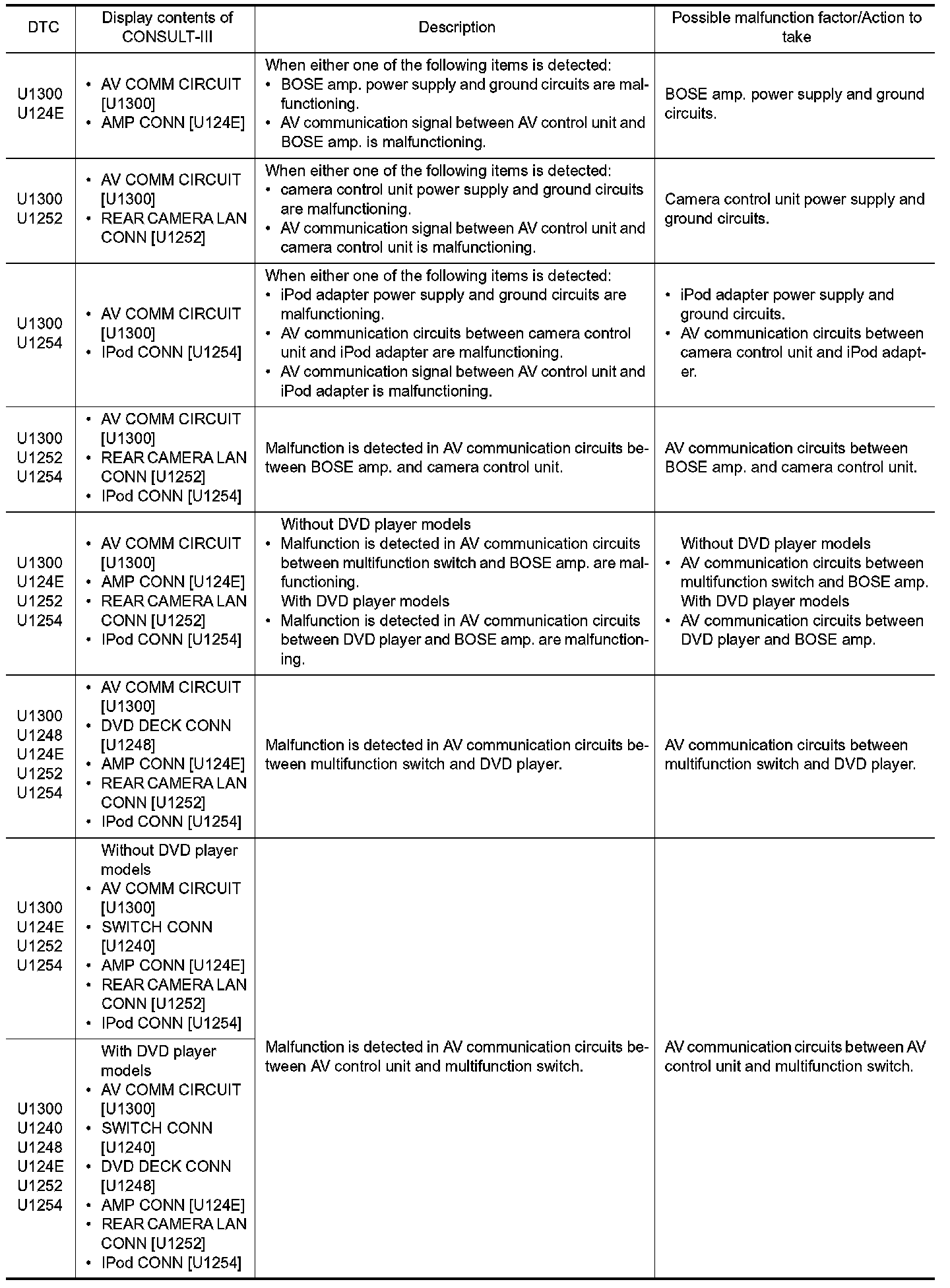

Self-Diagnosis Results Display Item (Part 2):

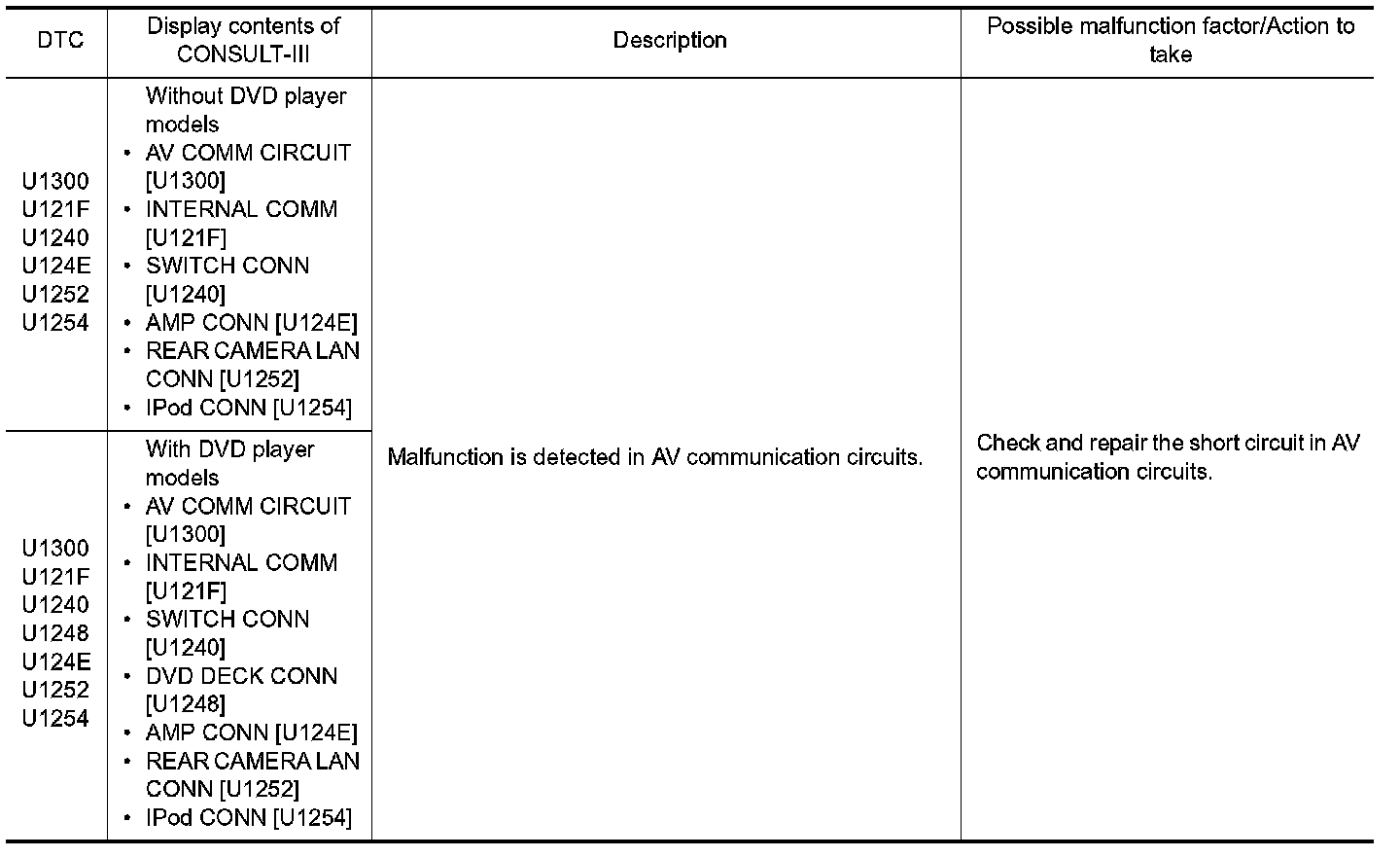

Self-Diagnosis Results Display Item (Part 3):
