U1501

U1501 LDP) CAM CAN CIR2

DTC Logic

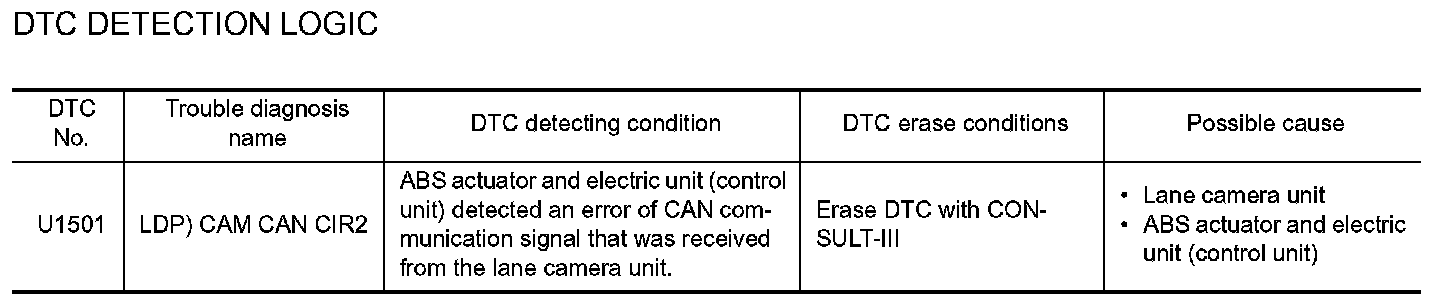

DTC DETECTION LOGIC

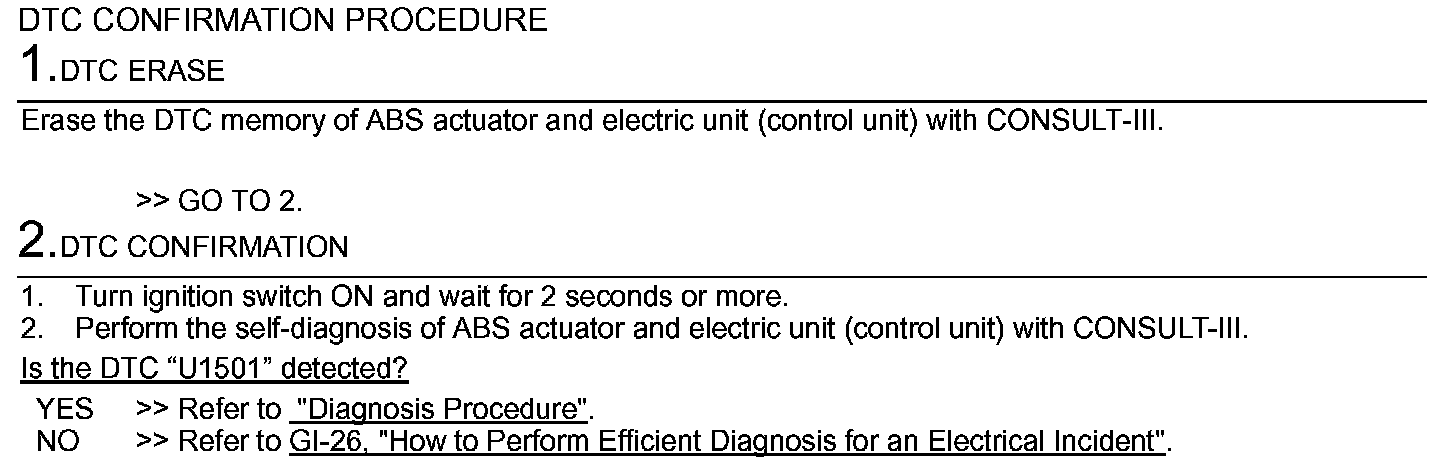

DTC CONFIRMATION PROCEDURE

Step 1-2:

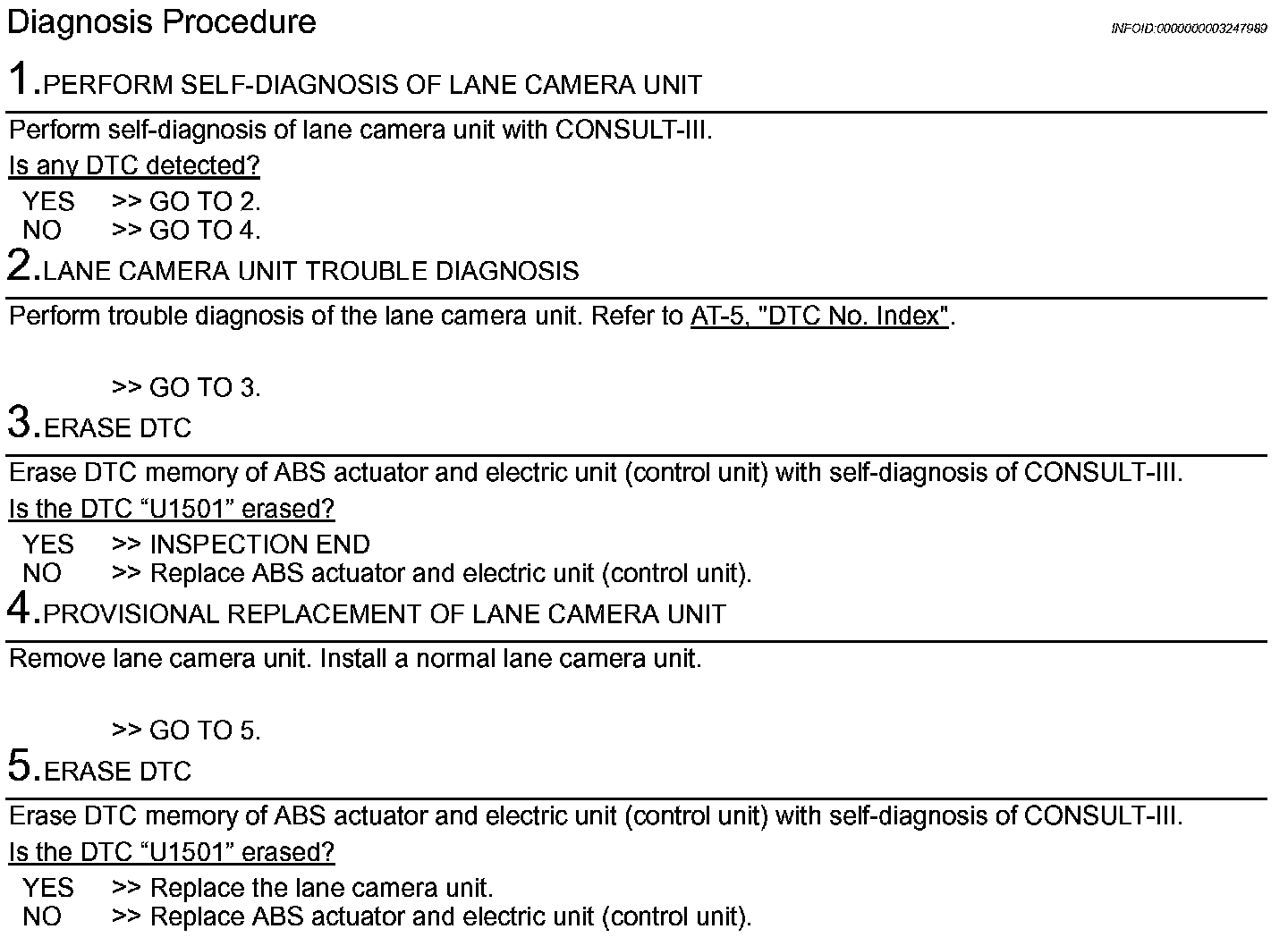

Diagnosis Procedure

Step 1-5:
