Trouble Diagnosis Chart
Trouble Diagnosis Chart

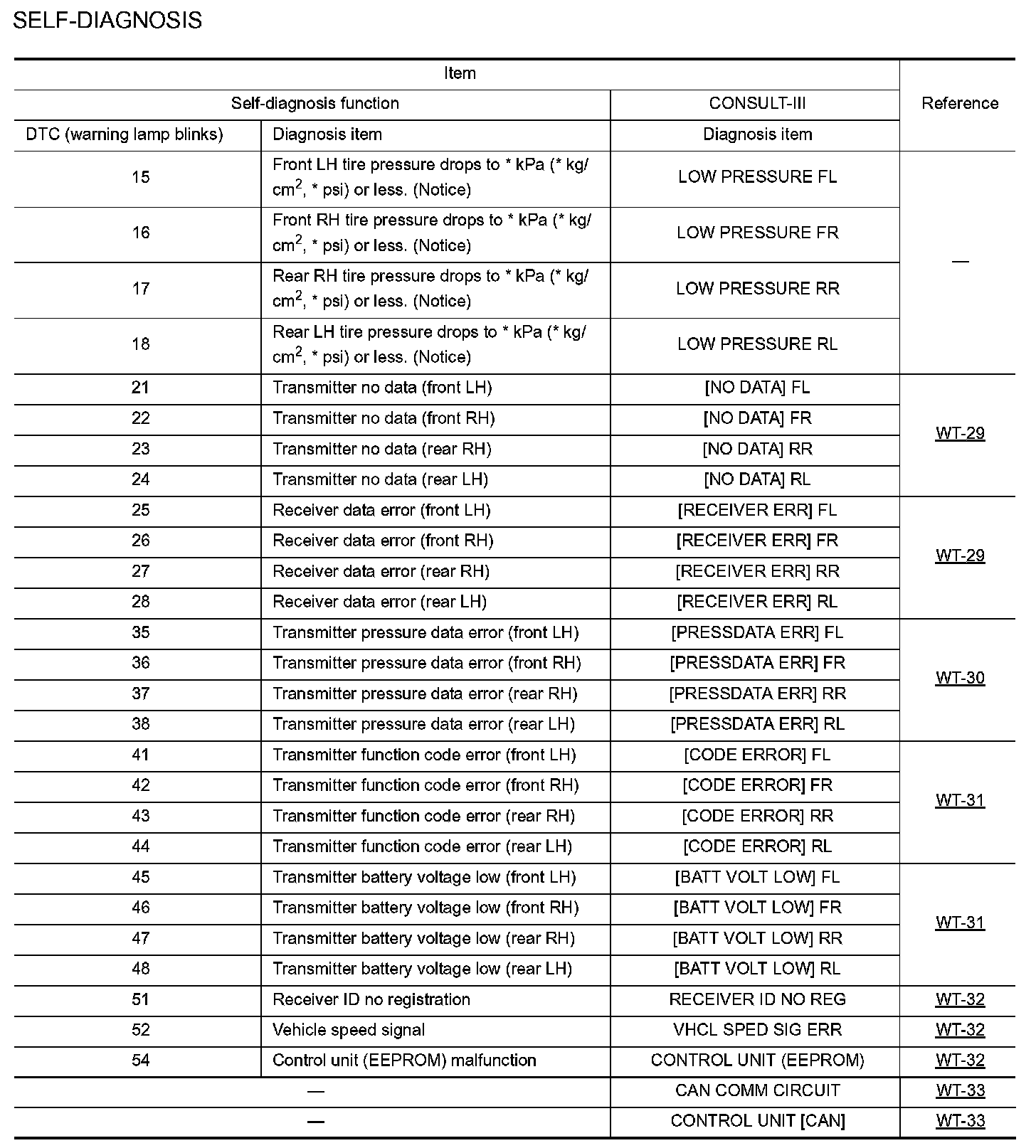

SELF-DIAGNOSIS
NOTICE:
182 kPa (1.82 kg/cm2, 26.5 psi): Standard air pressure is for 230 kPa (2.3 kg/cm2, 33 psi) vehicles.

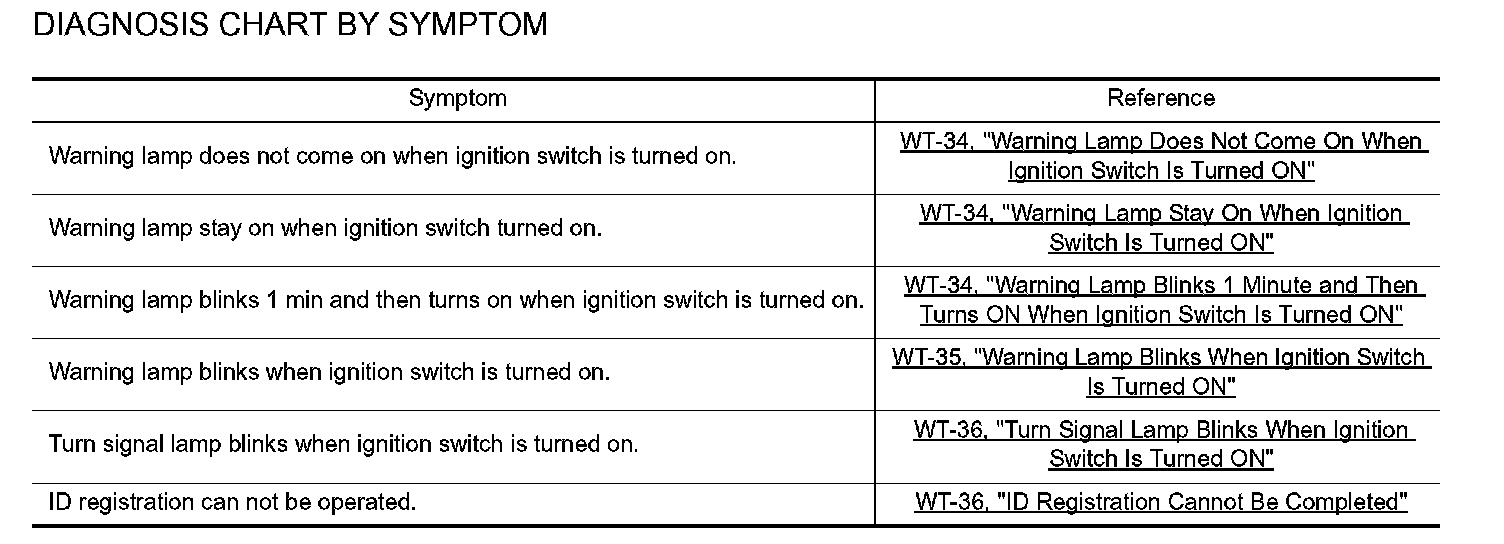

DIAGNOSIS CHART BY SYMPTOM:
