Exhaust Manifold

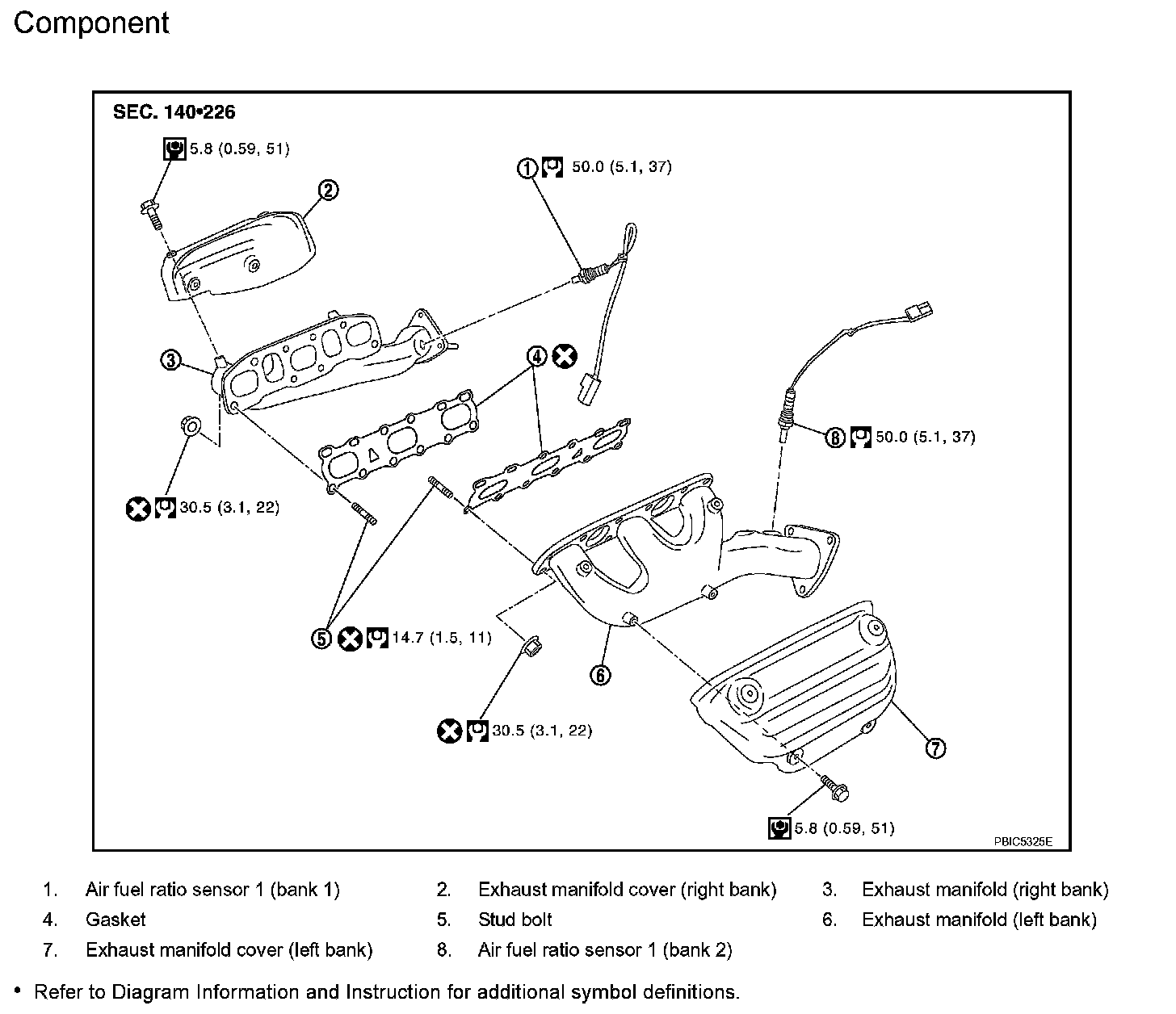

EM-26 Component:

Exhaust Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Tightening torque 14.7 Nm (1.5 kg-m, 11 ft-lb)

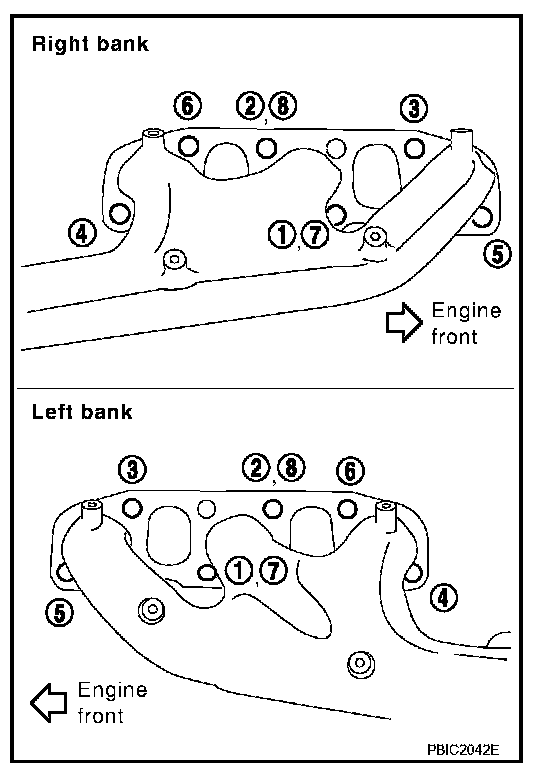

Install exhaust manifold and tighten mounting bolts in numerical order as shown in the figure.

NOTE: Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7 and 8 shows second step.
