Basic Inspection

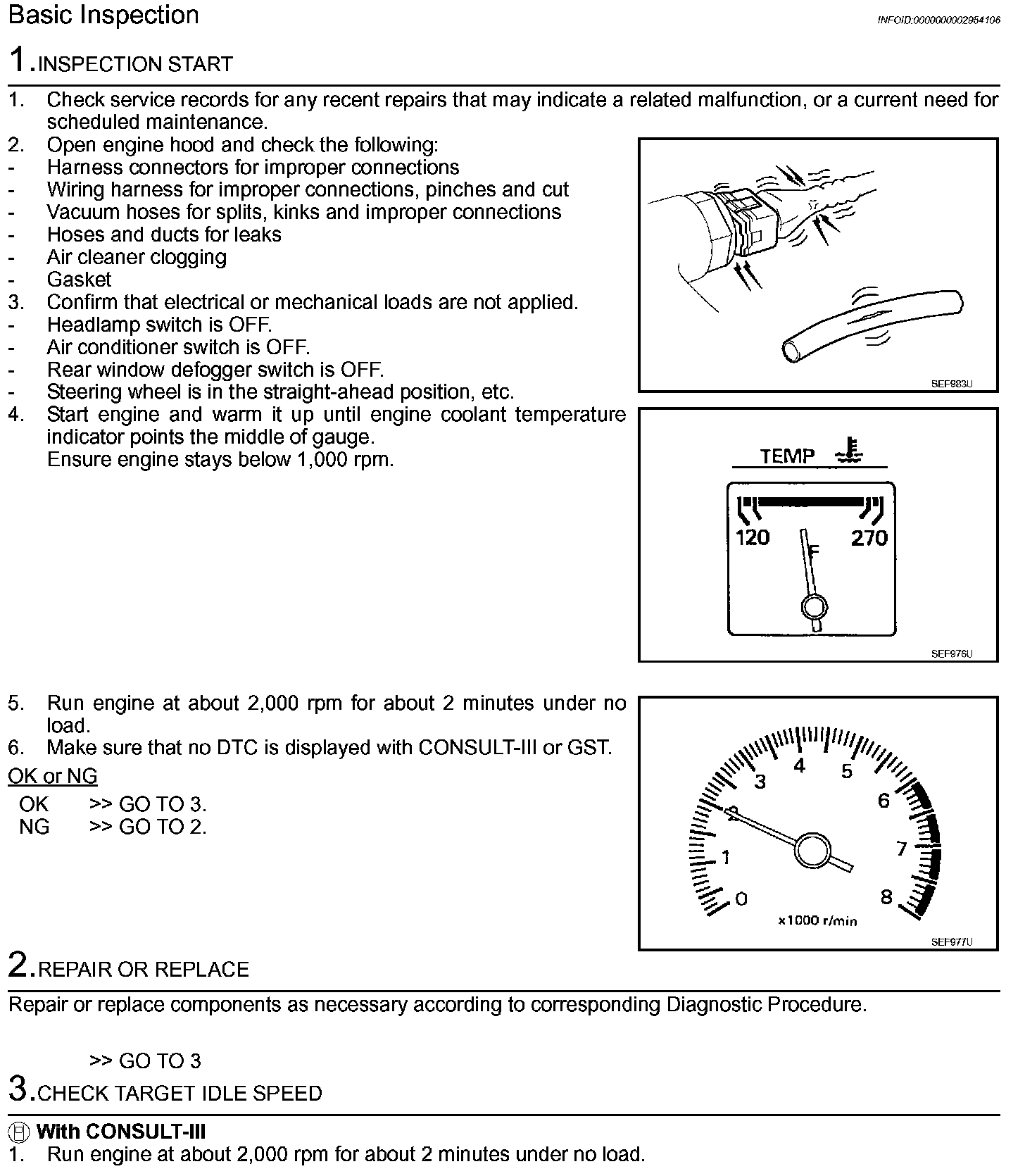

Step 1-3:

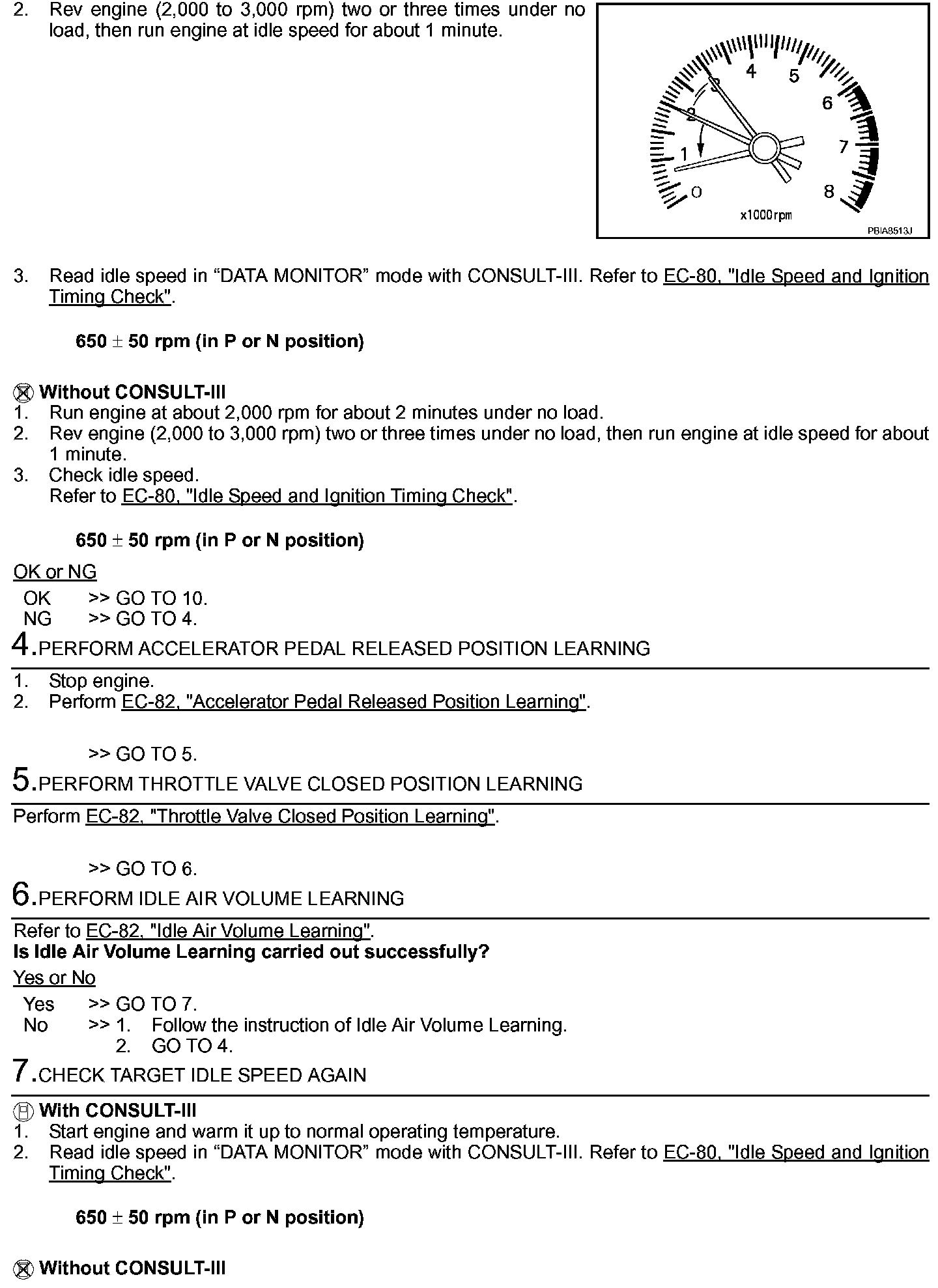

Step 3 (Continued)-7:

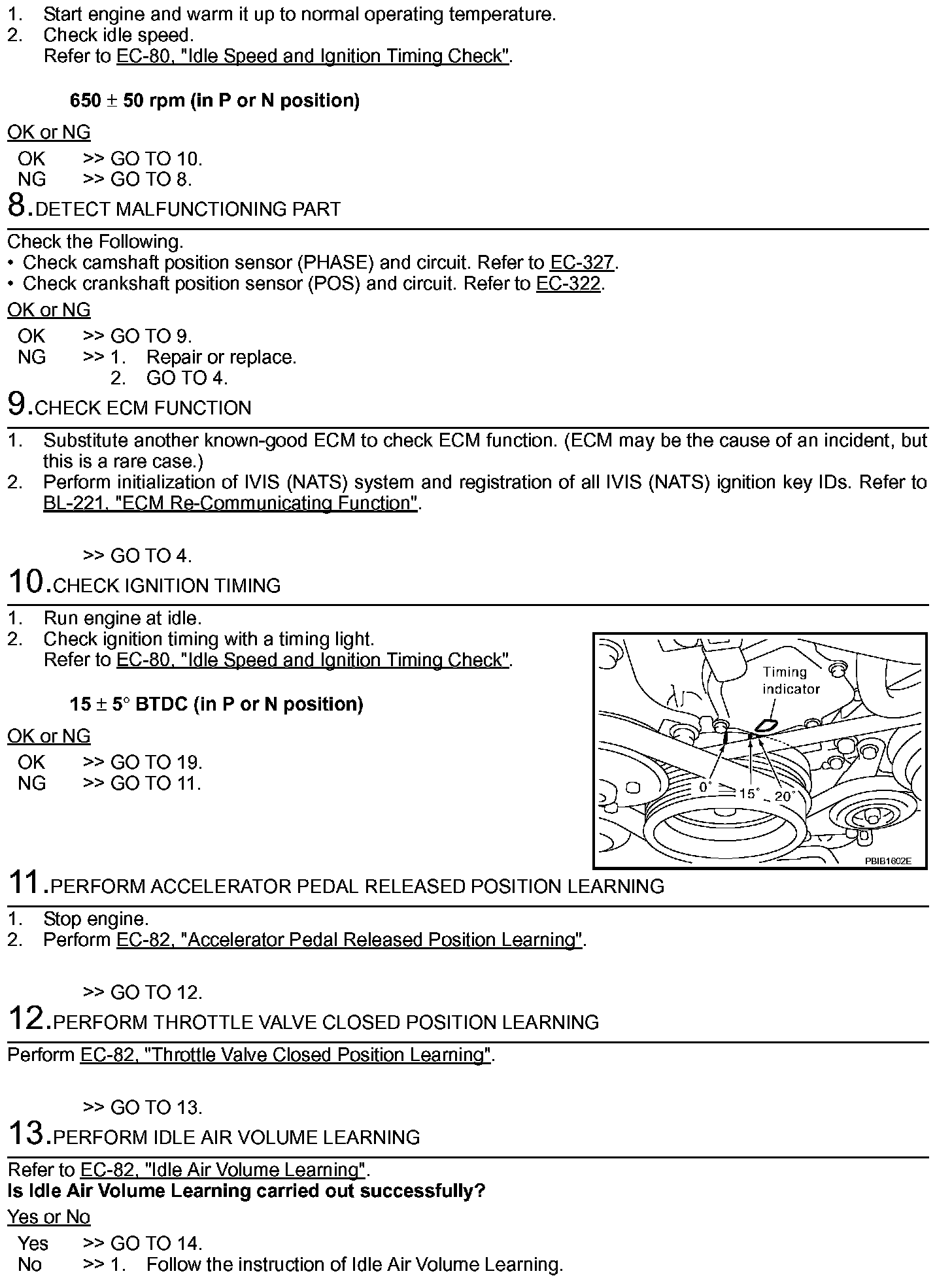

Step 7 (Continued)-13:

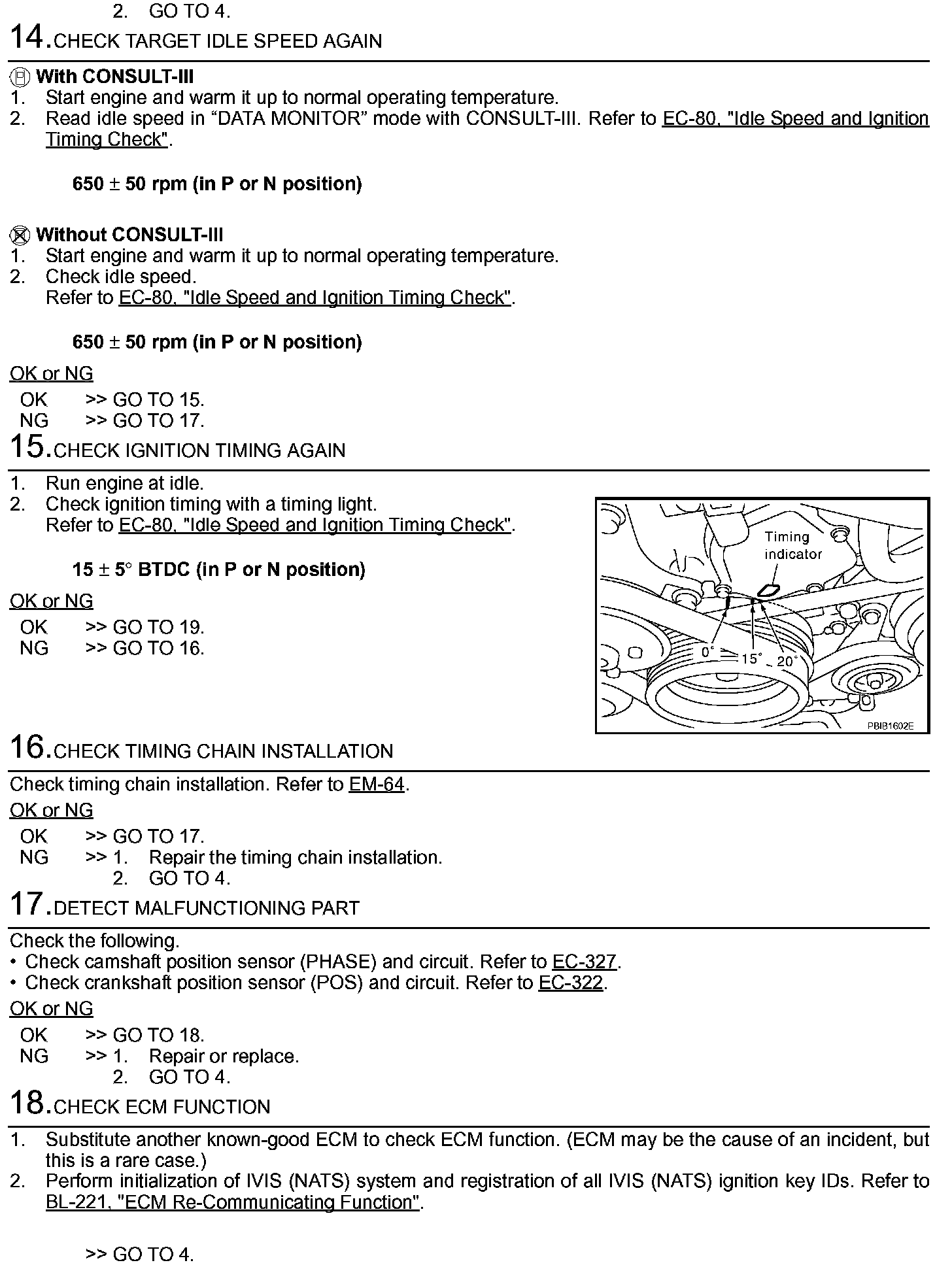

Step 13 (Continued)-18:

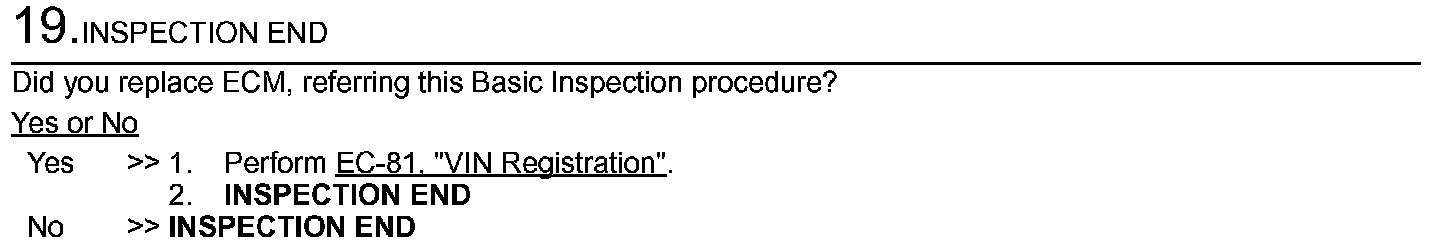

Step 19:
