Introduction

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Introduction

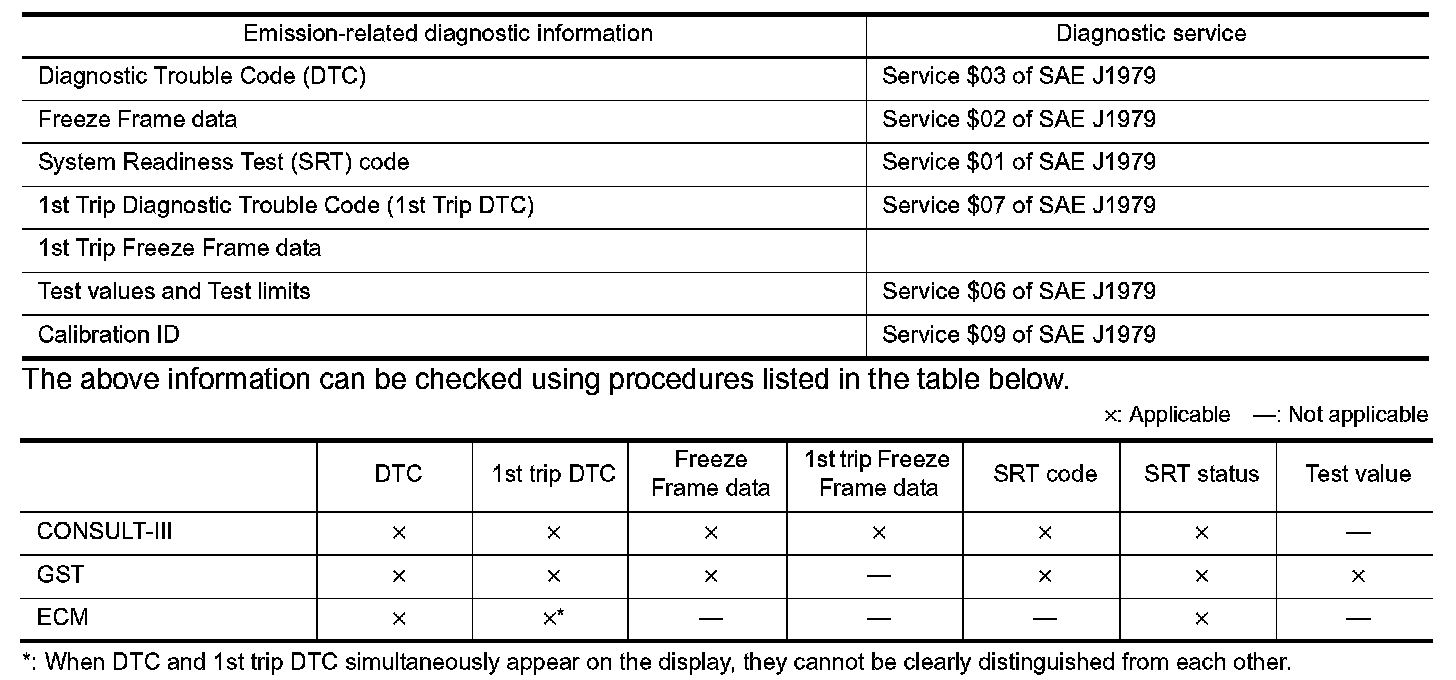

The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actuators. The ECM also records various emission-related diagnostic information including:






The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-92, "Fail-Safe Chart".) Fail-Safe Chart
