Self-Diag Results Mode

SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-55, "Emission-Related Diagnostic Information".) Emission-Related Diagnostic Information Items

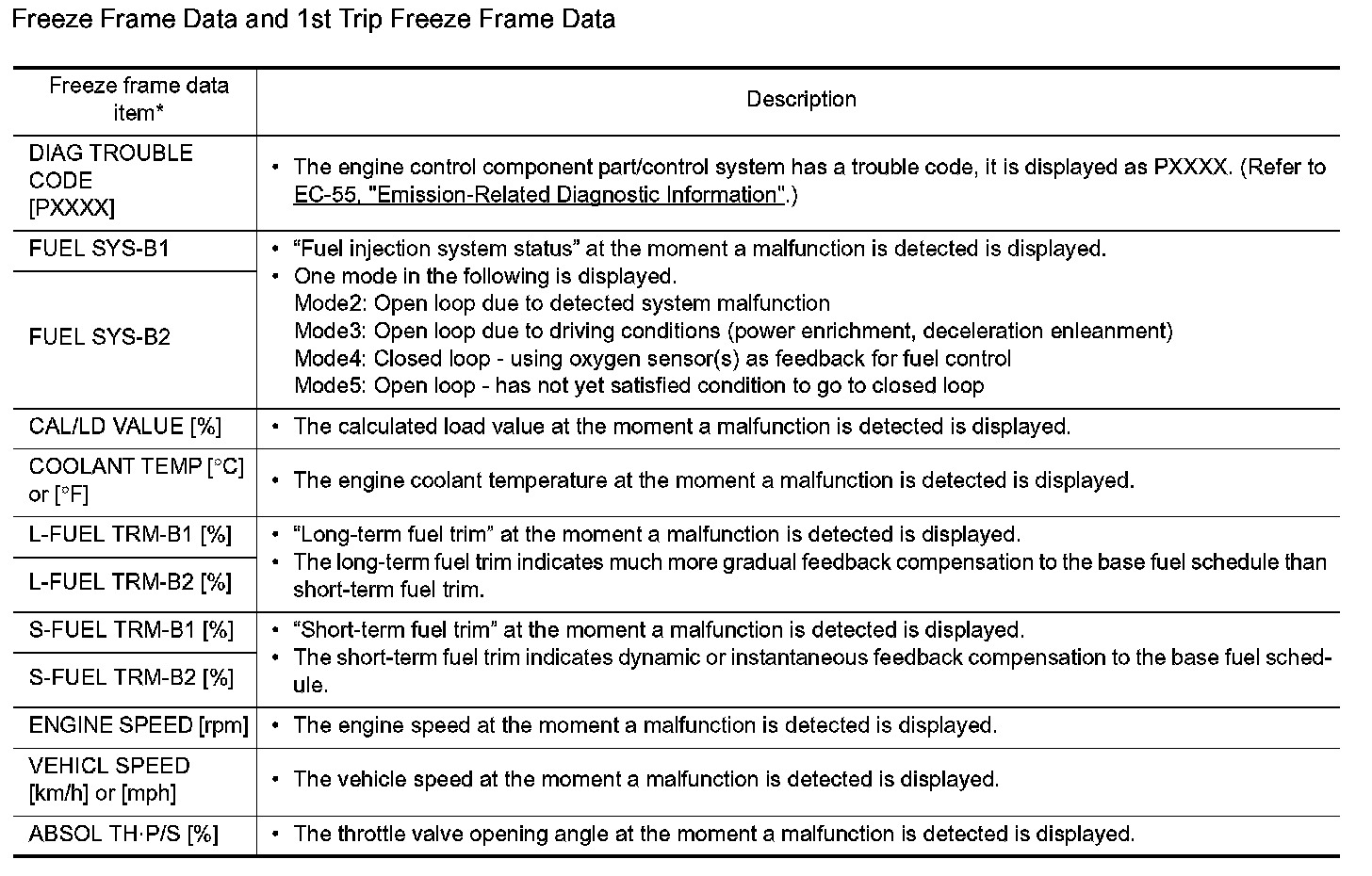

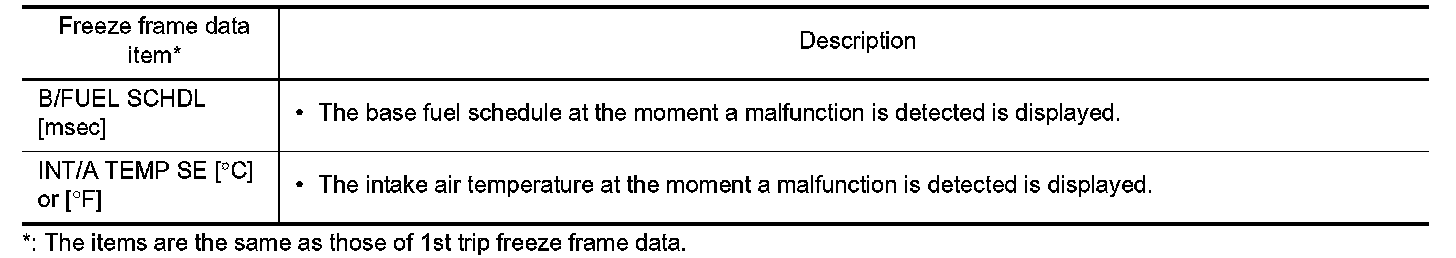

Freeze Frame Data and 1st Trip Freeze Frame Data
