Electrical Load Signal

ELECTRICAL LOAD SIGNAL

Description
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred through the CAN communication line from BCM to ECM via IPDM E/R.

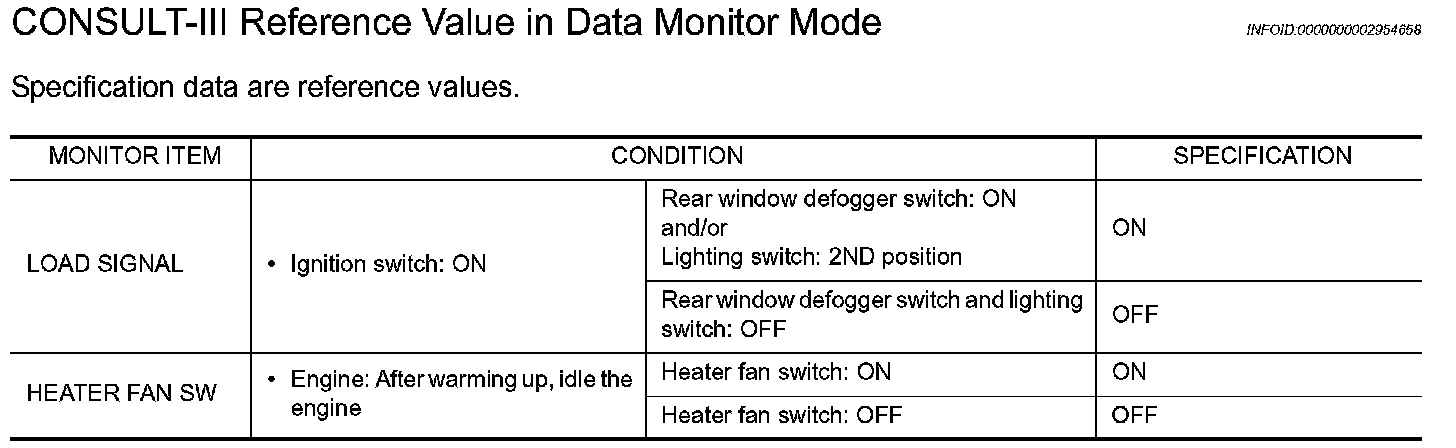

CONSULT-III Reference Value in Data Monitor Mode






Diagnosis Procedure

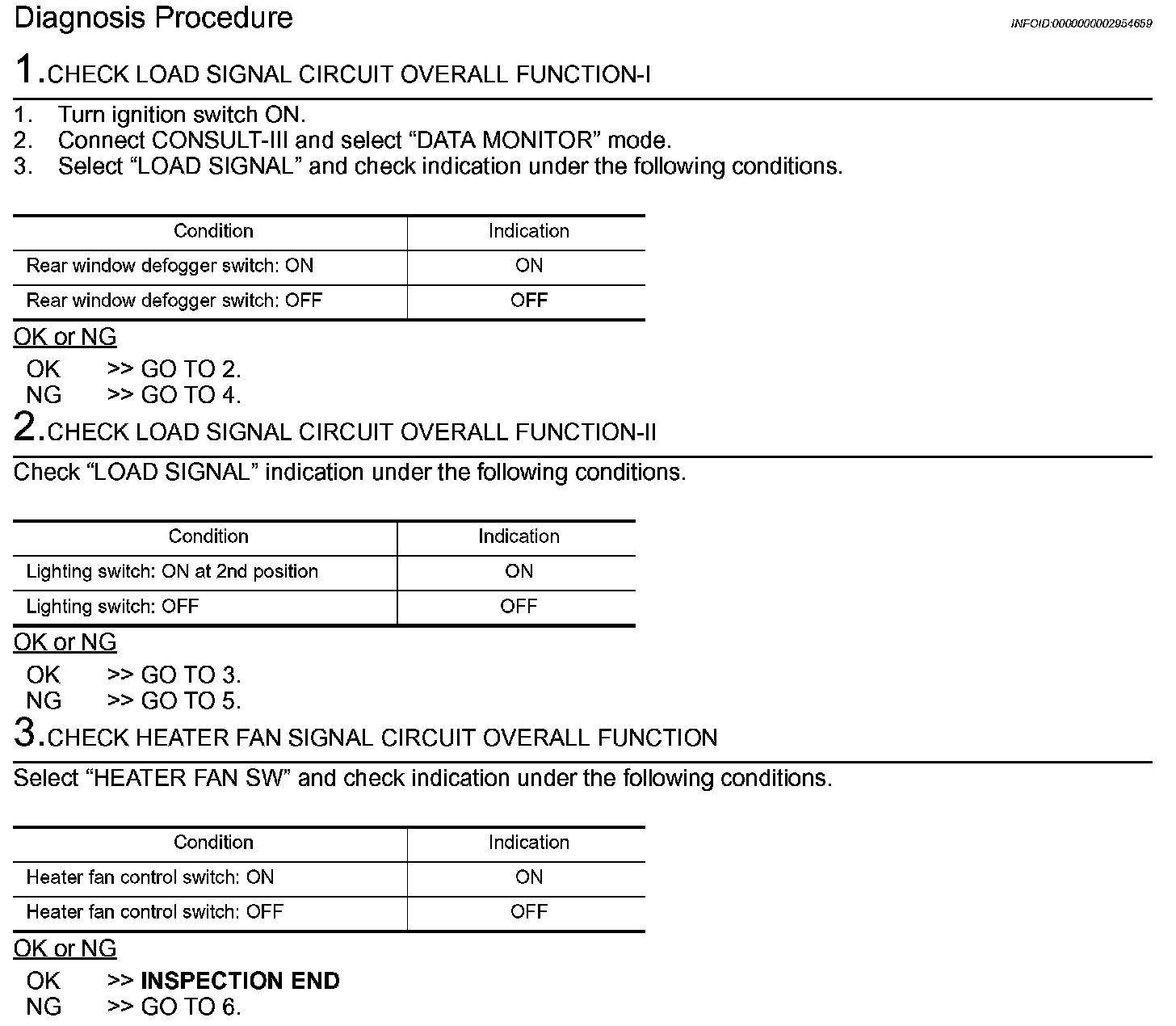

Step 1-3:

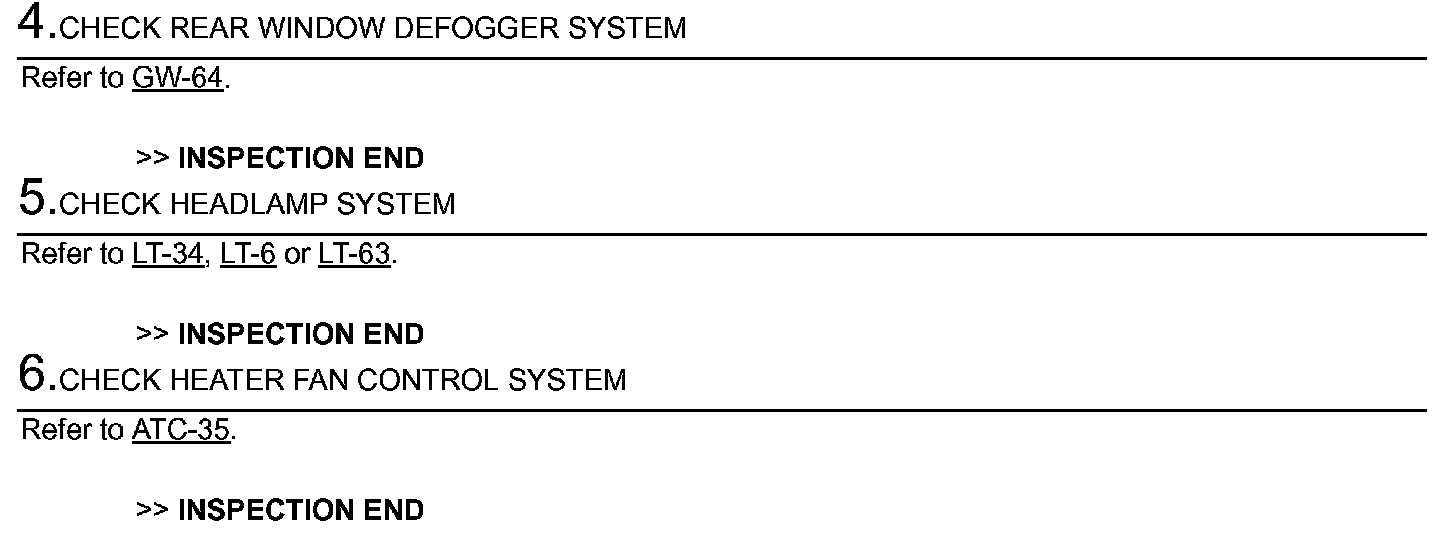

Step 4-6:
