Front Sun Gear, 3rd One-Way Clutch

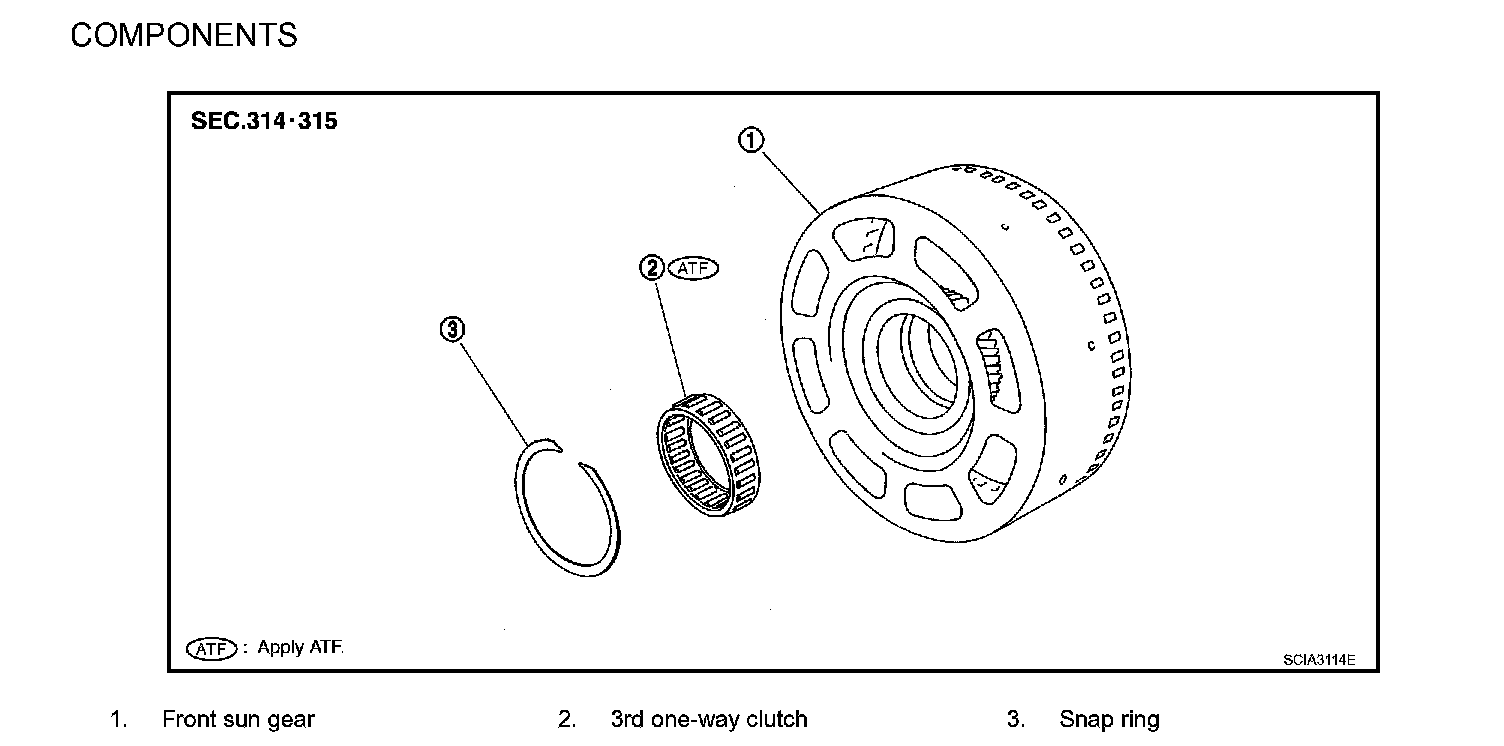

Front Sun Gear, 3rd One-Way ClutchAT-298 COMPONENTS:
DISASSEMBLY

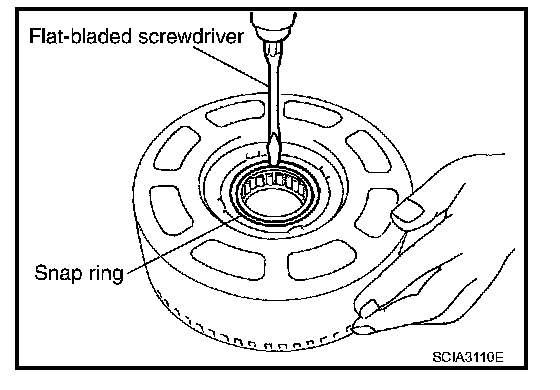

1. Using a flat-bladed screwdriver, remove snap ring from front sun gear.
2. Remove 3rd one-way clutch from front sun gear.
INSPECTION
3rd One-way Clutch
^ Check frictional surface for wear or damage.
CAUTION: If necessary, replace the 3rd one-way clutch.
Front Sun Gear Snap Ring
^ Check for deformation, fatigue or damage.
CAUTION: If necessary, replace the snap ring.
Front Sun Gear
^ Check for deformation, fatigue or damage.
CAUTION: If necessary, replace the front sun gear.
ASSEMBLY

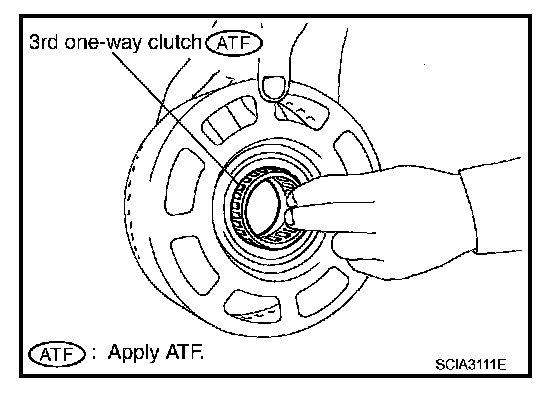

1. Install 3rd one-way clutch in front sun gear.

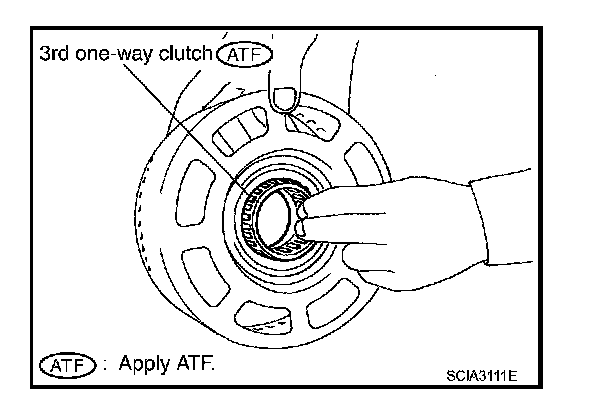

CAUTION: Apply [1][2]ATF to 3rd one-way clutch.

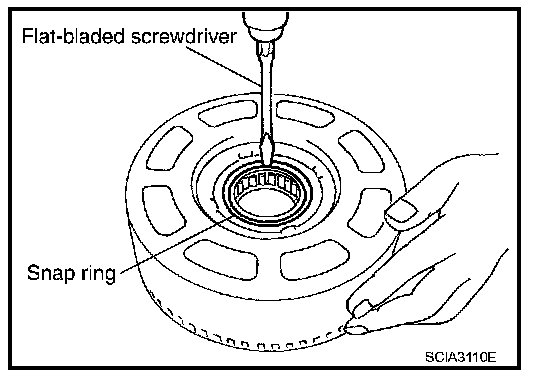

2. Using a flat-bladed screwdriver, install snap ring in front sun gear.

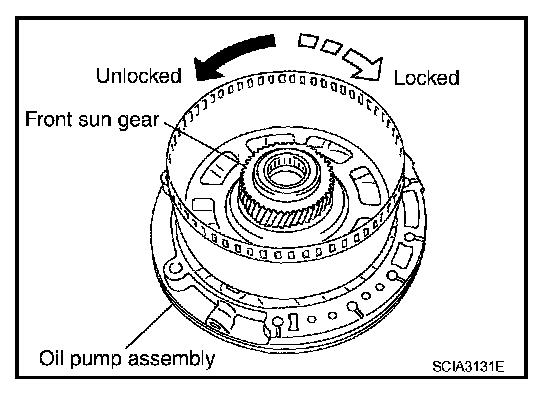

3. Check operation of 3rd one-way clutch.
a. Hold oil pump assembly and turn front sun gear.
b. Check 3rd one-way clutch for correct locking and unlocking directions.
CAUTION: If not as shown in figure, check installation direction of 3rd one-way clutch.
