Initial Inspection and Diagnostic Overview

OIL LEAKAGE AND OIL LEVEL
^ Make sure that oil is not leaking from final drive assembly or around it.

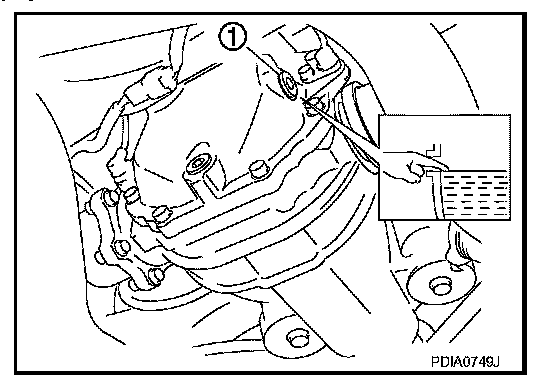

^ Remove filler plug (1) and check oil level from filler plug mounting hole as shown in the figure.

CAUTION: Never start engine while checking oil level.

^ Set a gasket on filler plug (1) and install it on final drive assembly.

CAUTION: Never reuse gasket.
