Pinout Values and Diagnostic Parameters

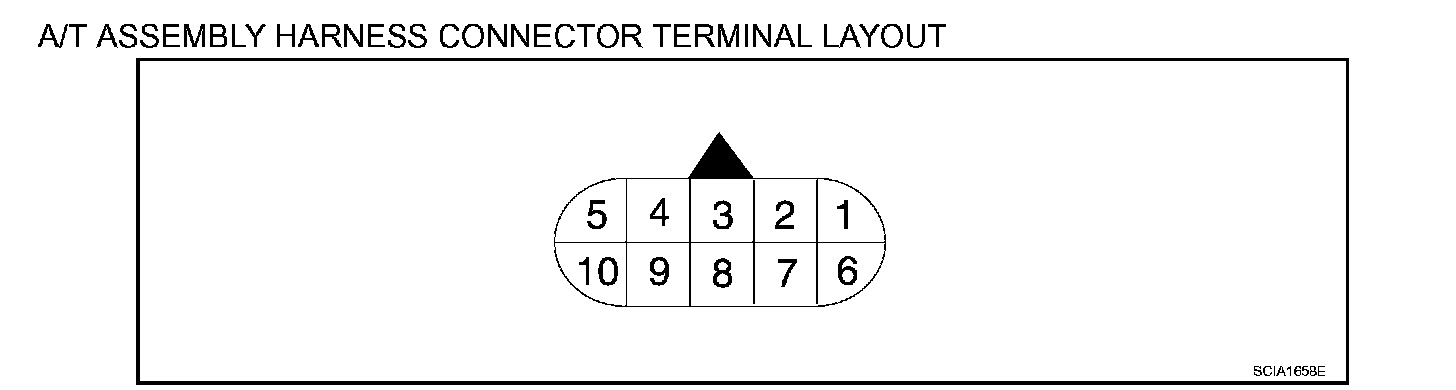

A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT:

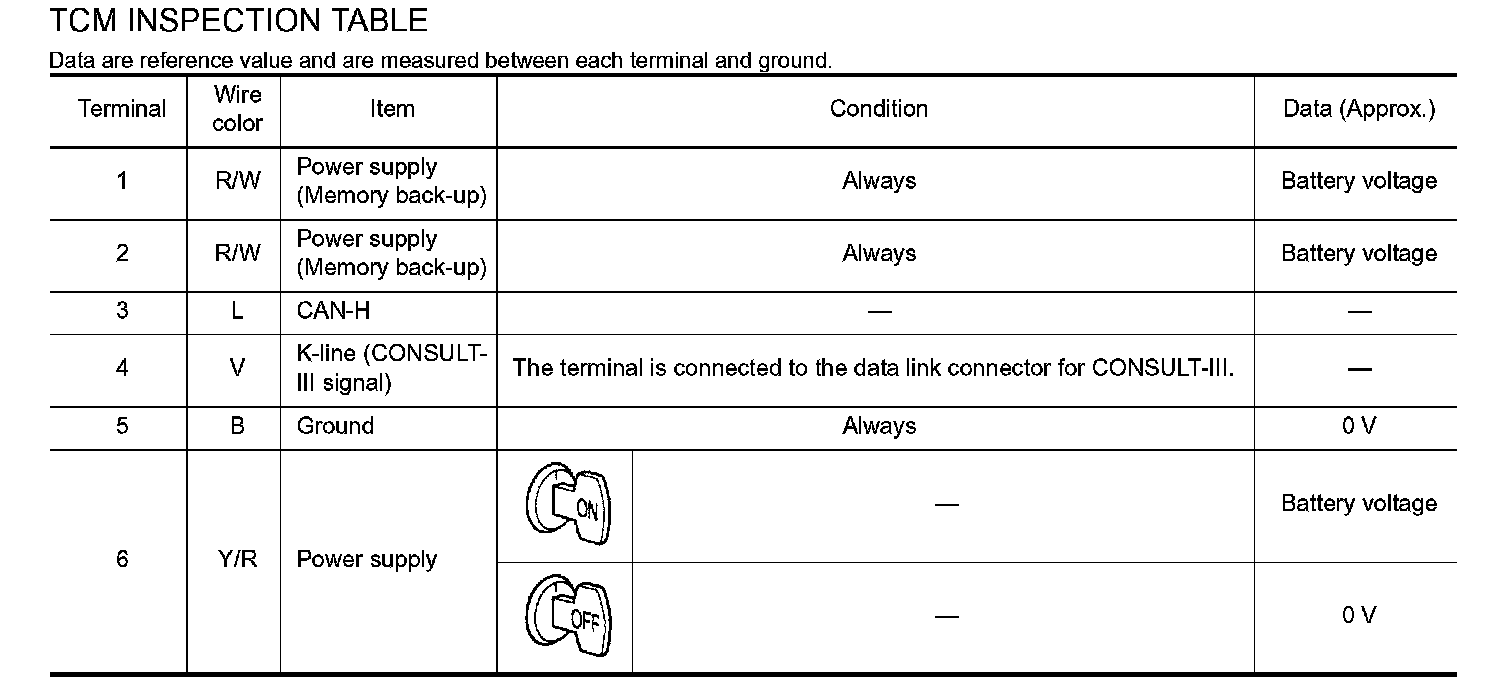

TCM INSPECTION TABLE (Part 1):

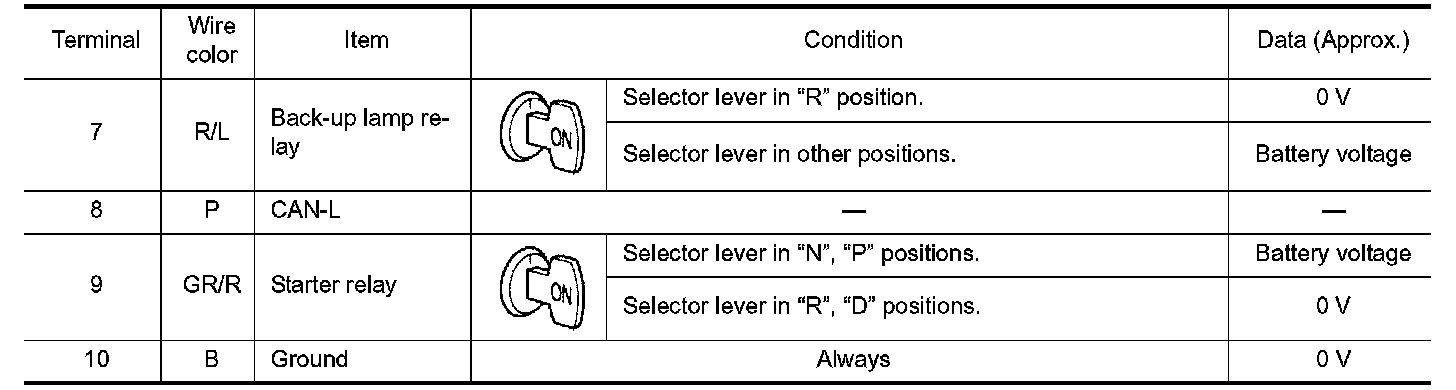

TCM INSPECTION TABLE (Part 2):
