Basic Inspection 3: ABS Warning Lamp, Brake Warning Lamp, VDC Off Indicator Lamp and Slip Indicator Lamp

BASIC INSPECTION 3: ABS WARNING LAMP, BRAKE WARNING LAMP, VDC OFF INDICATOR LAMP AND SLIP INDICATOR LAMP

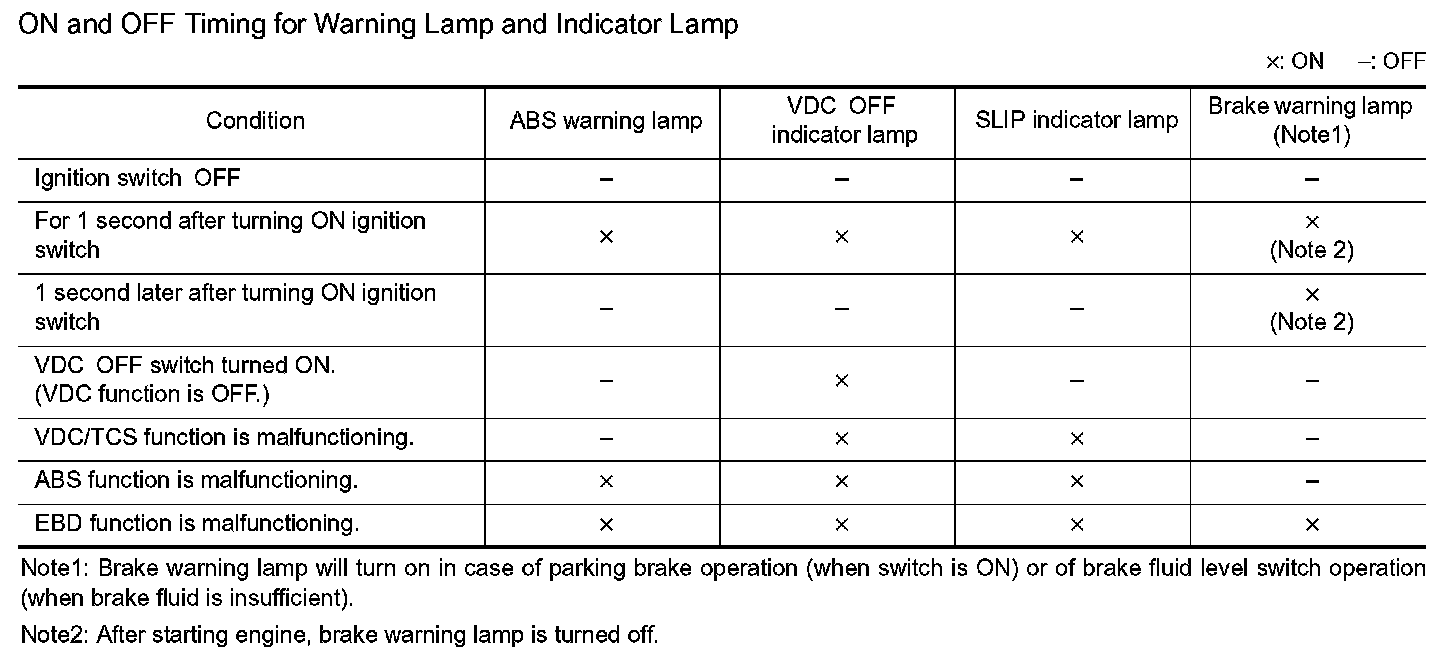

Check the following items when unsuitable for an above condition.
^ ABS warning lamp: "CAN Communication Circuit". CAN Communication Circuit
^ Brake warning lamp: "CAN Communication Circuit", "Brake Fluid Level Switch Circuit", "Parking Brake Switch Circuit".
CAN Communication Circuit
Brake Fluid Level Switch Circuit
Parking Brake Switch Circuit
^ VDC OFF indicator lamp: "CAN Communication Circuit", "VDC OFF Switch Circuit".
CAN Communication Circuit
VDC Off Switch Circuit
^ SLIP indicator lamp: "CAN Communication Circuit". CAN Communication Circuit
If malfunction is not found, refer to, "Warning Lamp and Indicator Lamp Circuit". Warning Lamp and Indicator Lamp Circuit
