ABS Actuator and Electric Unit (Control Unit)

ABS Actuator and Electric Unit (Control Unit)

INSPECTION PROCEDURE

1. CHECK SELF-DIAGNOSIS RESULTS

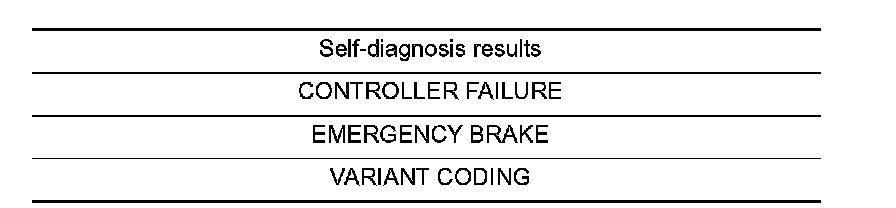

Check self-diagnosis results.





CAUTION: Replace ABS actuator and electric unit (control unit) when self-diagnostic result shows items other than those above.

Is above displayed on the self-diagnosis display?
YES >> ^ Replace ABS actuator and electric unit (control unit).
^ Perform the self-diagnosis, and make sure that the result shows "NO DTC IS DETECTED".
NO >> INSPECTION END
