CAN Communication Circuit
CAN Communication CircuitINSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30, check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminal.

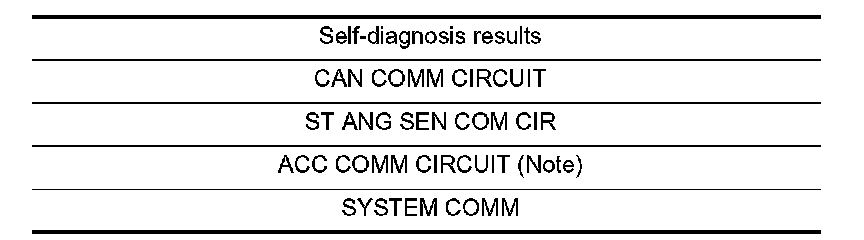

2. Reconnect connector and perform self-diagnosis.
Note: Indicated only for vehicles with ICC.
Is above displayed on the self-diagnosis display?
YES >> Print out self-diagnosis results and go to Refer to LAN-29, "CAN System Specification Chart".CAN System Specification Chart
NO >> INSPECTION END
