VDC Off Switch Circuit

VDC OFF Switch Circuit

INSPECTION PROCEDURE

1. CHECK VDC OFF SWITCH








1. Turn ignition switch OFF and disconnect VDC OFF switch connector M24.

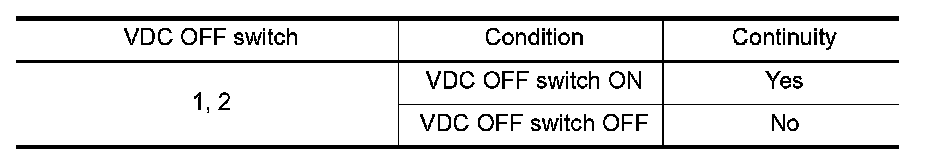

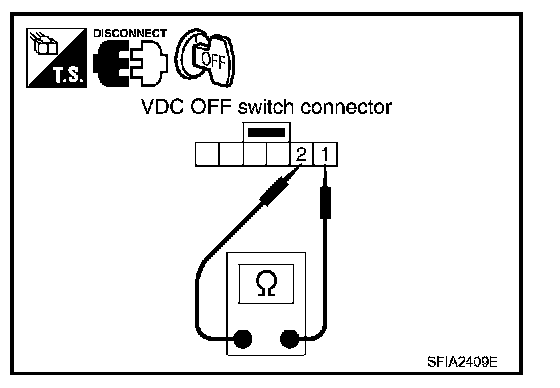

2. Check continuity between VDC OFF switch connector M24 terminal 1 and 2.
OK or NG
OK >> GO TO 2.
NG >> VDC OFF switch is malfunctioning. Replace VDC OFF switch.

2. CHECK VDC OFF SWITCH HARNESS








1. Disconnect ABS actuator and electric unit (control unit) connector E30.

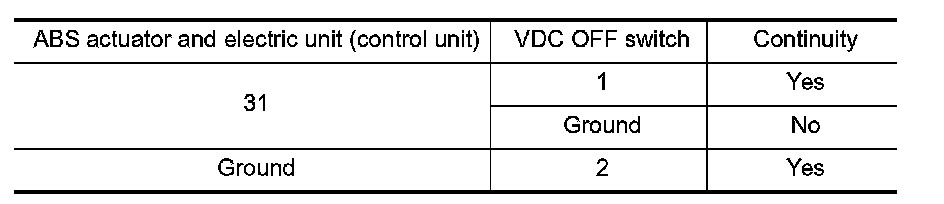

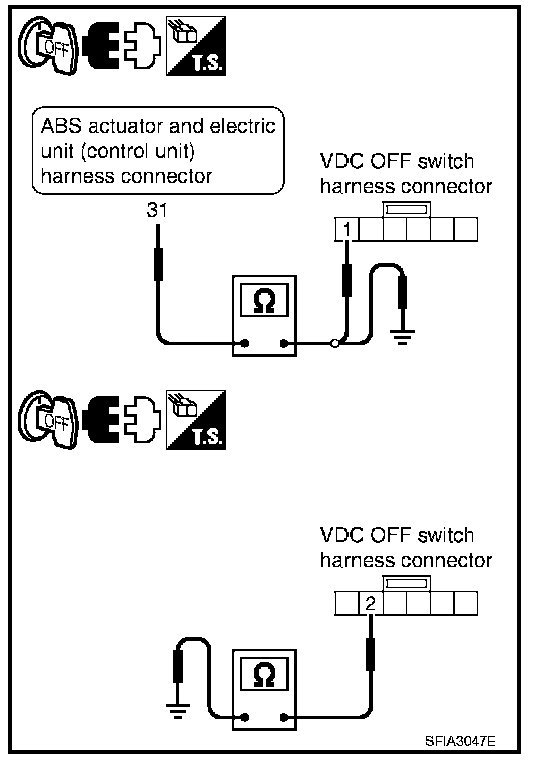

2. Check continuity between VDC OFF switch connector M24 and ABS actuator and electric unit (control unit) connector E30.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace malfunctioning components.
