BRC Diagrams

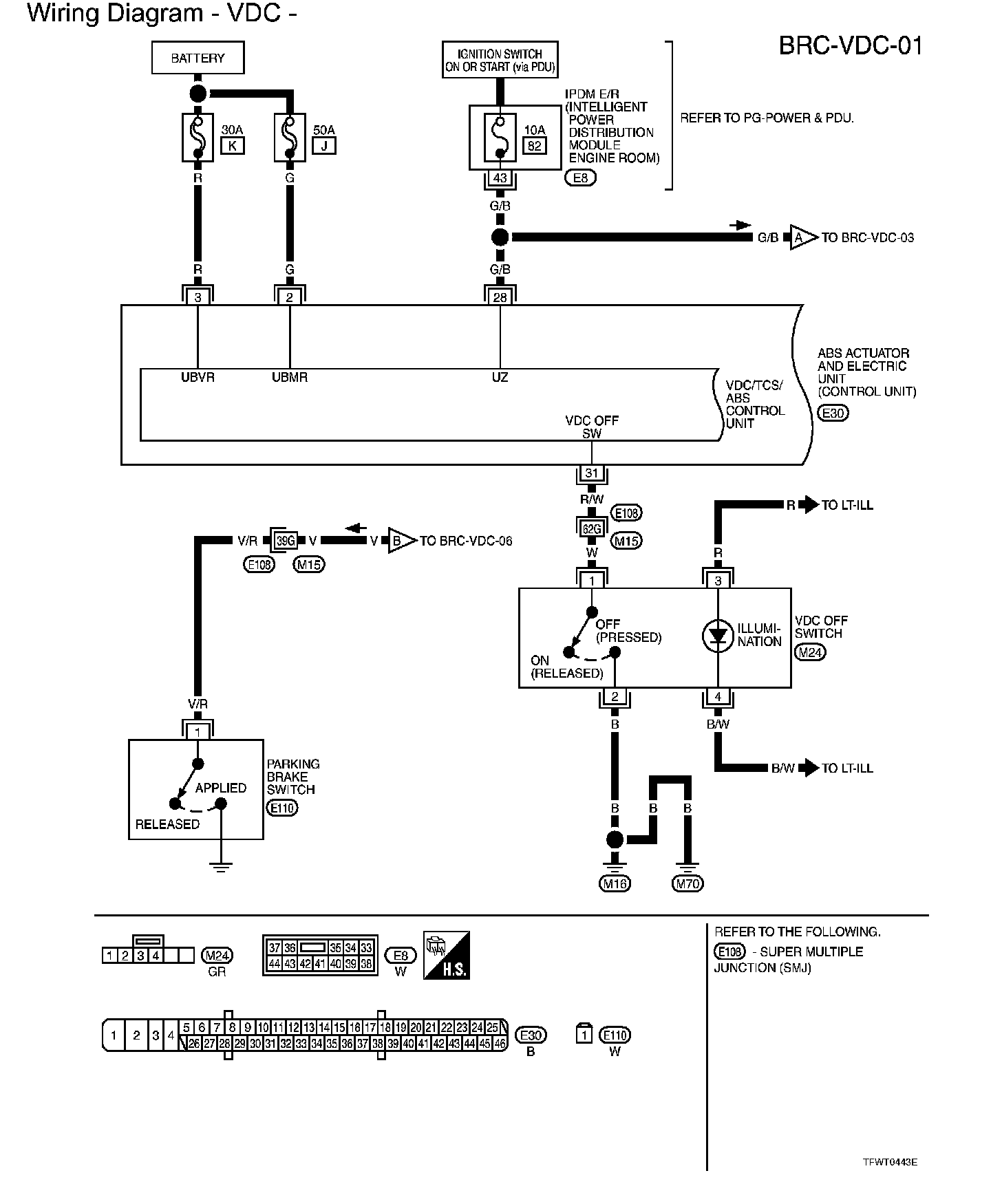

BRC-VDC-01:

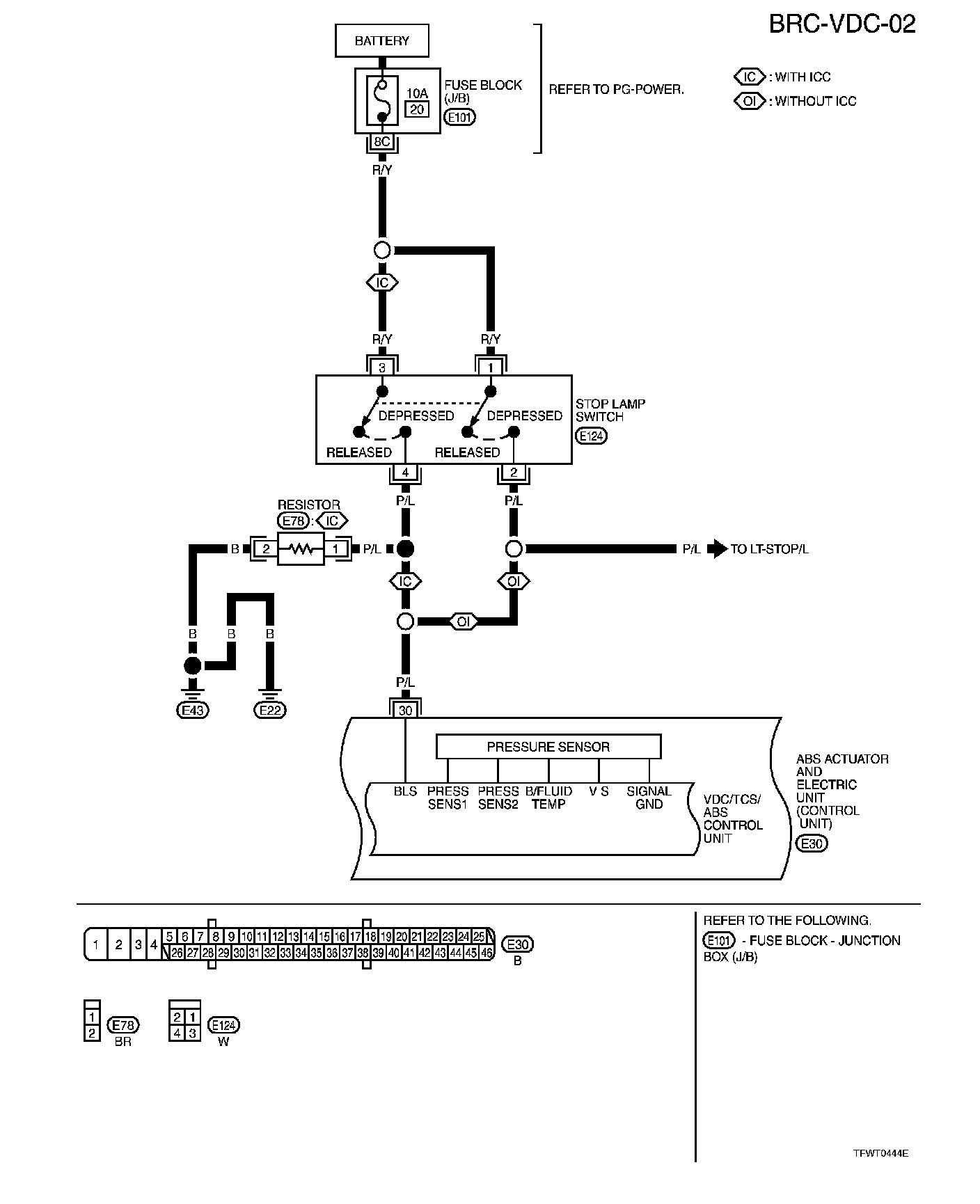

BRC-VDC-02:

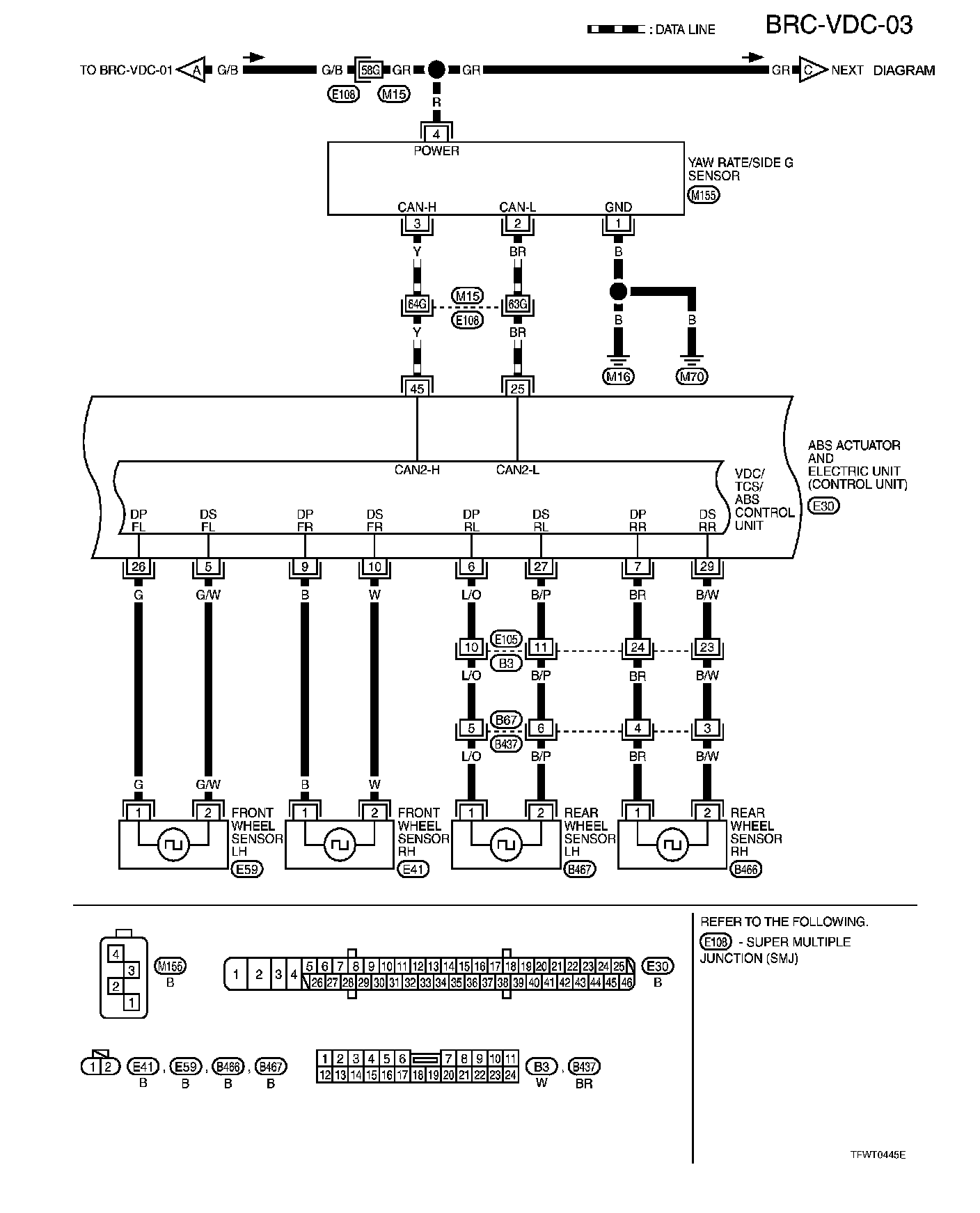

BRC-VDC-03:

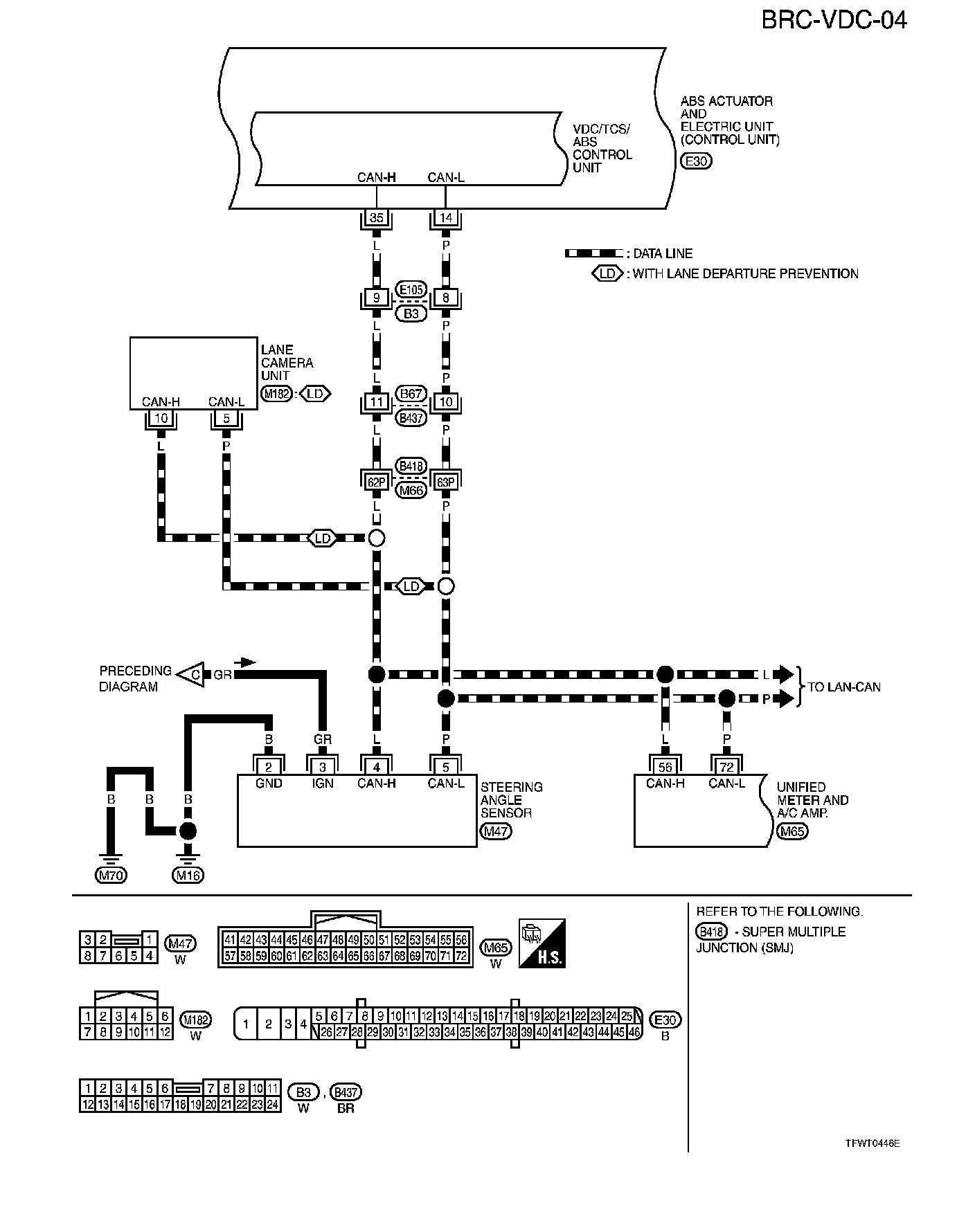

BRC-VDC-04:

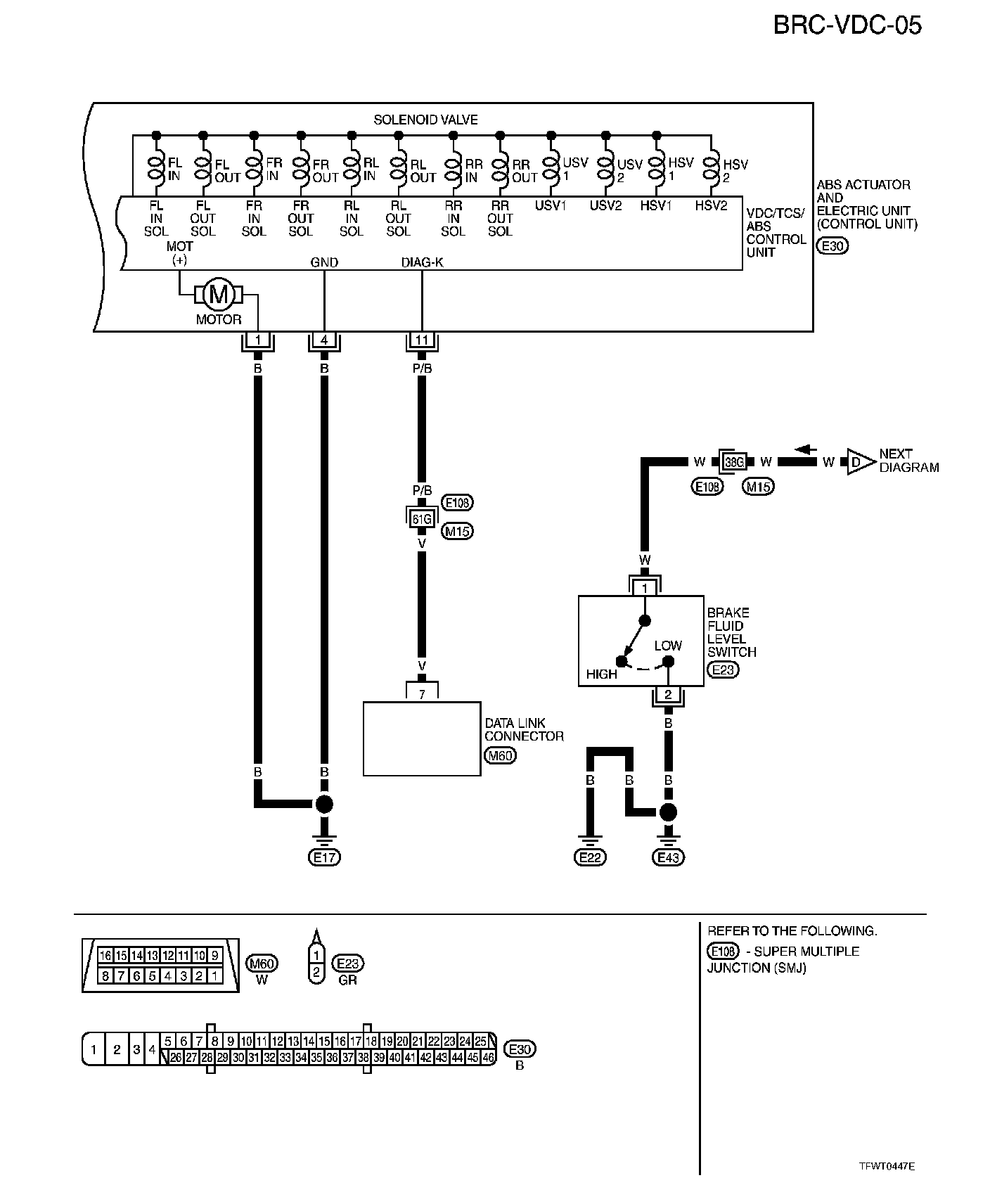

BRC-VDC-05:

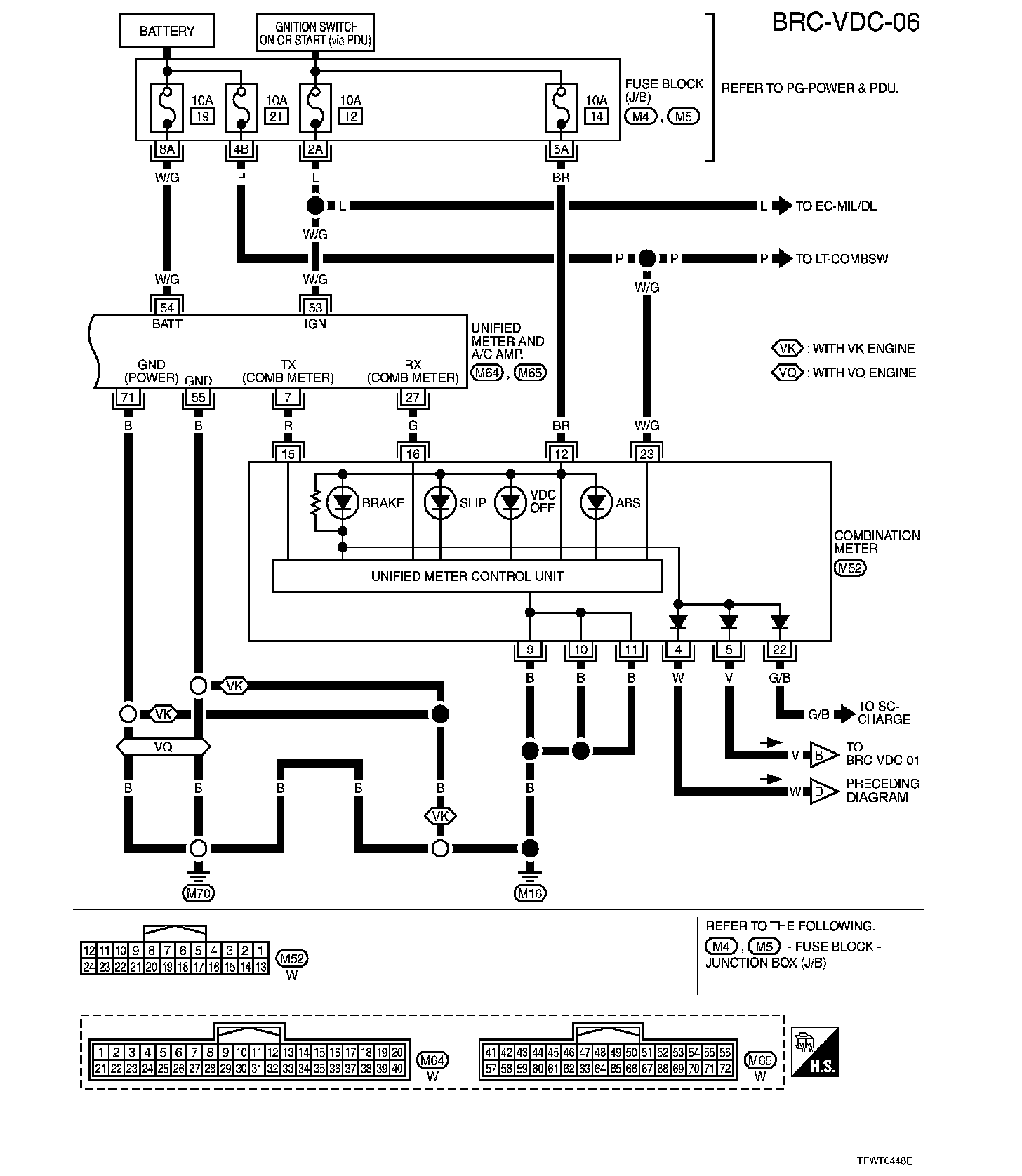

BRC-VDC-06:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
