Removal and Installation

STARTING SYSTEM

Removal and Installation

VQ35DE ENGINE MODELS (2WD)

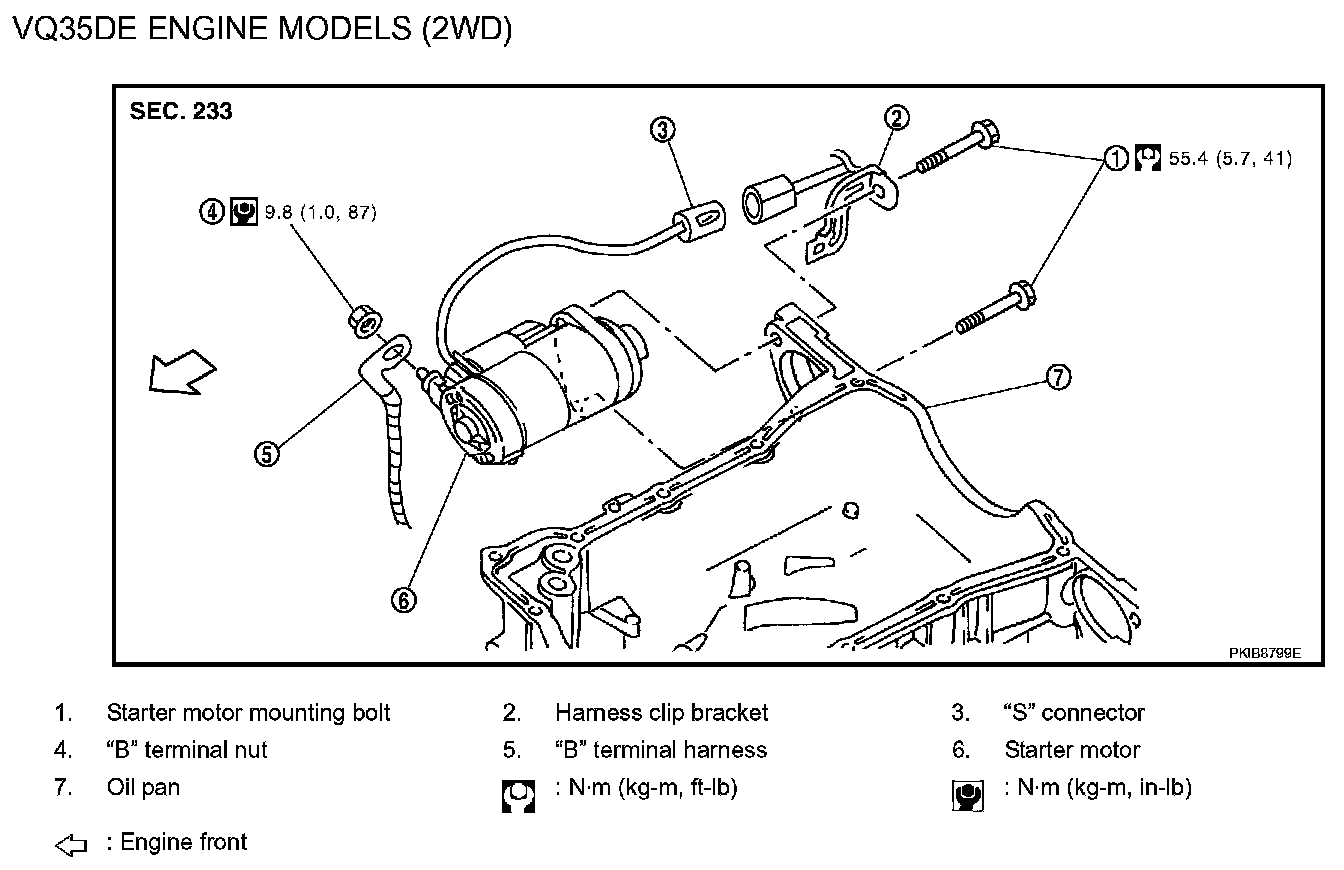

SC-13 Exploded View:

Removal
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front and rear undercover, using power tools.

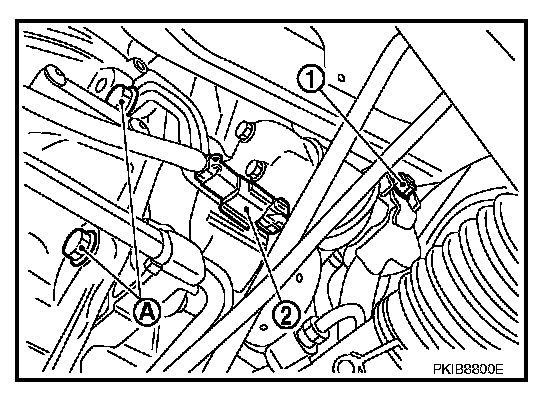

3. Remove "B" terminal nut (1).
4. Disconnect "S" connector (2).
5. Remove starter motor mounting bolts (A), using power tools.
6. Remove starter motor downward from the vehicle.

Installation
Installation is the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
