System Description

SYSTEM DESCRIPTION

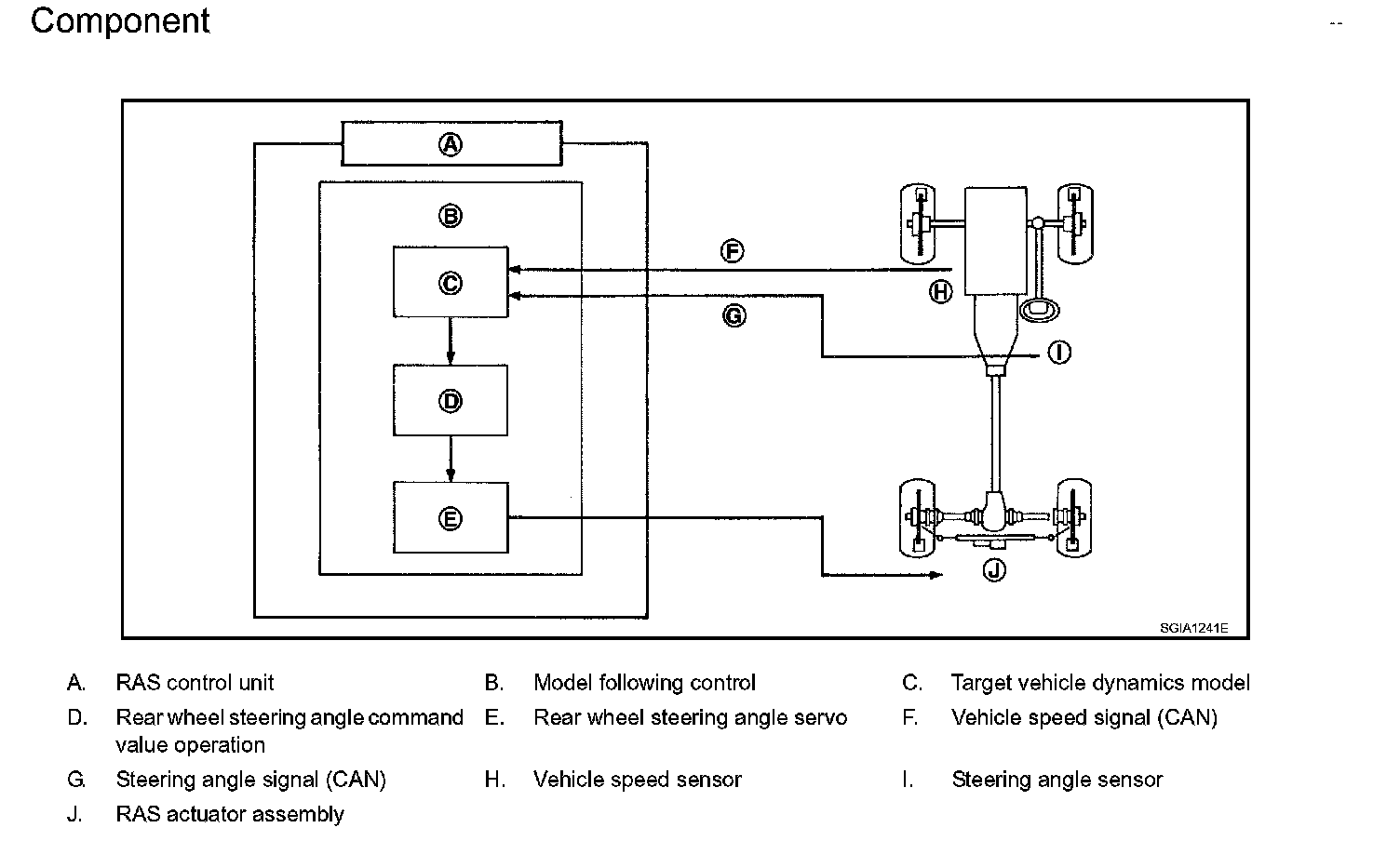

Component

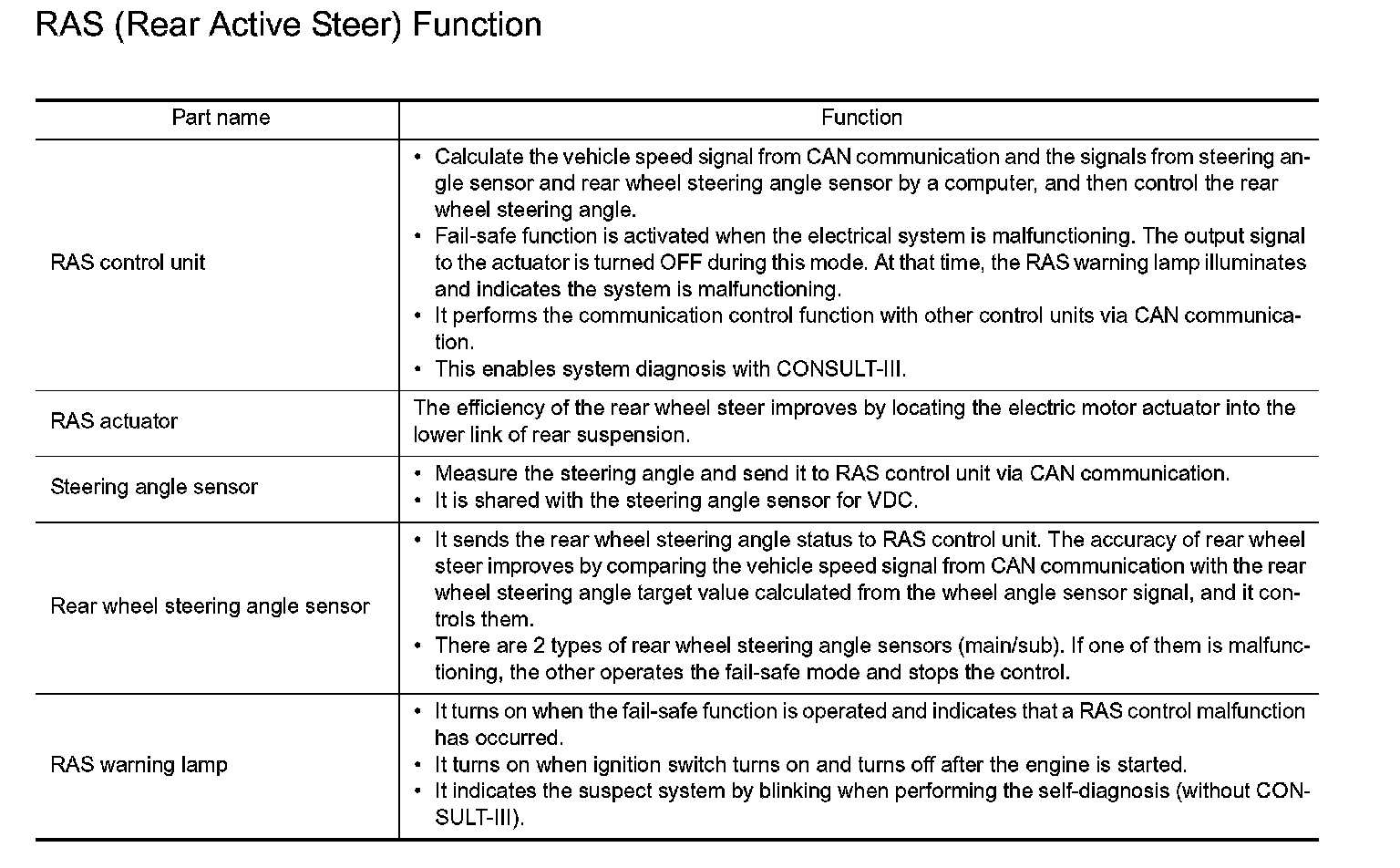

RAS (Rear Active Steer) Function





Fail-Safe Function
In the event there is a malfunction with the electrical system, the RAS control is stopped and the fail-safe mode is activated. At that time, it indicates the malfunction by turning the RAS warning lamp ON and stops the rear wheel control.
