Control Unit Input/Output Signal Standard

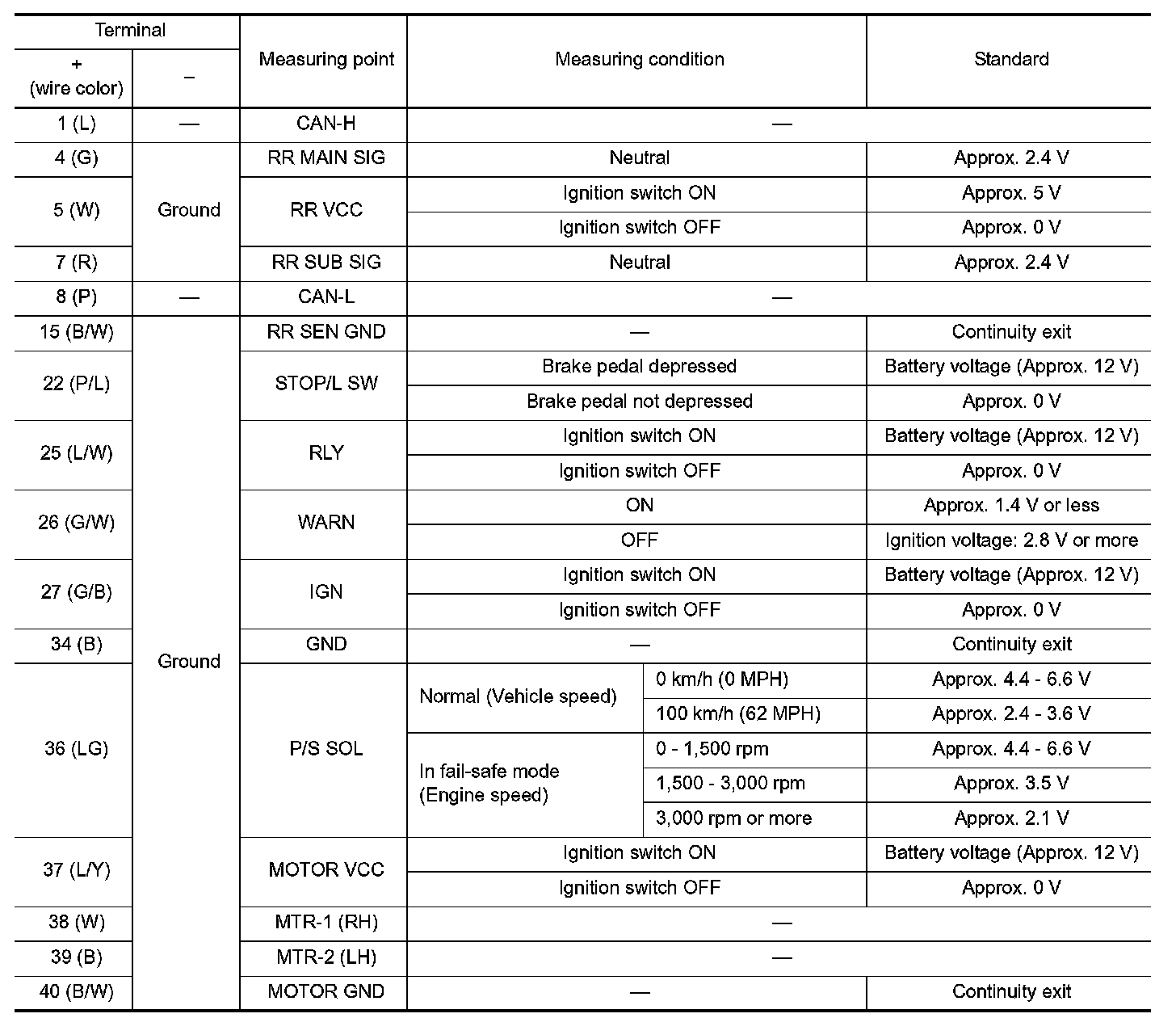

CIRCUIT TESTER REFERENCE VALUE

CAUTION: When checked using a circuit tester for voltage measurement, connector terminals should not be forcefully extended.

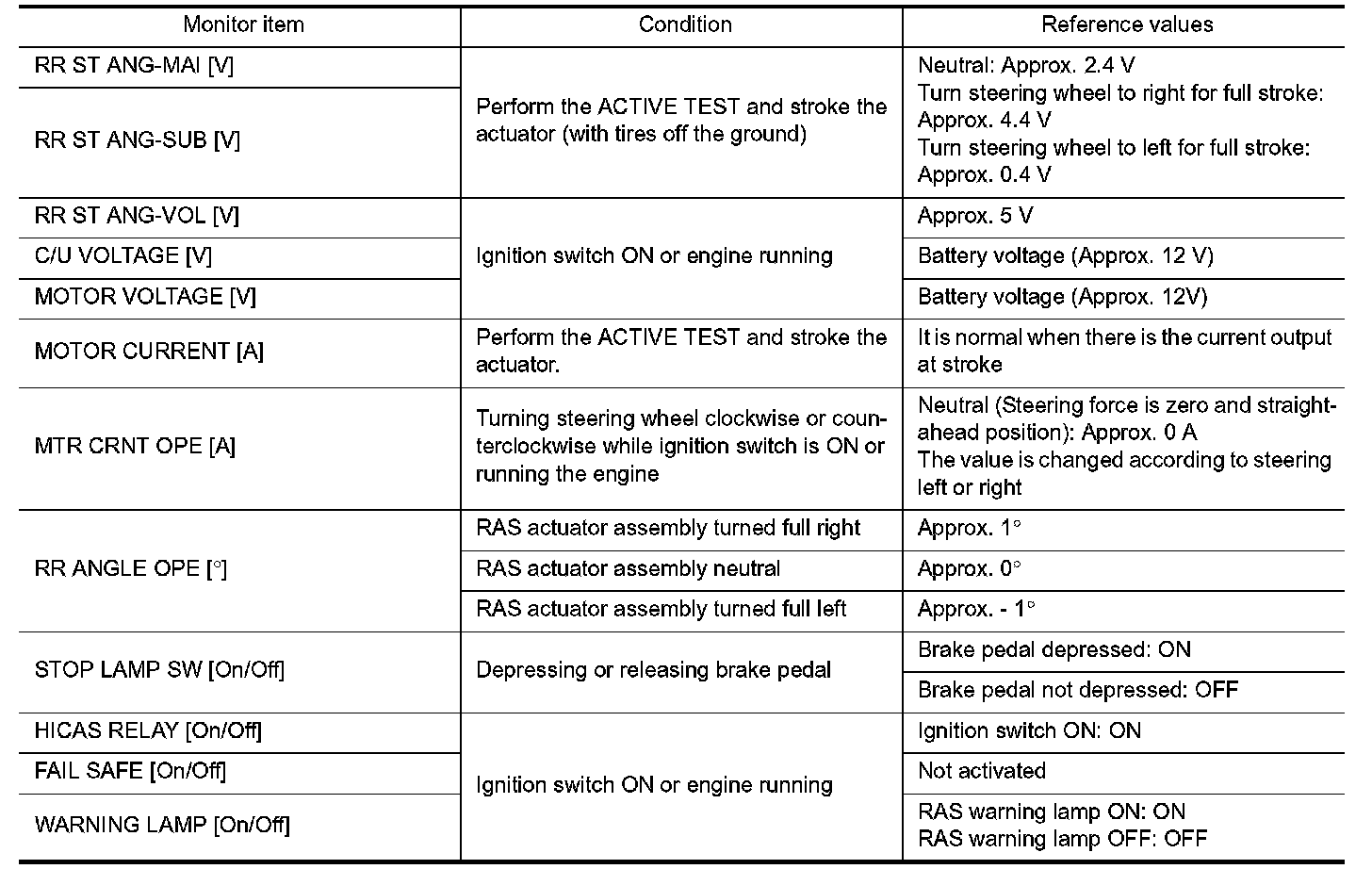

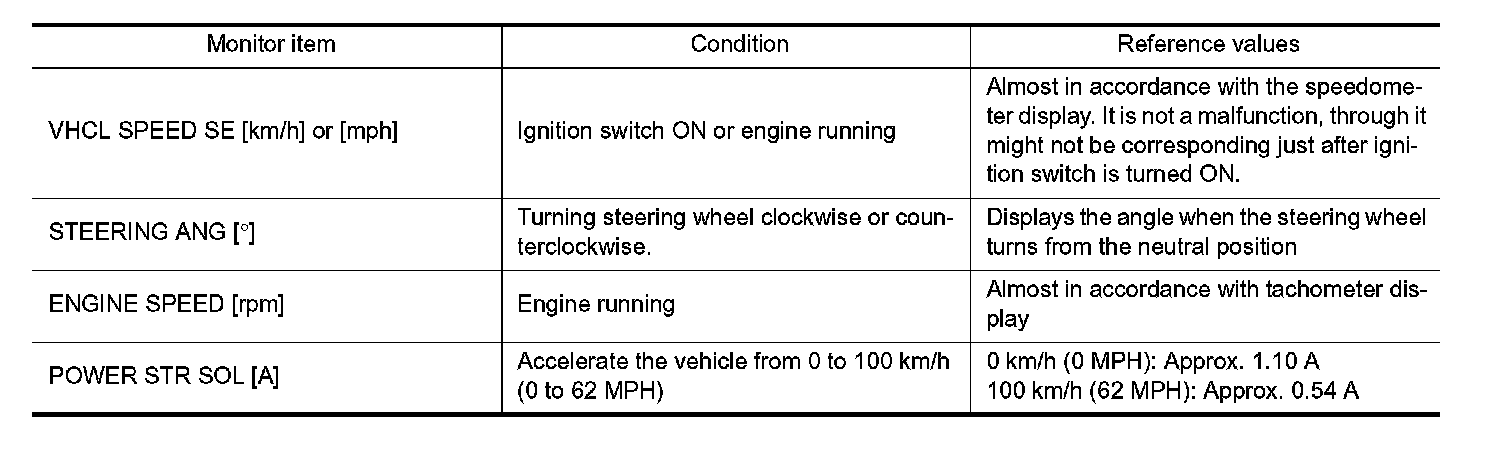

STANDARD BY CONSULT-III

CAUTION: The output signal indicates the RAS control unit calculation data. The normal values will be displayed even in the event that the output circuit (harness) is open.

Part 1:




Part 2:
