Consult-III Function (RAS/HICAS)

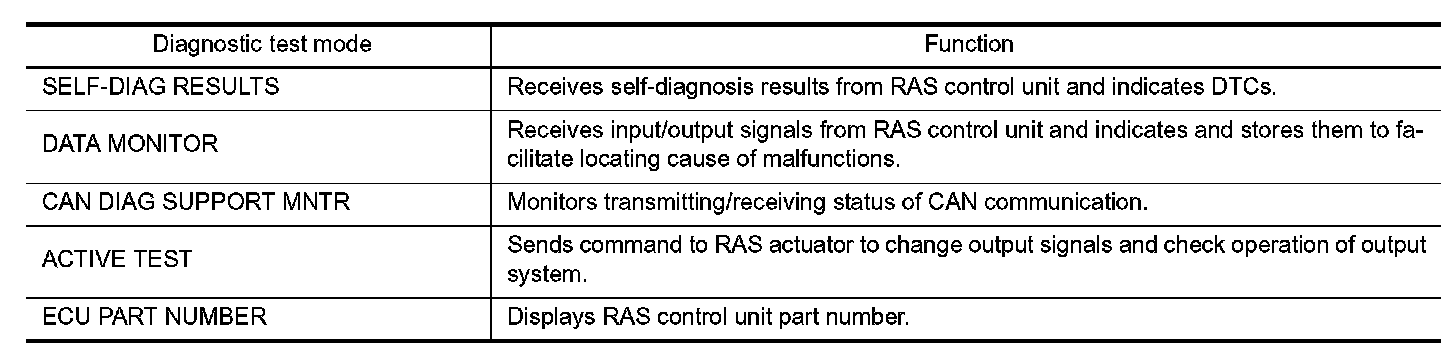

FUNCTION
CONSULT-III can display each self-diagnostic item using the diagnostic test modes shown following.





SELF-DIAG RESULT MODE

Display Item List

CAUTION: When malfunctions are detected in several systems, including the "CAN COMM [U1000]" and "CONTROL UNIT (CAN) [U1010]", inspect the CAN communication system.

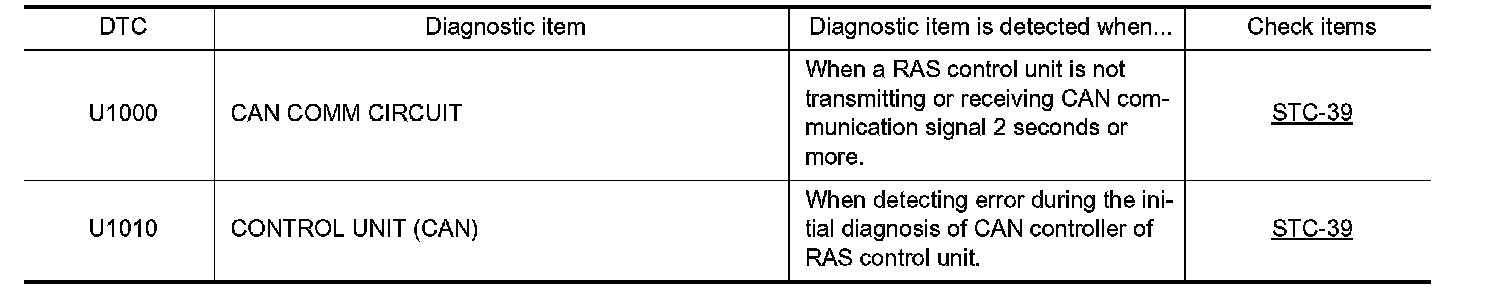

Part 1:

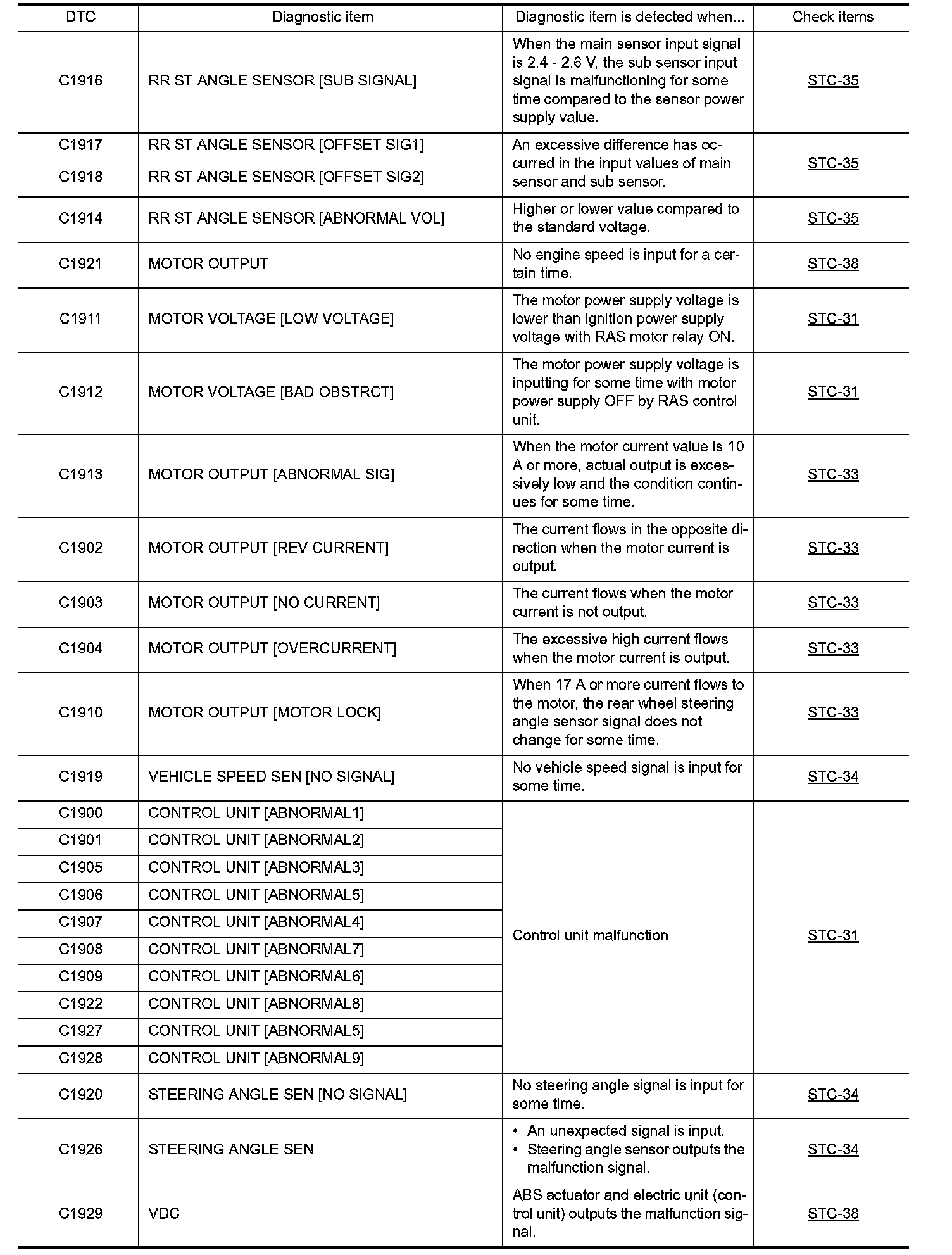

Part 2:

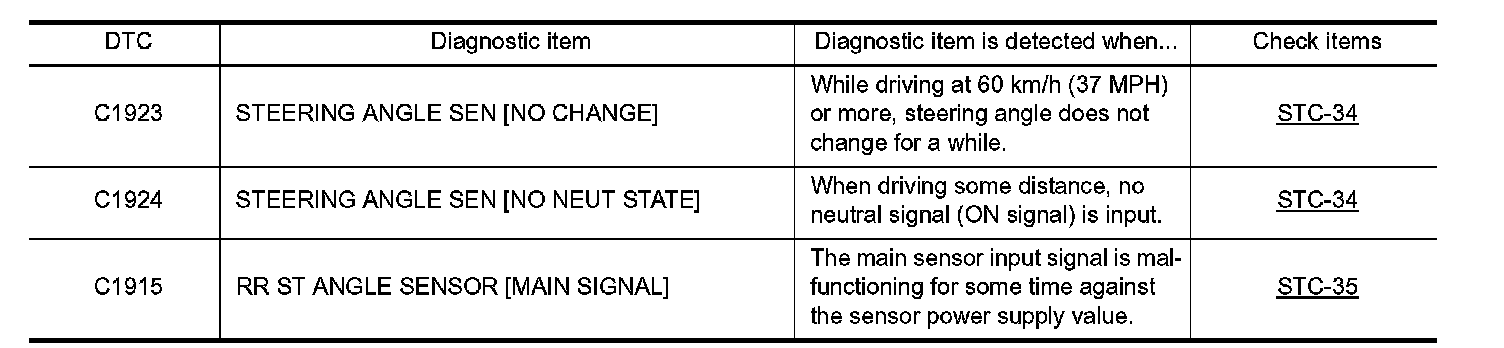

Part 3:

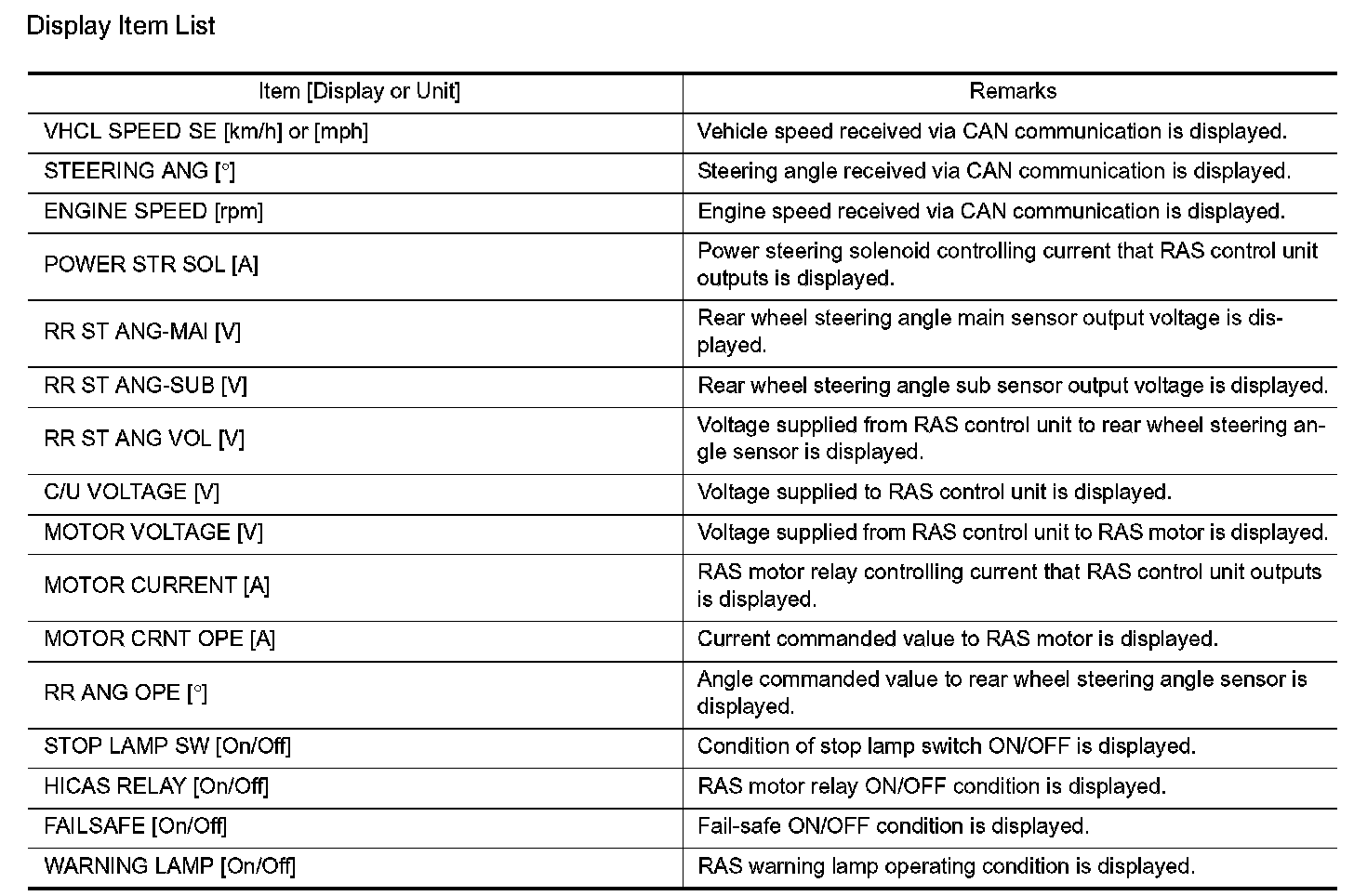

DATA MONITOR MODE

Display Item List:

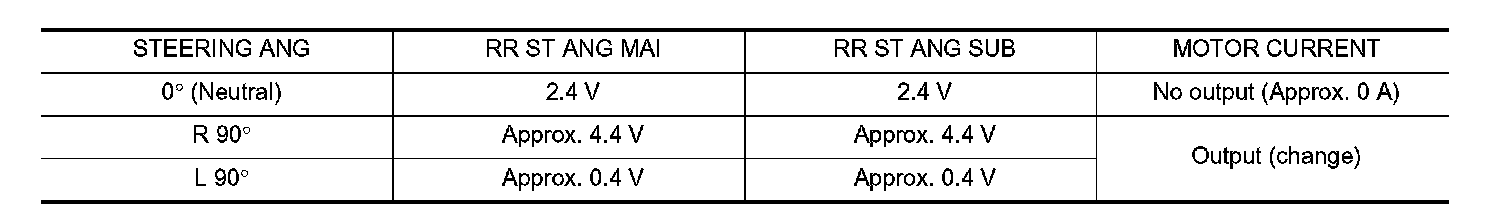

ACTIVE TEST MODE

Test Item
^ When turning the steering wheel right or left, the rear wheel turns in the same direction. If the steering wheel is not turned, the rear wheel turns left and right 5 times.
