Procedures

Check Disc to Pulley Clearance

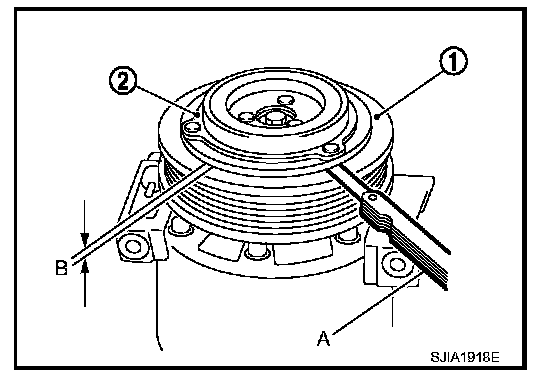

Check the clearance (B) between pulley assembly (1) and clutch disc (2) along the entire periphery with a feeler gauge (A).

Disc to pulley clearance : 0.3 - 0.6 mm (0.012 - 0.024 in)

If specified clearance is not obtained, replace compressor.
