Insufficient Cooling
Insufficient CoolingSYMPTOM: Insufficient cooling

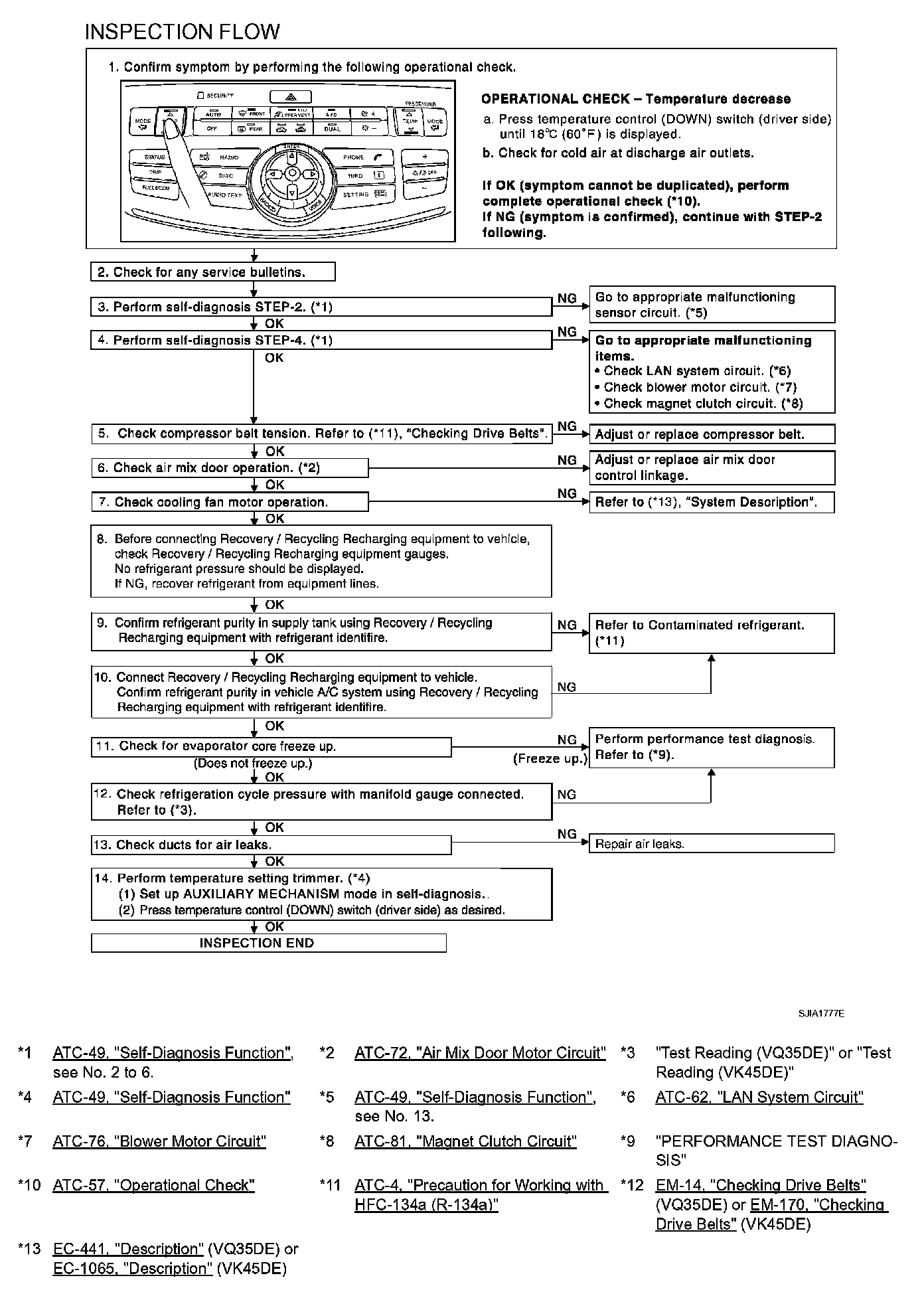

INSPECTION FLOW

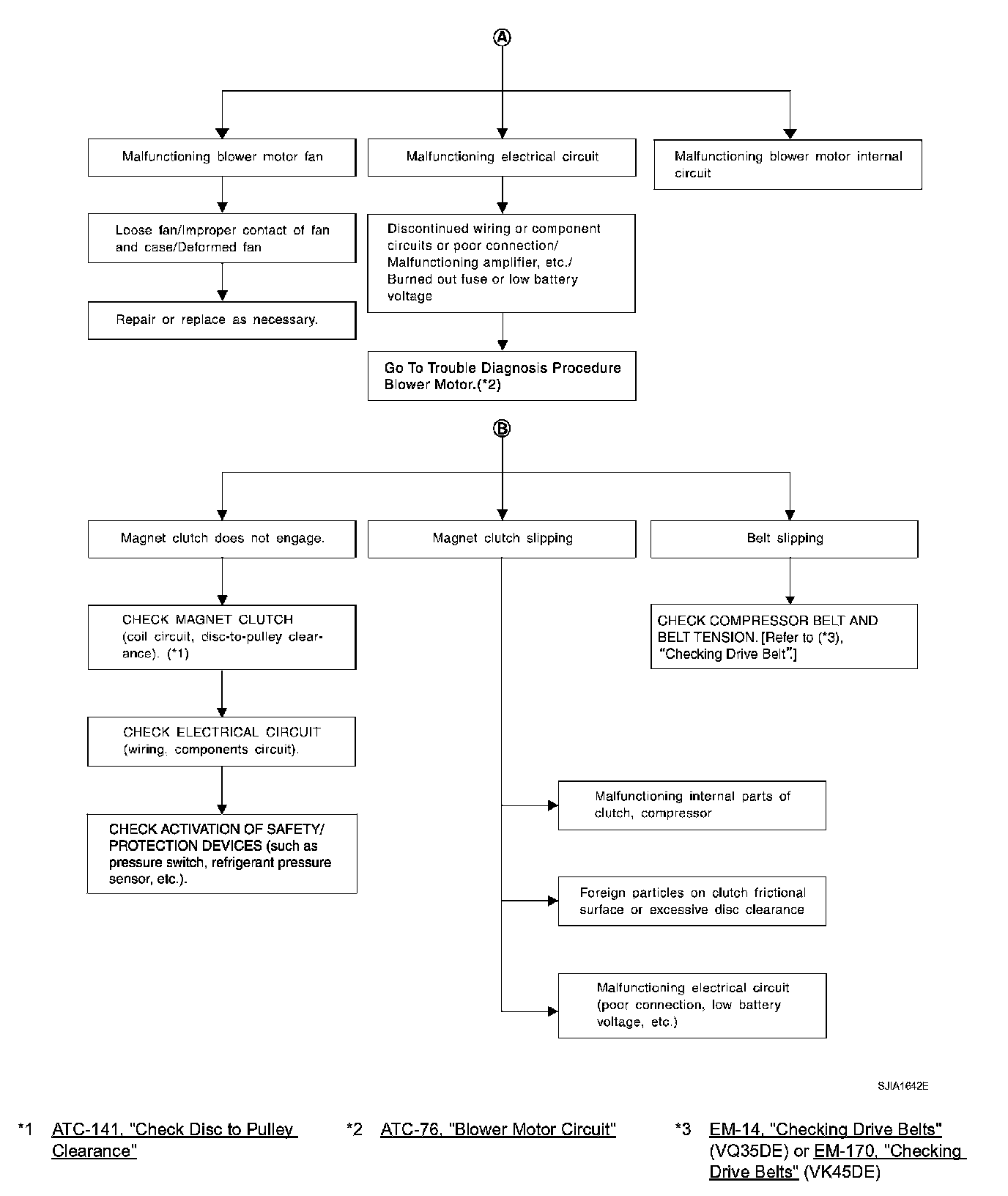

Inspection Flow:

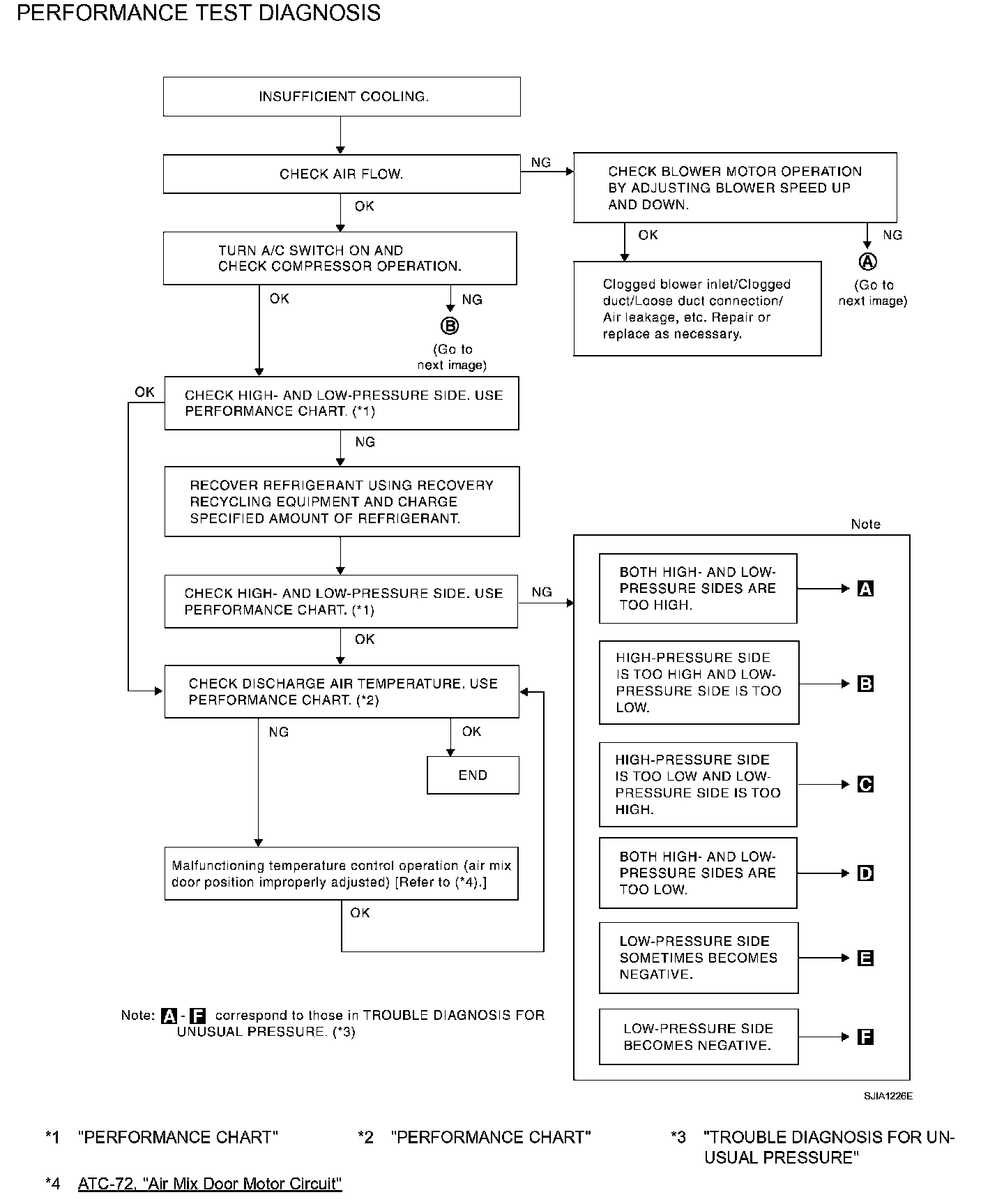

PERFORMANCE TEST DIAGNOSIS

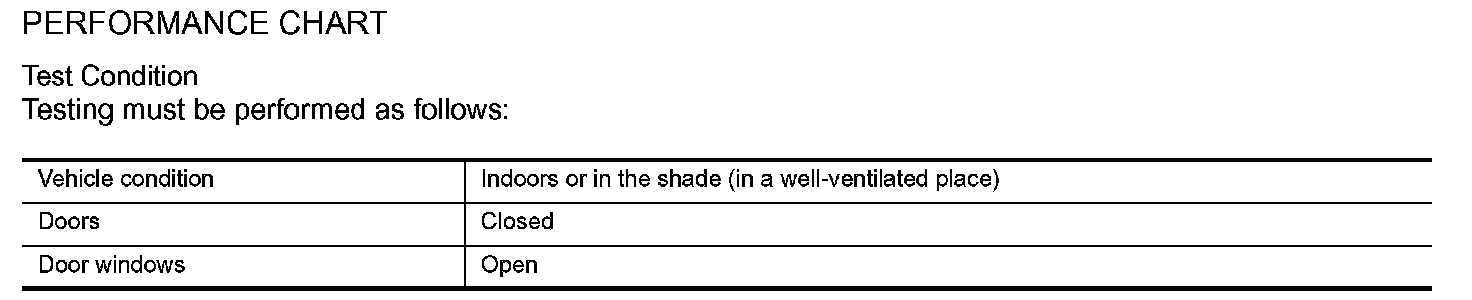

PERFORMANCE CHART

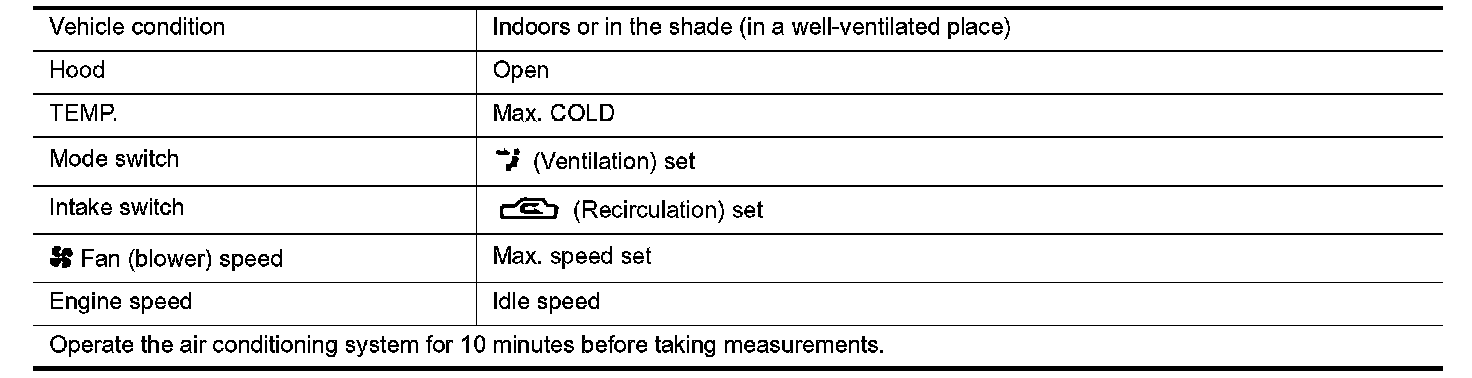

Test Reading (VQ35DE)

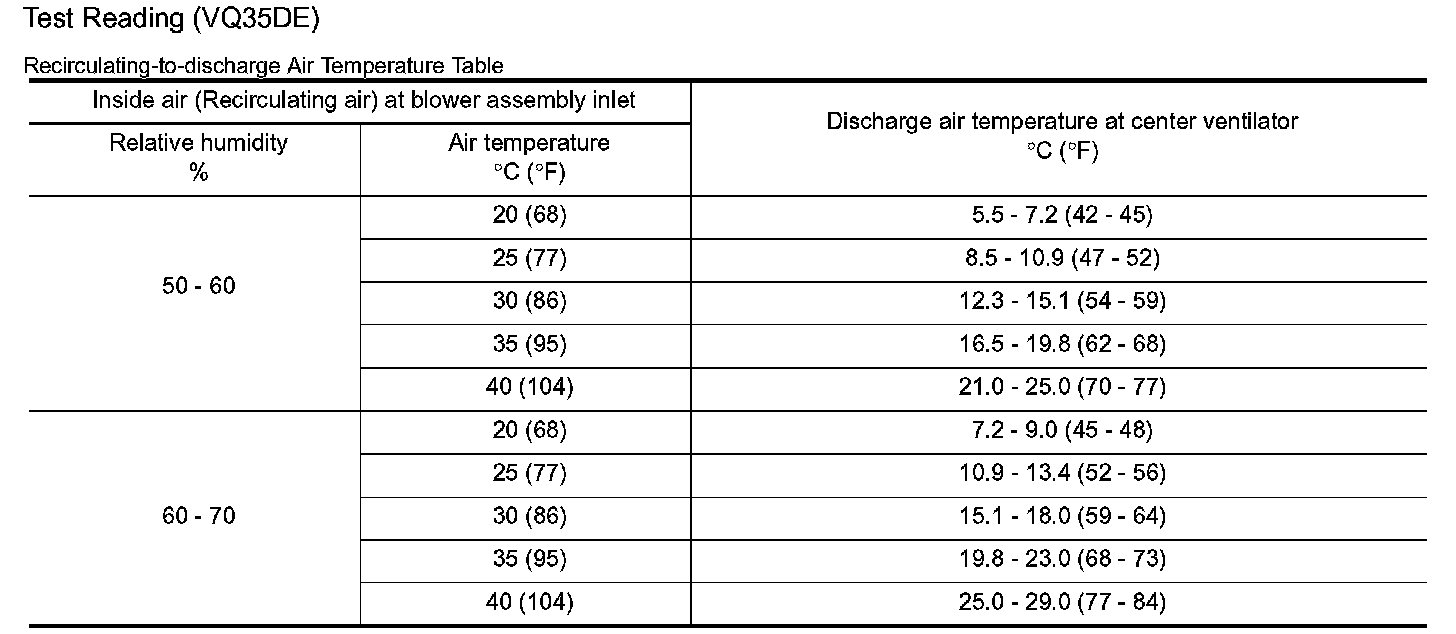

Recirculating-to-discharge Air Temperature Table

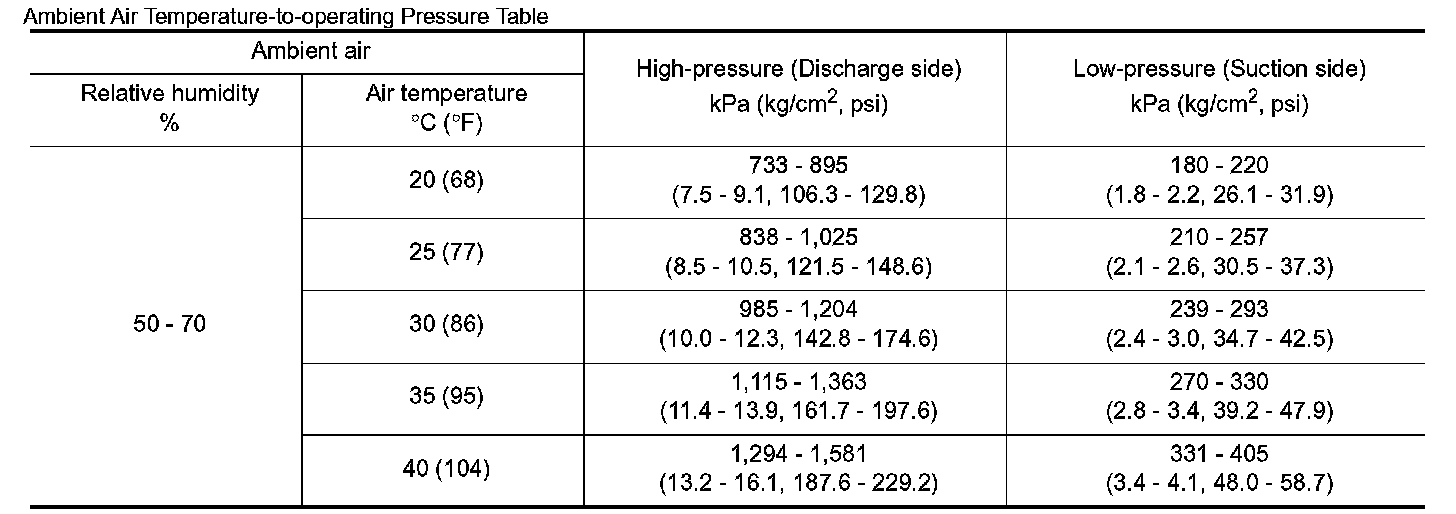

Ambient Air Temperature-to-operating Pressure Table
TROUBLE DIAGNOSIS FOR UNUSUAL PRESSURE
Whenever system s high and/or low side pressure(s) is/are unusual, diagnose using a manifold gauge. The marker above the gauge scale in the following tables indicates the standard (usual) pressure range. Since the standard (usual) pressure, however, differs from vehicle to vehicle, refer to above table (Ambient air temperature- to-operating pressure table).

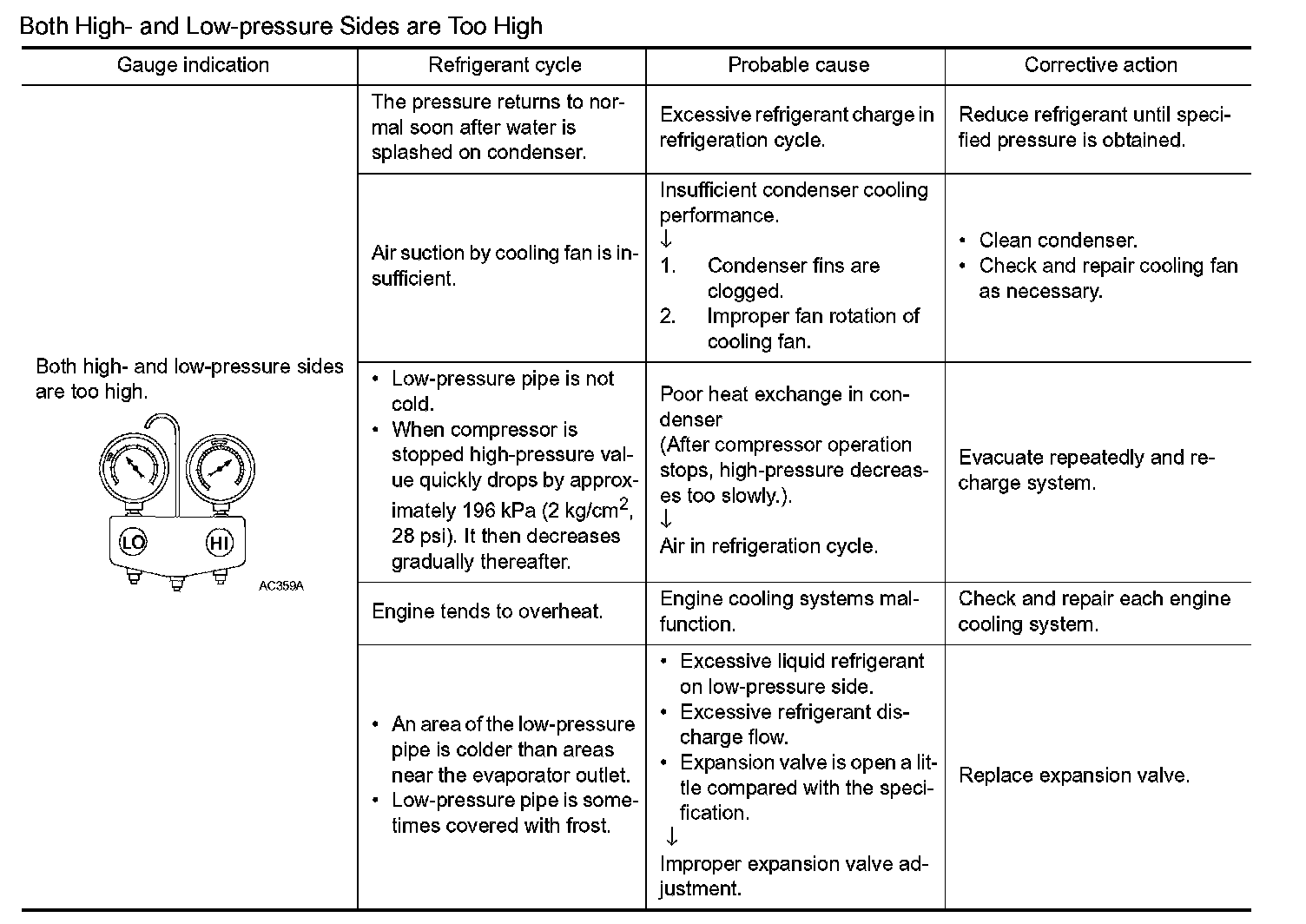

Both High- and Low-pressure Sides are Too High

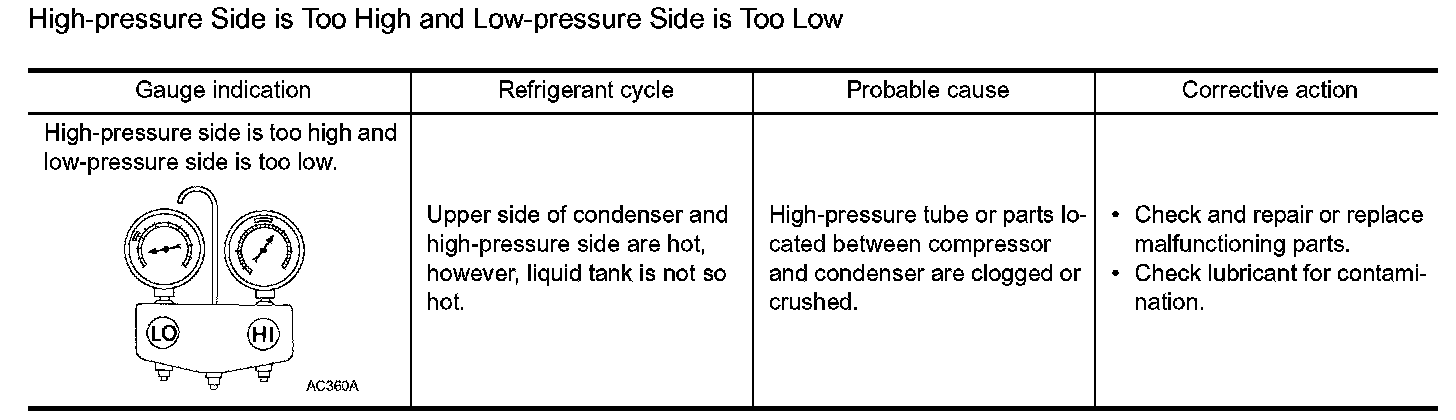

High-pressure Side is Too High and Low-pressure Side is Too Low

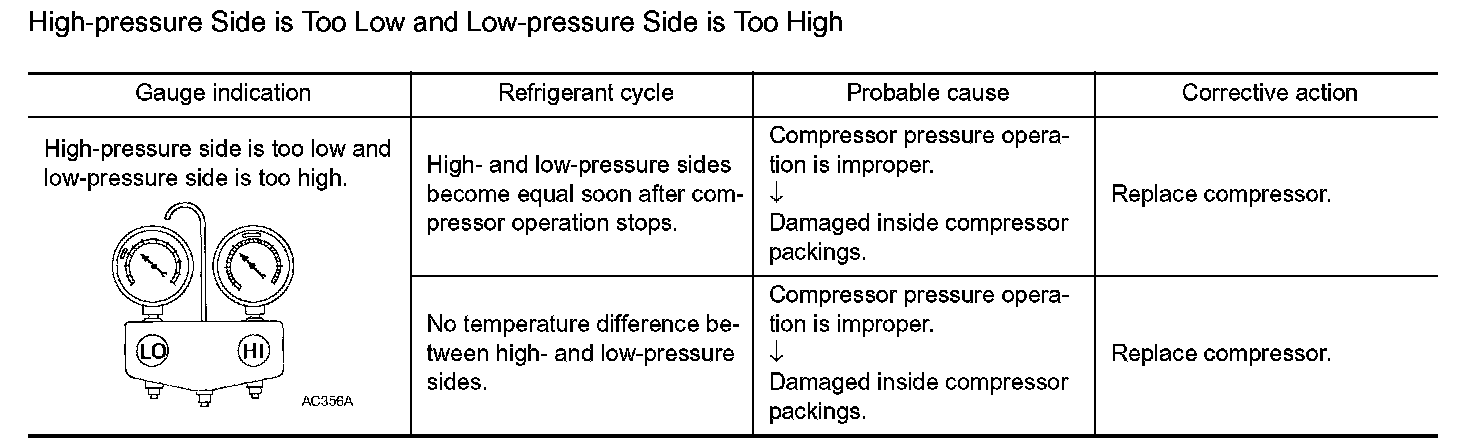

High-pressure Side is Too Low and Low-pressure Side is Too High

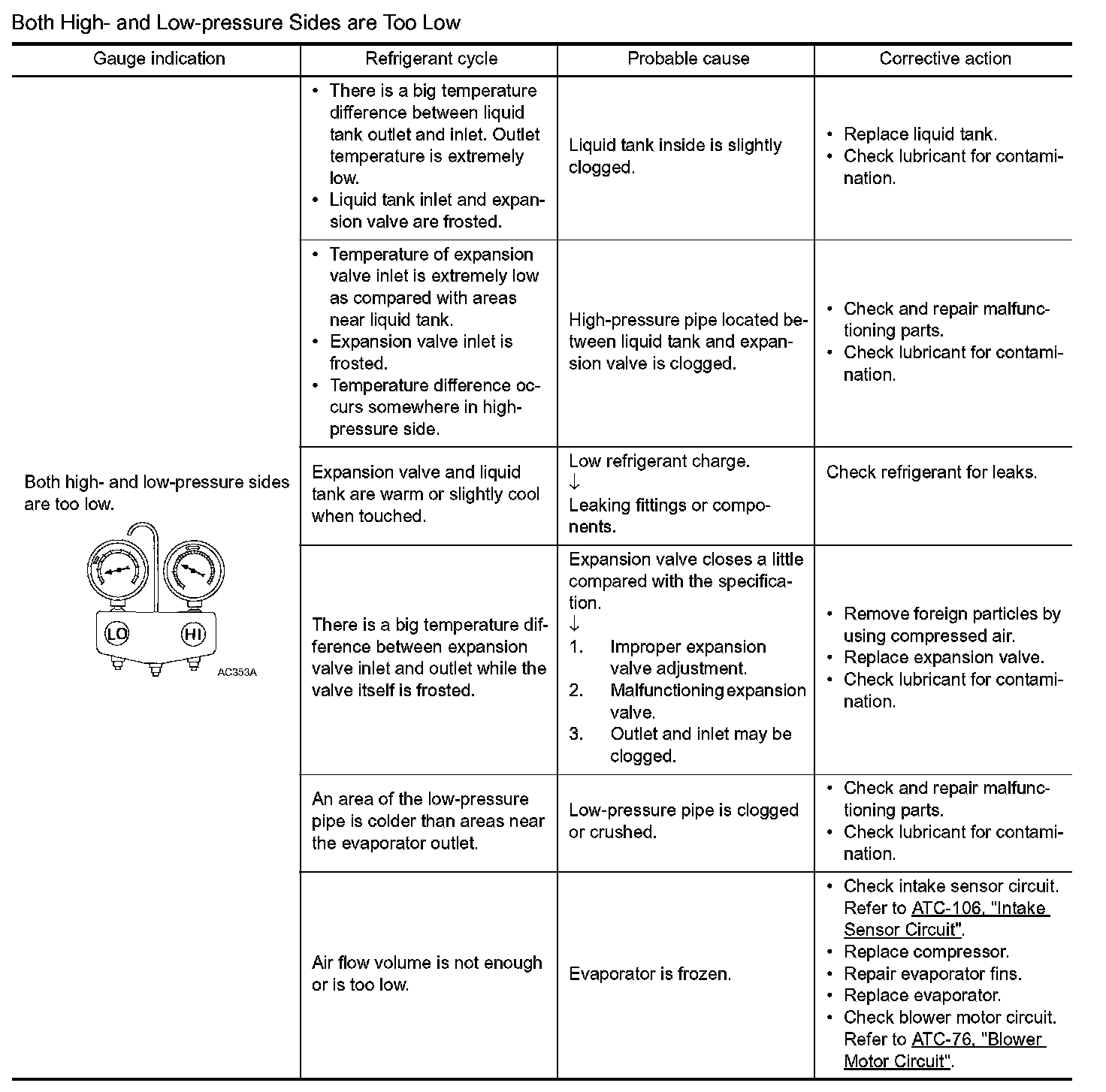

Both High- and Low-pressure Sides are Too Low

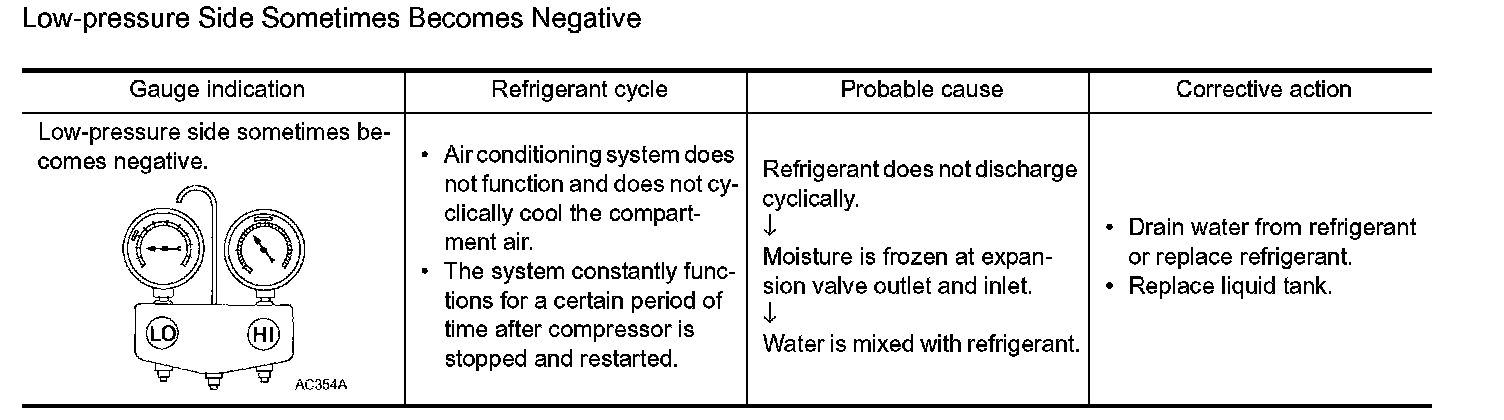

Low-pressure Side Sometimes Becomes Negative

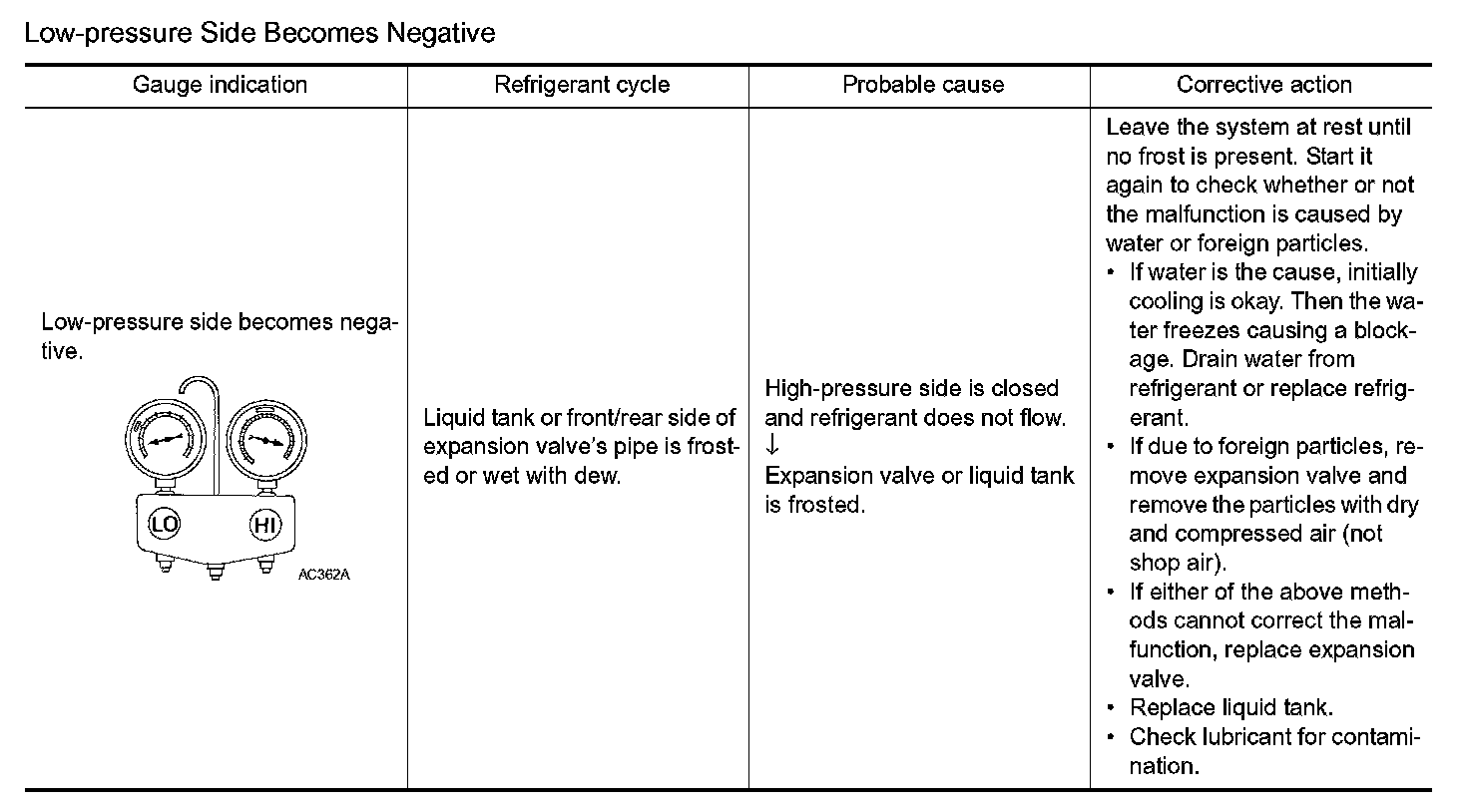

Low-pressure Side Becomes Negative
DIAGNOSIS PROCEDURE FOR INSUFFICIENT COOLING

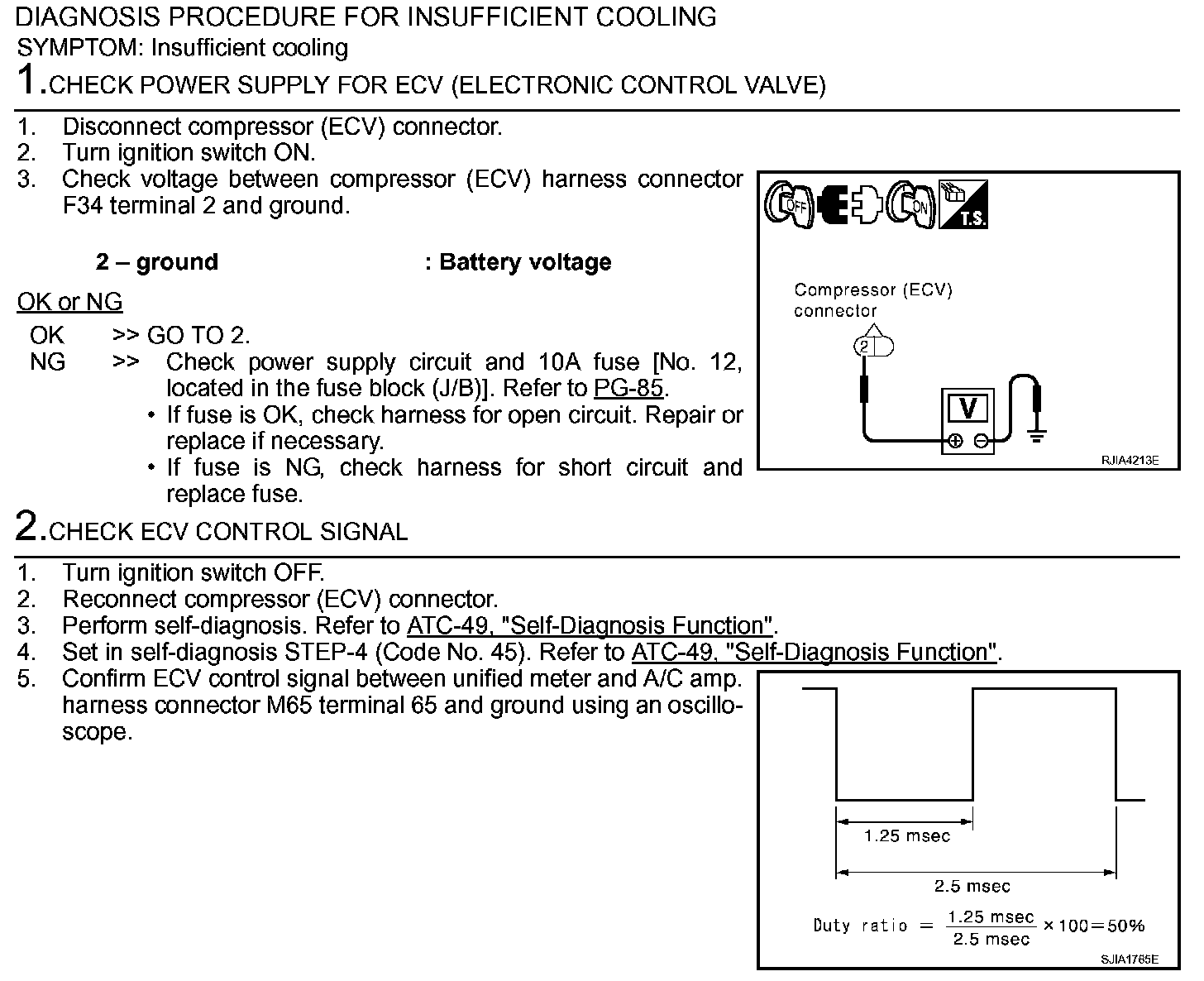

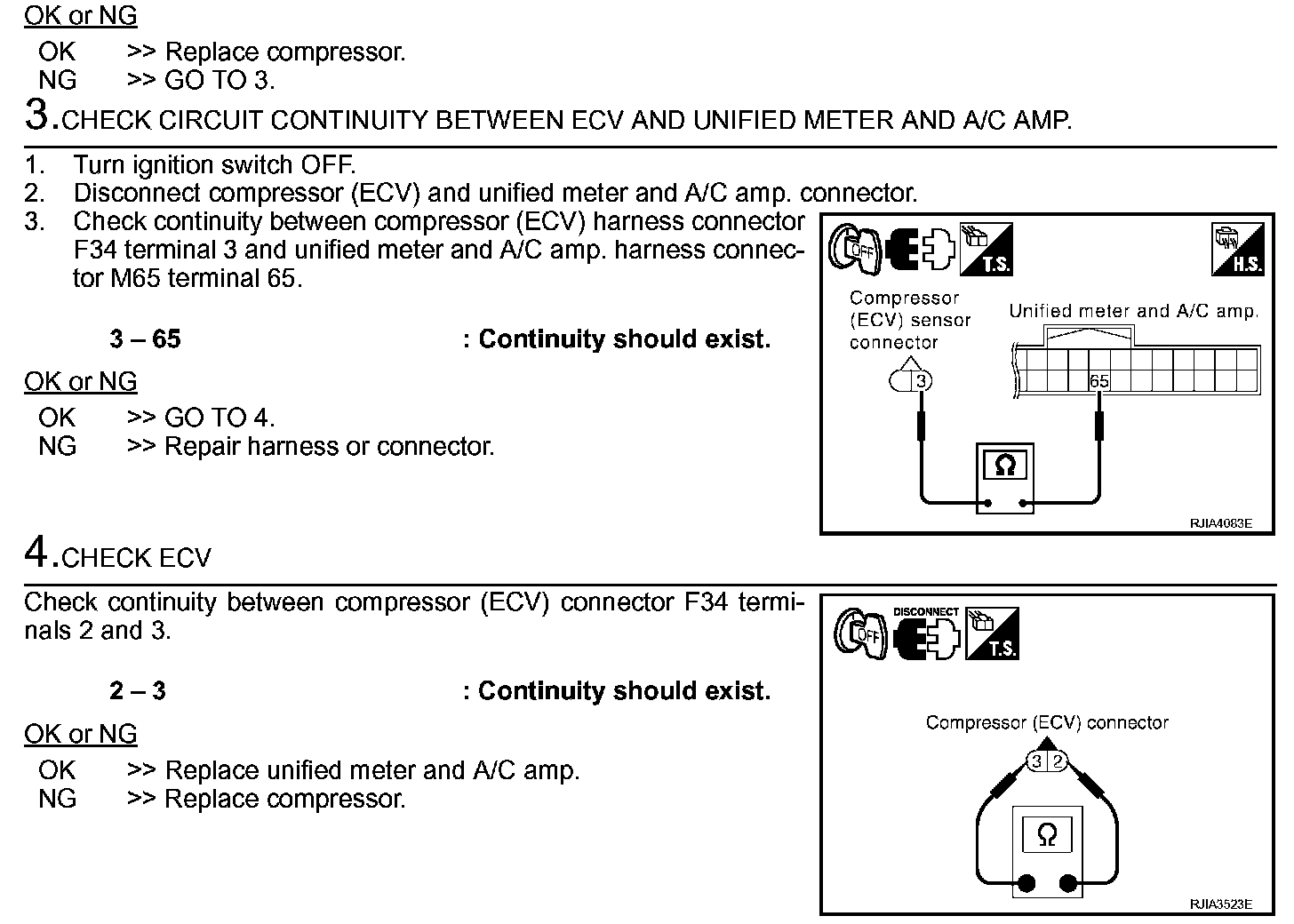

Step 1-2:
Step 2 (Continued)-4:
