LAN System Circuit

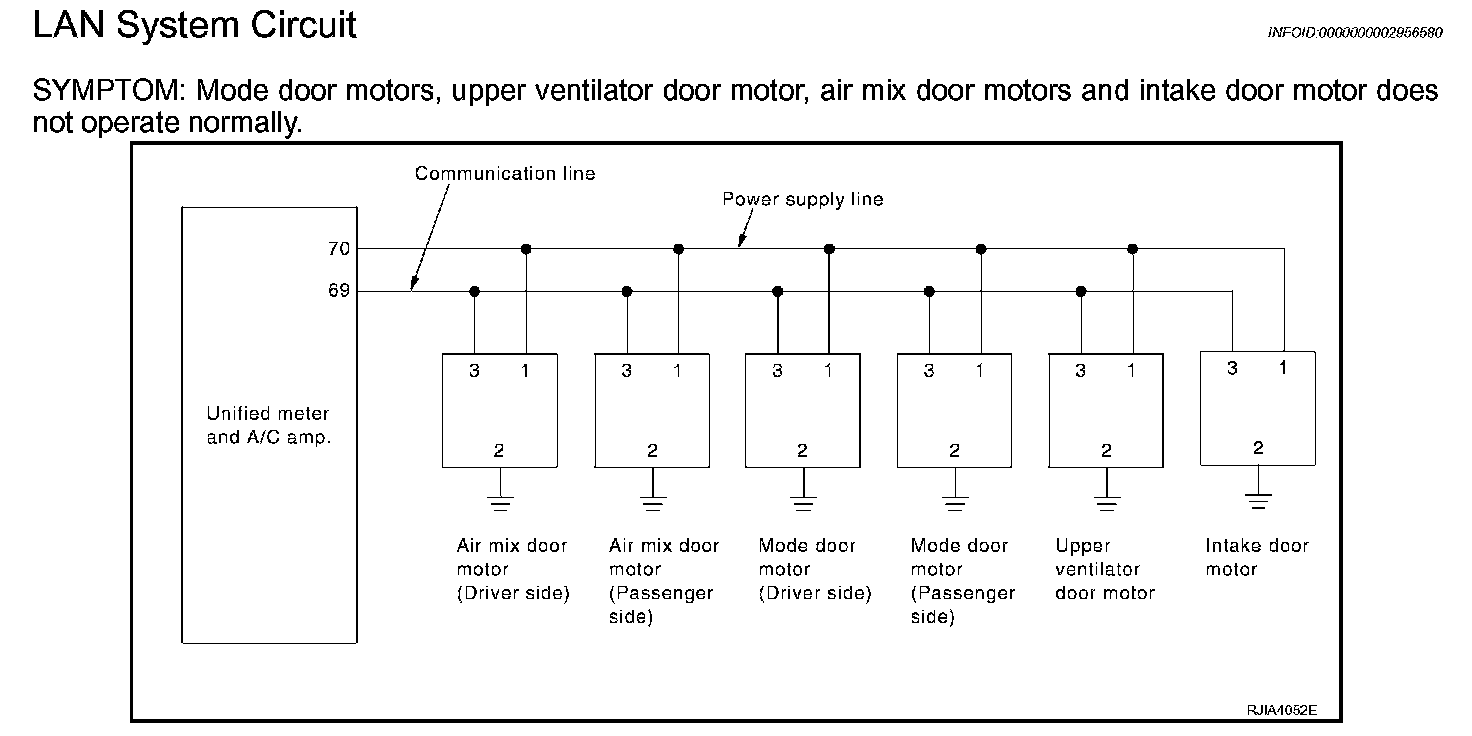

LAN System Circuit






DIAGNOSIS PROCEDURE FOR LAN CIRCUIT

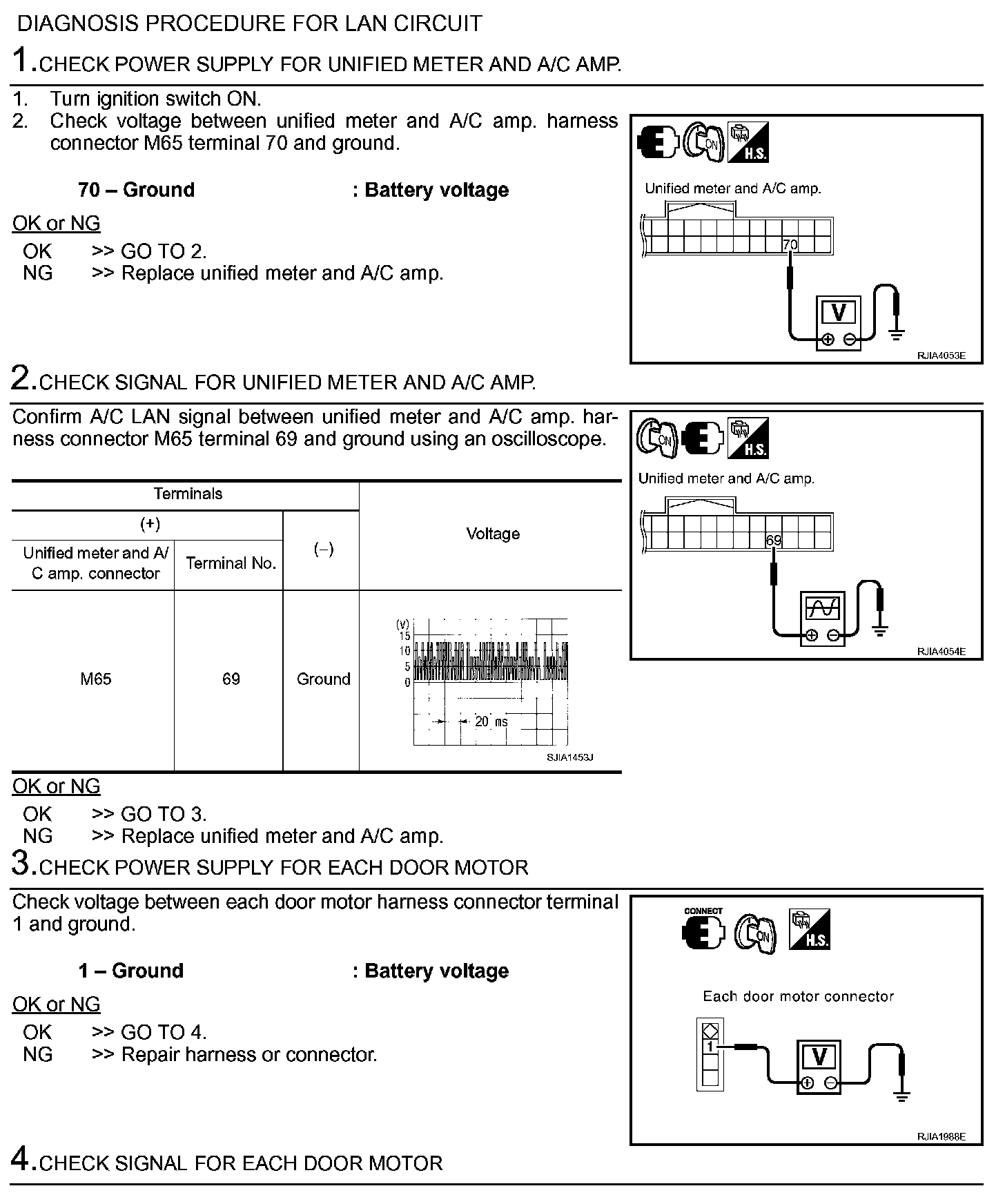

Step 1-4:

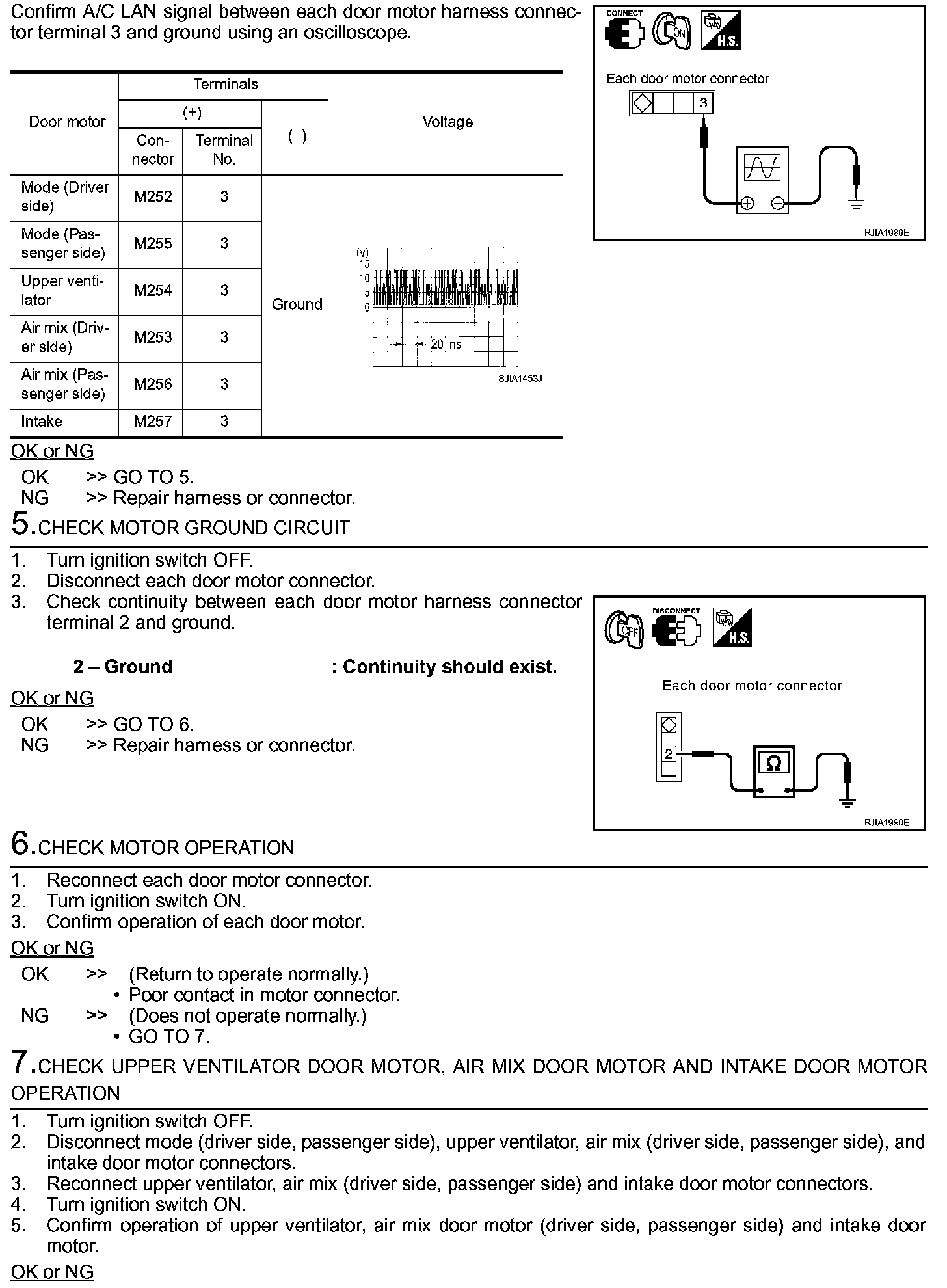

Step 4 (Continued)-7:

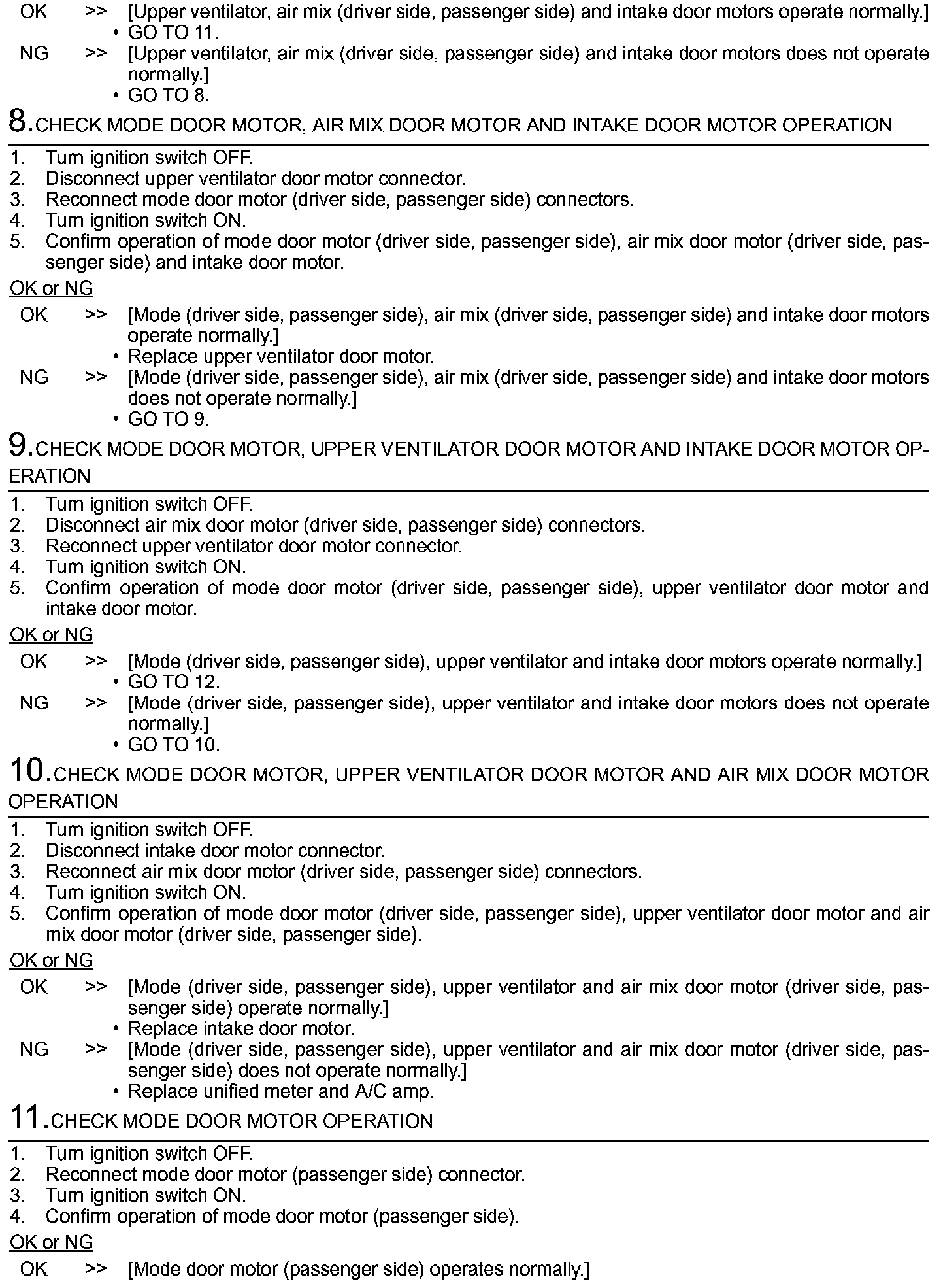

Step 7 (Continued)-11:

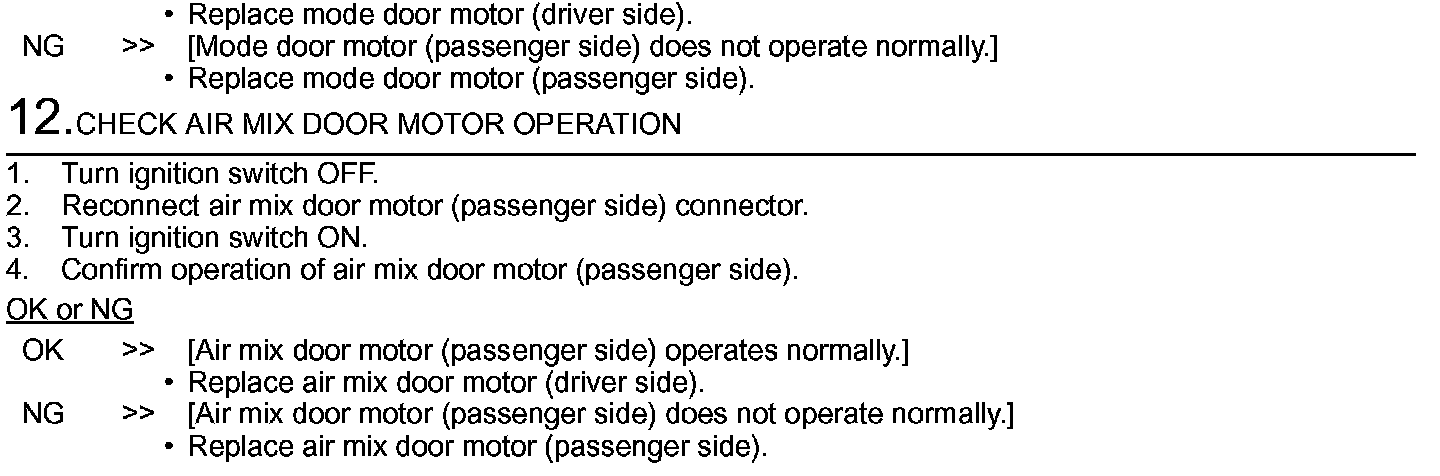

Step 11 (Continued)-12:
