HFC-134a (R-134a) Service Procedure

REFRIGERANT LINES

HFC-134a (R-134a) Service Procedure

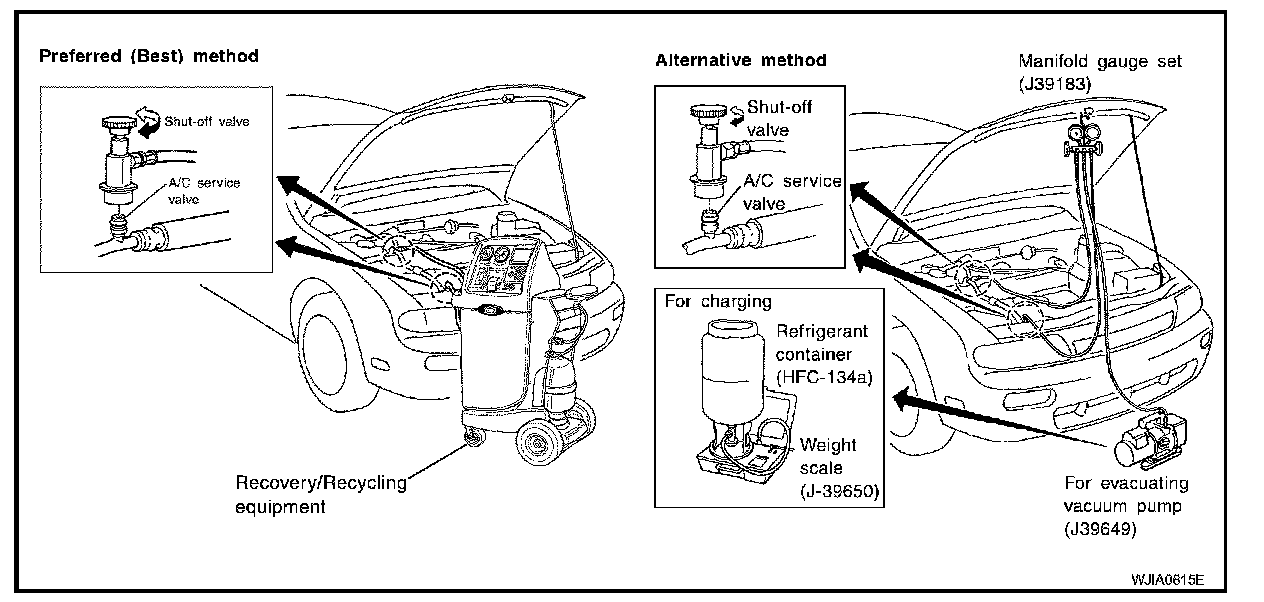

SETTING OF SERVICE TOOLS AND EQUIPMENT

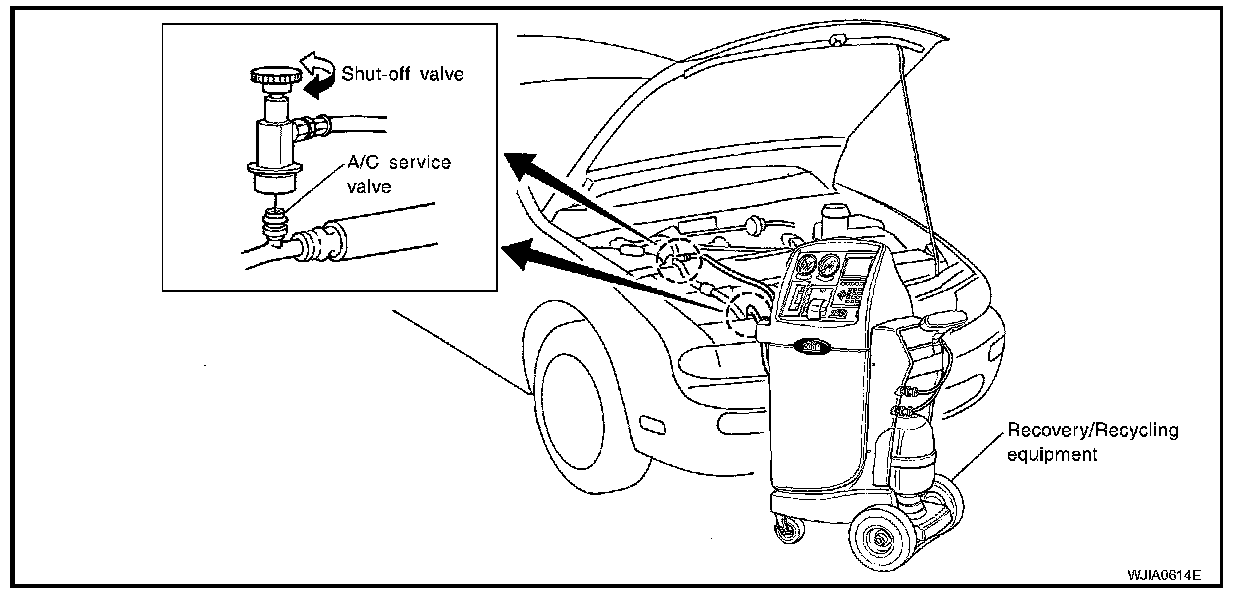

Discharging Refrigerant

WARNING: Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting requirements of SAE J-2210 [HFC-134a (R-134a) recycling equipment] or J-2209 [HFC-134a (R-134a) recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming service. Additional health and safety information may be obtained from refrigerant and lubricant manufacturers.

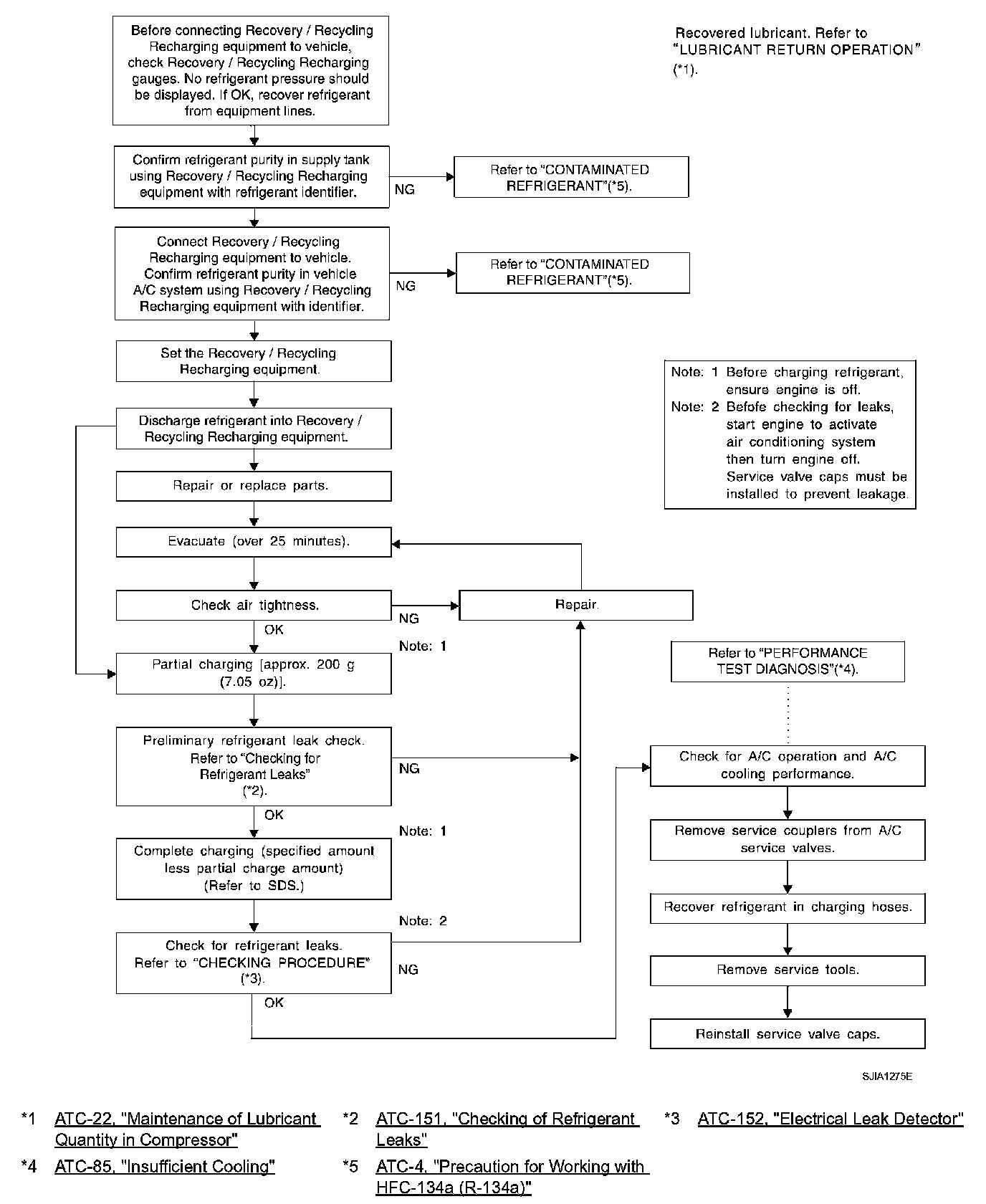

Evacuating System and Charging Refrigerant
