Electrical Diagrams

Wiring Diagram - A/C -

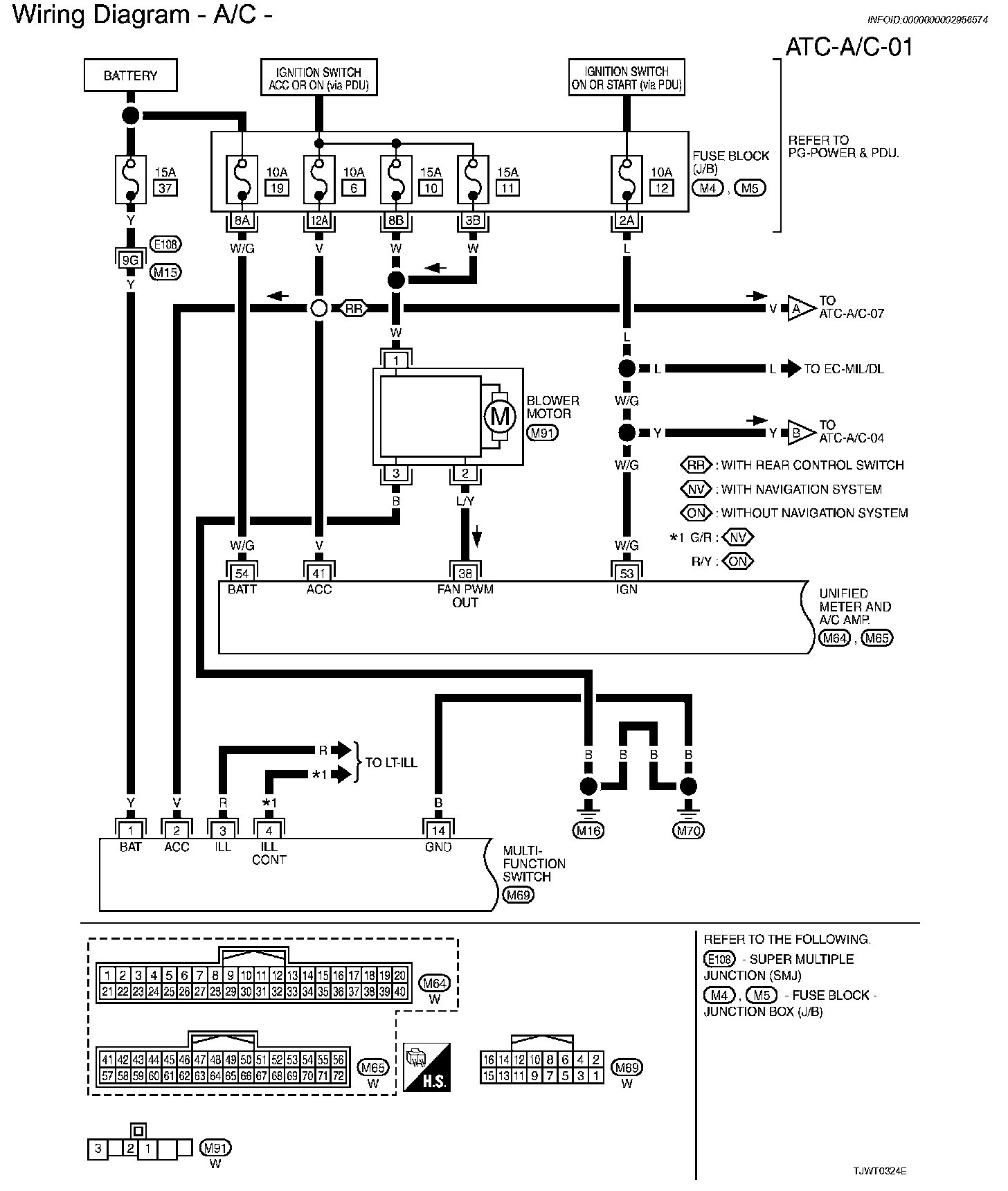

ATC-A/C-01:

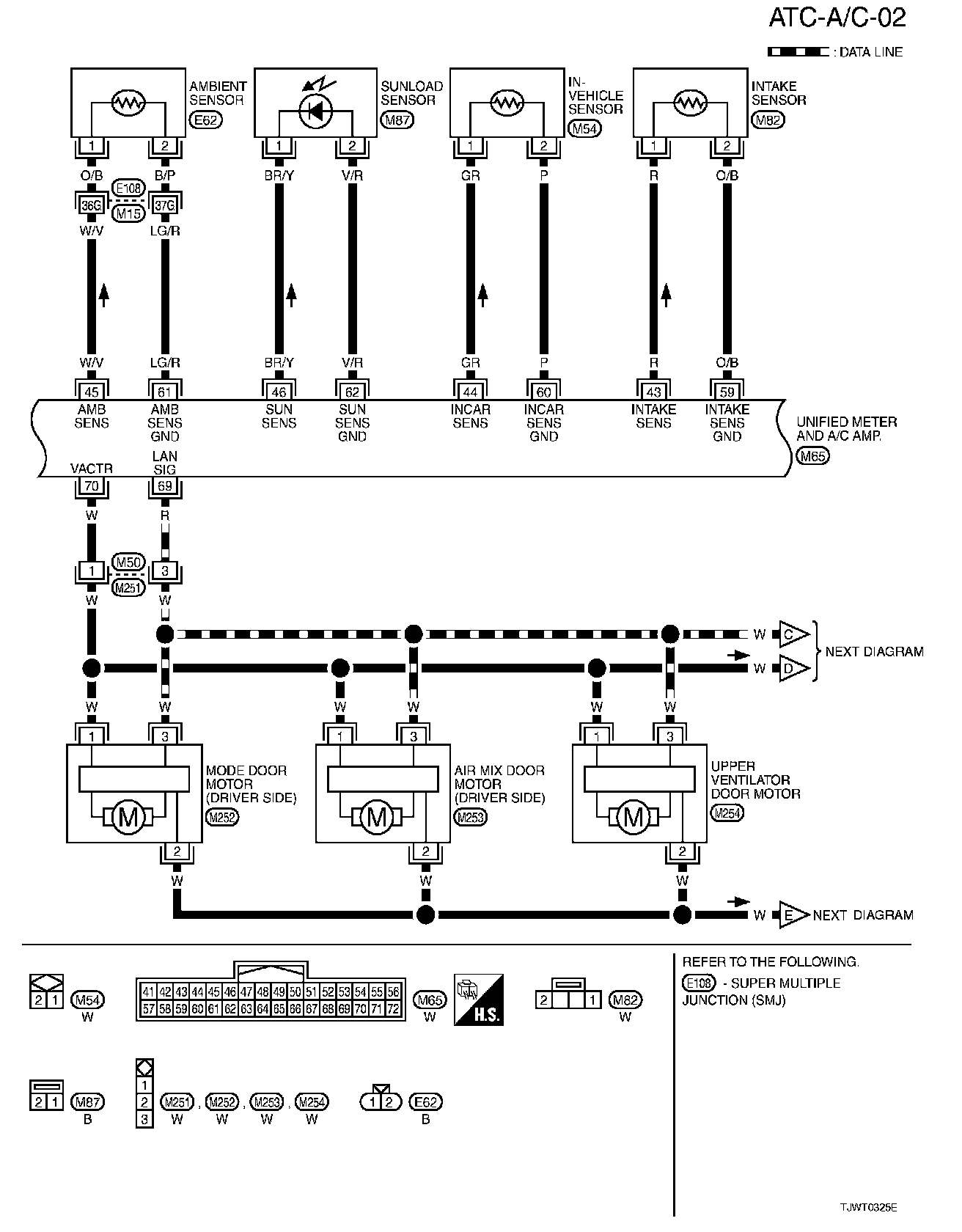

ATC-A/C-02:

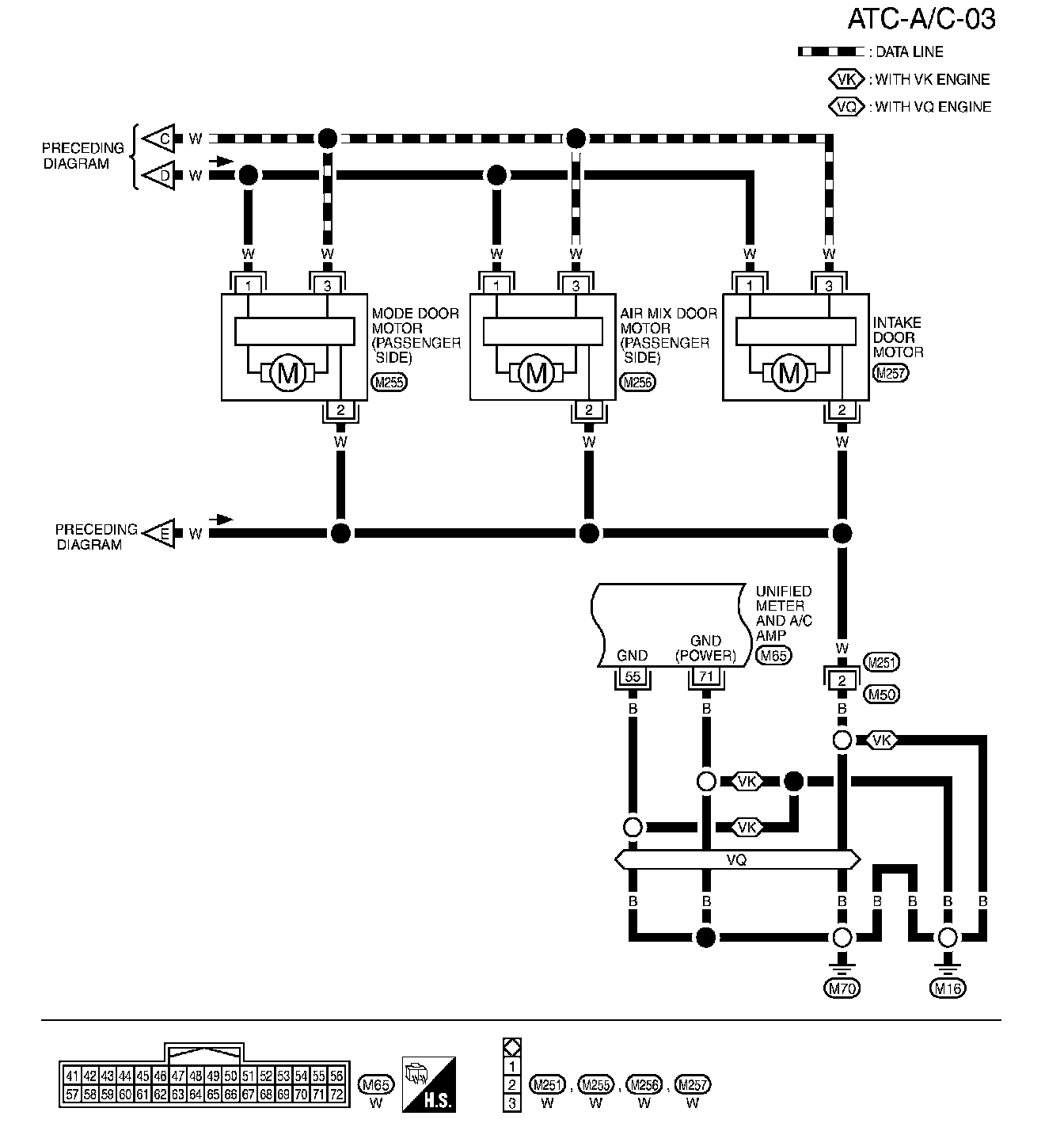

ATC-A/C-03:

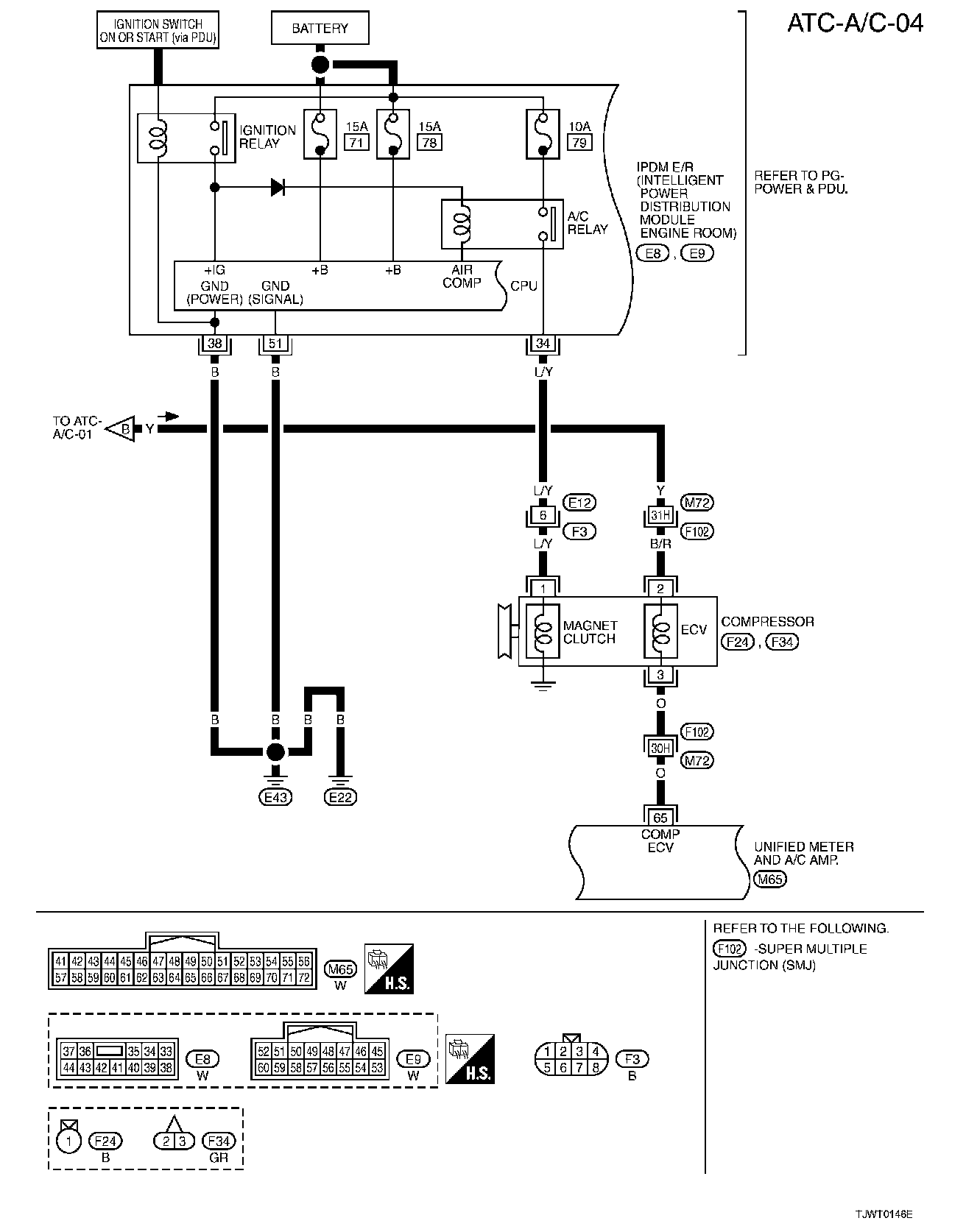

ATC-A/C-04:

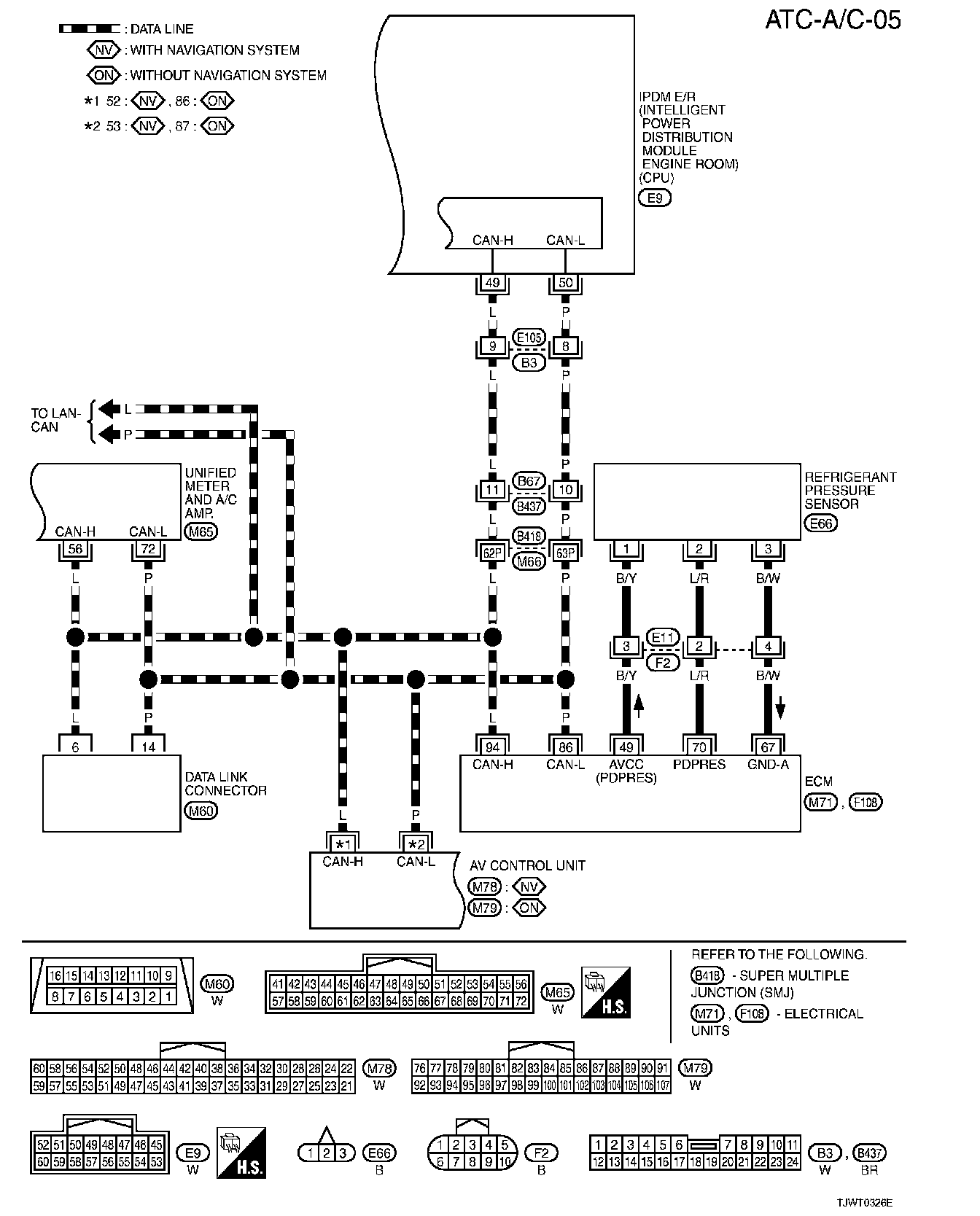

ATC-A/C-05:

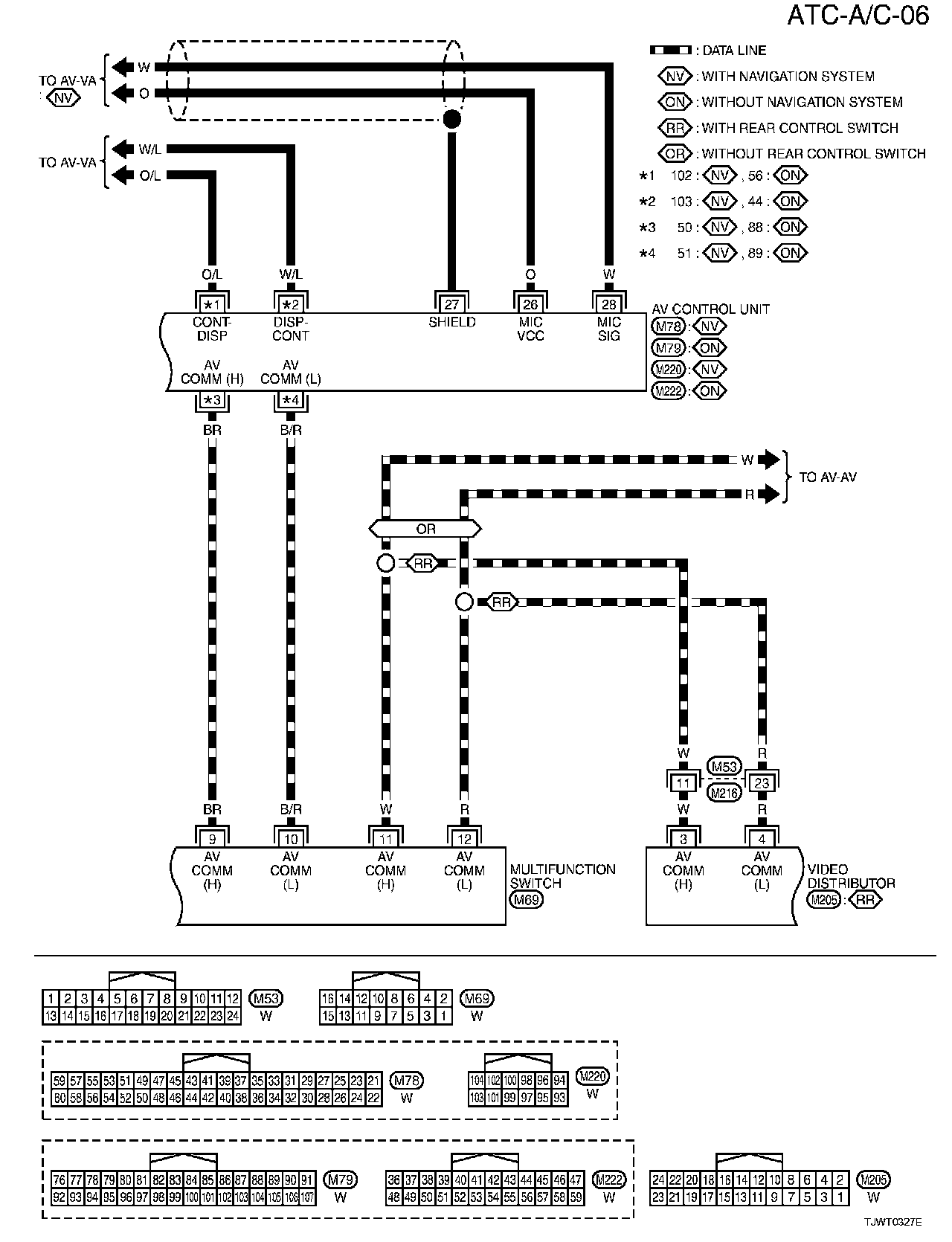

ATC-A/C-06:

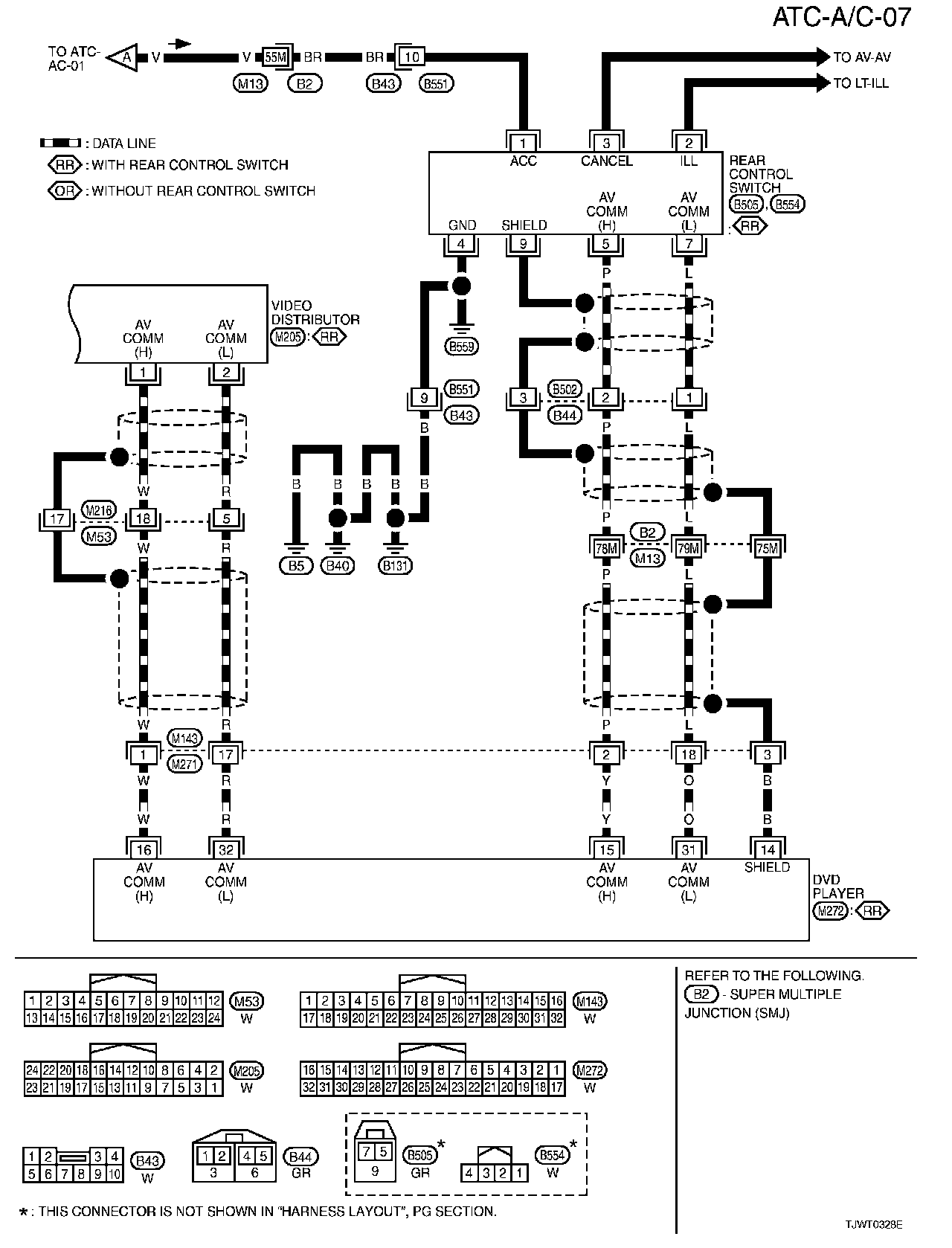

ATC-A/C-07:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
