Component Tests and General Diagnostics

SRS Operation Check (USER MODE)

DIAGNOSTIC PROCEDURE

Checking Air Bag Operation by Using "AIR BAG" Warning Lamp - User Mode
1. Turn ignition switch from OFF to ON, and make sure that the air bag warning lamp blinks.

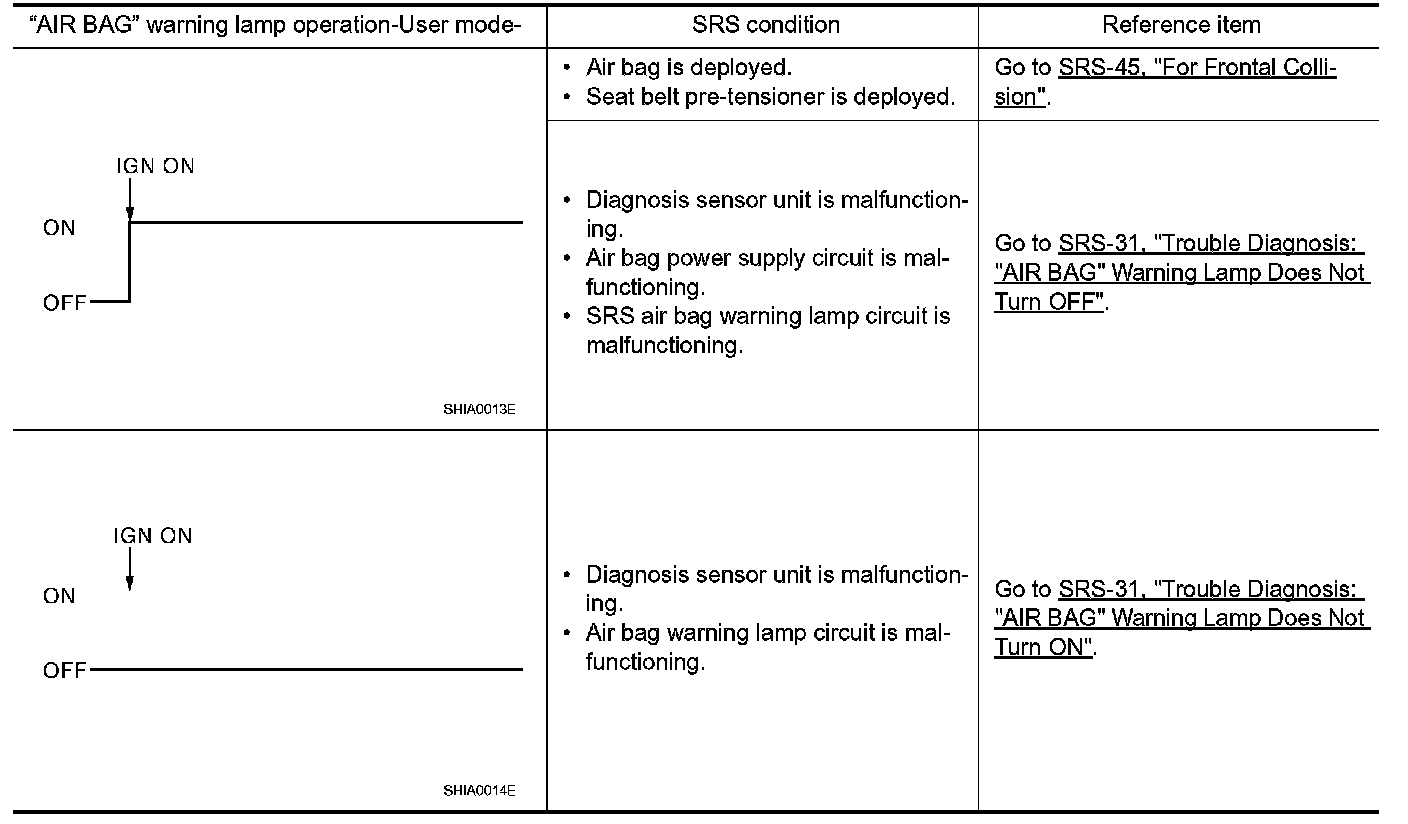

2. Compare the SRS air bag warning lamp blinking pattern with the examples.

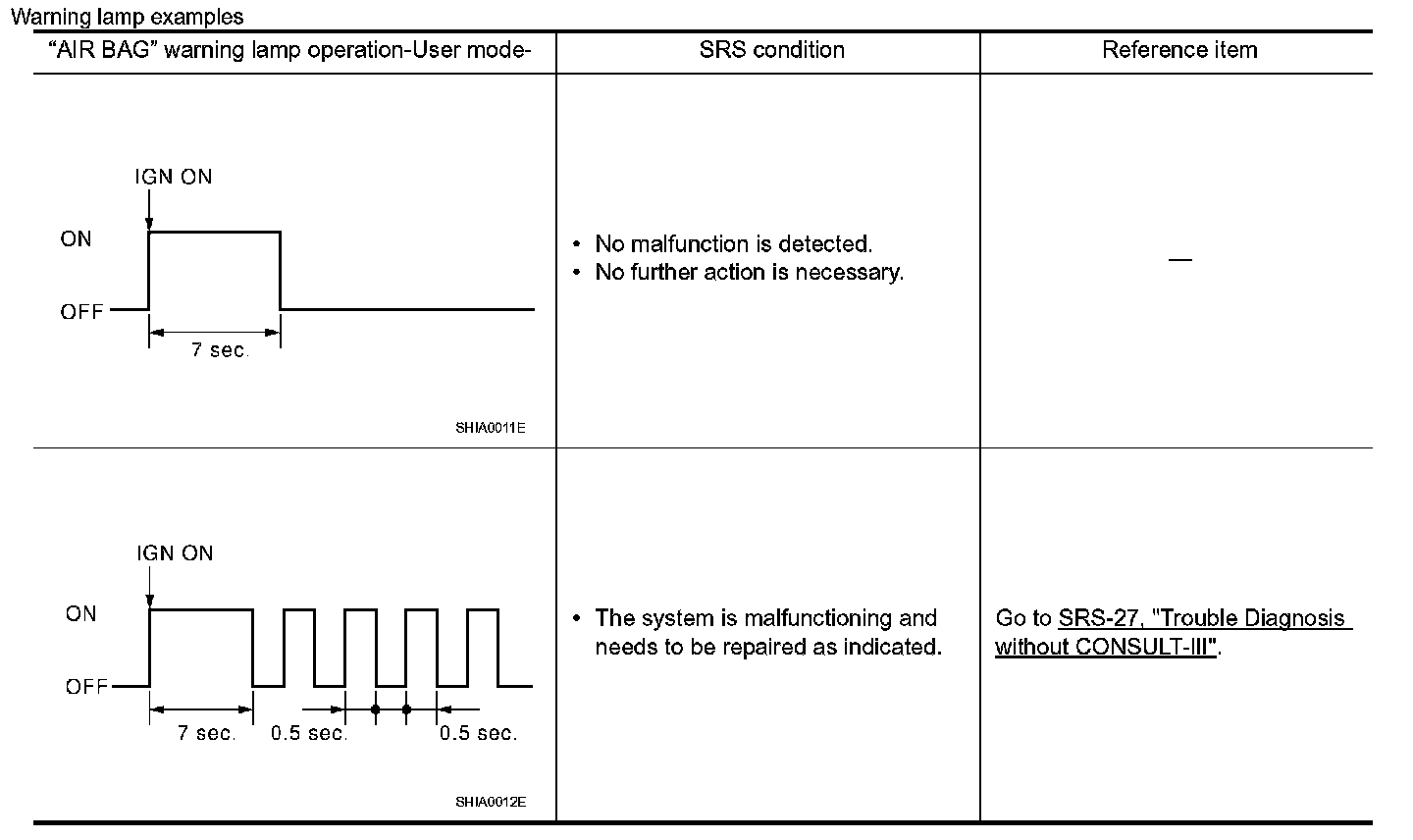

Warning lamp examples
