Seat Belt Retractor OFF-Vehicle Check (Rear Seat Belt)

SEAT BELT RETRACTOR OFF-VEHICLE CHECK (REAR SEAT BELT)
1. Remove the seat belt retractor.
Remove the front seat belt assembly.

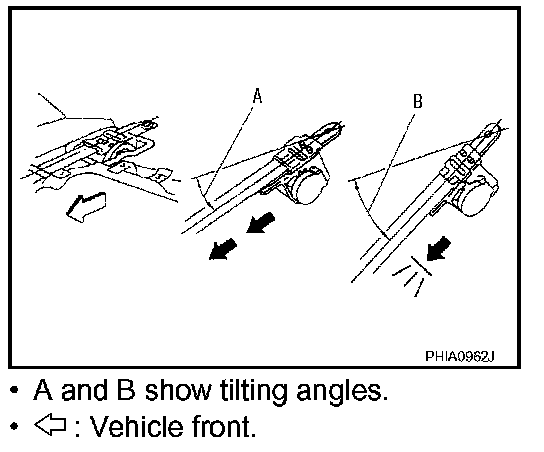

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the illustration.
A: The webbing can be pulled out in case the retractor is tilted 15 degree or less.
B: The webbing can't be pulled out in case the retractor is tilted 35 degree or more.






Replace the seat belt assembly if it does not operate normally.
