Electrical Diagrams

Wiring Diagram - PSB -

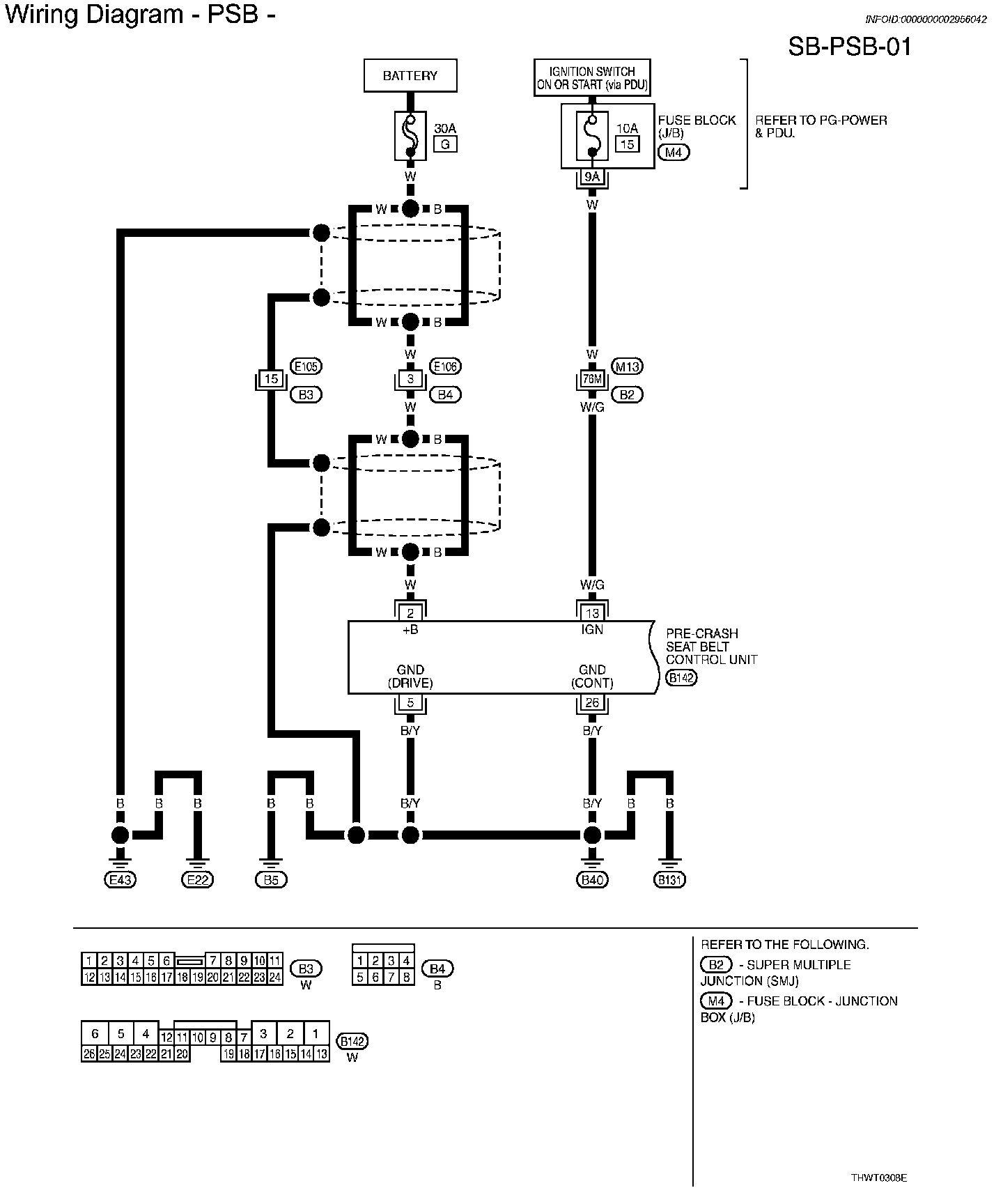

SB-PSB-01:

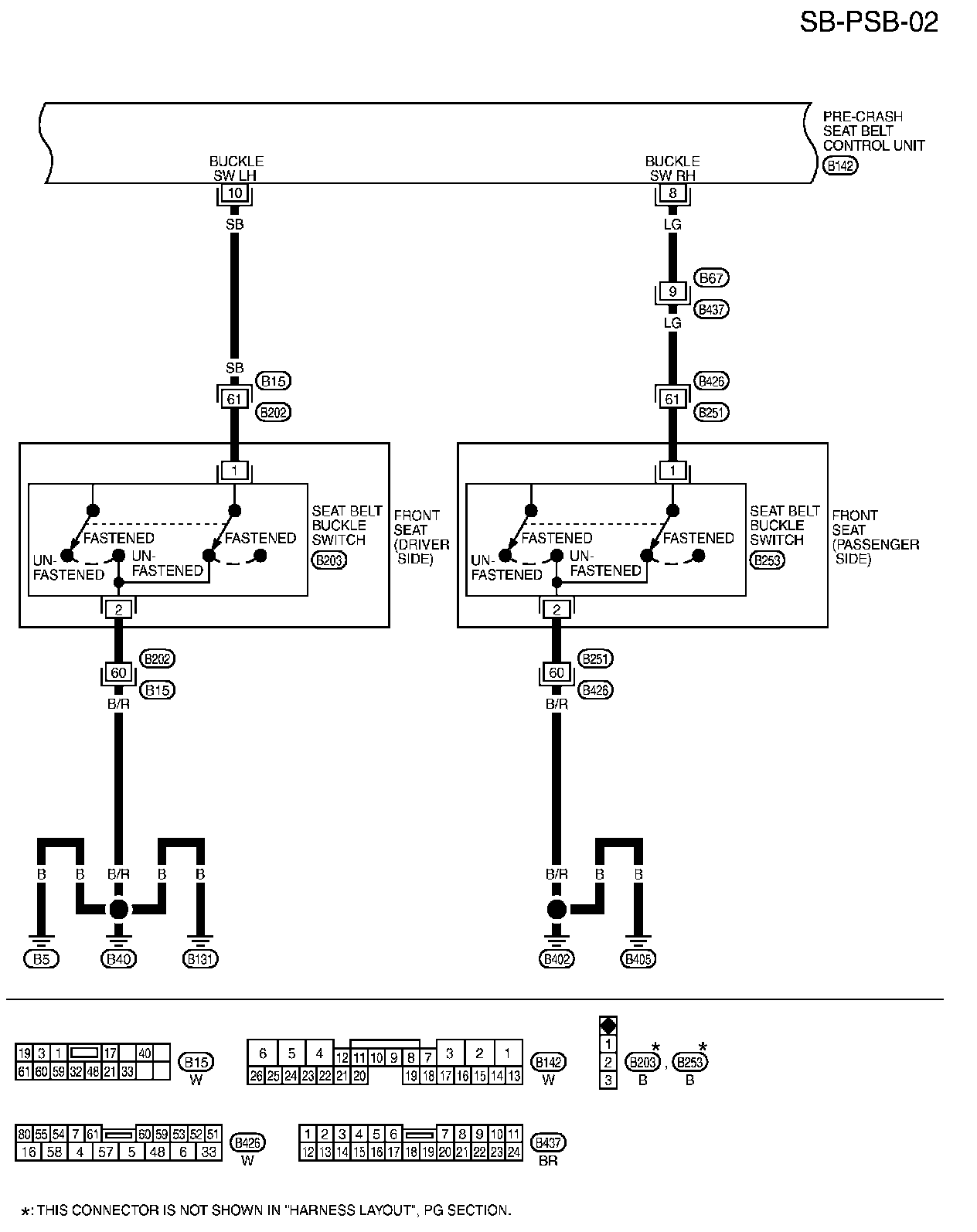

SB-PSB-02:

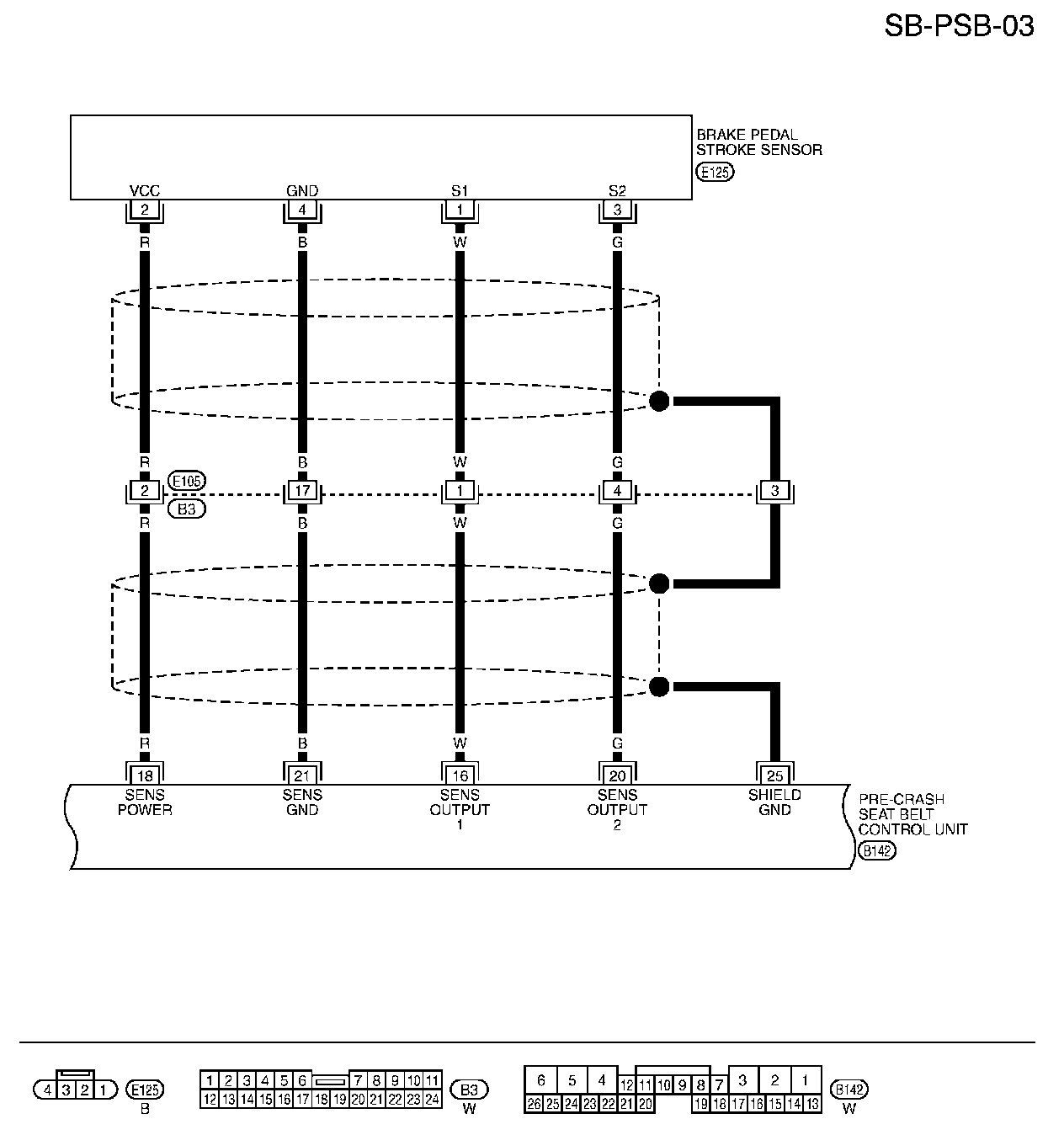

SB-PSB-03:

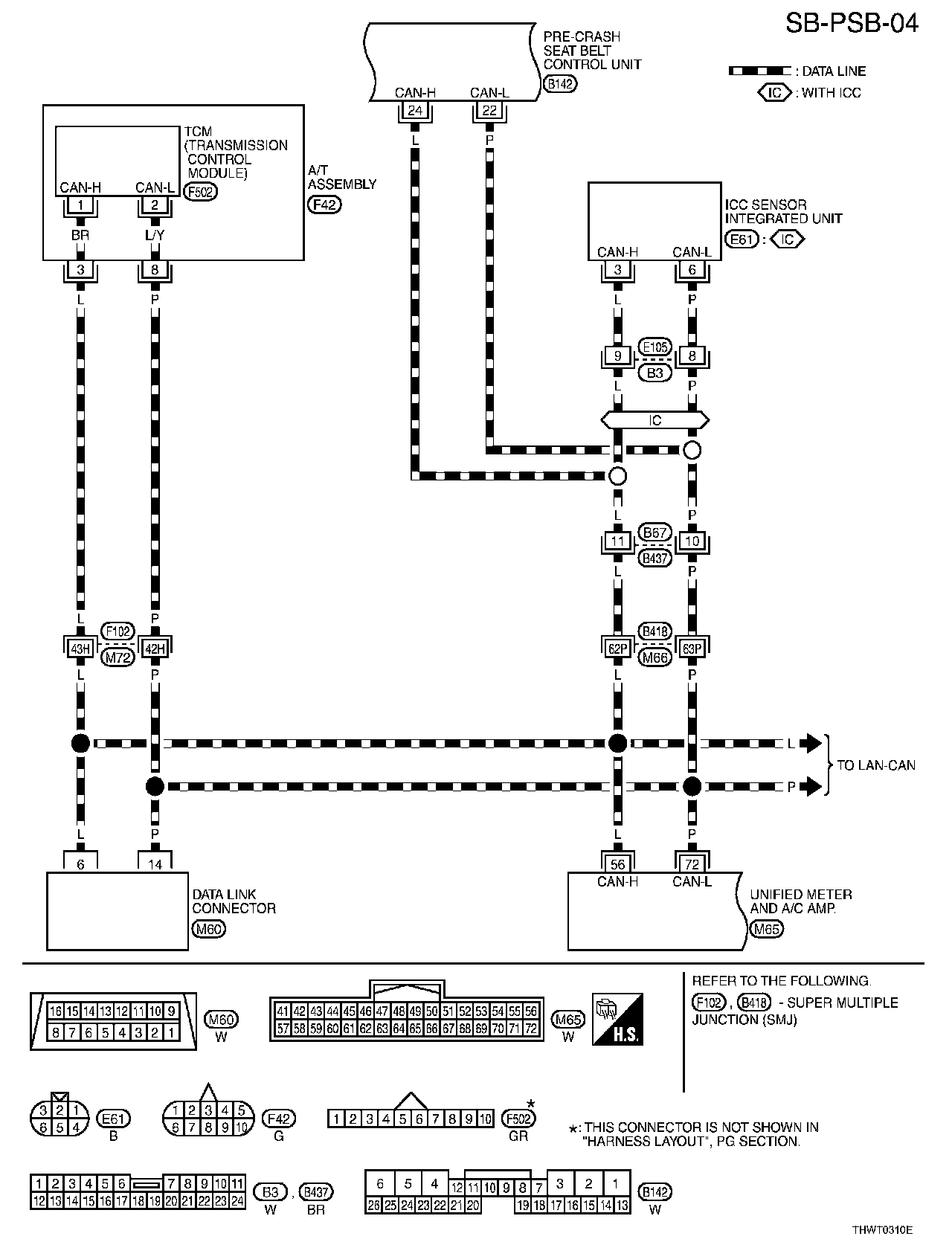

SB-PSB-04:

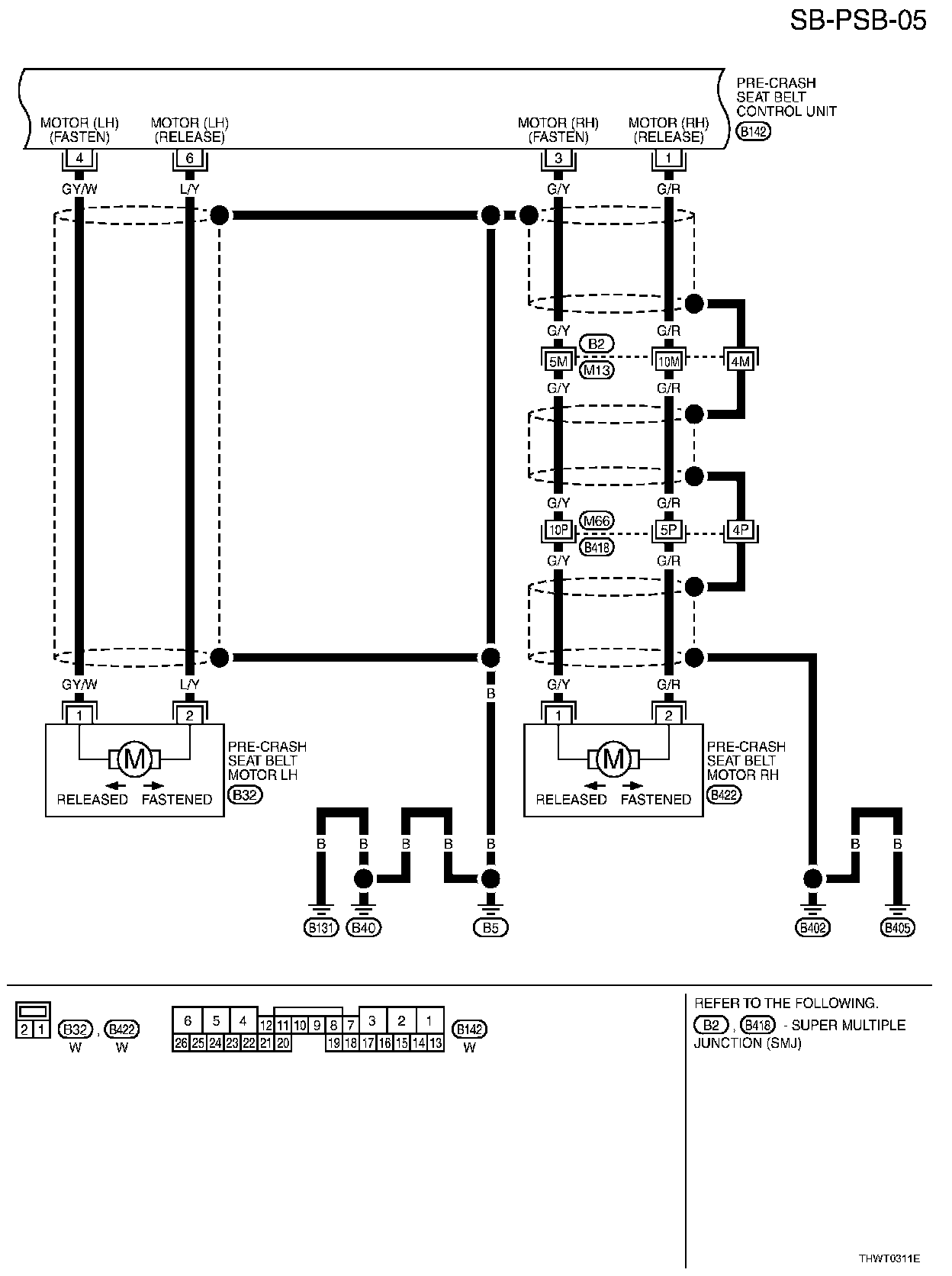

SB-PSB-05:

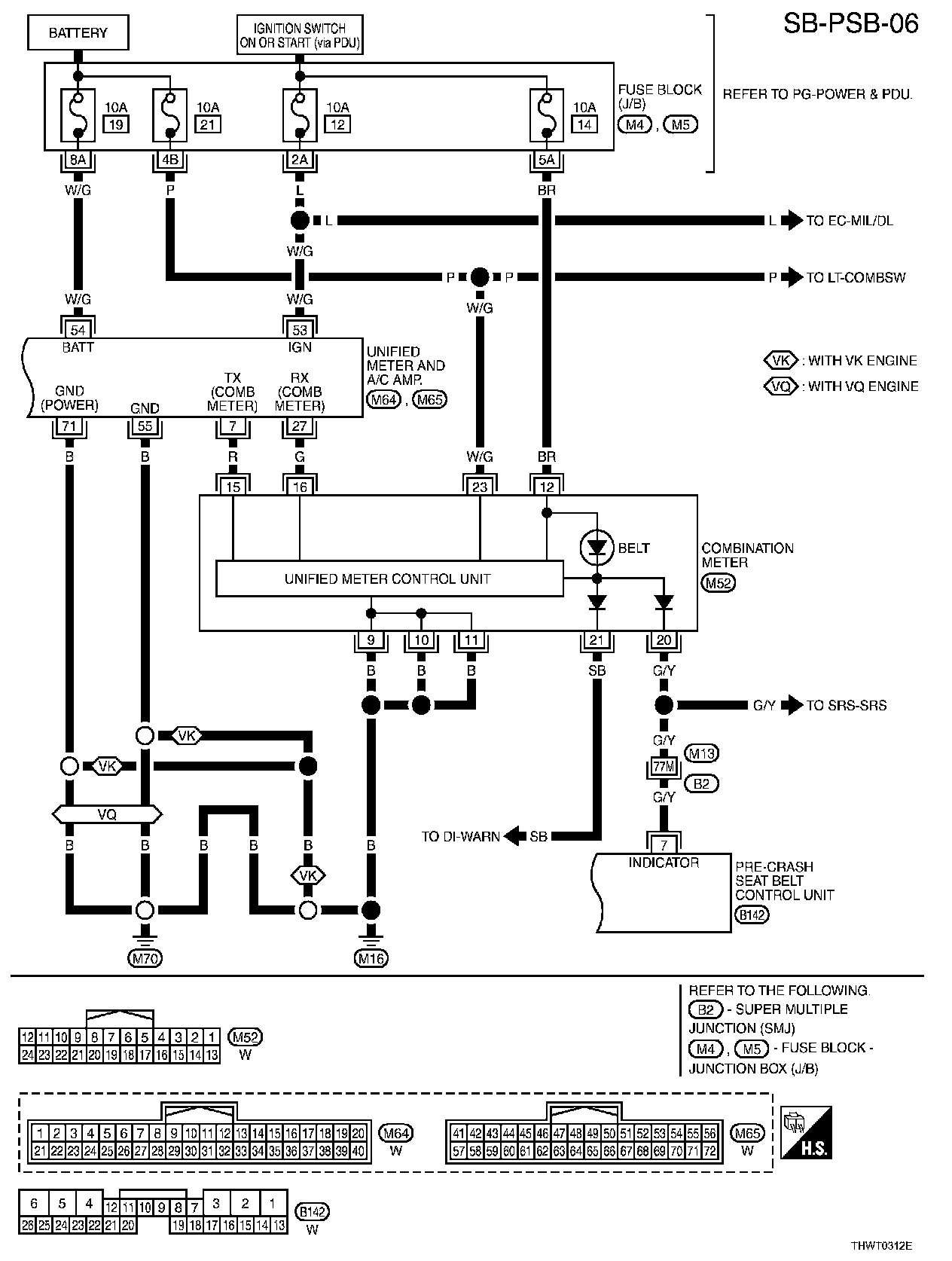

SB-PSB-06:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
