IVIS (Infiniti Vehicle Immobilizer System-NATS)

Wiring Diagram - NATS -

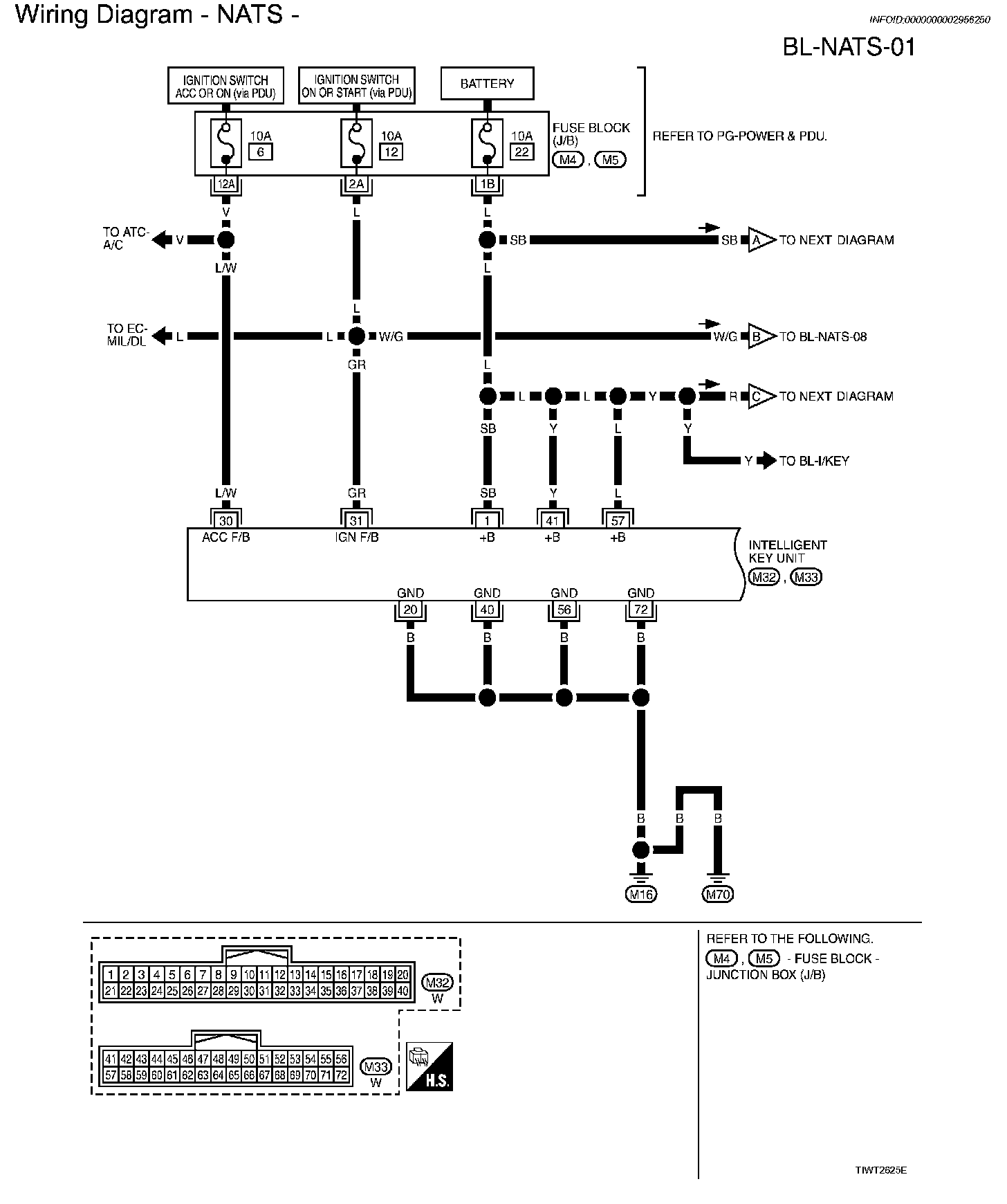

BL-NATS-01:

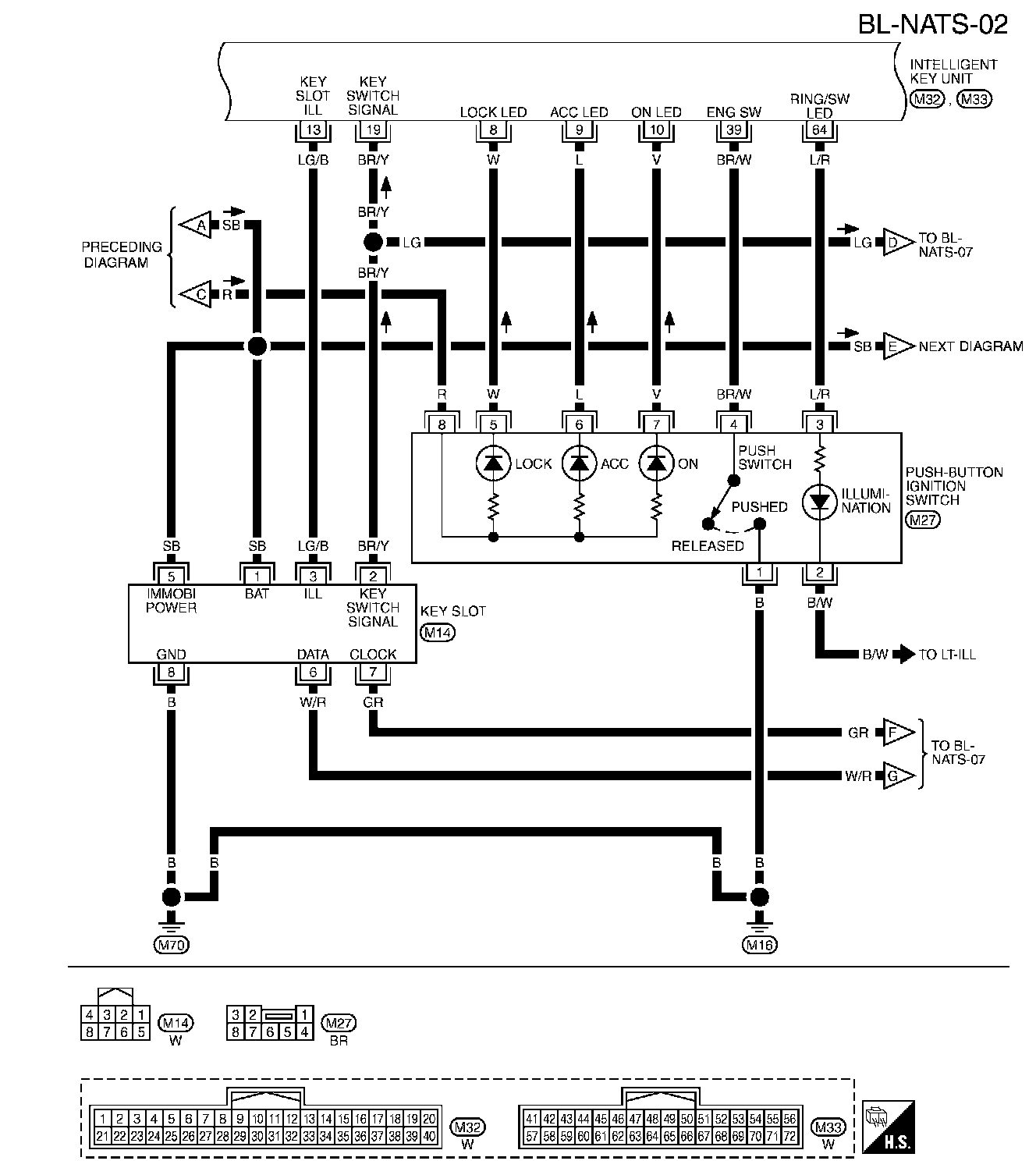

BL-NATS-02:

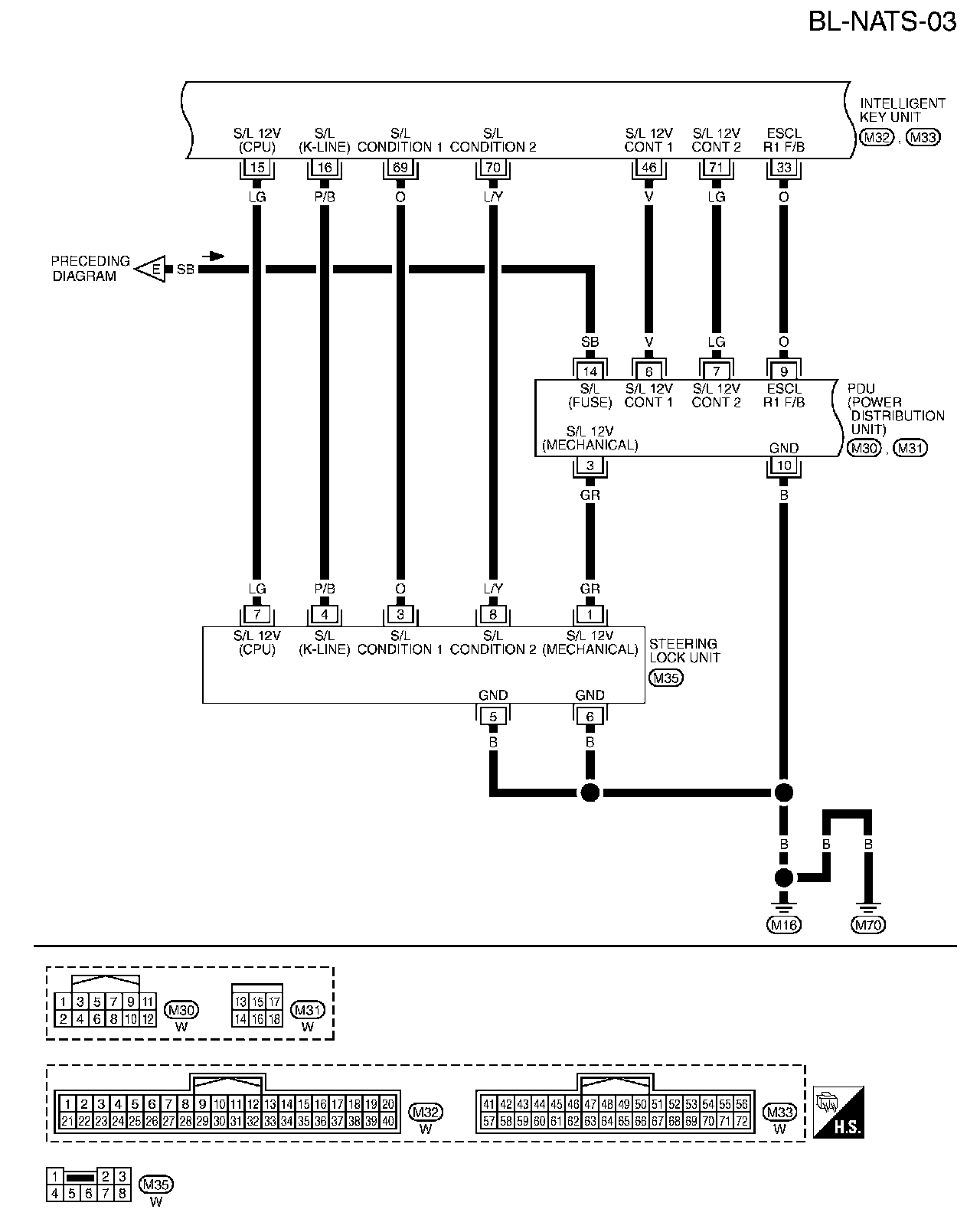

BL-NATS-03:

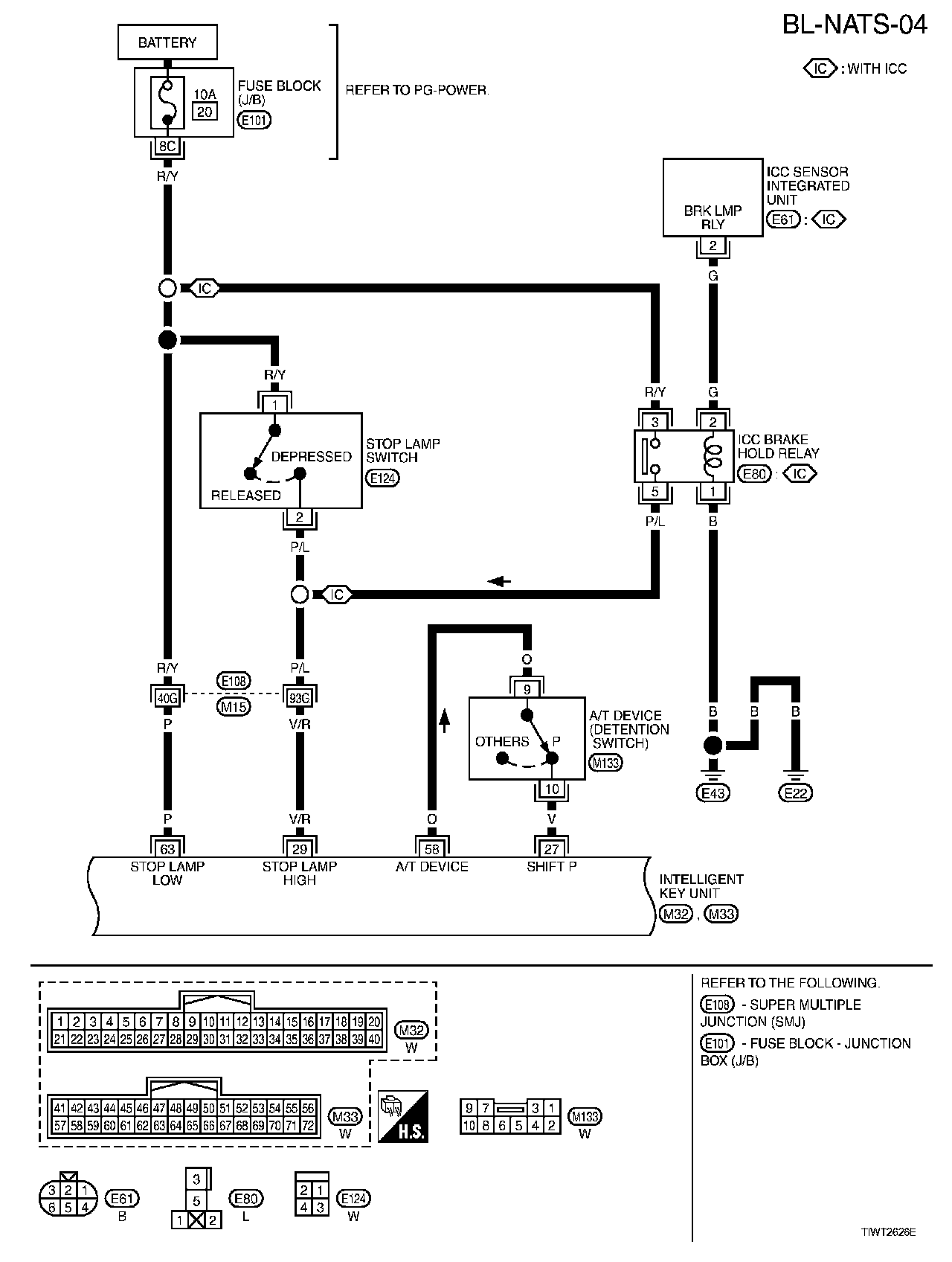

BL-NATS-04:

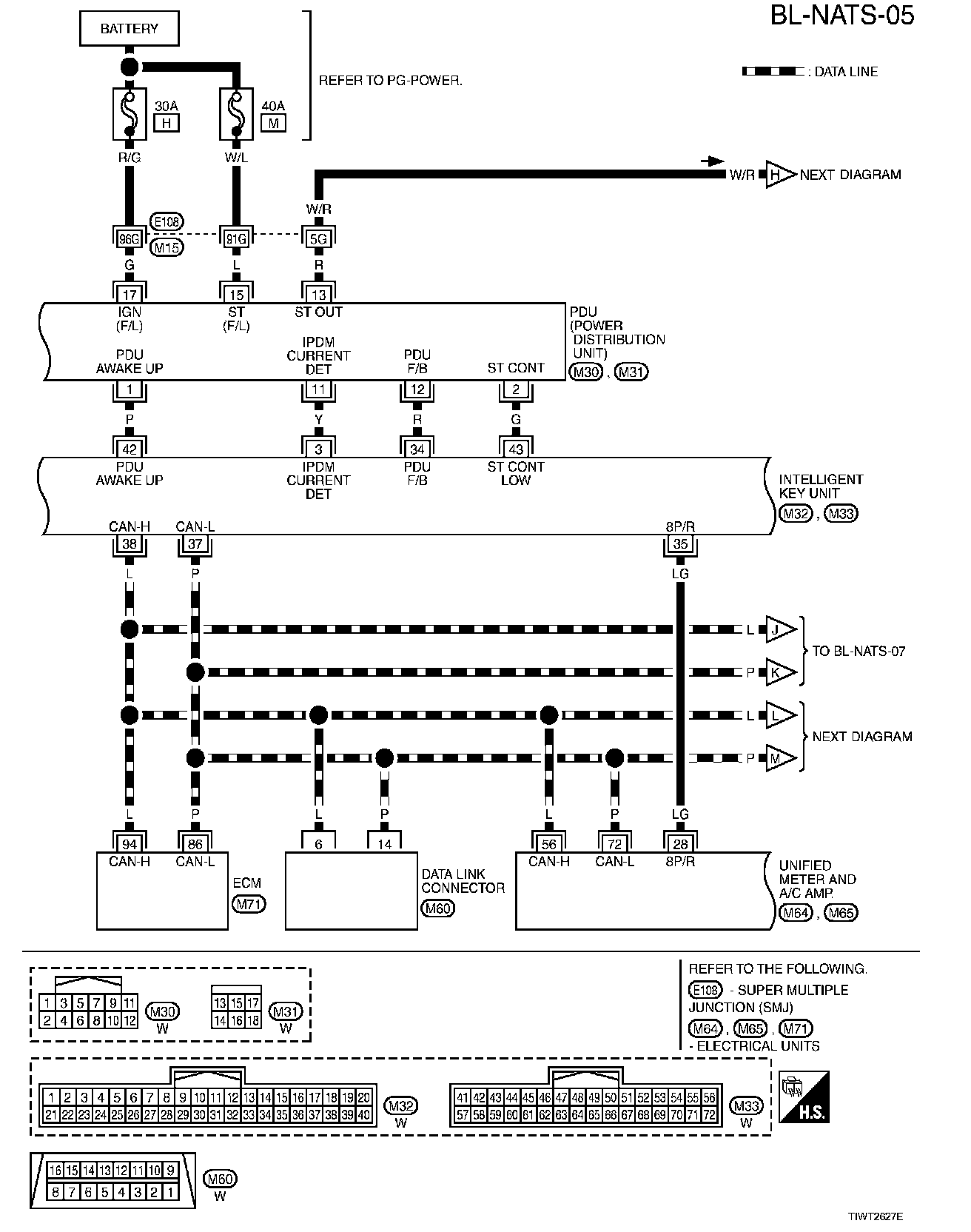

BL-NATS-05:

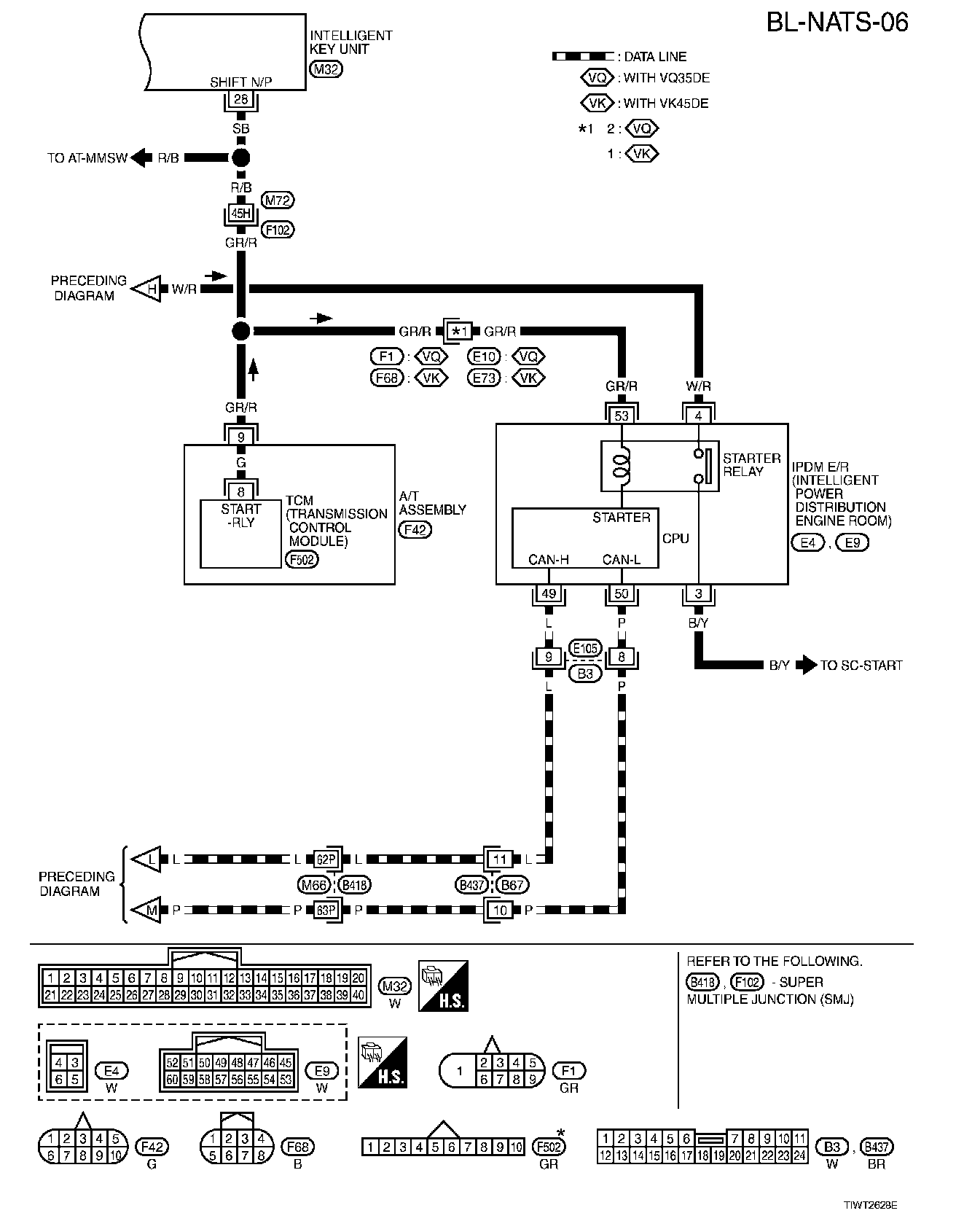

BL-NATS-06:

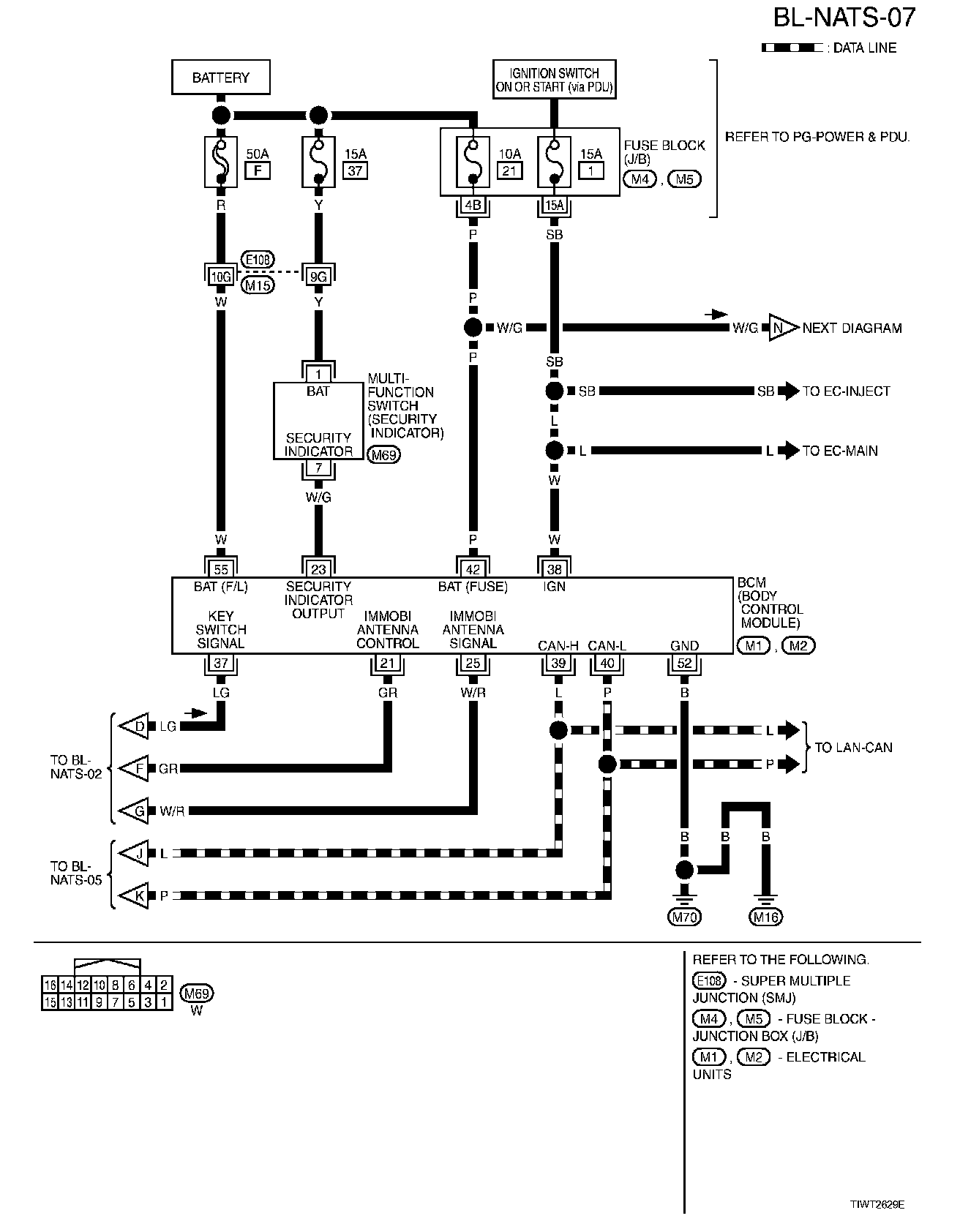

BL-NATS-07:

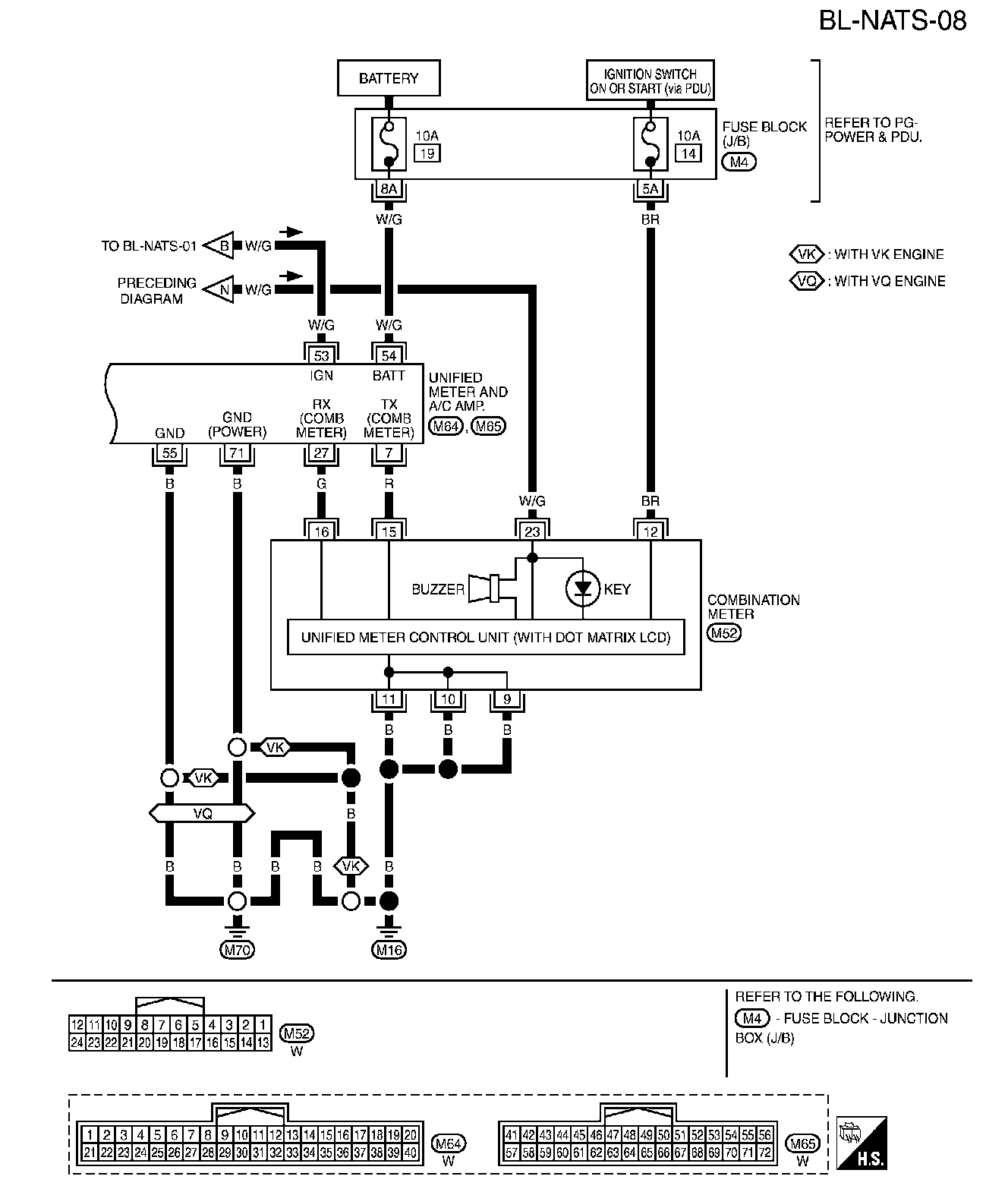

BL-NATS-08:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
