Vehicle Security Theft Warning System

Wiring Diagram - VEHSEC -

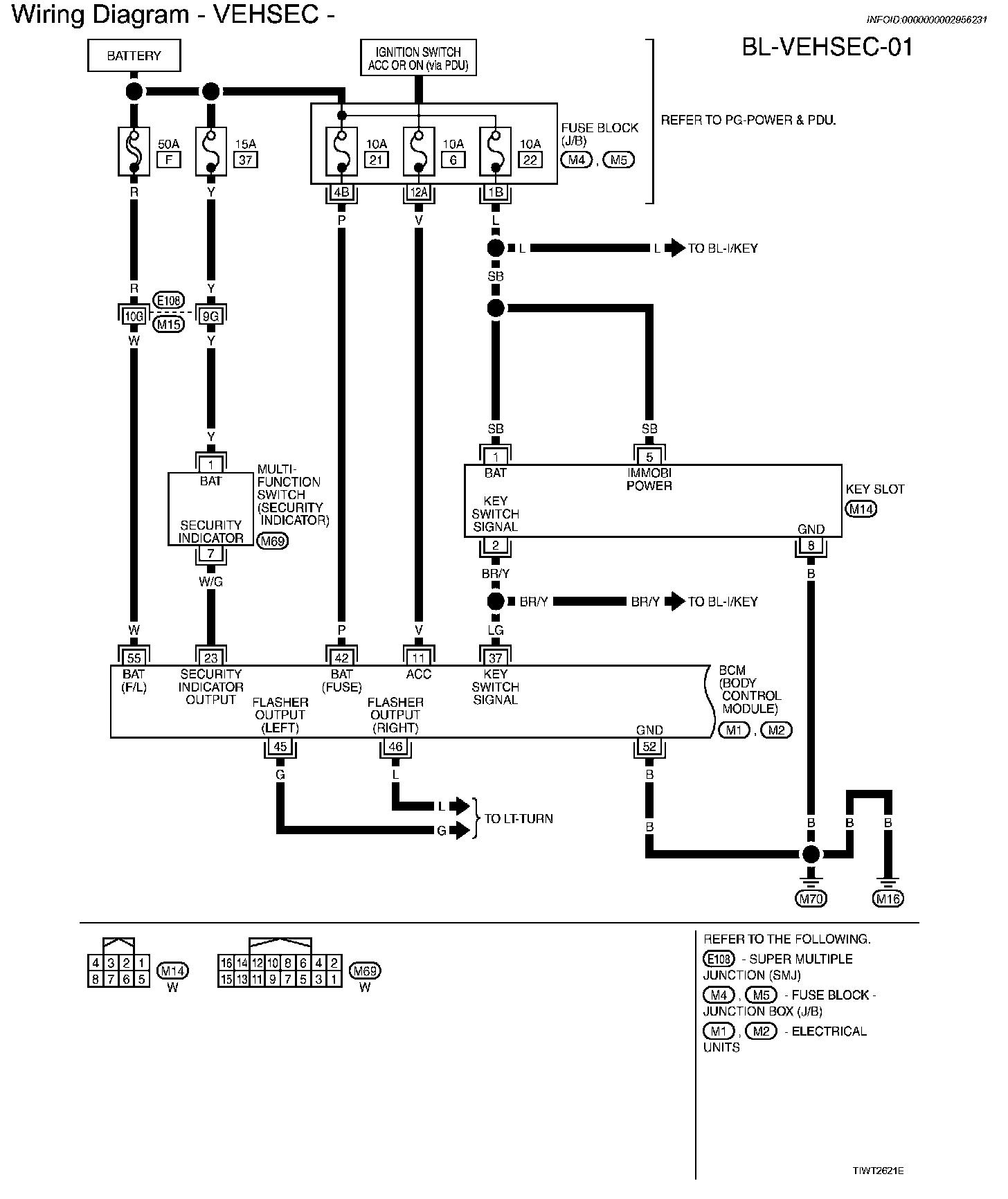

BL-VEHSEC-01:

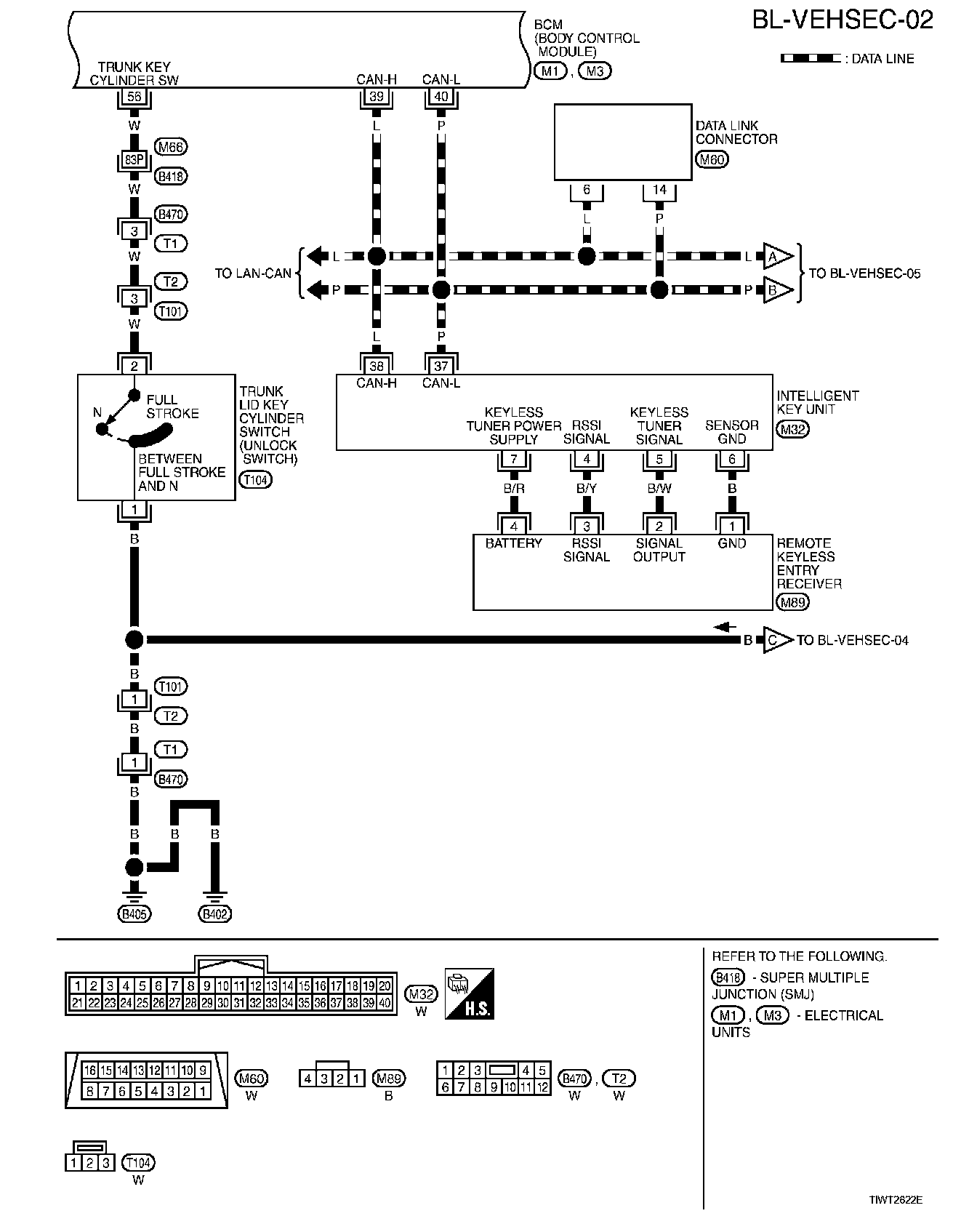

BL-VEHSEC-02:

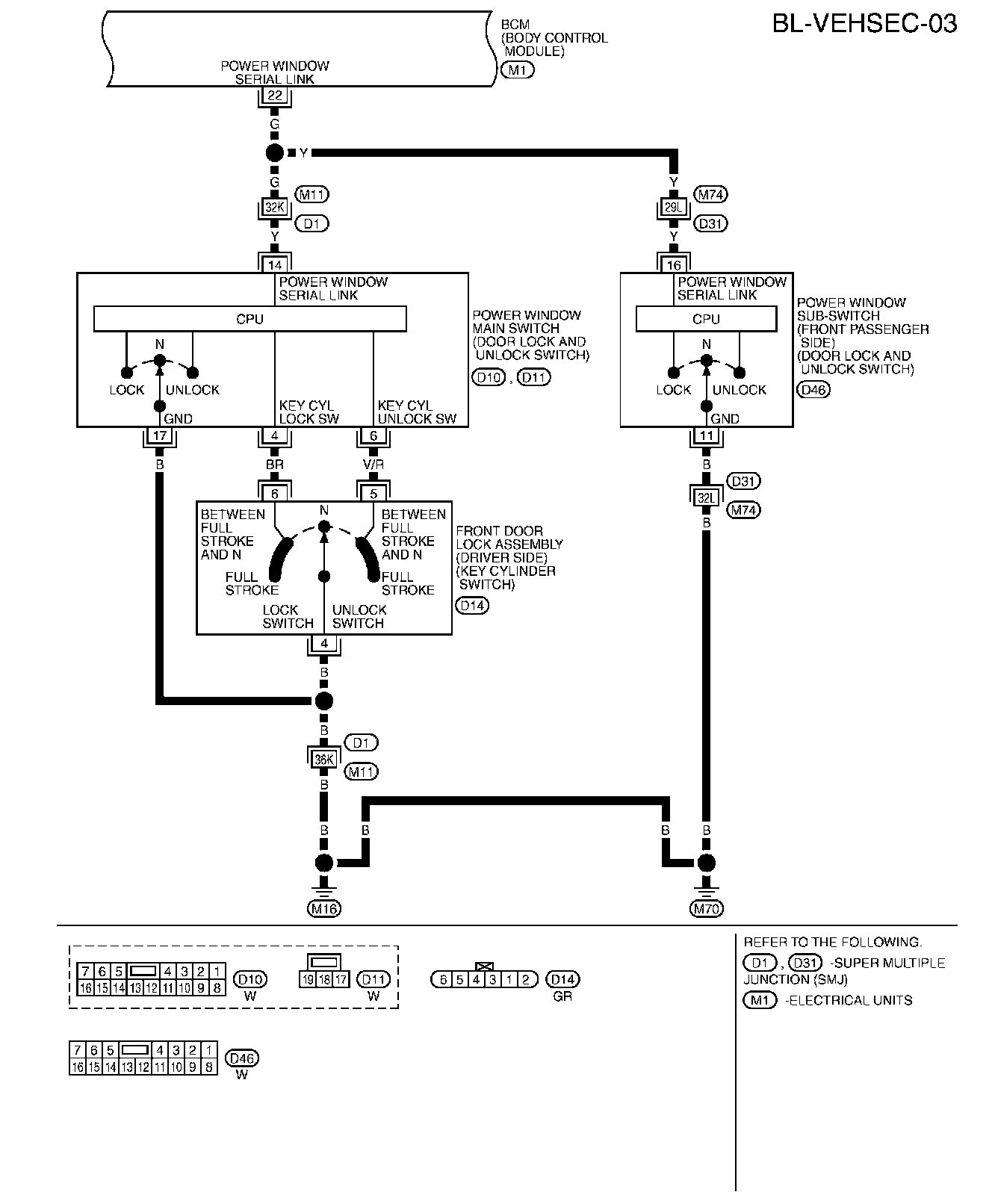

BL-VEHSEC-03:

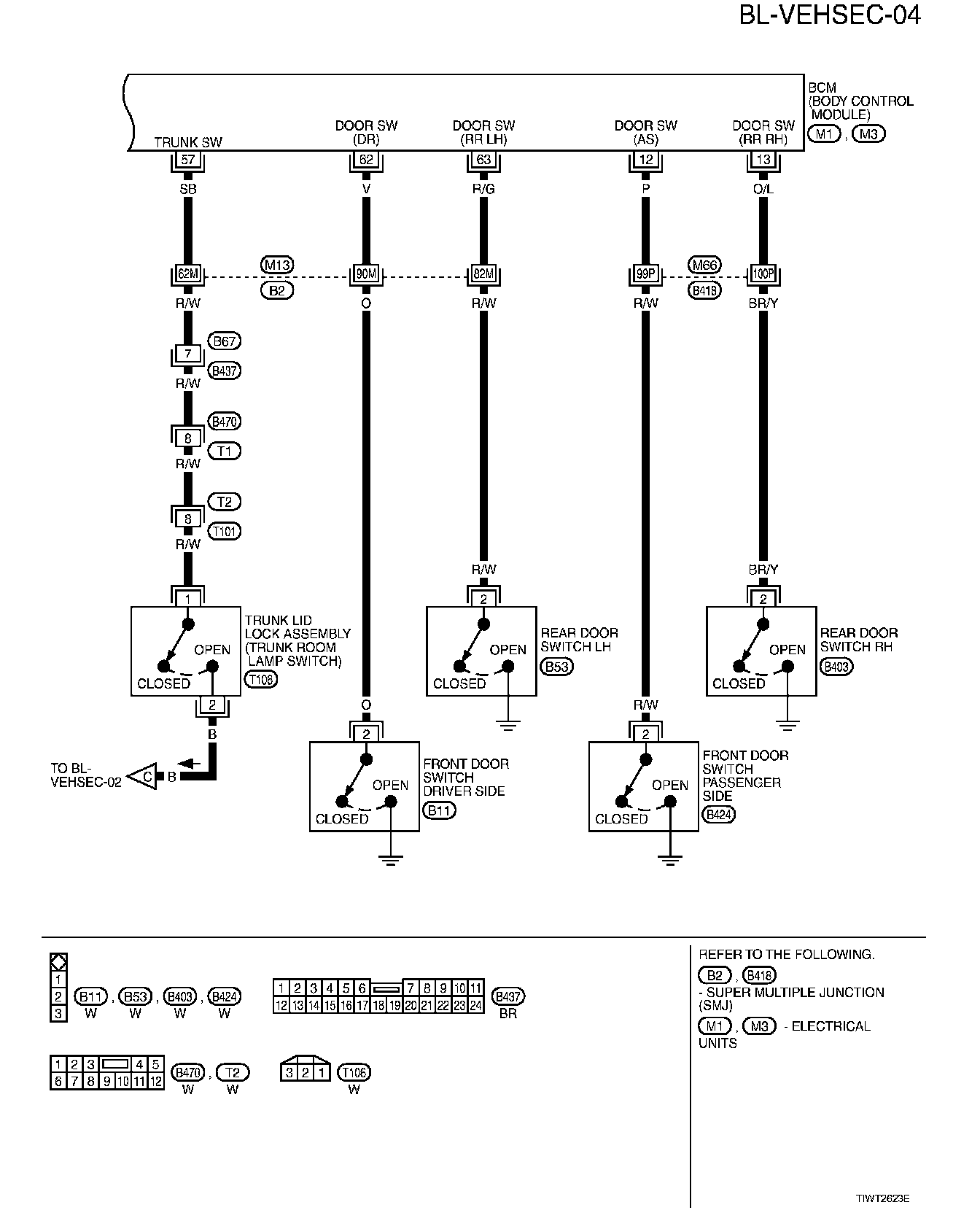

BL-VEHSEC-04:

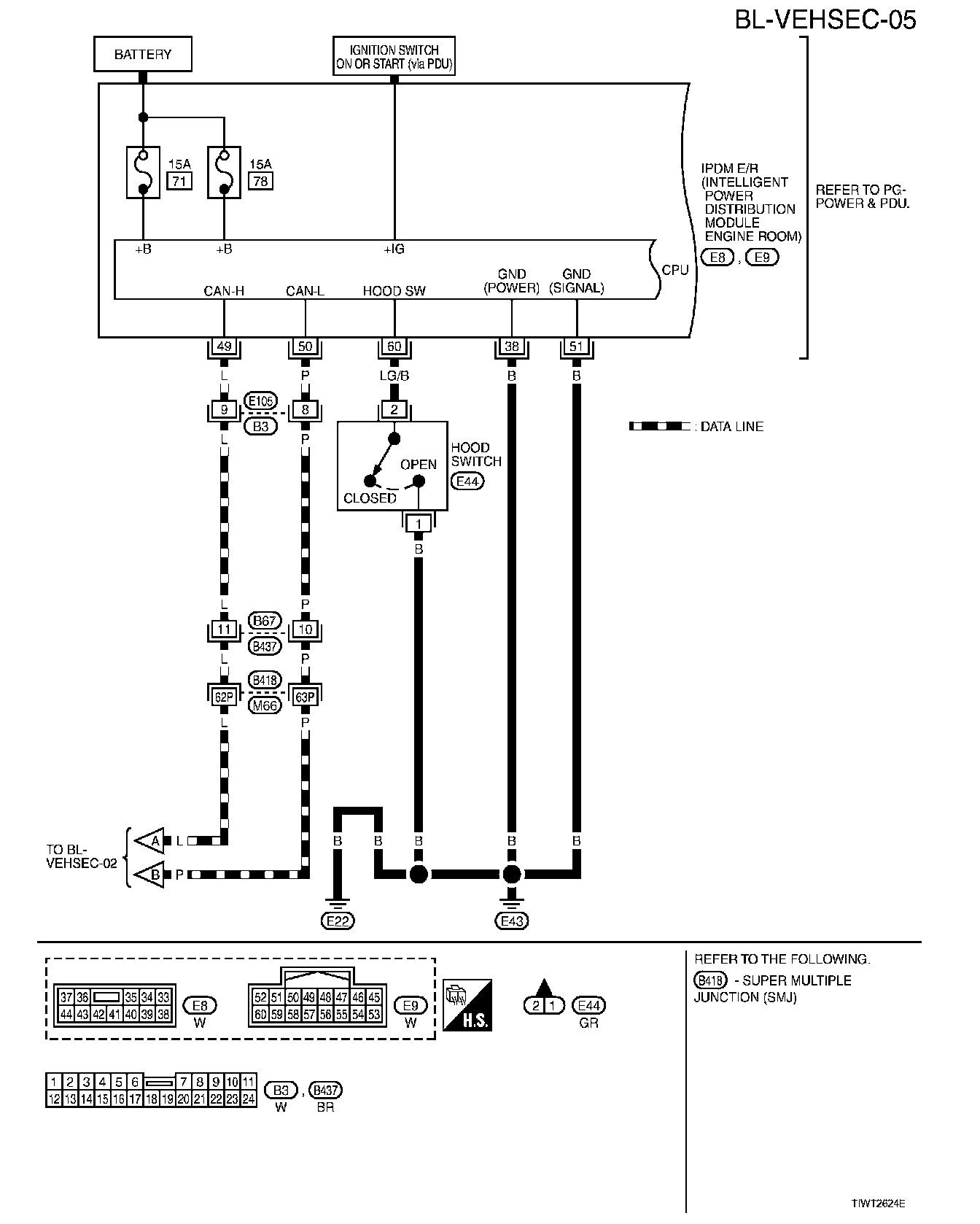

BL-VEHSEC-05:

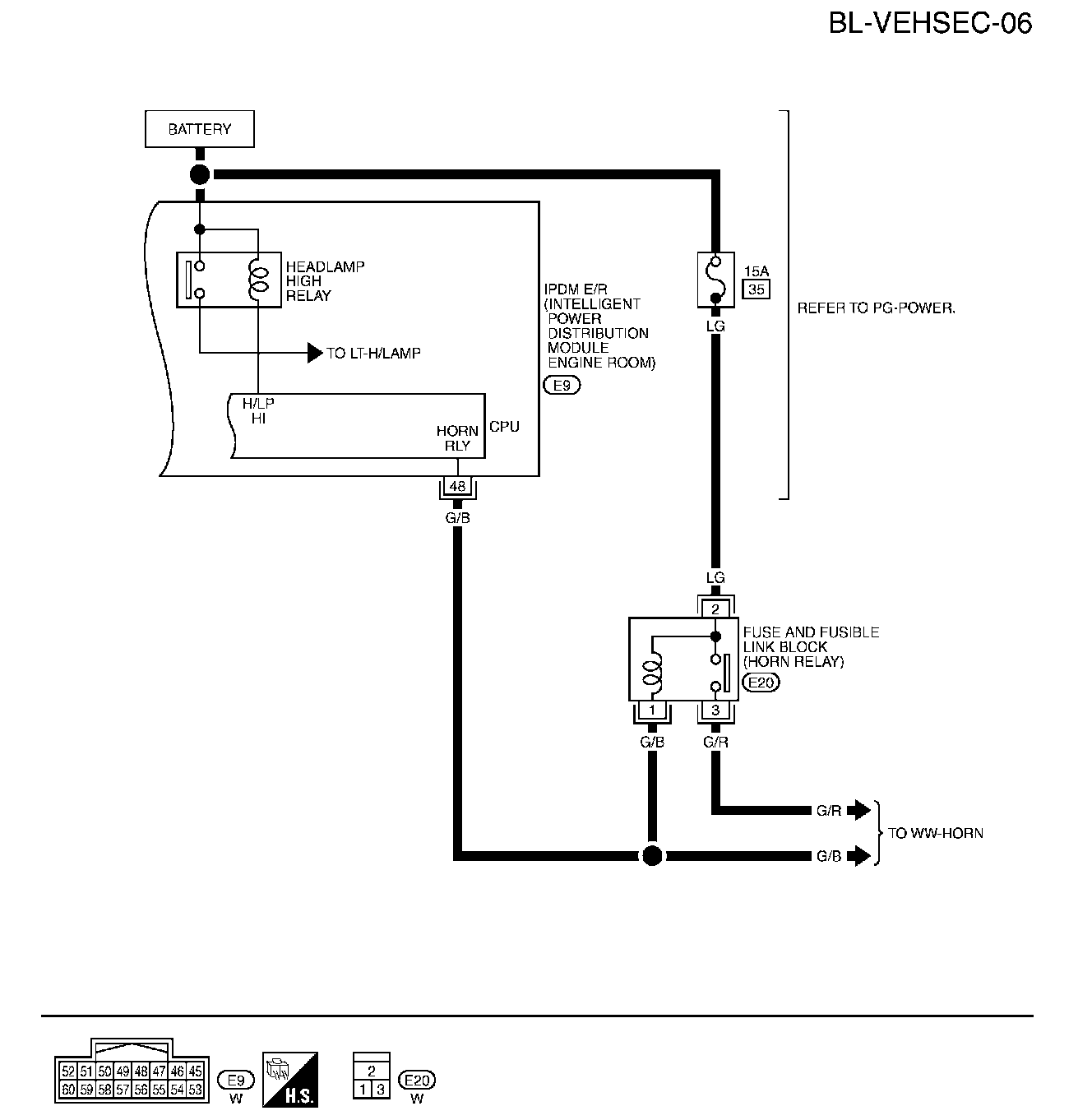

BL-VEHSEC-06:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
