Lane Departure Warning Buzzer Circuit
LANE DEPARTURE WARNING BUZZER CIRCUIT

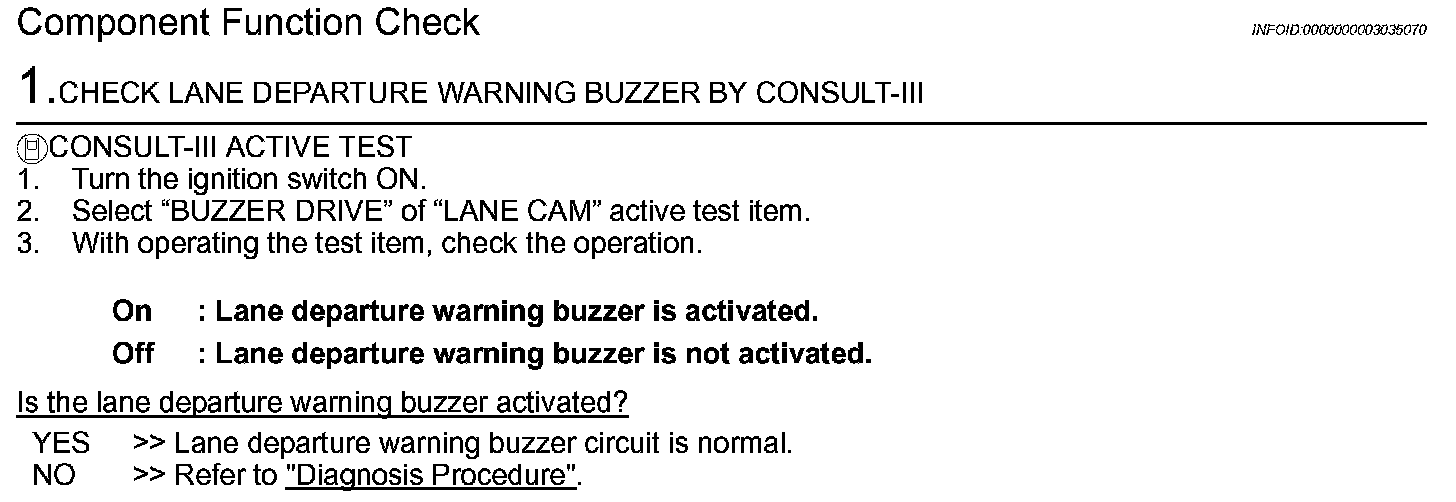

Component Function Check
Step 1:

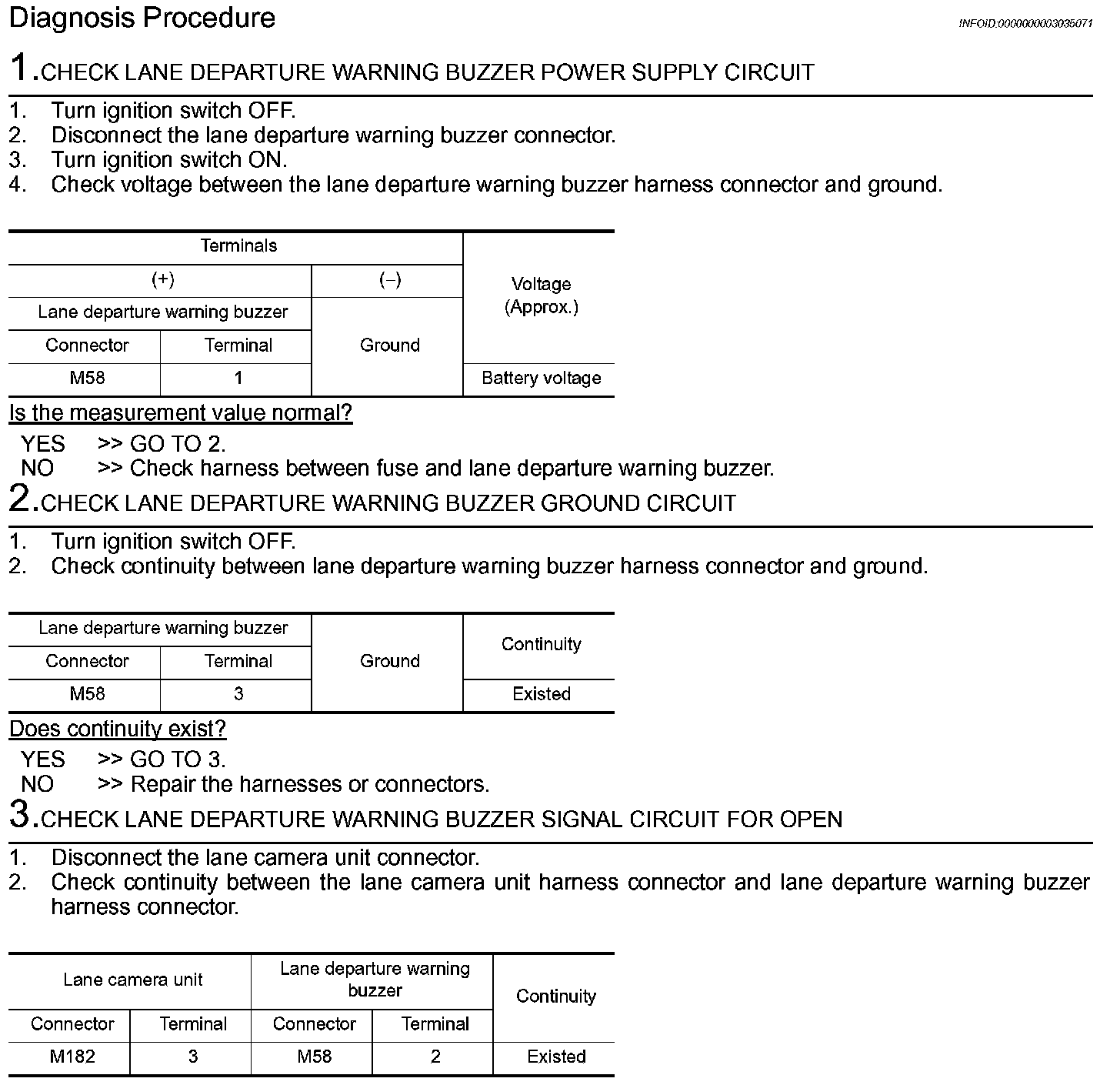

Diagnosis Procedure
Step 1-3:

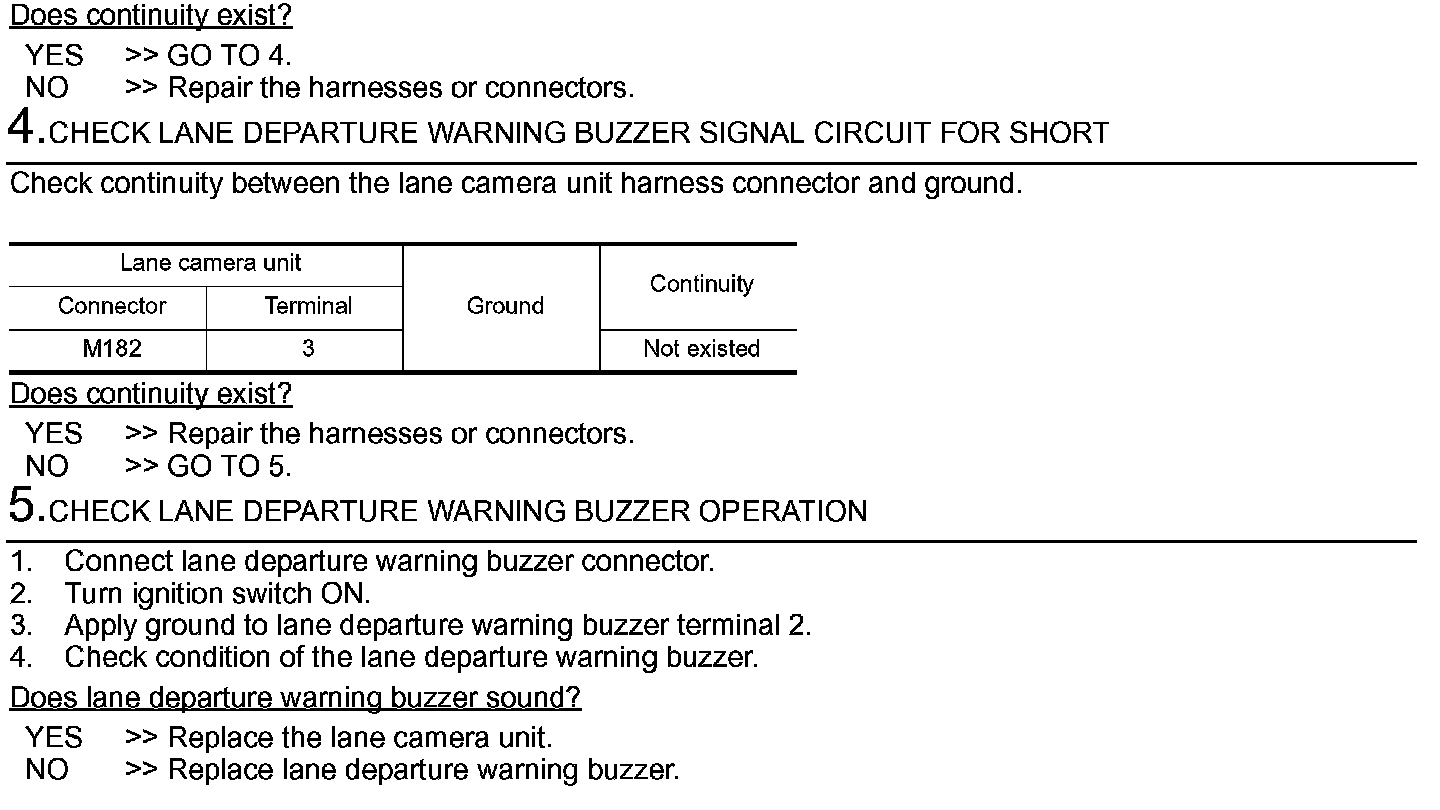

Step 3 (Continued)-5:
