LDP ON Indicator Lamp Circuit
LDP ON Indicator Lamp Circuit
LDP ON INDICATOR LAMP CIRCUIT

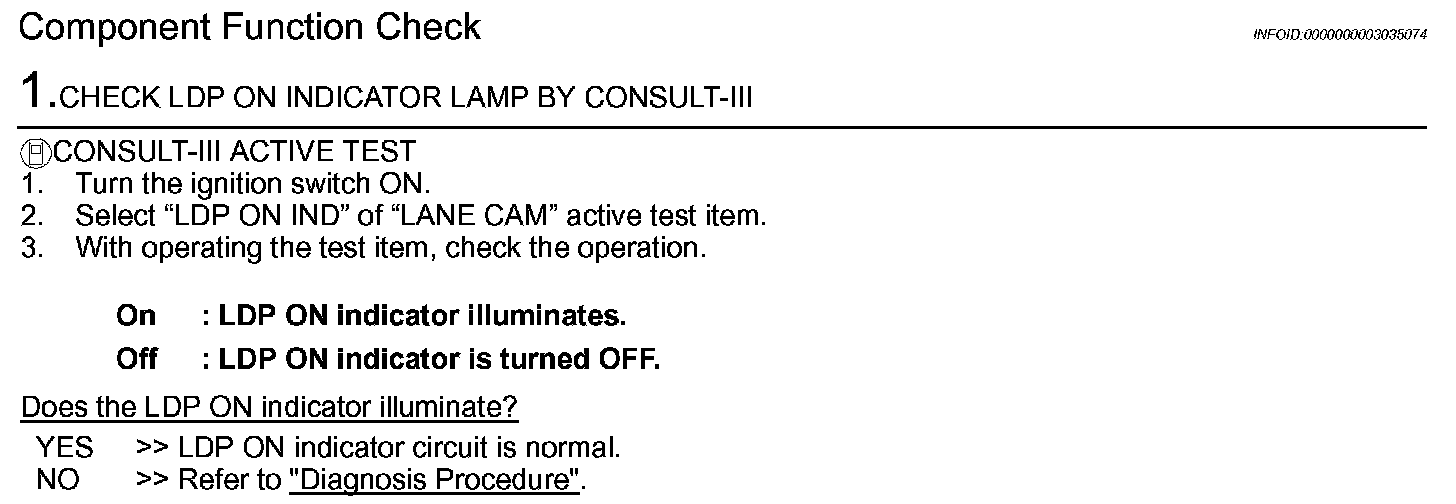

Component Function Check
Step 1:

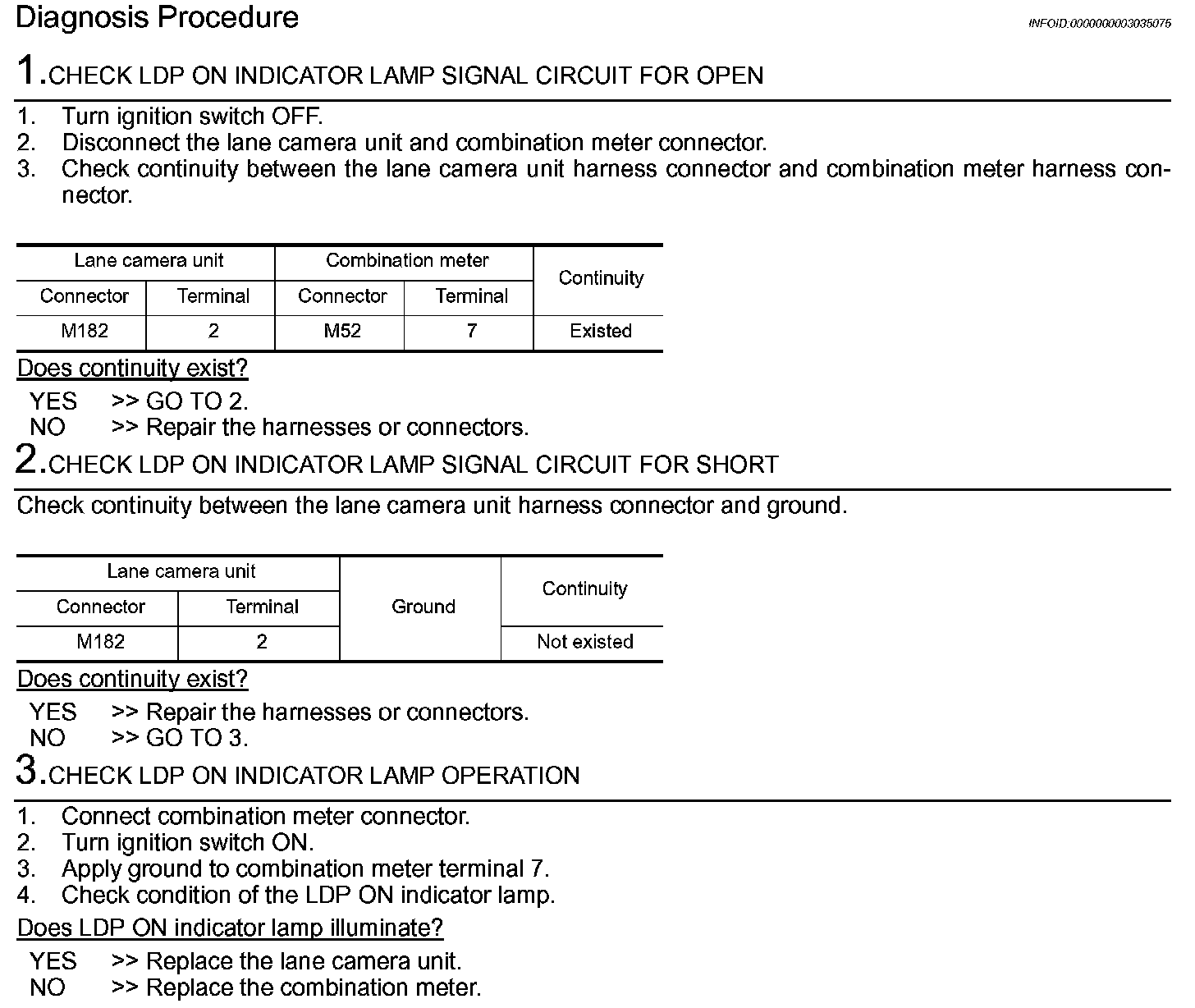

Diagnosis Procedure
Step 1-3:
