LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Infiniti
>>
2008
>>
M35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
LDW ON Indicator Circuit
LDW ON Indicator Circuit
LDW ON INDICATOR CIRCUIT

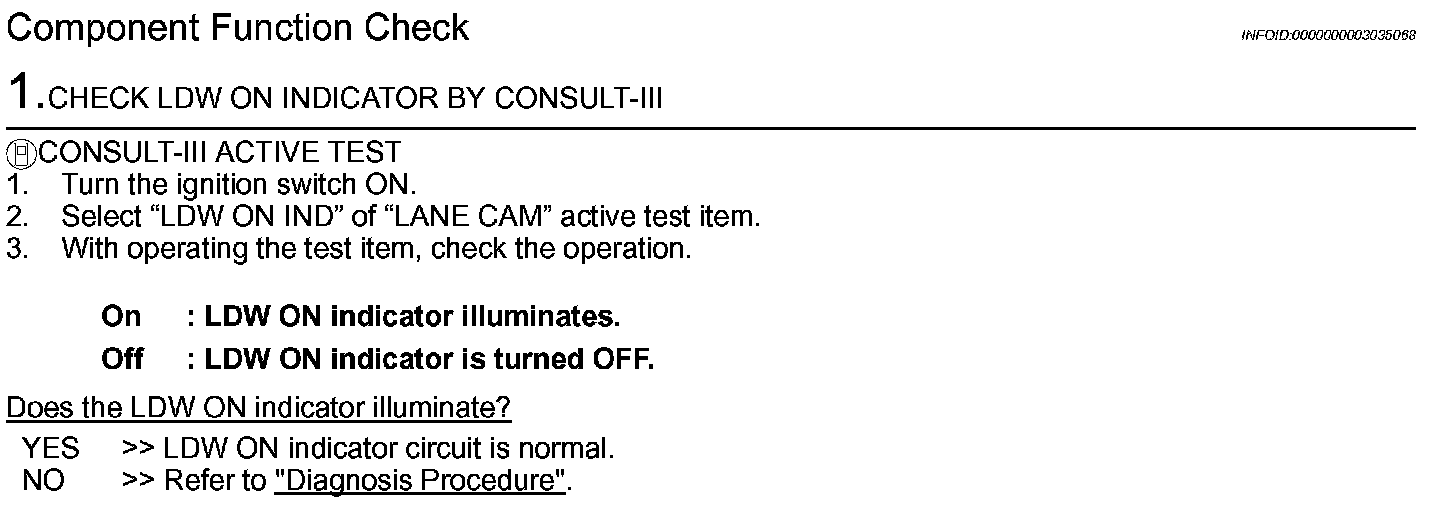

Component Function Check
Step 1:

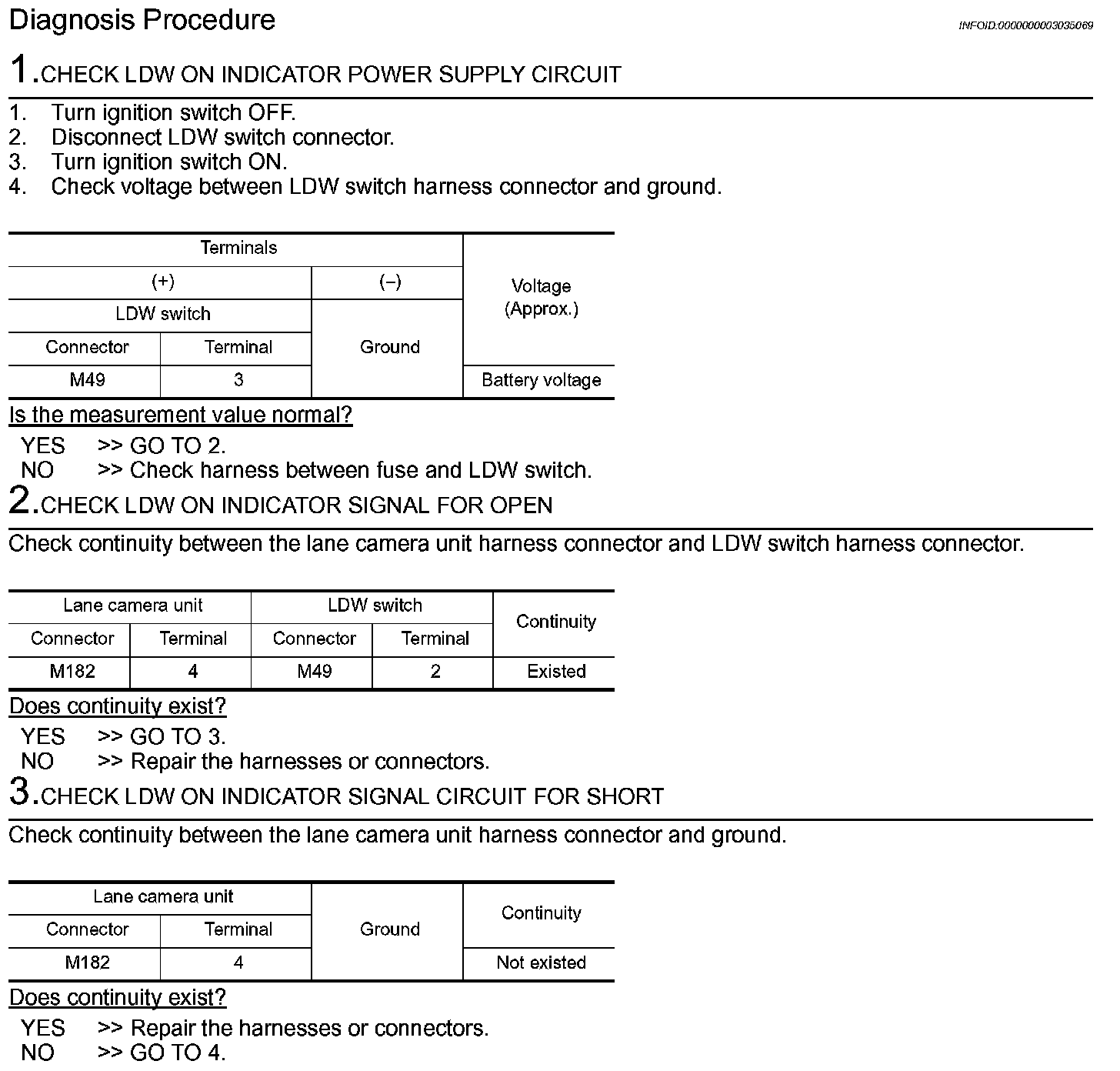

Diagnosis Procedure
Step 1-3:

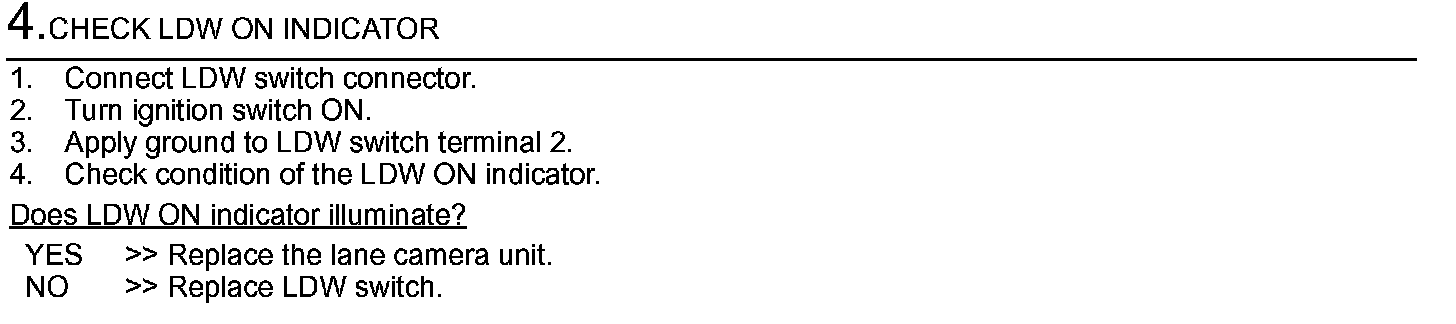

Step 4:
